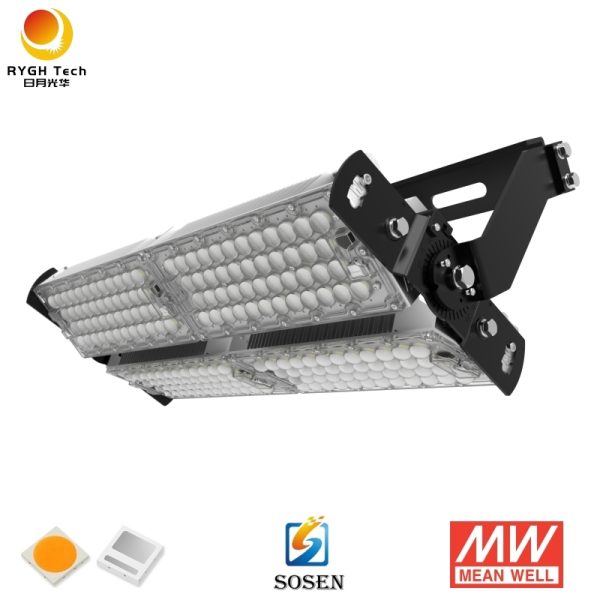

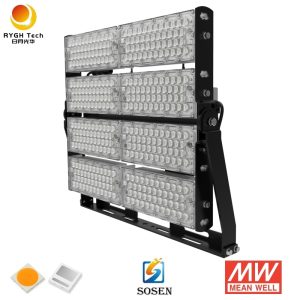

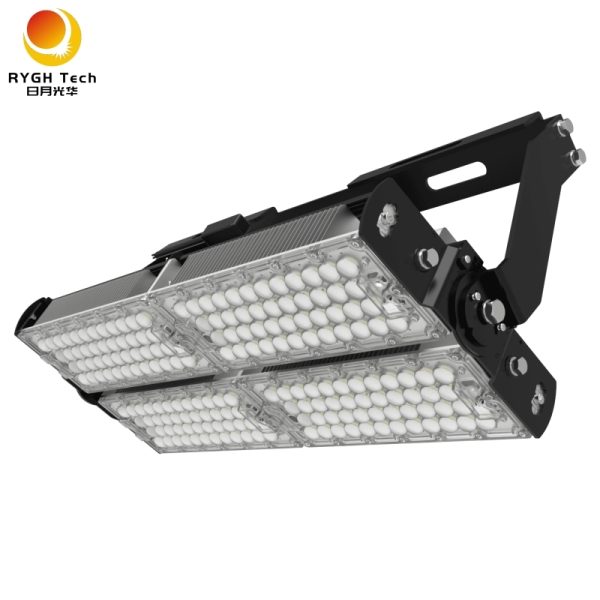

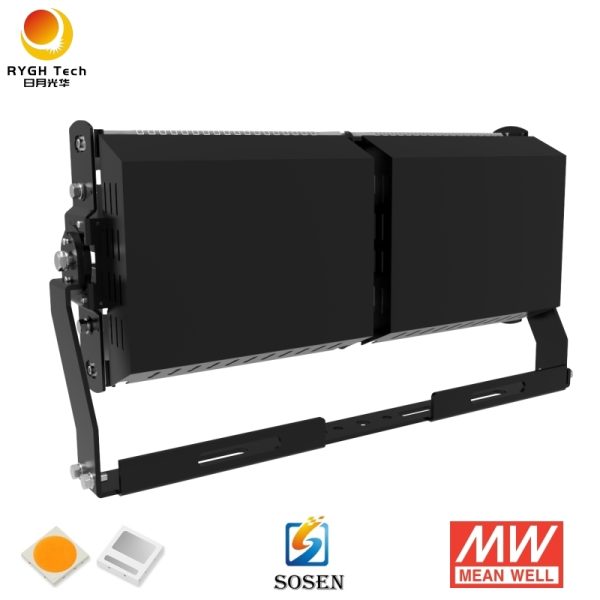

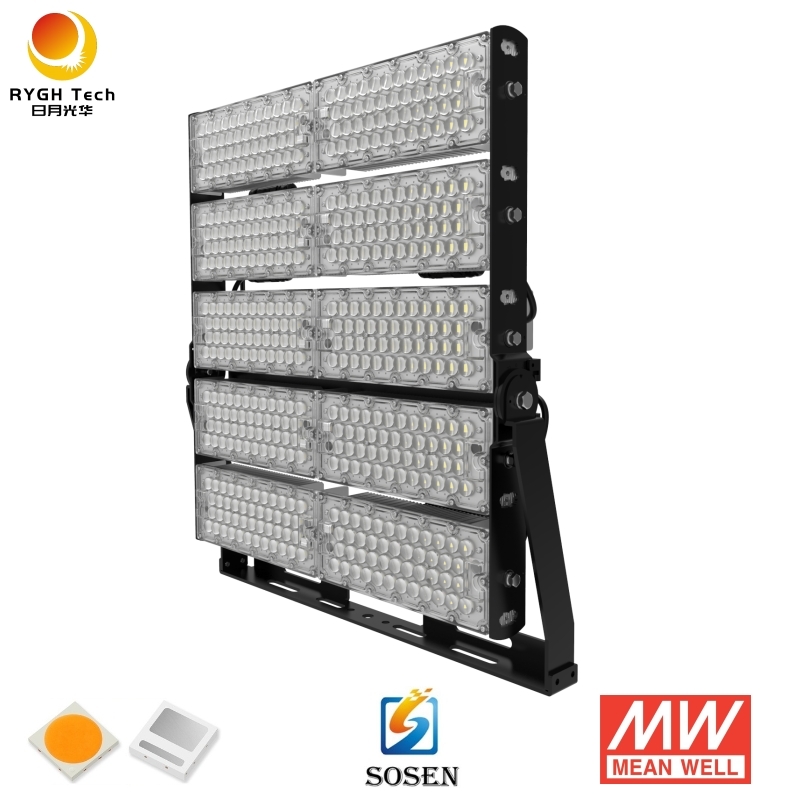

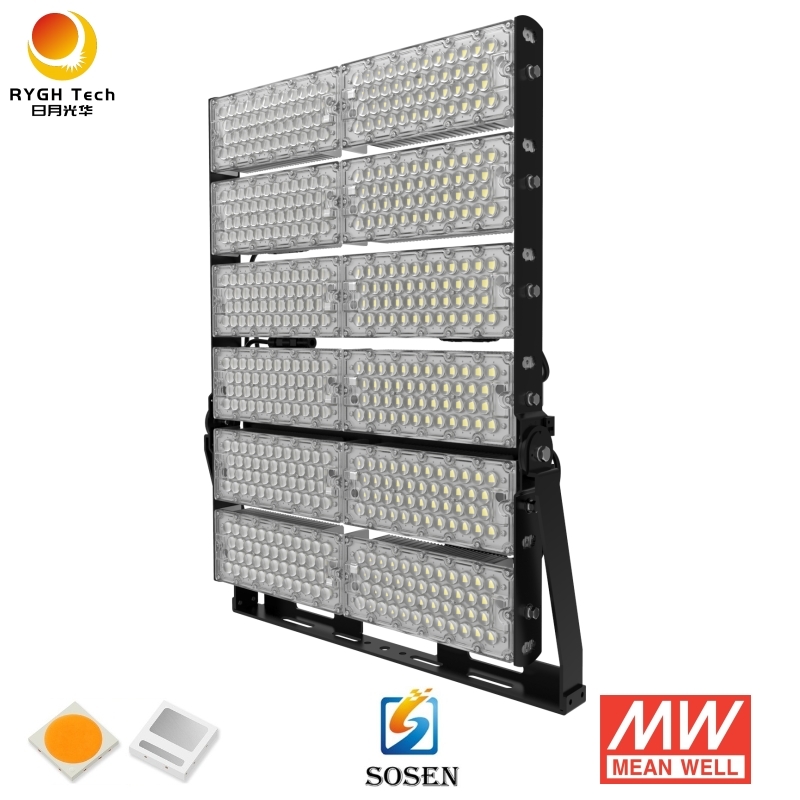

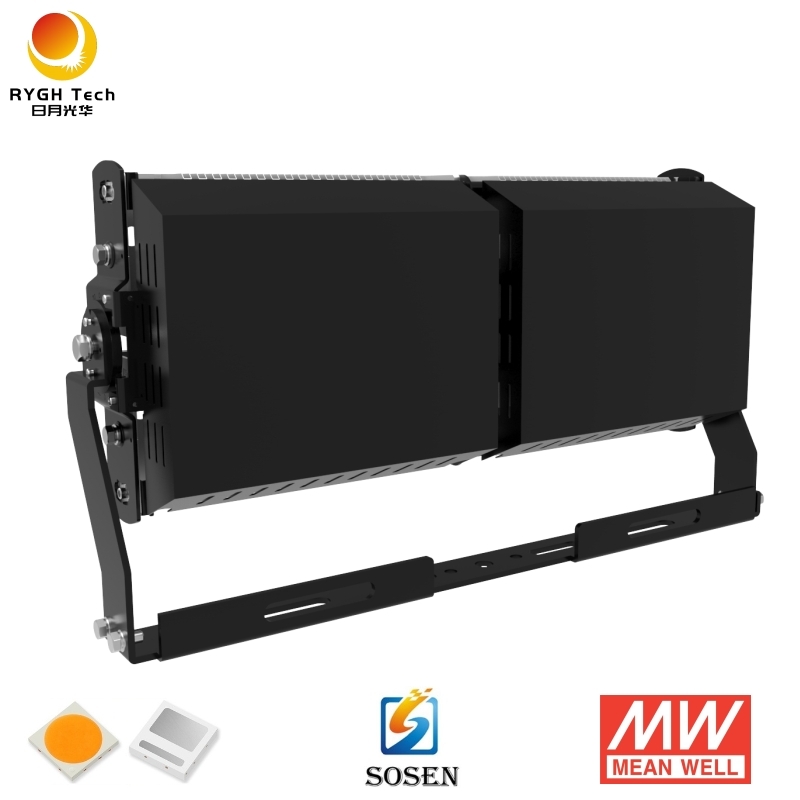

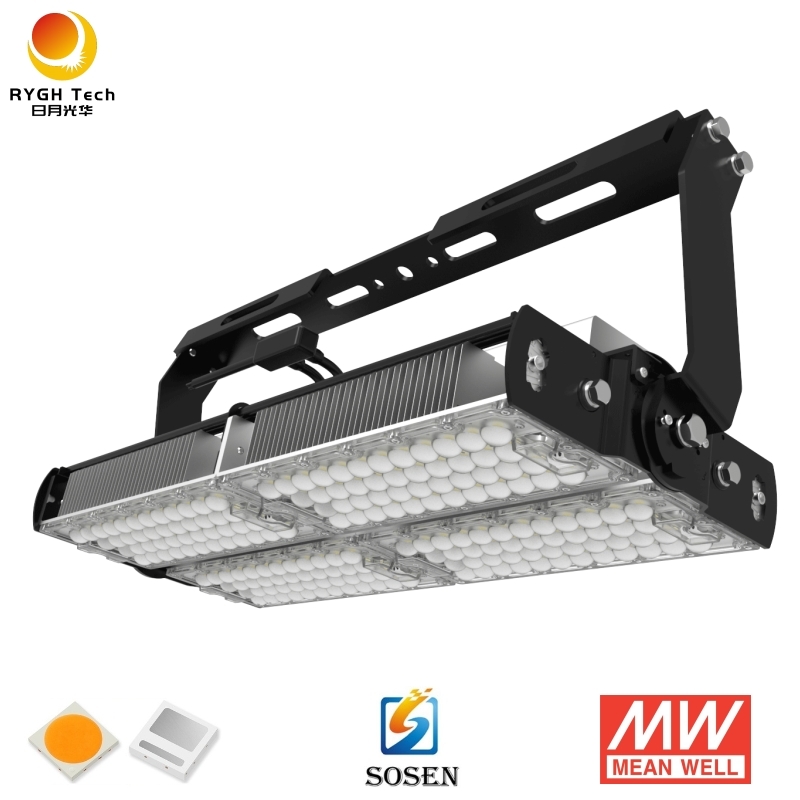

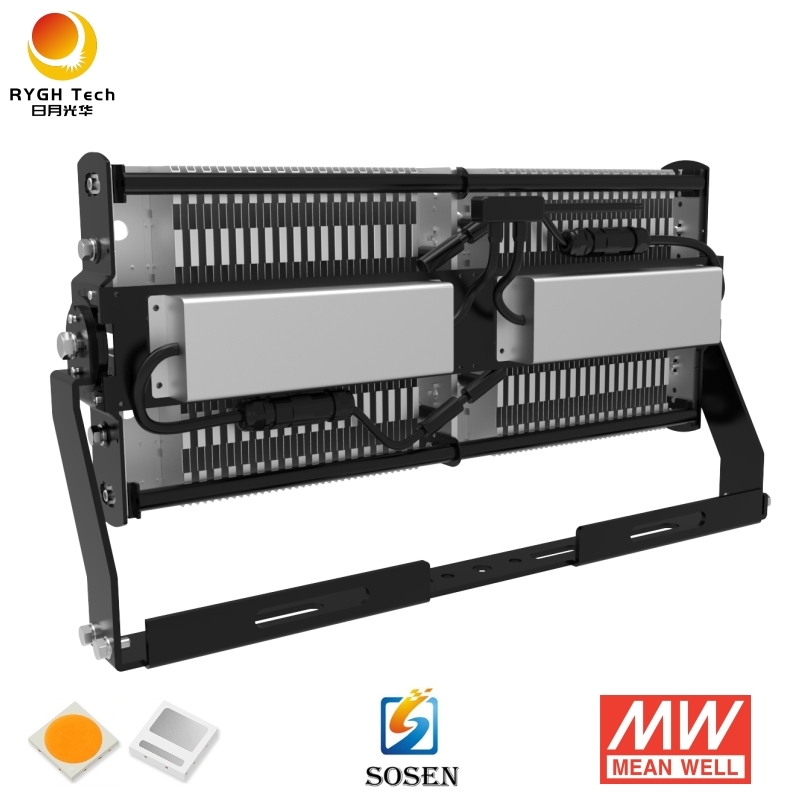

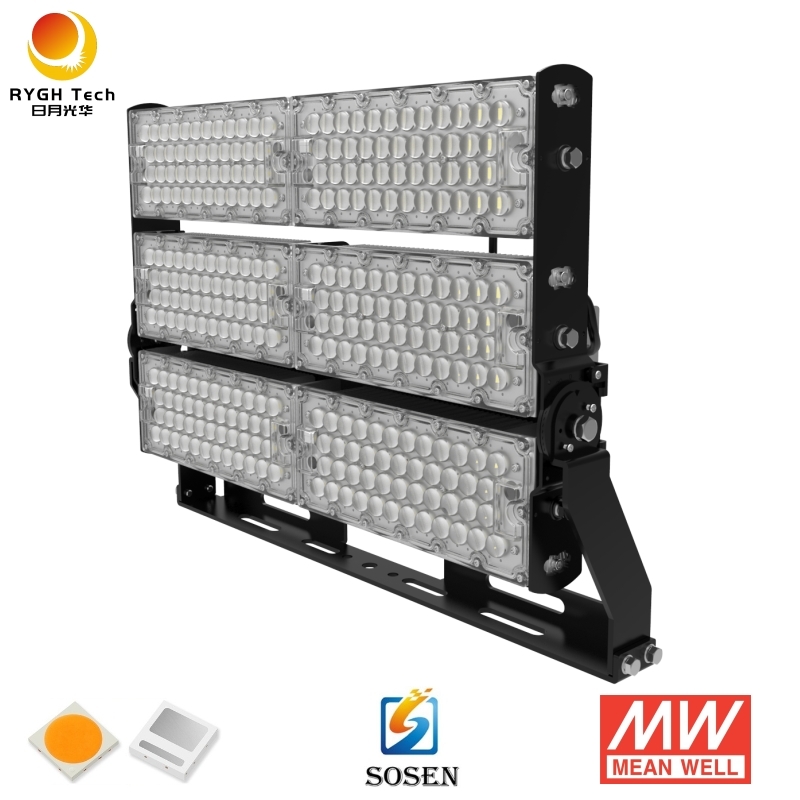

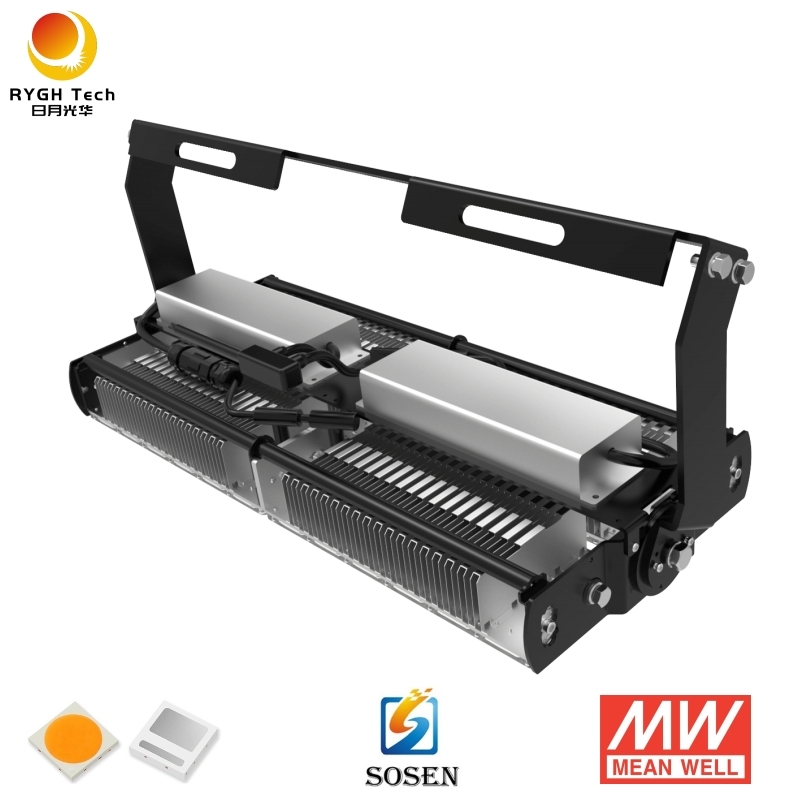

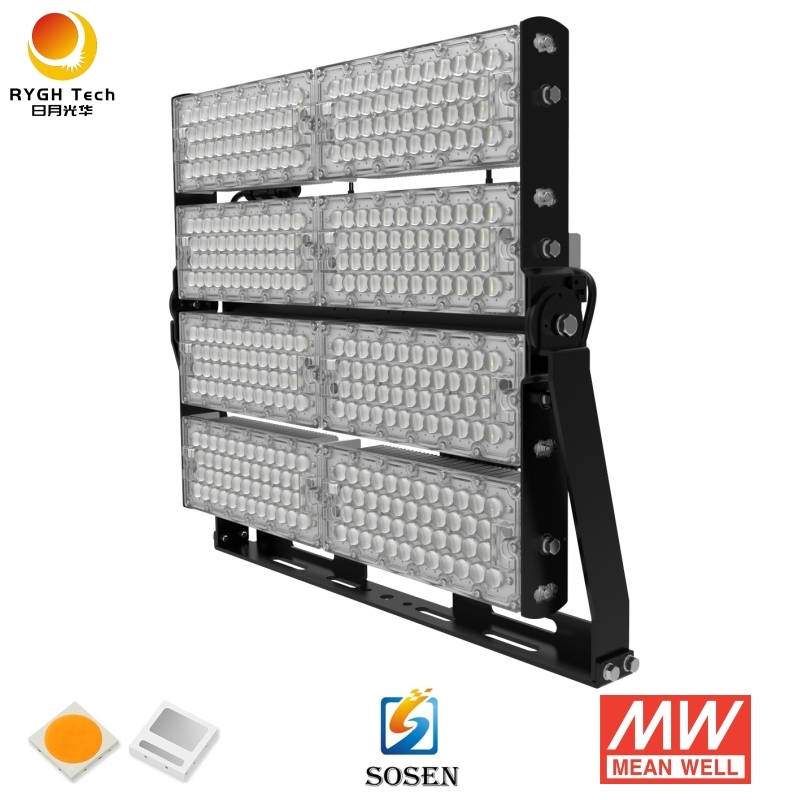

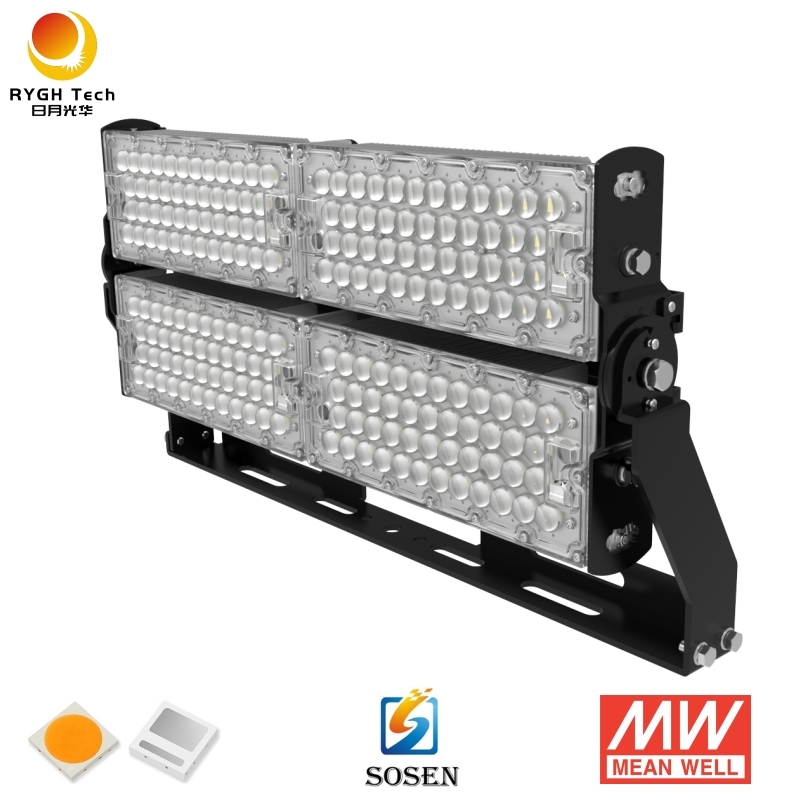

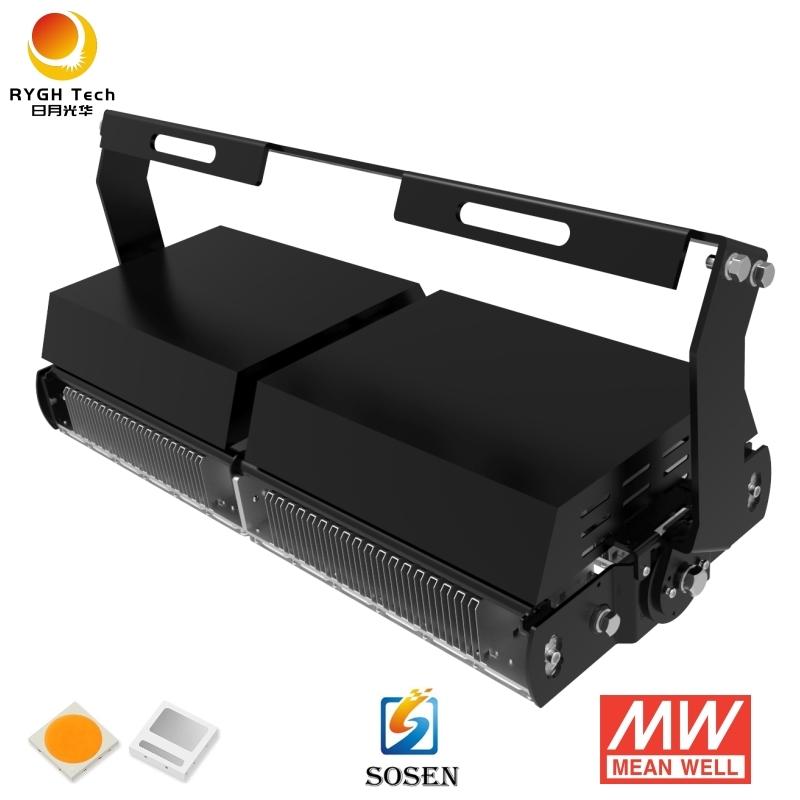

EGM B LED Stadium Light

EGM B LED Stadium LightFeatures: 480W|720W|960W|1200W|1500W
Efficiency: 150-160lm/w | 20°|40°|60°|90°|140*100°

1, Die cast Aluminum Heat Sink,excellent thermal management

2, Unique and industrial look and customized color available

3, Black Frame with die cast aluminum provide high mechanical strength, best heat dissipation

4, Optical Polycarbonate Lenses provide high impact resistance IK08 and multiple lighting distributions: 30°/60°/90°

5, Top brand LED chip and driver, ensure the product quality and lifetime

6, 180°Adjustable Bracket, allows for precise installation

7, “L” Type extended bracket and thick arms, anti-typhoon rating 17

8, Luminous Efficacy up to 150lm/W, Lifetime 50,000H

9, Ingress Protection Rating: IP65/IP66

10, Operation Temperature: -35°-+50°

11, External 10KV SPD, provide extra surge protection

12, Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz

Description
Reviews 0

EGM B LED Stadium Light Specifications

Model no.	RYGH-EGM-480WB	RYGH-EGM-720WB	RYGH-EGM-960WB	RYGH-EGM-1200WB	RYGH-EGM-1500WB
Rated power	480 Watt	720W	960W	1200W	1500W
Input voltage	AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
LED Chip	3030/5050 SMD	3030/5050 SMD	3030/5050 SMD	3030/5050 SMD	3030/5050 SMD
LED Driver	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc
Material	FIN AL+PC	FIN AL+PC	FIN AL+PC	FIN AL+PC	FIN AL+PC
CRI	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98
Power Factor	>0.95	>0.95	>0.95	>0.95	>0.95
CCT	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW
Light efficacy	140-160LM/W	140-160LM/W	140-160LM/W	140-160LM/W	140-160LM/W
IP rating	IP65	IP65	IP65	IP65	IP65
IK rating	IK08	IK08	IK08	IK08	IK08
Operation temperature	-35~+50℃	-35~+50℃	-35~+50℃	-35~+50℃	-35~+50℃
Beam angle	20°.40°.60°.90°. 140*100°	20°.40°.60°.90°. 140*100°	20°.40°.60°.90°. 140*100°	20°.40°.60°.90°. 140*100°	20°.40°.60°.90°. 140*100°
Warranty	5 Years	5 Years	5 Years	5 Years	5 Years
Life span	50,000 hours	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Dimension	649133343mm	649133475mm	649133597mm	649133729mm	649133861mm
Packing quantity	1 piece/CTN	1 piece/CTN	1 piece/CTN	1 piece/CTN	1 piece/CTN
Net Weight	9KG	12.5KG	19.5KG	23KG	30KG
Gross Weight	11KG	14.5KG	22KG	25.5KG	33KG
Certificate	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs

Environment Requirement

Working Temperature：-35~+50℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

EGM B LED Stadium Light Application:

EGM B LED Stadium Light can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

5-year warranty since the date of purchase is offered for all LED flood Lights.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.

Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
