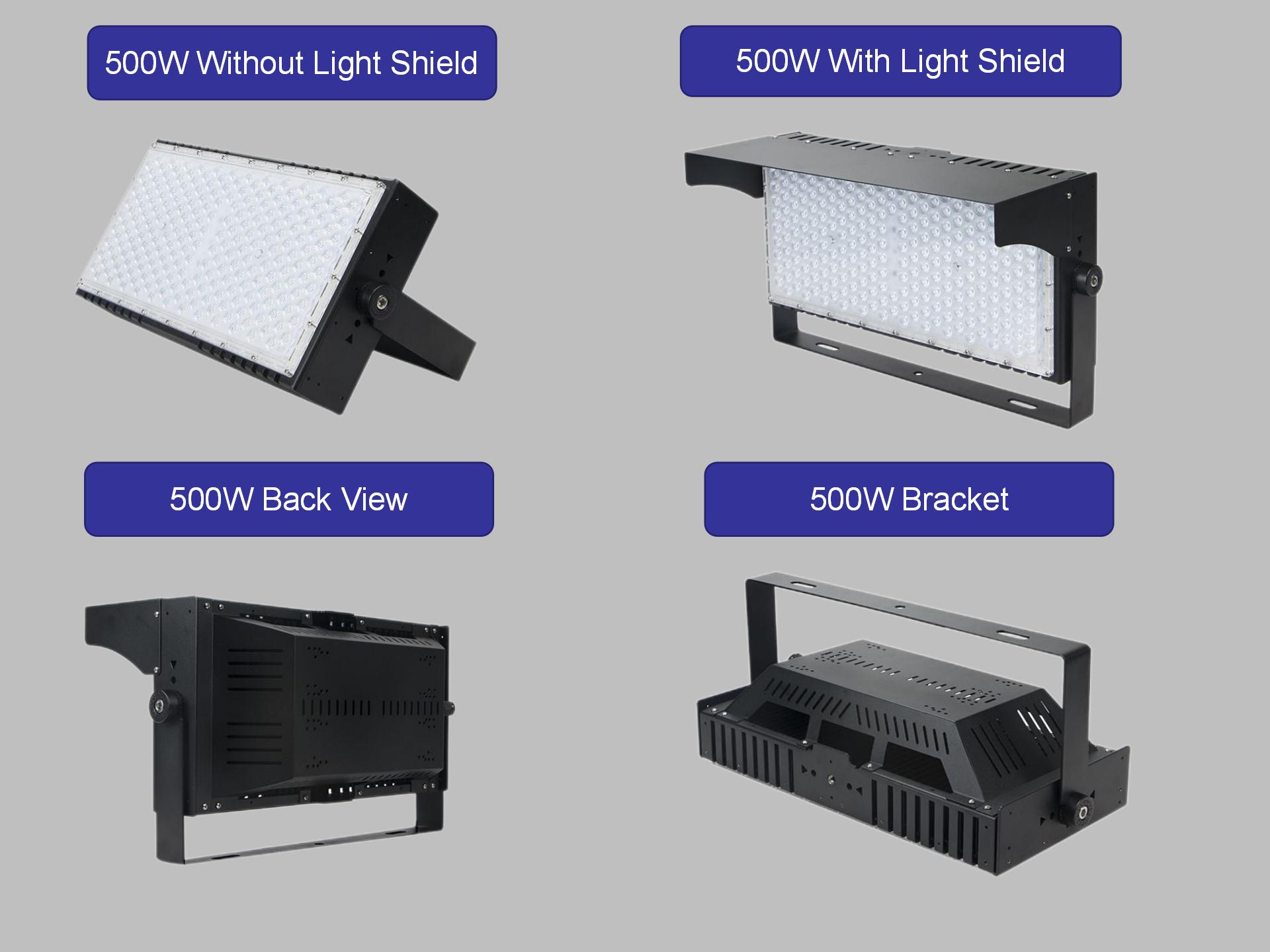

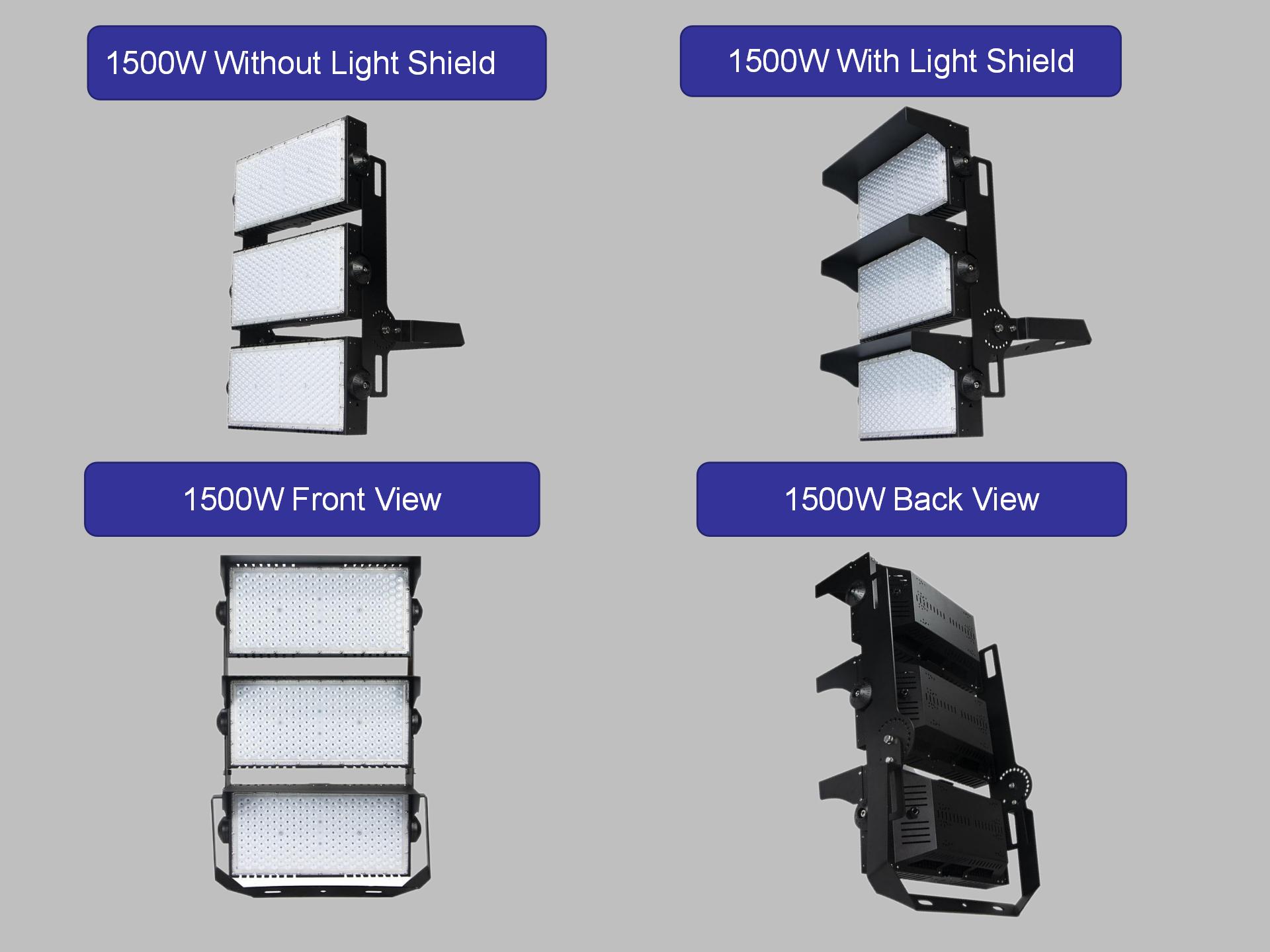

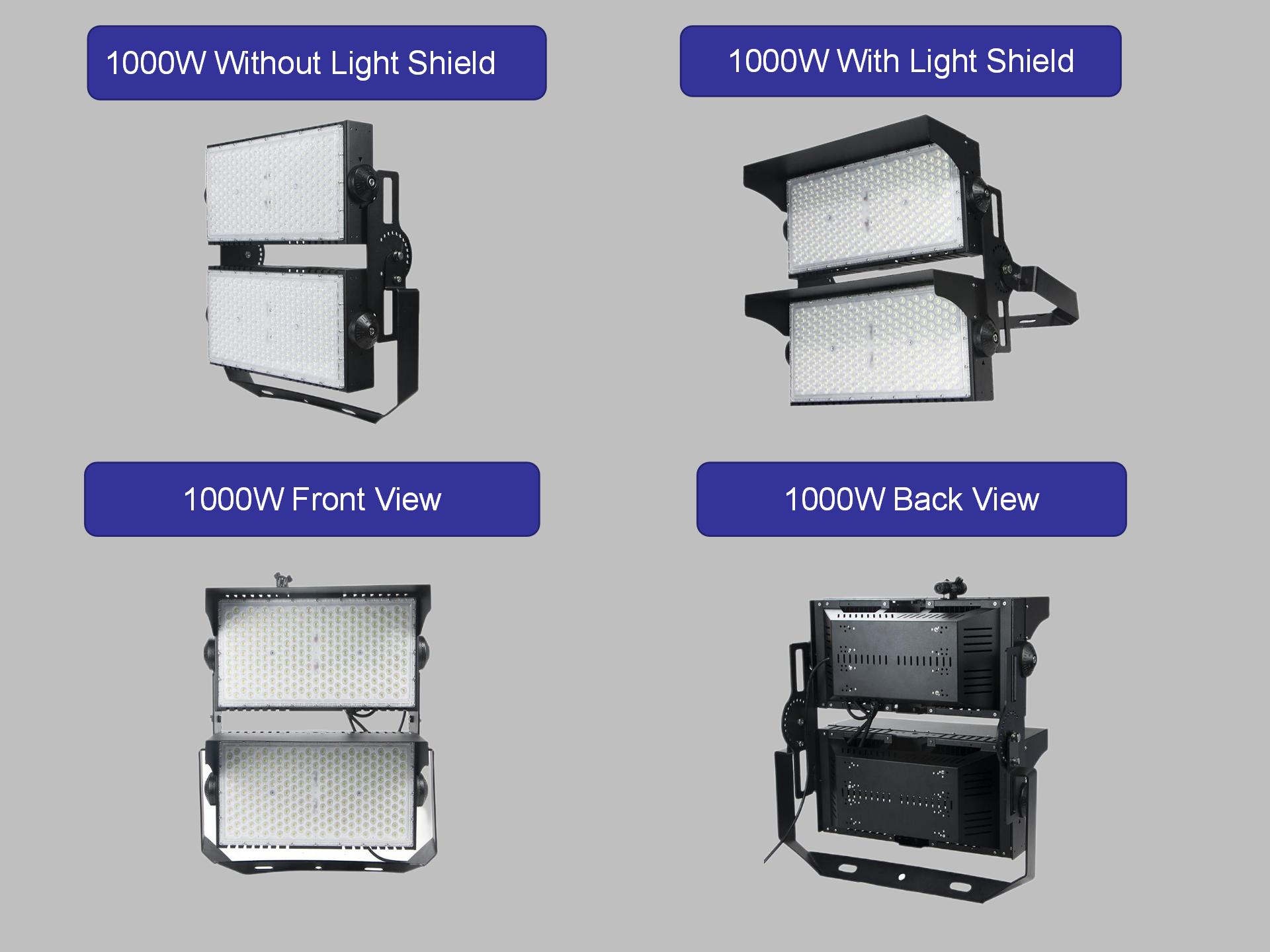

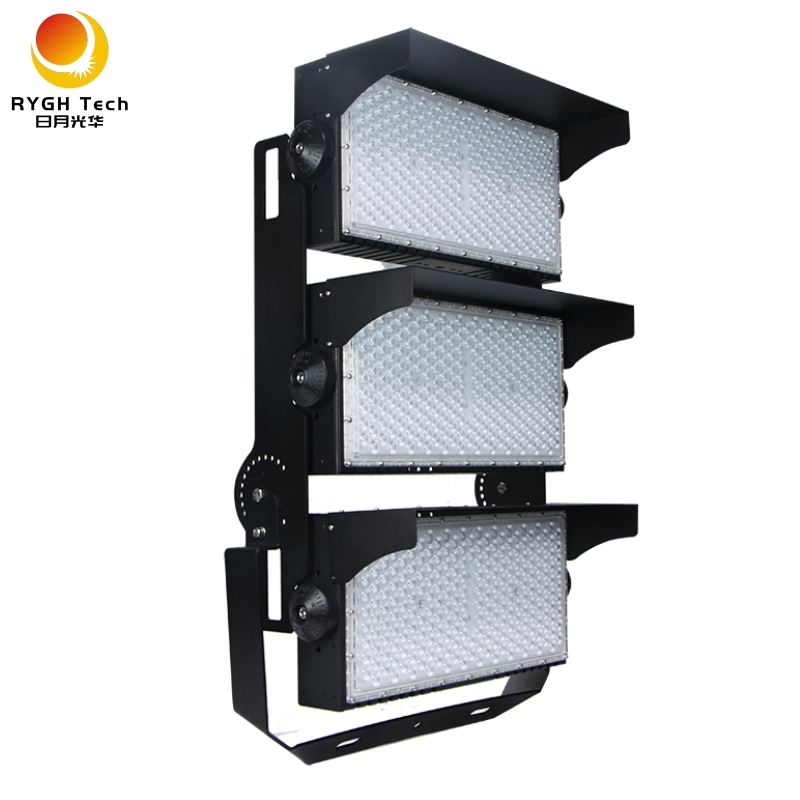

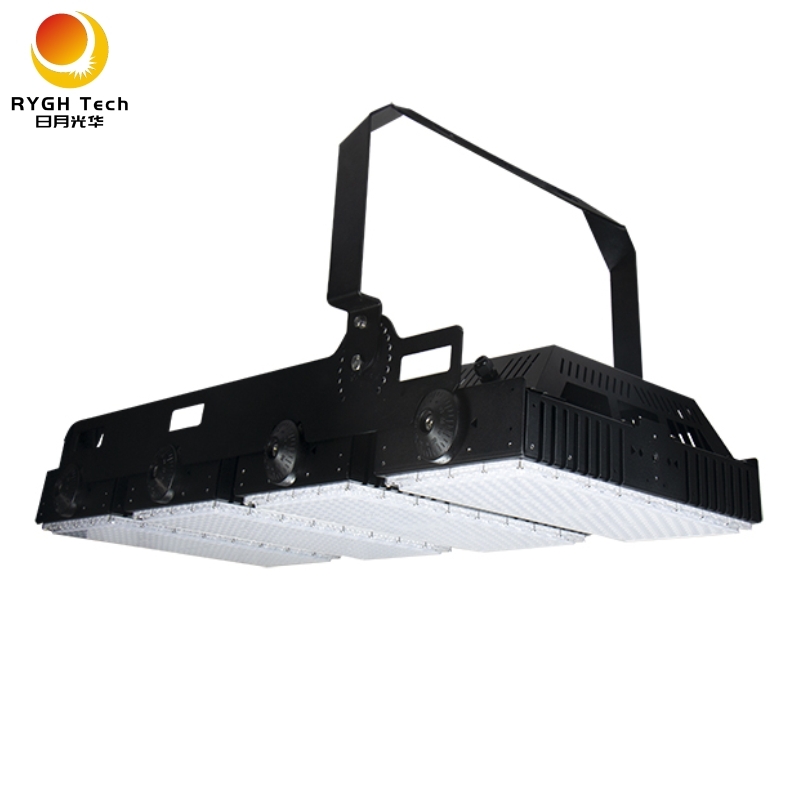

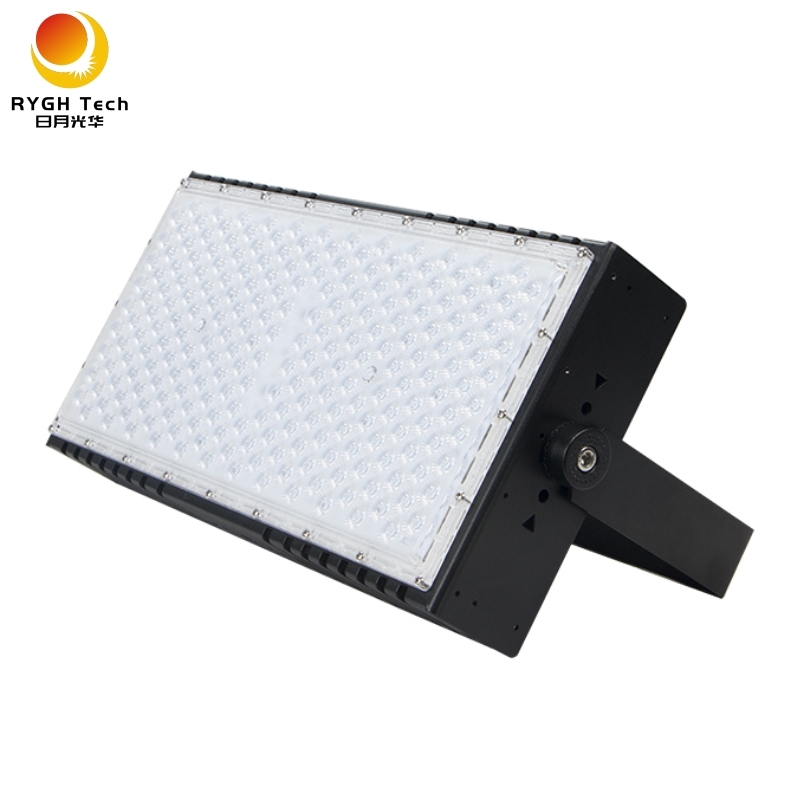

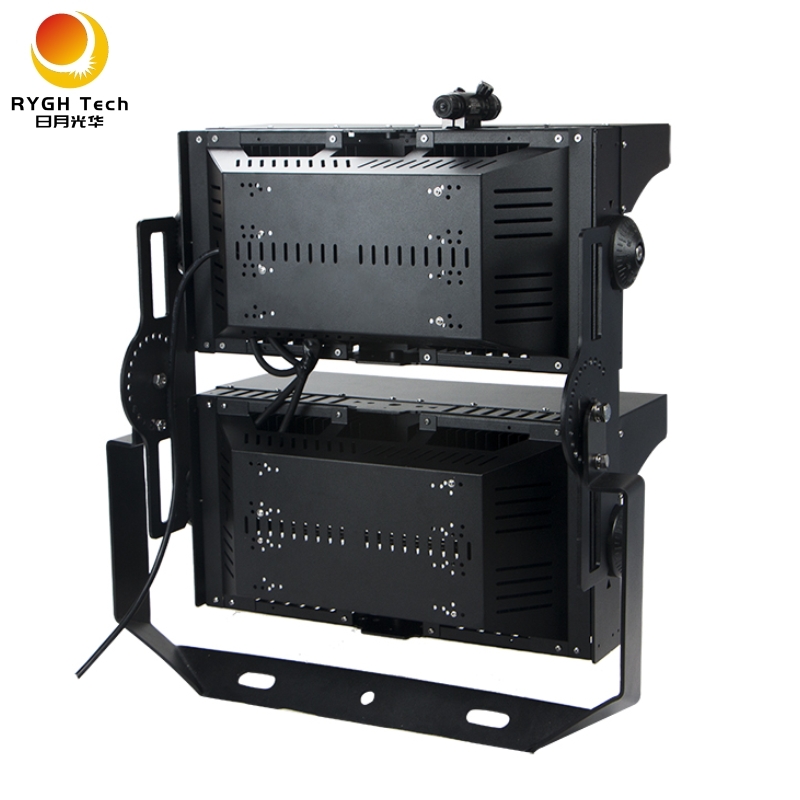

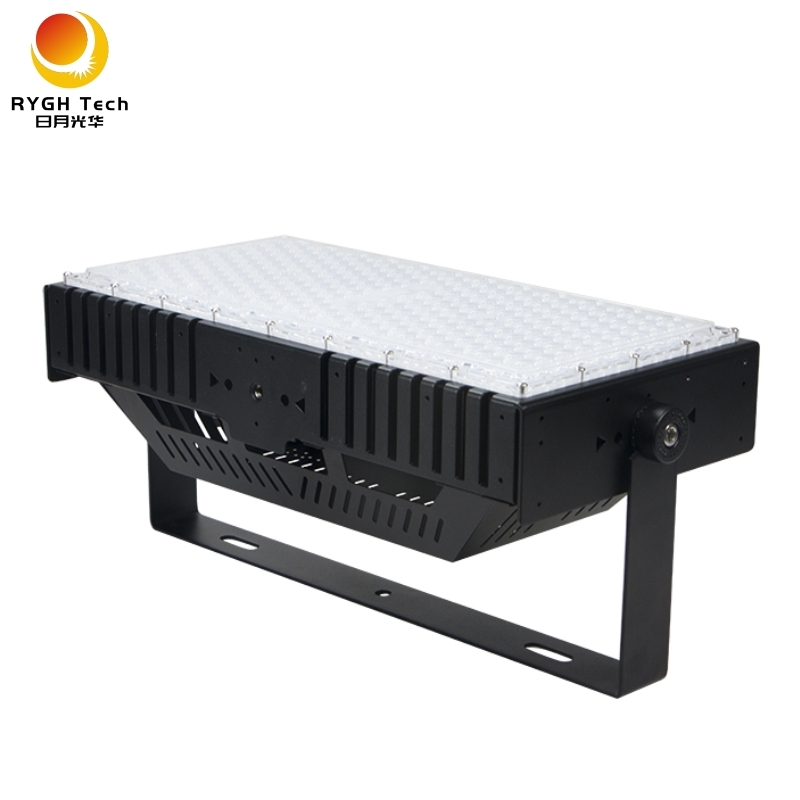

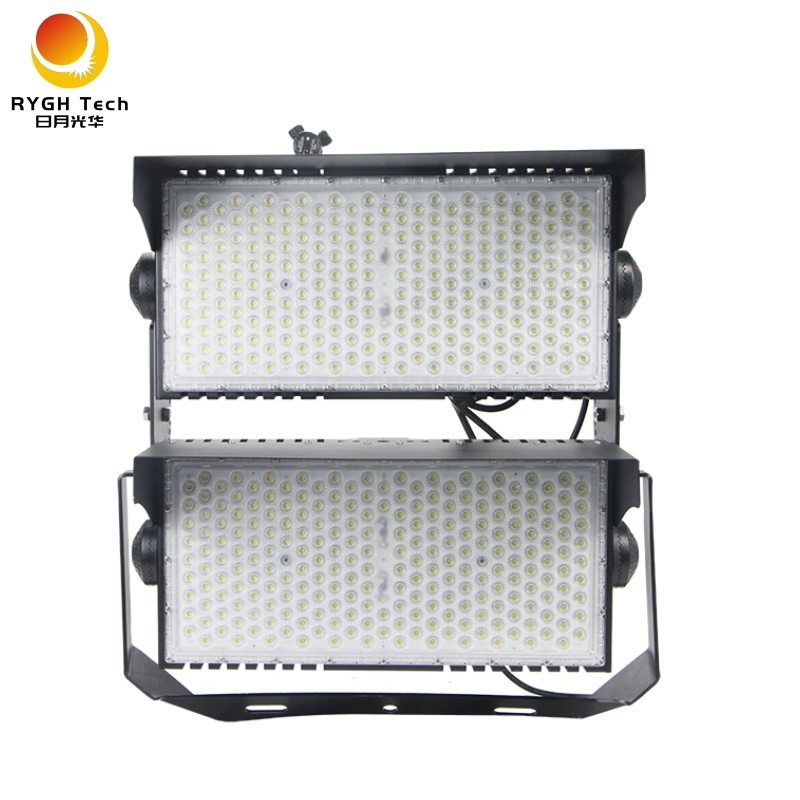

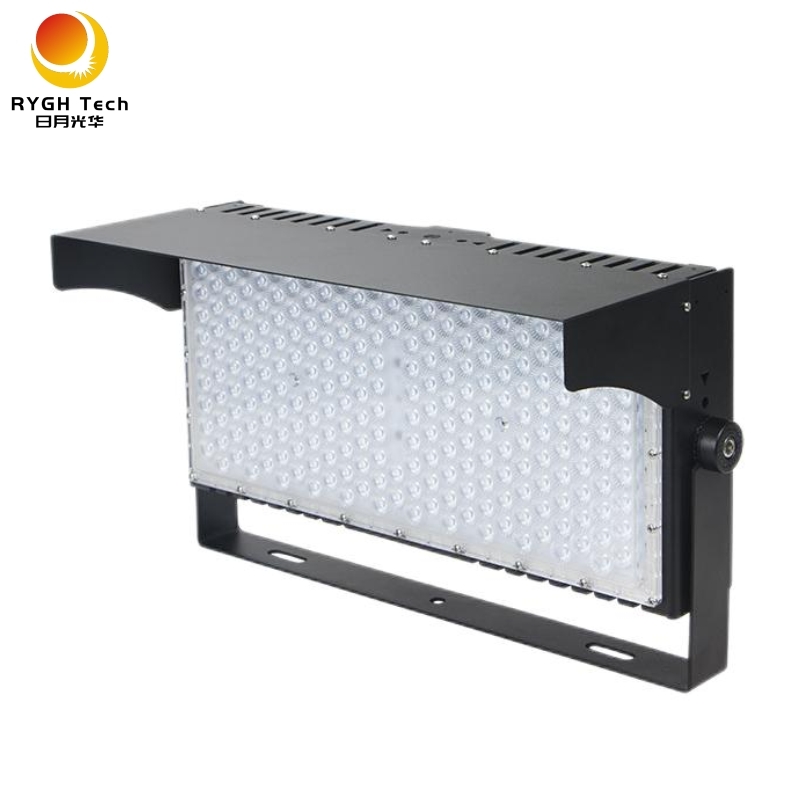

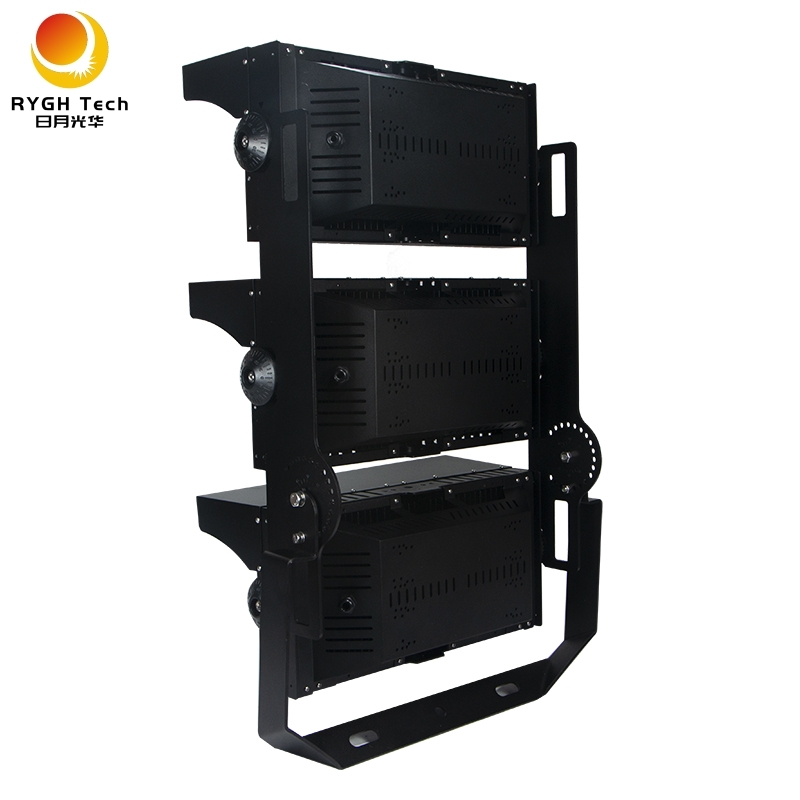

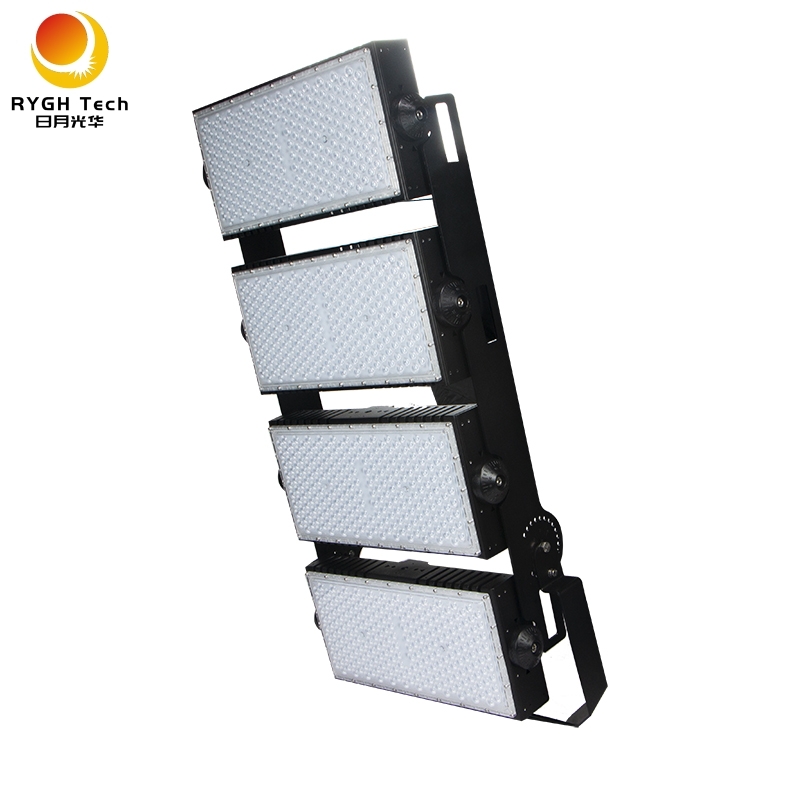

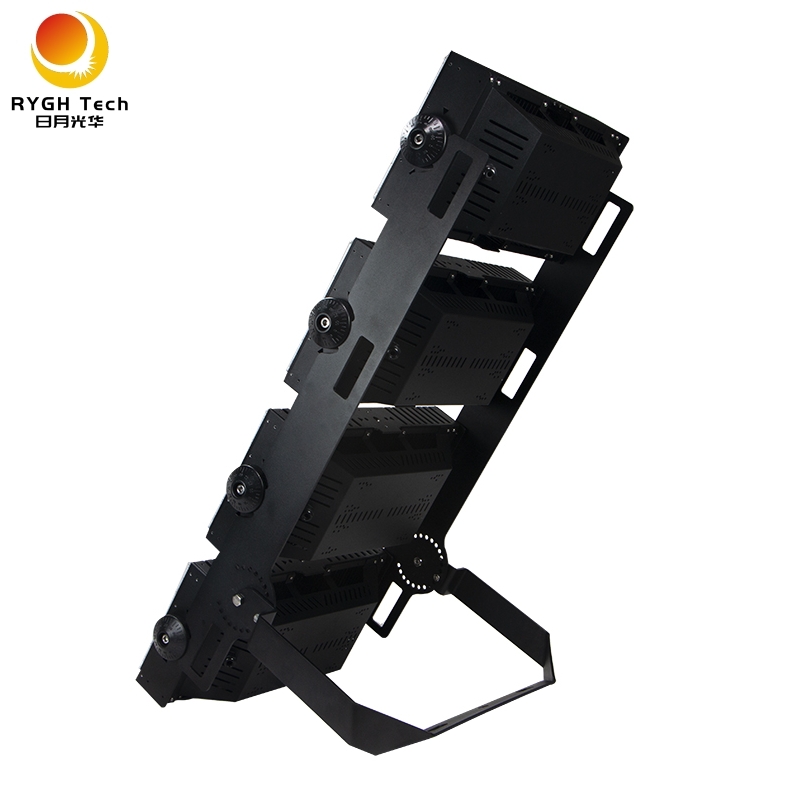

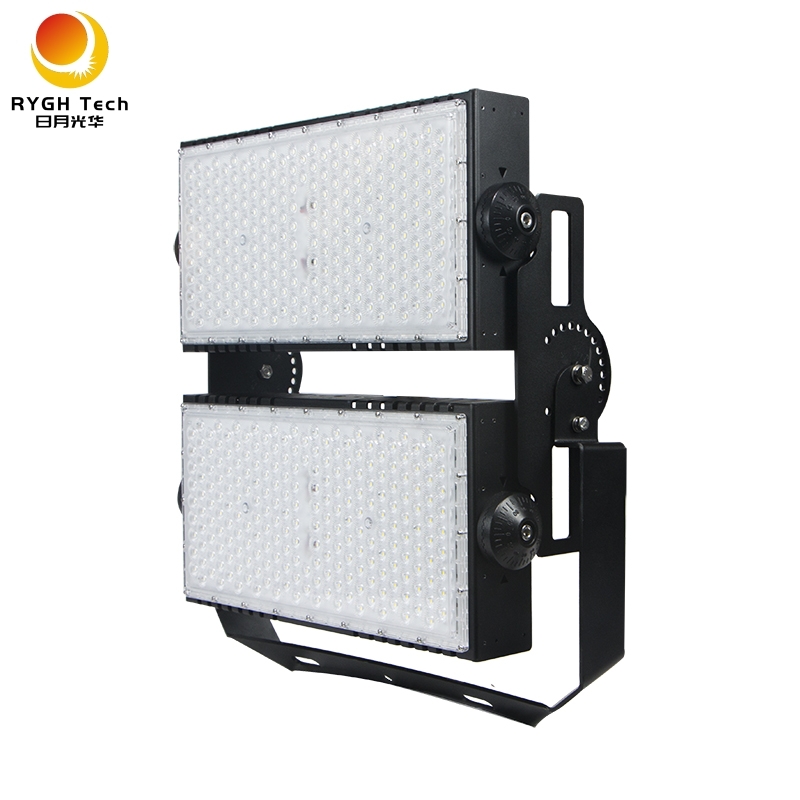

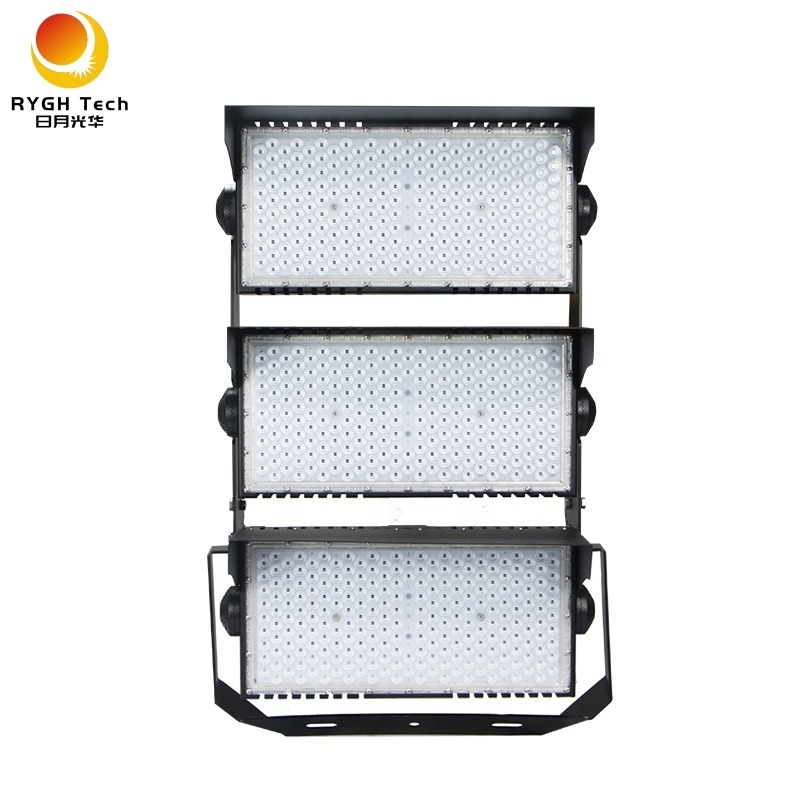

L Series LED Stadium Light

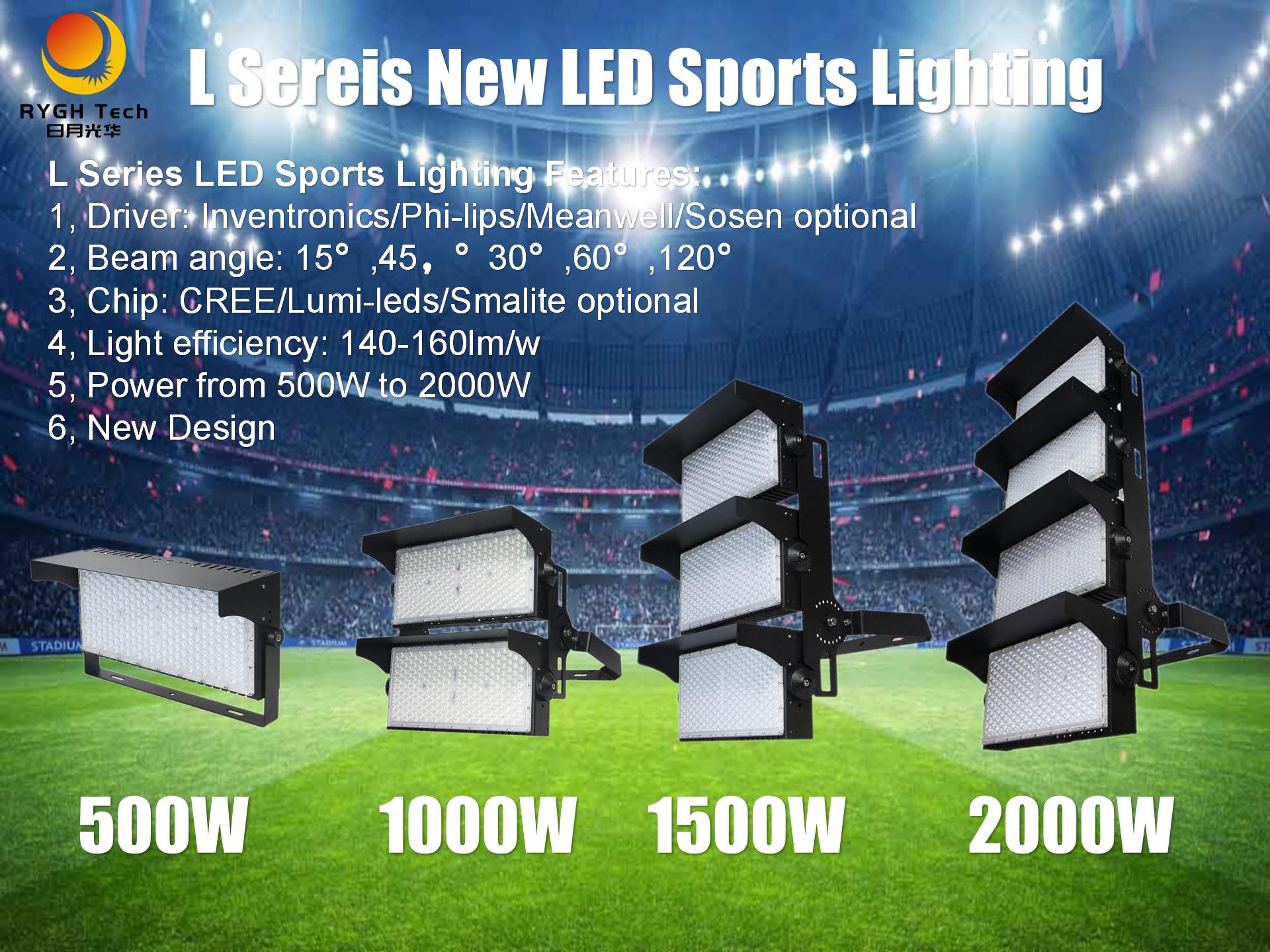

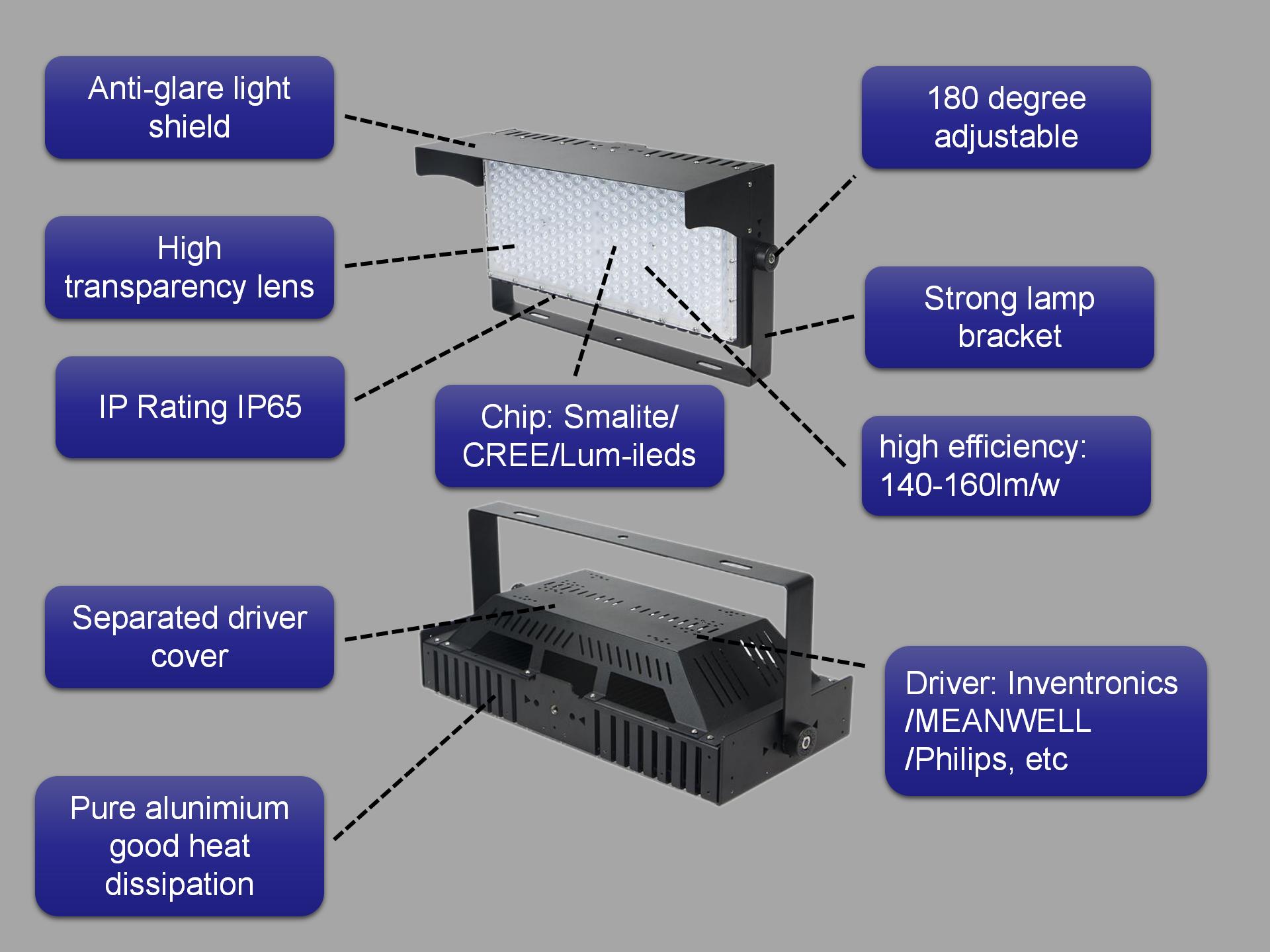

L Series LED Stadium Light Features:
Power: 500W|1000W|1500W|2000W
Beam angle: 15°,45°,120°（3535）30°,60°,120° （5050/3030）

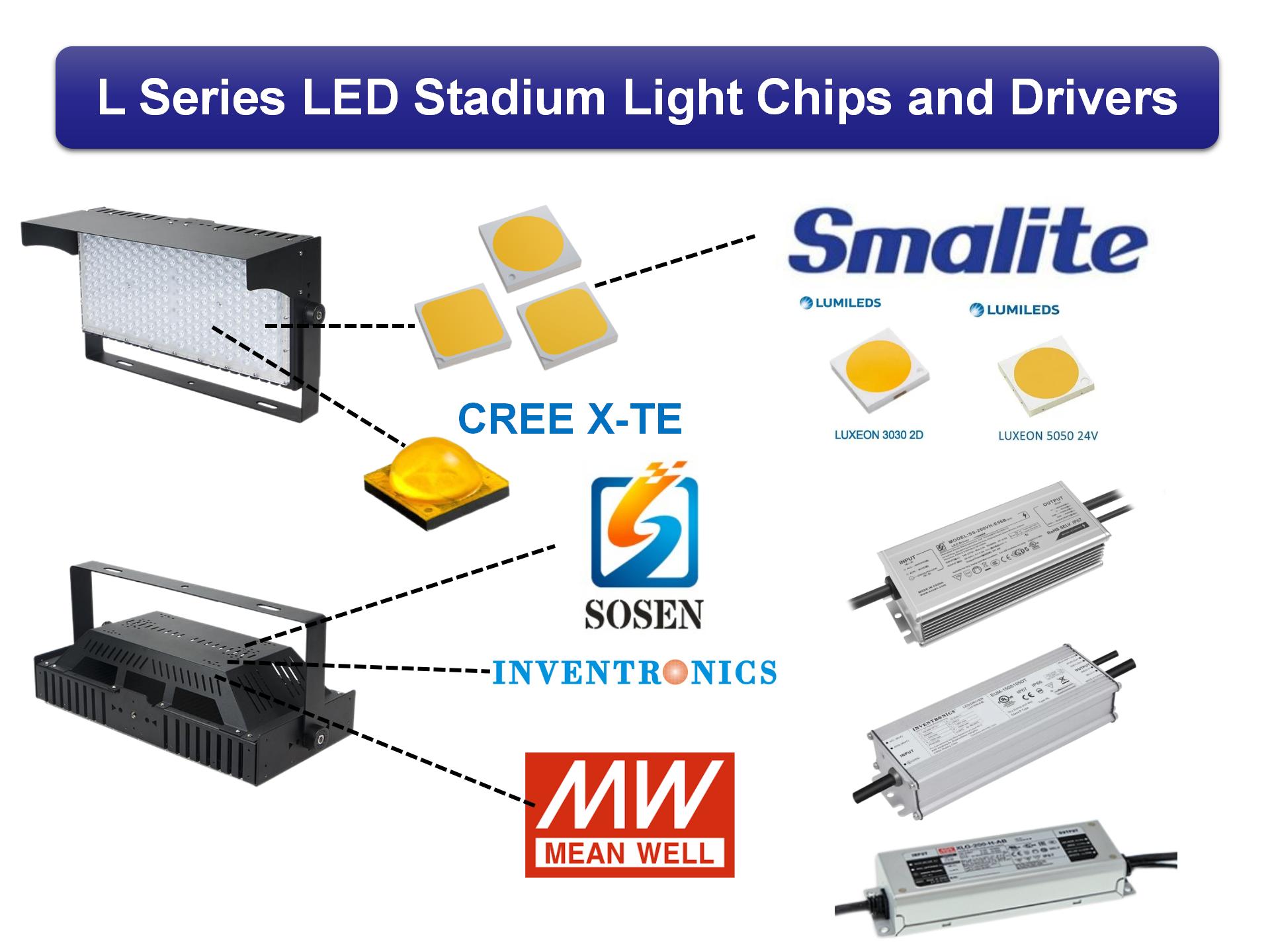

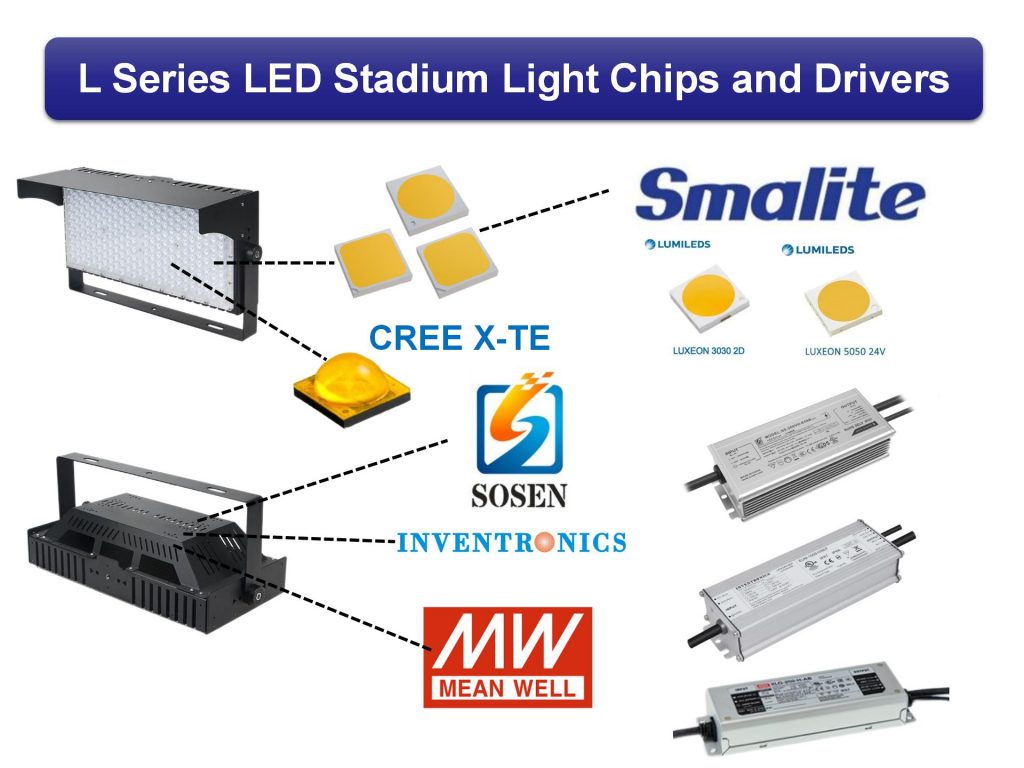

1, LEDs froms Philips/CREE SMD with high thermal conductivity, good heat-radiation, small light decay, pure light, no ghosting, stable performance and quality advantages.
2, Unique thermal management design low LED junction temperature effectively, ensure the lifespan of the light source and power.
3, Inventronics drivers
4, High efficiency up to 160lm/w
5, Input voltagel: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz optional

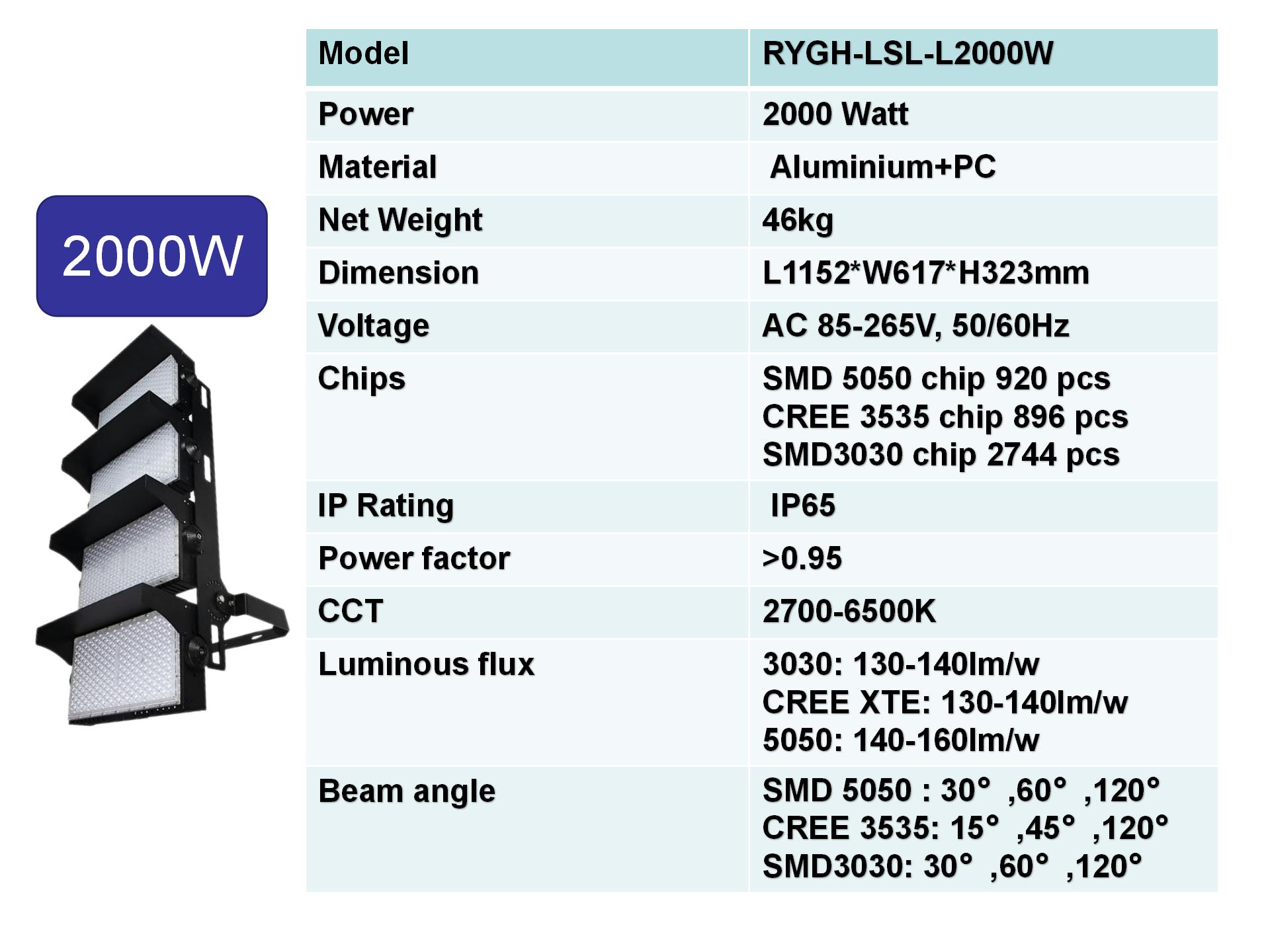

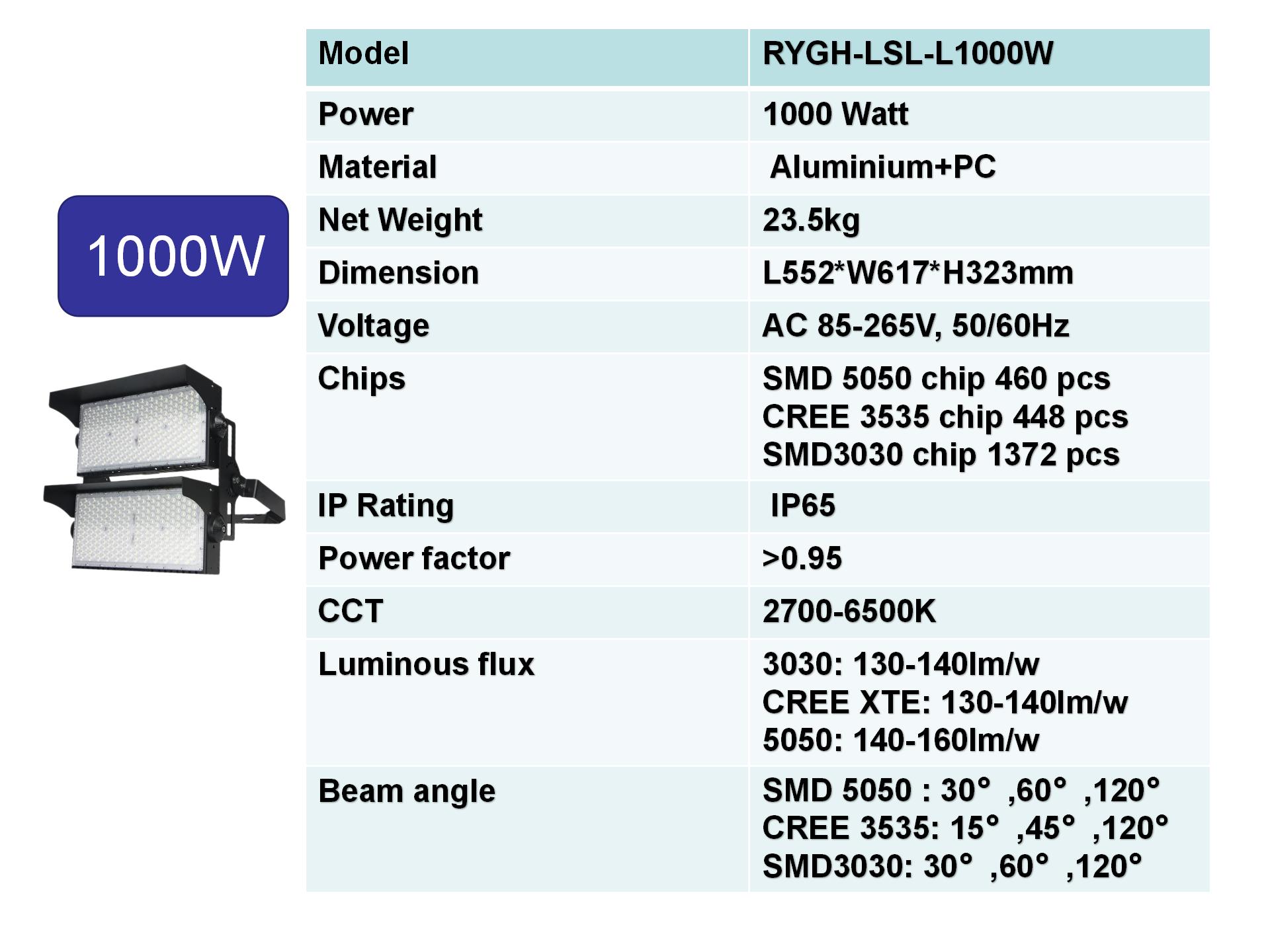

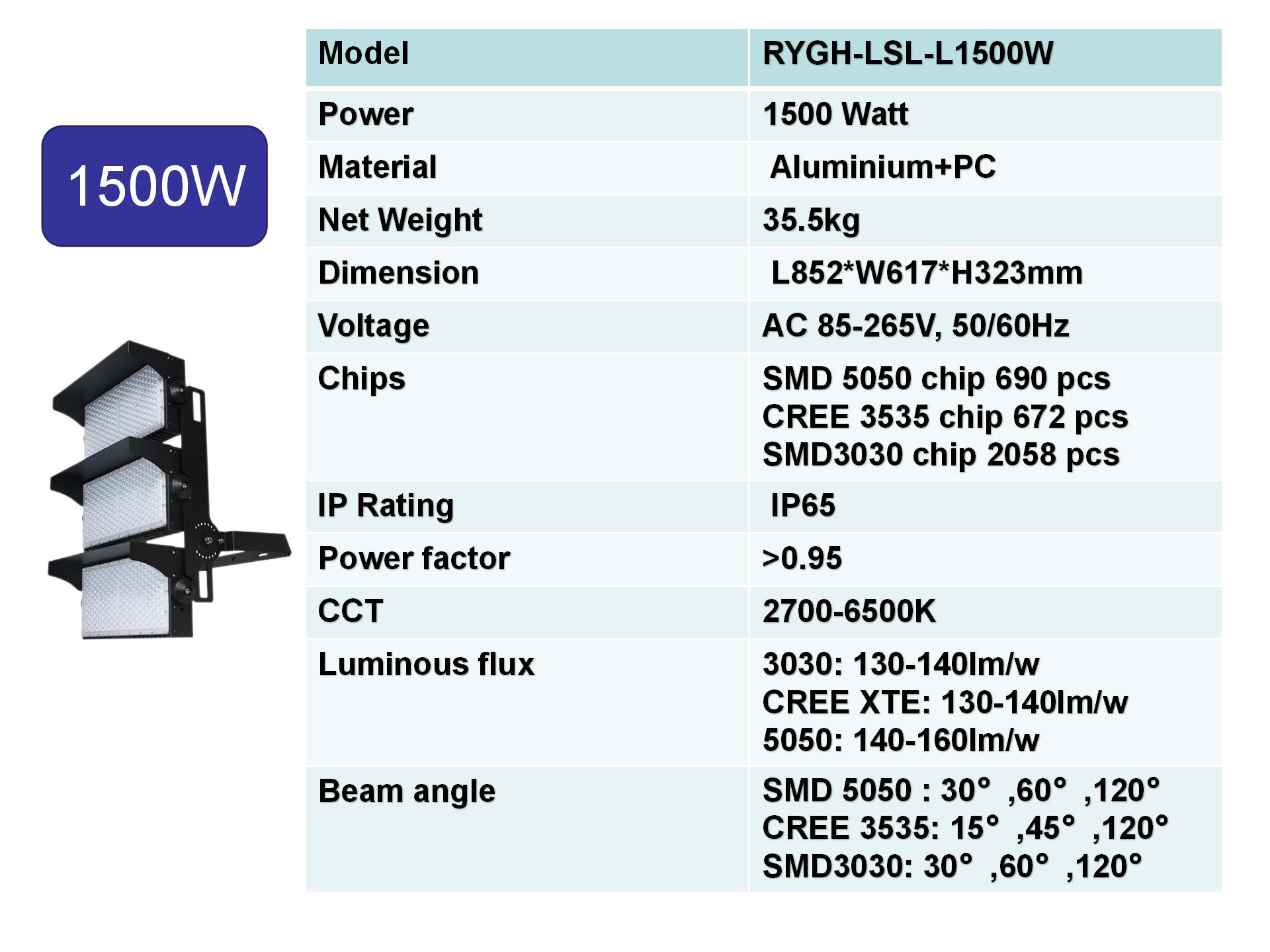

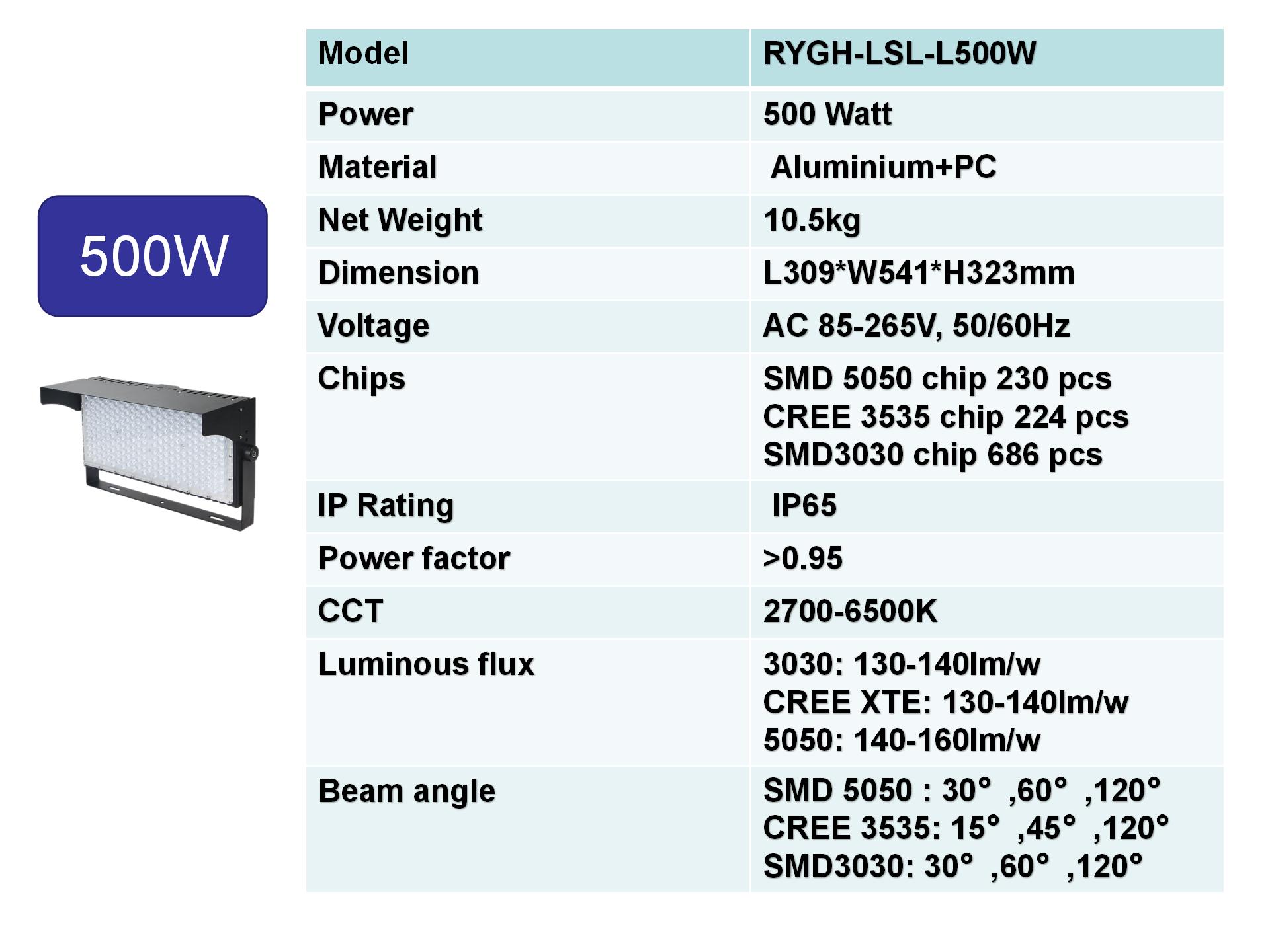

L Series LED Stadium Light Specifications
| Model no. | RYGH-LSL-L500W | RYGH-LSL-L1000W | RYGH-LSL-L1500W | RYGH-LSL-L2000W |
| Rated power | 500 Watt | 1000 Watt | 1500 Watt | 2000 Watt |
| Input voltage | AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz | |||
| LED Chip | Philips/CREE | Philips/CREE | Philips/CREE | Philips/CREE |
| LED Driver | INVENTRONICS | INVENTRONICS | INVENTRONICS | INVENTRONICS |
| Material | AL+PC | AL+PC | AL+PC | AL+PC |
| CRI | 70 | 70 | 70 | 70 |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| CCT | WW, NW, CW | WW, NW, CW | WW, NW, CW | WW, NW, CW |
| Luminous flux | 80000LM | 160000LM | 24000LM | 320000LM |
| IP rating | IP65 | IP65 | IP65 | IP65 |
| IK rating | IK08 | IK08 | IK08 | IK08 |
| Operation temperature | -40~+65℃ | -40~+65℃ | –40~+65℃ | -40~+65℃ |
| Beam angle | 15°,45°,120°（3535）30°,60°,120° （5050/3030） | |||
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years |
| Life span | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |

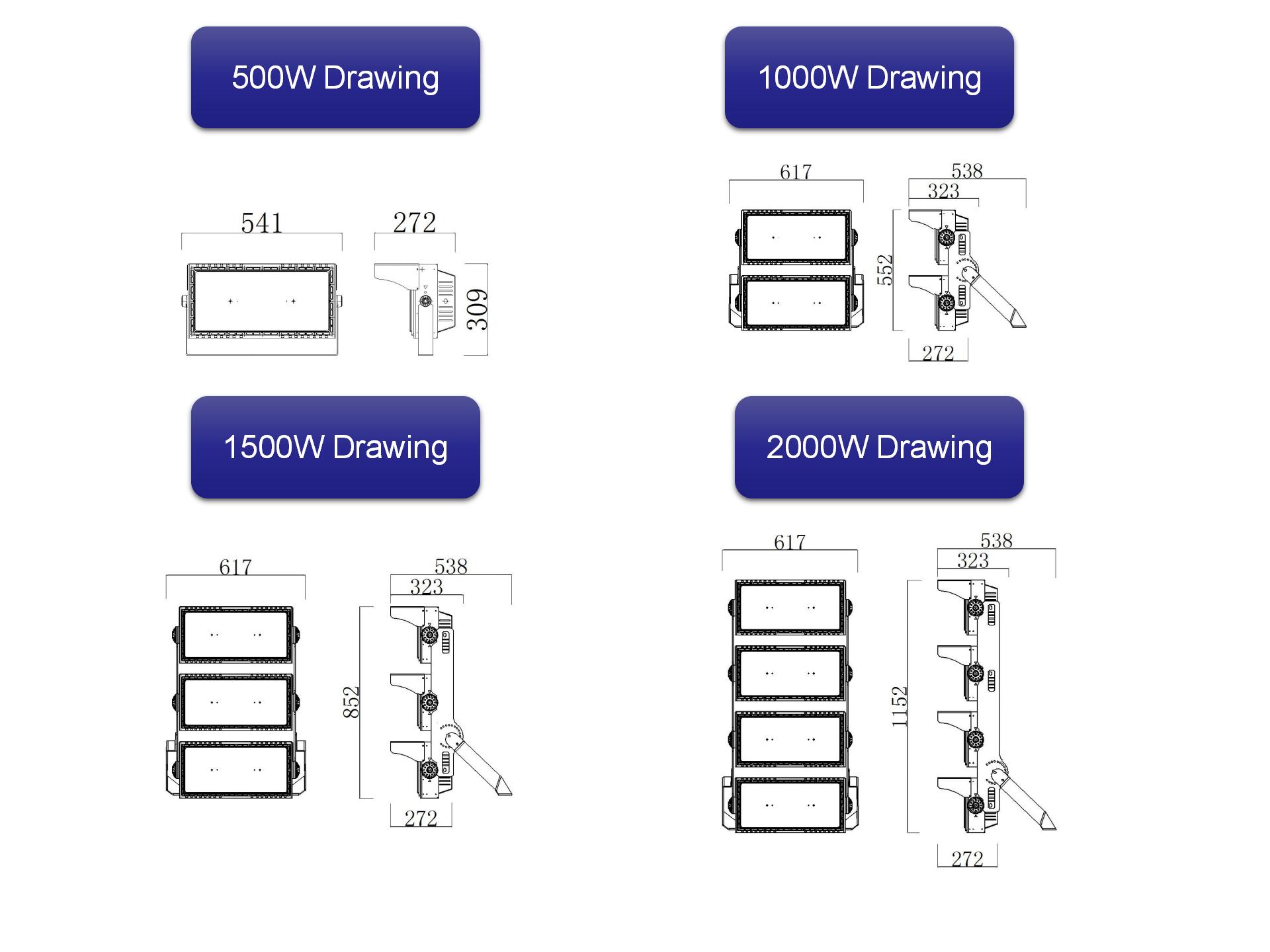

| Dimension | L309*W541*H323mm | L552*W617*H323mm | L852*W617*H323mm | L1152*W617*H323mm |
| Certificate | CE, RoHs | CE, RoHs | CE, RoHs | CE, RoHs |

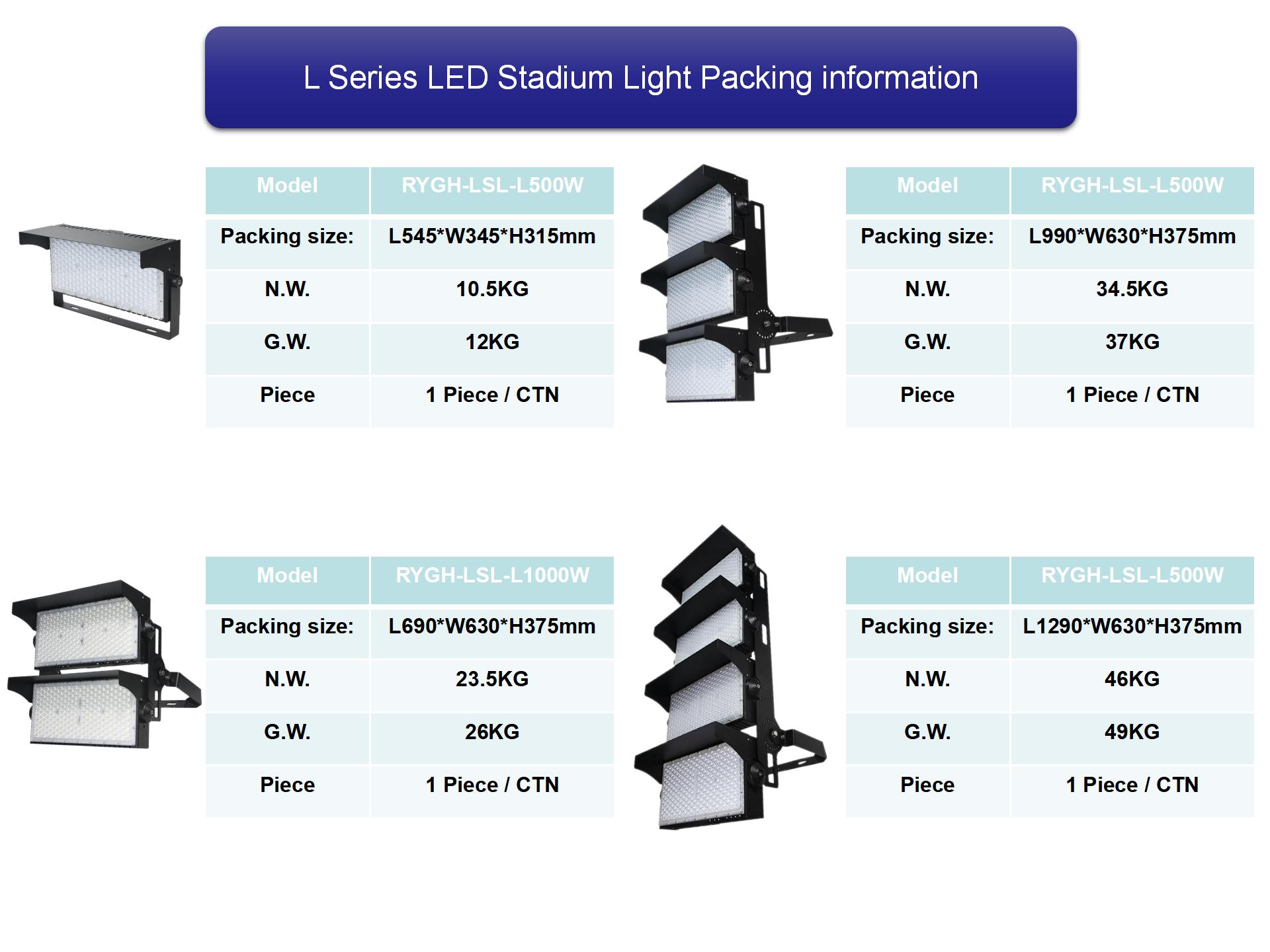

| Packing size | L545*W345*H315mm | L690*W630*H375mm | L990*W630*H375mm | L1290*W630*H375mm |
| Pieces/ctn | 1 | 1 | 1 | 1 |
| Net Weight | 10.5kg | 23.5kg | 34.5kg | 46kg |
| Gross Weight | 12kg | 26kg | 37kg | 49kg |
Environment Requirement
Working Temperature：-40~+65℃
Storage Temperature：-40~+65℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
L Series LED Stadium Light Application:
L Series LED Stadium Light can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.
Warning
- Please install the lamp according to the installation to avoid dropping and electric shock.
- Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
- Working voltage is not to be exceeded AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
Attention
- Don’t install the lamp to non-stable place.
- Installed by qualified electrician.
- Switch off the switch box and contact certified electrician if the lamp works abnormally
Warranty
5-year warranty since the date of purchase is offered for all LED flood Lights.
Warranty Terms
- Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
- RYGH will not provide paid maintenance service under conditions within warranty.
- Failure or damage due to force majeure.
- Failure or damage due to transport or unloading.
- Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
- Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
- Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
- RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
Other Models of RYGH LED Stadium Light: 511&512 LED Stadium Lights, A LED Stadium Light, B LED Stadium light, C LED Stadium Light, D LED Stadium Light, E LED Stadium Light, F LED Stadium Light, G LED Stadium Light, H LED Stadium Light, K LED Stadium Light
Other Category of RYGH LED lighting: LED Grow Light, LED Stadium Light, Solar LED Street Light, LED Street Light, LED Flood Light, LED Tunnel Light, LED High Bay Light, LED Garden Light, LED Bollard, LED Spotlight, LED Wall Pack Light, LED Canopy Light, LED Vapor Tight Light
You must be logged in to post a review.
Related products
-
HL LED Stadium Light
HL LED Stadium Light Features: 1200W|1500W
Efficiency: 140-160lm/w | 10°|20°|40°|P50°|60°*60°|90°*90°|30°*70°1, Die cast Aluminum Heat Sink,excellent thermal management
2, Unique and industrial look and customized color available
3, Black Frame with die cast aluminum provide high mechanical strength, best heat dissipation
4, Optical Polycarbonate Lenses provide high impact resistance IK08 and multiple lighting distributions: 30°/60°/90°/140°*100°
5, Top brand LED chip and driver, ensure the product quality and lifetime
6, 180°Adjustable Bracket, allows for precise installation
7, “L” Type extended bracket and thick arms, anti-typhoon rating 17
8, Luminous Efficacy up to 160lm/W, Lifetime 50,000H
9, Ingress Protection Rating: IP65/IP66
10, Operation Temperature: -35°-+50°
11, External 10KV SPD, provide extra surge protection
12, Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
-
E LED Stadium Light
E LED Stadium Light Features: 600W | 1200W | 140-160lm/w
10° | 25° | 45° | 60°1, Die cast Aluminum Heat Sink,excellent thermal management
2, Unique and industrial look and customized color available
3, Black Frame with die cast aluminum provide high mechanical strength, best heat dissipation
4, Optical Polycarbonate Lenses provide high impact resistance IK08 and multiple lighting distributions: 10°/25°/45°/60°
5, Top brand LED chip and driver, ensure the product quality and lifetime
6, 180°Adjustable Bracket, allows for precise installation
7, “L” Type extended bracket and thick arms, anti-typhoon rating 17
8, Luminous Efficacy up to 150lm/W, Lifetime 50,000H
9, Ingress Protection Rating: IP65/IP66
10, Operation Temperature: -35°-+50°
11, External 10KV SPD, provide extra surge protection
12, Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
-
R2 SMD LED Stadium Light
R2 SMD LED Stadium Light Features:
Power: 500W|600W|750W|1000W|1200W
Beam angle: 15°（3535）、25°、 40°、 60° （5050）
1, LEDs froms Philips/CREE SMD with high thermal conductivity, good heat-radiation, small light decay, pure light, no ghosting, stable performance and quality advantages.
2, Unique thermal management design low LED junction temperature effectively, ensure the lifespan of the light source and power.
3, Extremely light weight for safety use and installation.
-
B LED Stadium light
B LED Stadium Light Features: 250W | 500W | 750W | 1000W
110-160lm/w | 10°|25°|45°|60°|120*90°1, Die cast Aluminum Heat Sink,excellent thermal management
2, Unique and industrial look and customized color available
3, Black Frame with die cast aluminum provide high mechanical strength, best heat dissipation
4, Optical Polycarbonate Lenses provide high impact resistance IK08 and multiple lighting distributions: 10°/25°/45°/60°/120*90°
5, Top brand LED chip and driver, ensure the product quality and lifetime
6, 180°Adjustable Bracket, allows for precise installation
7, Round thick arms, anti-typhoon rating 17
8, Luminous Efficacy up to 150lm/W, Lifetime 50,000H
9, Ingress Protection Rating: IP65/IP66
10, Operation Temperature: -35°-+50°
11, External 10KV SPD, provide extra surge protection
12, Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
-
EGL A LED Stadium Light
EGL A LED Stadium Light Features: 240W|360W|480W|600W|720W
Efficiency: 140-160lm/w | 20°|40°|60°|90°|140°*100°1, Die cast Aluminum Heat Sink,excellent thermal management
2, Unique and industrial look and customized color available
3, Black Frame with die cast aluminum provide high mechanical strength, best heat dissipation
4, Optical Polycarbonate Lenses provide high impact resistance IK08 and multiple lighting distributions: 30°/60°/90°/140°*100°
5, Top brand LED chip and driver, ensure the product quality and lifetime
6, 180°Adjustable Bracket, allows for precise installation
7, “L” Type extended bracket and thick arms, anti-typhoon rating 17
8, Luminous Efficacy up to 160lm/W, Lifetime 50,000H
9, Ingress Protection Rating: IP65/IP66
10, Operation Temperature: -35°-+50°
11, External 20KV SPD, provide extra surge protection
12, Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
-
QCA Series LED Stadium Light
QCA Series LED Stadium Light Features:
Power: 200W | 240W | 400W | 480W | 600W | 720W
800W | 960W | 1000W | 1200W | 1440WBeam angle: 3030: 20°, 40°| 5050: 30°, 60°
1, LEDs froms Philips/Smalite/Tiandian SMD with high thermal conductivity, good heat-radiation, small light decay, pure light, no ghosting, stable performance and quality advantages.
2, Unique thermal management design low LED junction temperature effectively, ensure the lifespan of the light source and power.
3, Inventronics/MEANWELL/Sosen drivers
4, High efficiency up to 160lm/w
5, Input voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz optional
-
HEC LED Stadium Light
HEC LED Stadium Light Features:
Power: 200W|300W|400W|500W|600W|800W
Beam angle: 5° 15° 30° 60° 90° 90*120° 80*150°
1, LEDs froms Smalite /Philips Lumileds/CREE/LG/Osram with high thermal conductivity, good heat-radiation, small light decay, pure light, no ghosting, stable performance and quality advantages.
2, Unique thermal management design low LED junction temperature effectively, ensure the lifespan of the light source and power.
3, Extremely light weight for safety use and installation.
4, Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz optional.
-
EGM A LED Stadium Light
EGM A LED Stadium Light Features: 120W|240W|360W|480W|720W
Efficiency: 140-160lm/w | 20°|40°|60°|90°|140°*100°1, Die cast Aluminum Heat Sink,excellent thermal management
2, Unique and industrial look and customized color available
3, Black Frame with die cast aluminum provide high mechanical strength, best heat dissipation
4, Optical Polycarbonate Lenses provide high impact resistance IK08 and multiple lighting distributions: 30°/60°/90°/140°*100°
5, Top brand LED chip and driver, ensure the product quality and lifetime
6, 180°Adjustable Bracket, allows for precise installation
7, “L” Type extended bracket and thick arms, anti-typhoon rating 17
8, Luminous Efficacy up to 160lm/W, Lifetime 50,000H
9, Ingress Protection Rating: IP65/IP66
10, Operation Temperature: -35°-+50°
11, External 10KV SPD, provide extra surge protection
12, Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
-
EGM B LED Stadium Light
EGM B LED Stadium LightFeatures: 480W|720W|960W|1200W|1500W
Efficiency: 150-160lm/w | 20°|40°|60°|90°|140*100°1, Die cast Aluminum Heat Sink,excellent thermal management
2, Unique and industrial look and customized color available
3, Black Frame with die cast aluminum provide high mechanical strength, best heat dissipation
4, Optical Polycarbonate Lenses provide high impact resistance IK08 and multiple lighting distributions: 30°/60°/90°
5, Top brand LED chip and driver, ensure the product quality and lifetime
6, 180°Adjustable Bracket, allows for precise installation
7, “L” Type extended bracket and thick arms, anti-typhoon rating 17
8, Luminous Efficacy up to 150lm/W, Lifetime 50,000H
9, Ingress Protection Rating: IP65/IP66
10, Operation Temperature: -35°-+50°
11, External 10KV SPD, provide extra surge protection
12, Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
-
G LED Stadium Light
G LED Stadium Light Features: 600W | 1200W | 140-160lm/w
10° | 25° | 45° | 60°
1, Die cast Aluminum Heat Sink,excellent thermal management
2, Unique and industrial look and customized color available
3, Black Frame with die cast aluminum provide high mechanical strength, best heat dissipation
4, Optical Polycarbonate Lenses provide high impact resistance IK08 and multiple lighting distributions: 10°/25°/45°/60°
5, Top brand LED chip and driver, ensure the product quality and lifetime
6, 180°Adjustable Bracket, allows for precise installation
7, Pipe type bracket and thick arms, anti-typhoon rating 17
8, Luminous Efficacy up to 150lm/W, Lifetime 50,000H
9, Ingress Protection Rating: IP65/IP66
10, Operation Temperature: -35°-+50°
11, External 10KV SPD, provide extra surge protection
12, Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
-
H LED Stadium Light
H LED Stadium Light Features: 250W|500W|750W|1000W
1250W|1500W | 110-160lm/w
10° | 20° | 40° | 60° | 50°1, Die cast Aluminum Heat Sink,excellent thermal management
2, Unique and industrial look and customized color available
3, Black Frame with die cast aluminum provide high mechanical strength, best heat dissipation
4, Optical Polycarbonate Lenses provide high impact resistance IK08 and multiple lighting distributions: 10°/20°/40°/60°/50°
5, Top brand LED chip and driver, ensure the product quality and lifetime
6, 180°Adjustable Bracket, allows for precise installation
7, “L” Type extended bracket and thick arms, anti-typhoon rating 17
8, Luminous Efficacy up to 150lm/W, Lifetime 50,000H
9, Ingress Protection Rating: IP65/IP66
10, Operation Temperature: -35°-+50°
11, External 10KV SPD, provide extra surge protection
12, Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
-
XF LED Stadium Light
XF LED Stadium Light Features: 200W|400W|600W
Efficiency: 150-160lm/w | 60 degree | 90 degree- New mould, Fin type AL heatsink
- High efficiency, 150-160lm/w available
- Glass + PC lens, beam angle 30°60°
- IP65 for outdoor use
- Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz optional
-
Eco Series LED Stadium Light
ECO Series LED Stadium Light Features:
Power: 200W | 240W | 400W | 480W | 600W | 720W
800W | 960WBeam angle: 3030: 25°, 40°, 60° , 90°
1, LEDs froms Philips/Smalite/Tiandian SMD with high thermal conductivity, good heat-radiation, small light decay, pure light, no ghosting, stable performance and quality advantages.
2, Unique thermal management design low LED junction temperature effectively, ensure the lifespan of the light source and power.
3, Inventronics/MEANWELL/Sosen drivers
4, High efficiency up to 130lm/w
5, Input voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz optional
-
A LED Stadium Light
A LED Stadium Light Features: 400W|800W|1200W|1600W
110-160lm/w | 10° | 25° | 45° | 60° | 120*90°1, Die cast Aluminum Heat Sink,excellent thermal management
2, Unique and industrial look and customized color available
3, Black Frame with die cast aluminum provide high mechanical strength, best heat dissipation
4, Optical Polycarbonate Lenses provide high impact resistance IK08 and multiple lighting distributions: 10°/25°/45°/60°/120*90°
5, Top brand LED chip and driver, ensure the product quality and lifetime
6, 180°Adjustable Bracket, allows for precise installation
7, “L” Type extended bracket and thick arms, anti-typhoon rating 17
8, Luminous Efficacy up to 150lm/W, Lifetime 50,000H
9, Ingress Protection Rating: IP65/IP66
10, Operation Temperature: -35°-+50°
11, External 10KV SPD, provide extra surge protection
-
EGB LED Stadium Light
EGB LED Stadium Light Features: 480W|720W|960W|1200W|1500W
Efficiency: 140-160lm/w | 20°|40°|60°|90°|140°*100°1, Die cast Aluminum Heat Sink,excellent thermal management
2, Unique and industrial look and customized color available
3, Black Frame with die cast aluminum provide high mechanical strength, best heat dissipation
4, Optical Polycarbonate Lenses provide high impact resistance IK08 and multiple lighting distributions: 30°/60°/90°/140°*100°
5, Top brand LED chip and driver, ensure the product quality and lifetime
6, 180°Adjustable Bracket, allows for precise installation
7, “L” Type extended bracket and thick arms, anti-typhoon rating 17
8, Luminous Efficacy up to 160lm/W, Lifetime 50,000H
9, Ingress Protection Rating: IP65/IP66
10, Operation Temperature: -35°-+50°
11, External 10KV SPD, provide extra surge protection
12, Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
-
511&512 LED Stadium Lights
RYGH 511&512 LED Stadium Lights Features: 400W | 500W | 600W
800W | 1000W | 1200W | 100-120lm/w
CREE XTE: 15° | 30° | 60° | 90° |140*70°
CREE XHP50: 17° | 24° | 36° | 60°1, Self research, professional lighting design and heat sink design, good heat dissipation
2, Protect human eyes, centralize the light and reduce light loss
3, Anti-collision net to protect the glass from football or rocks
4, Multiple beam angles optional
5, Reflectors for CREE XHP50, and lens for CREE XTE chips
6, C type clips to make it IP67 on water proof rate
7, AL-6063-T5 Aviation aluminum heat sink, great heat dissipation and anti-corrosion
8, Humanized design, easy to use
9, 5mm thickness tempered glass, super clear
10, Strong light penetration and long lighting distance
11, Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
-
TD LED High Bay Light
TD LED High Bay Light Features: 150W | 240W | 320W | 400W | 480W
- New mould, Fin type AL heatsink
- High efficiency, 120-130lm/w available
- Aluminium + glass lens, beam angle 25°60°
- IP65 for indoor and outdoor use
- Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz optional
-

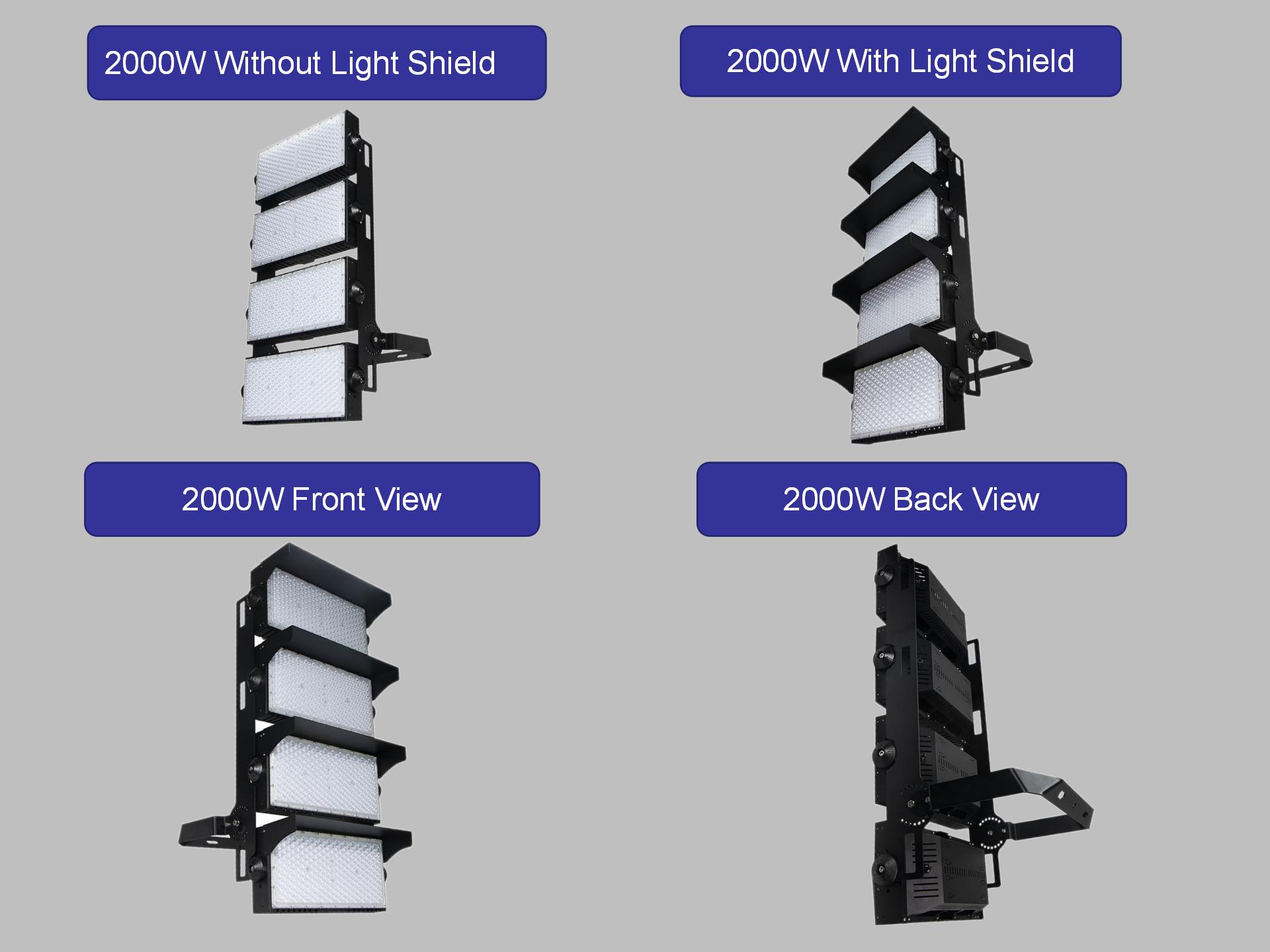

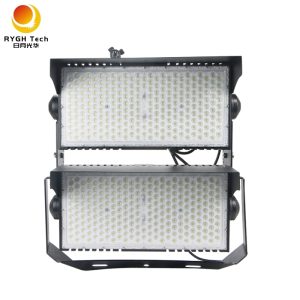

M Series LED Stadium Light
M Series LED Stadium Light Features:
Power: 1000W|1500W|2000W
Beam angle: 15°,45°,120°（3535）30°,60°,120° （5050/3030）
1, LEDs froms Philips/CREE SMD with high thermal conductivity, good heat-radiation, small light decay, pure light, no ghosting, stable performance and quality advantages.
2, Unique thermal management design low LED junction temperature effectively, ensure the lifespan of the light source and power.
3, Inventronics drivers
4, High efficiency up to 160lm/w
5, Input voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz optional
-
D LED Stadium Light
D LED Stadium Light Features: 600W | 1200W | 140-160lm/w
10° | 25° | 45° | 60°1, Die cast Aluminum Heat Sink,excellent thermal management
2, Unique and industrial look and customized color available
3, Black Frame with die cast aluminum provide high mechanical strength, best heat dissipation
4, Optical Polycarbonate Lenses provide high impact resistance IK08 and multiple lighting distributions: 10°/25°/45°/60°
5, Top brand LED chip and driver, ensure the product quality and lifetime
6, 180°Adjustable Bracket, allows for precise installation
7, Thick round bracket and thick arms, anti-typhoon rating 17
8, Luminous Efficacy up to 150lm/W, Lifetime 50,000H
9, Ingress Protection Rating: IP65/IP66
10, Operation Temperature: -35°-+50°
11, External 10KV SPD, provide extra surge protection
12, Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
-
EGL B LED Stadium Light
EGL B LED Stadium LightFeatures: 240W|480W|720W|960W|1200W|1500W
Efficiency: 150-160lm/w | 20°|40°|60°|90°1, Die cast Aluminum Heat Sink,excellent thermal management
2, Unique and industrial look and customized color available
3, Black Frame with die cast aluminum provide high mechanical strength, best heat dissipation
4, Optical Polycarbonate Lenses provide high impact resistance IK08 and multiple lighting distributions: 30°/60°/90°
5, Top brand LED chip and driver, ensure the product quality and lifetime
6, 180°Adjustable Bracket, allows for precise installation
7, “L” Type extended bracket and thick arms, anti-typhoon rating 17
8, Luminous Efficacy up to 150lm/W, Lifetime 50,000H
9, Ingress Protection Rating: IP65/IP66
10, Operation Temperature: -35°-+50°
11, External 10KV SPD, provide extra surge protection
Reviews
There are no reviews yet.
