H LED Stadium Light Features: 250W|500W|750W|1000W
1250W|1500W | 110-160lm/w
10° | 20° | 40° | 60° | 50°
1, Die cast Aluminum Heat Sink,excellent thermal management
2, Unique and industrial look and customized color available
3, Black Frame with die cast aluminum provide high mechanical strength, best heat dissipation
4, Optical Polycarbonate Lenses provide high impact resistance IK08 and multiple lighting distributions: 10°/20°/40°/60°/50°
5, Top brand LED chip and driver, ensure the product quality and lifetime
6, 180°Adjustable Bracket, allows for precise installation
7, “L” Type extended bracket and thick arms, anti-typhoon rating 17
8, Luminous Efficacy up to 150lm/W, Lifetime 50,000H
9, Ingress Protection Rating: IP65/IP66
10, Operation Temperature: -35°-+50°
11, External 10KV SPD, provide extra surge protection
12, Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
H LED Stadium Light Specifications

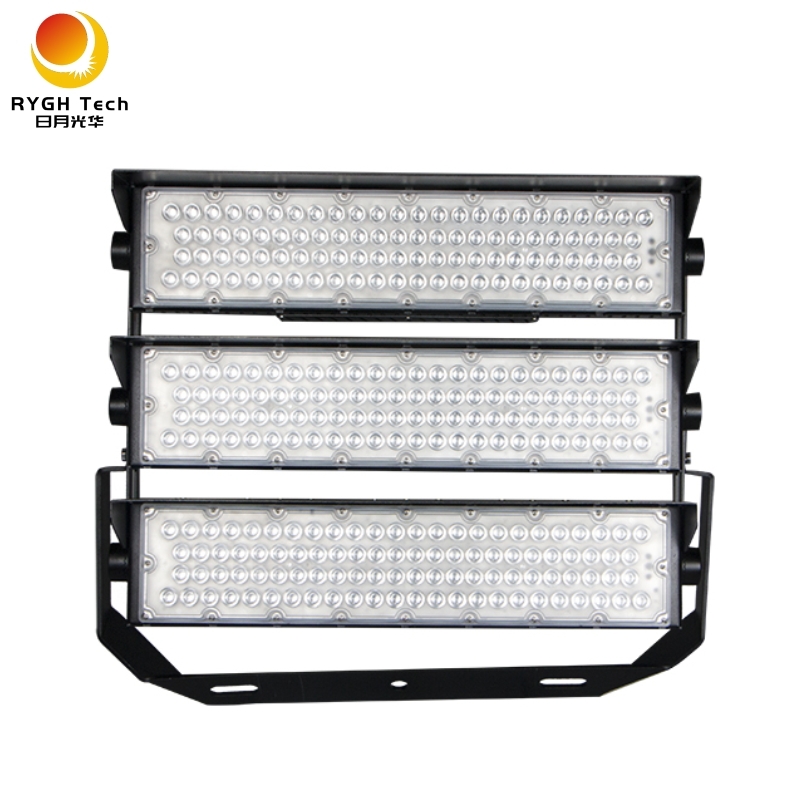

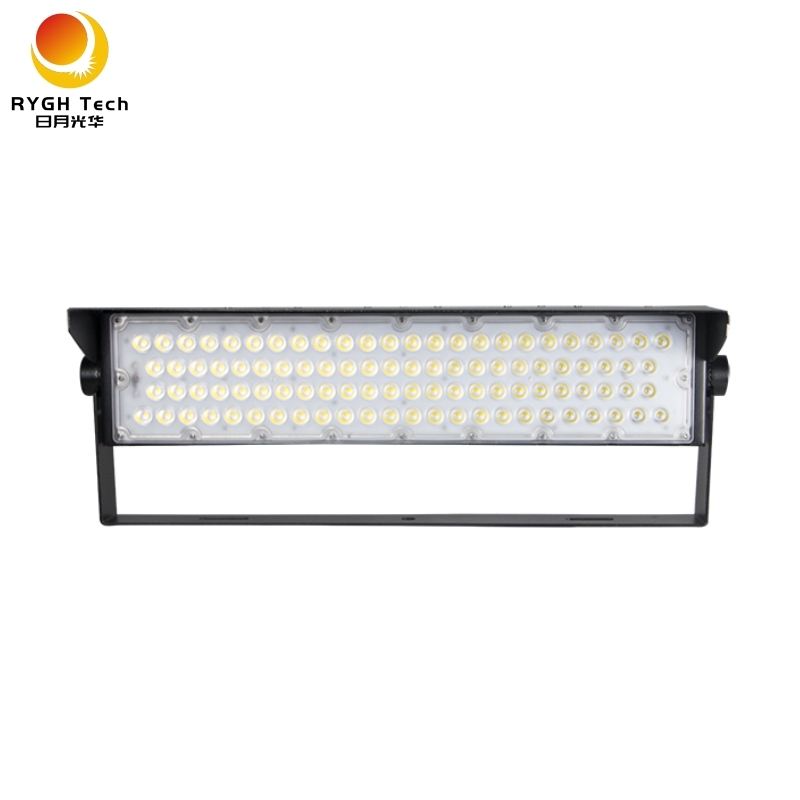

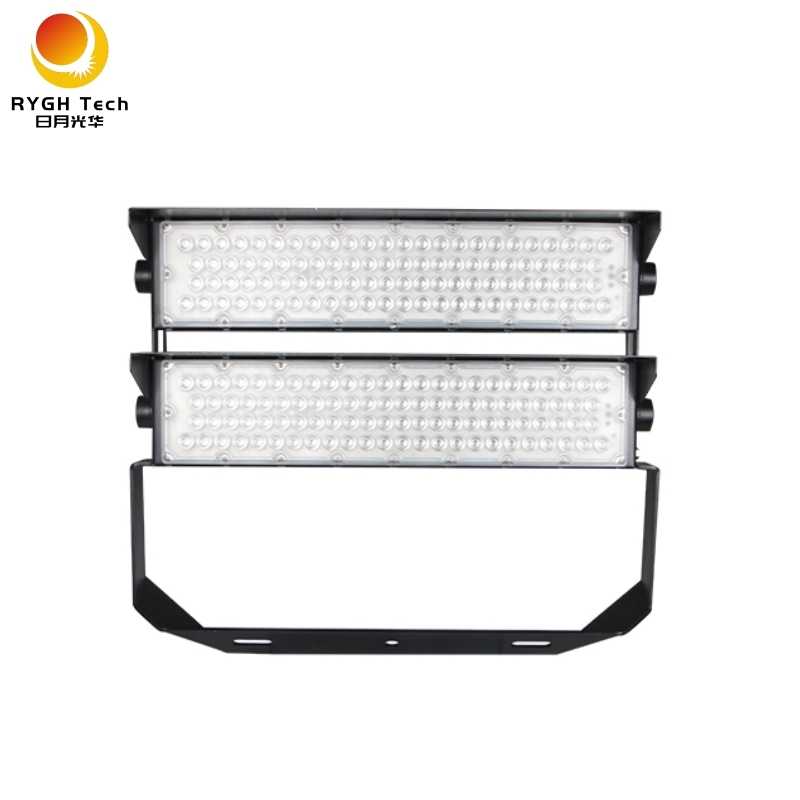

Model no. | RYGH-LSL-H250W | RYGH-LSL-H500W | RYGH-LSL-H750W |
Rated power | 250 Watt | 500 Watt | 750 Watt |
Input voltage | AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz | ||
LED Chip | 3535/5050 SMD | 3535/5050 SMD | 3535/5050 SMD |
LED Driver | MEANWELL, INVENTRONICS, SOSEN, etc | MEANWELL, INVENTRONICS, SOSEN, etc | MEANWELL, INVENTRONICS, SOSEN, etc |
Material | Die cast AL+PC | Die cast AL+PC | Die cast AL+PC |
CRI | 70/80/90/95/98 | 70/80/90/95/98 | 70/80/90/95/98 |
Power Factor | >0.95 | >0.95 | >0.95 |
CCT | WW, NW, CW | WW, NW, CW | WW, NW, CW |
Light efficacy | 110-160LM/W | 110-160LM/W | 110-160LM/W |
IP rating | IP66 | IP66 | IP66 |
IK rating | IK08 | IK08 | IK08 |
Operation temperature | -35~+50℃ | -35~+50℃ | -35~+50℃ |
Beam angle | 10°/20°/40°/60°/50° | 10°/20°/40°/60°/50° | 10°/20°/40°/60°/50° |
Warranty | 5 Years | 5 Years | 5 Years |
Life span | 50,000 hours | 50,000 hours | 50,000 hours |
Dimension | L590*W190*H200mm | L630*W240*H280mm | L630*W240*H435mm |
Packing quantity | 1 piece/CTN | 1 piece/CTN | 1 piece/CTN |
Net Weight | 5.7KG | 13.4KG | 18KG |
Gross Weight | 6.7KG | 14.4KG | 20KG |
Packing size | L645*W255*H240mm | L645*W390*H275mm | L645*W545*H275mm |
Certificate | CE, RoHs | CE, RoHs | CE, RoHs |

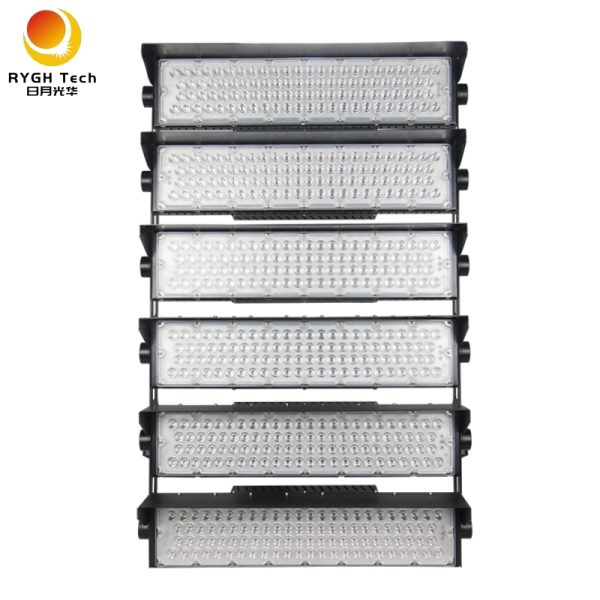

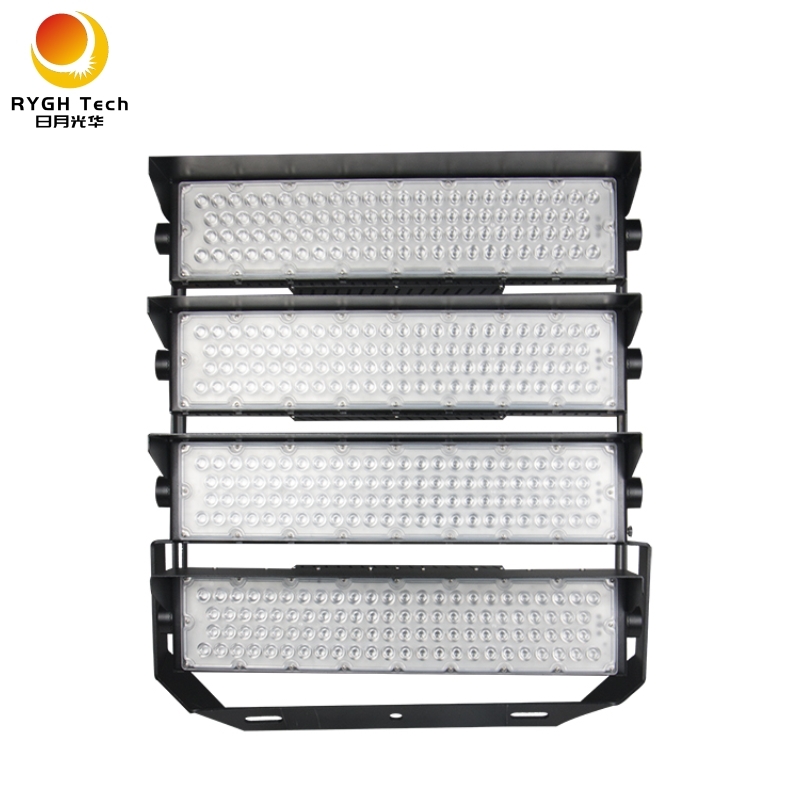

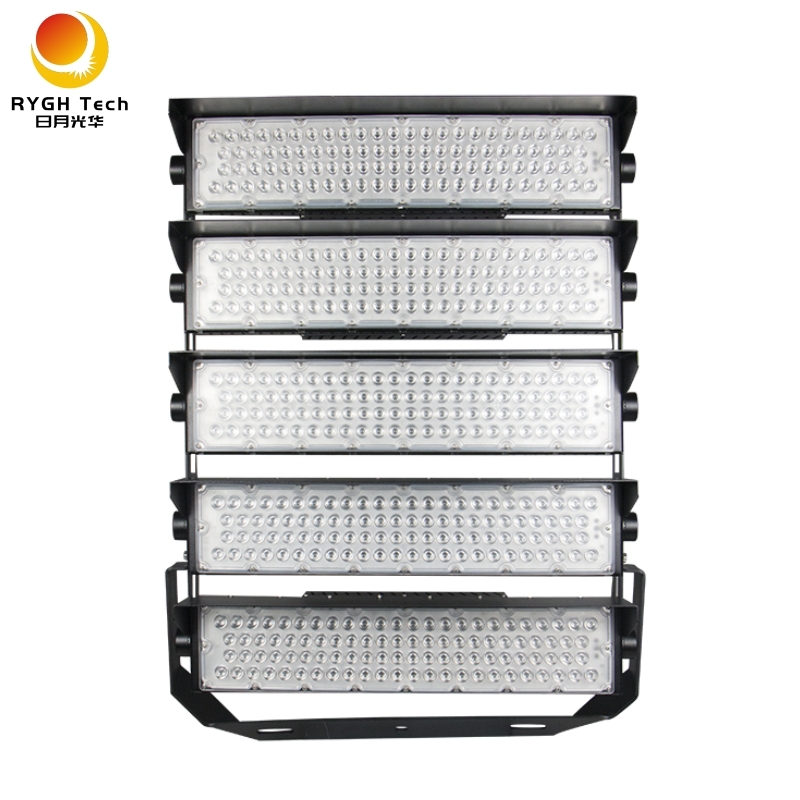

Model no. | RYGH-LSL-H1000W | RYGH-LSL-H1250W | RYGH-LSL-H1500W |
Rated power | 1000 Watt | 1250 Watt | 1500 Watt |
Input voltage | AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz | ||
LED Chip | 3535/5050 SMD | 3535/5050 SMD | 3535/5050 SMD |
LED Driver | MEANWELL, INVENTRONICS, SOSEN, etc | MEANWELL, INVENTRONICS, SOSEN, etc | MEANWELL, INVENTRONICS, SOSEN, etc |
Material | Die cast AL+PC | Die cast AL+PC | Die cast AL+PC |
CRI | 70/80/90/95/98 | 70/80/90/95/98 | 70/80/90/95/98 |
Power Factor | >0.95 | >0.95 | >0.95 |
CCT | WW, NW, CW | WW, NW, CW | WW, NW, CW |
Light efficacy | 110-160LM/W | 110-160LM/W | 110-160LM/W |
IP rating | IP66 | IP66 | IP66 |
IK rating | IK08 | IK08 | IK08 |
Operation temperature | -35~+50℃ | -35~+50℃ | -35~+50℃ |
Beam angle | 10°/20°/40°/60°/50° | 10°/20°/40°/60°/50° | 10°/20°/40°/60°/50° |
Warranty | 5 Years | 5 Years | 5 Years |
Life span | 50,000 hours | 50,000 hours | 50,000 hours |
Dimension | L630*W240*H590mm | L630*W240*H745mm | L630*W240*H900mm |
Packing quantity | 1 piece/CTN | 1 piece/CTN | 1 piece/CTN |
Net Weight | 23KG | 28.5KG | 32KG |
Gross Weight | 25KG | 30.5KG | 35KG |
Packing size | L645*W700*H275mm | L645*W855*H275mm | L645*W1010*H275m |
Certificate | CE, RoHs | CE, RoHs | CE, RoHs |
Environment Requirement
Working Temperature:-35~+50℃
Storage Temperature:-35~+50℃
Working Humidity:0%~85%
Storage Humidity:0%~90%
H LED Stadium Light Application:
H LED Stadium Light can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.
Warning
Attention
Warranty
5-year warranty since the date of purchase is offered for all LED flood Lights.
Warranty Terms
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
