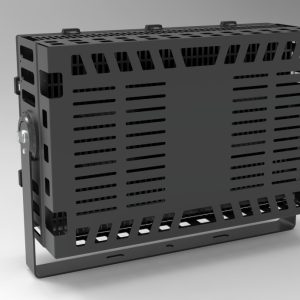

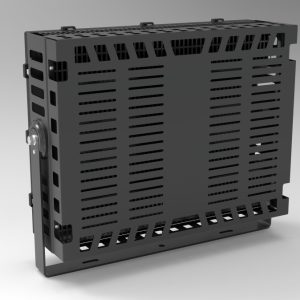

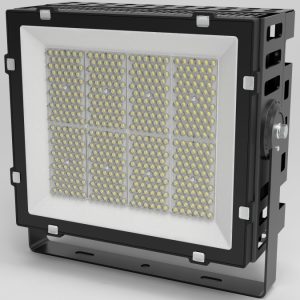

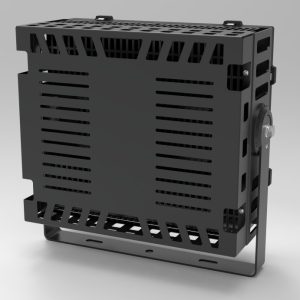

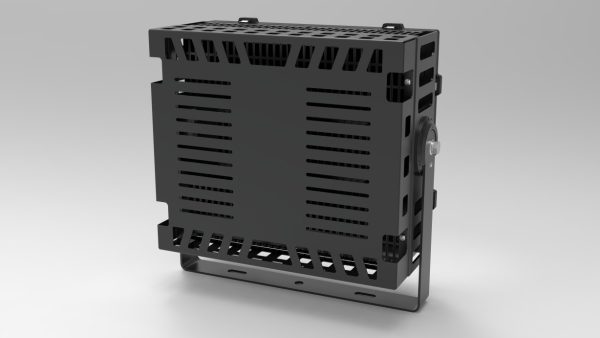

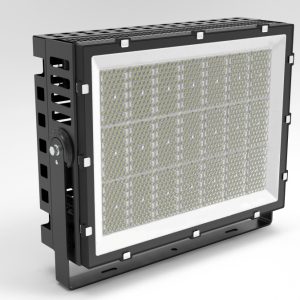

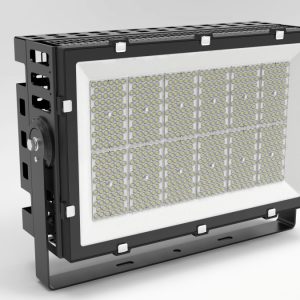

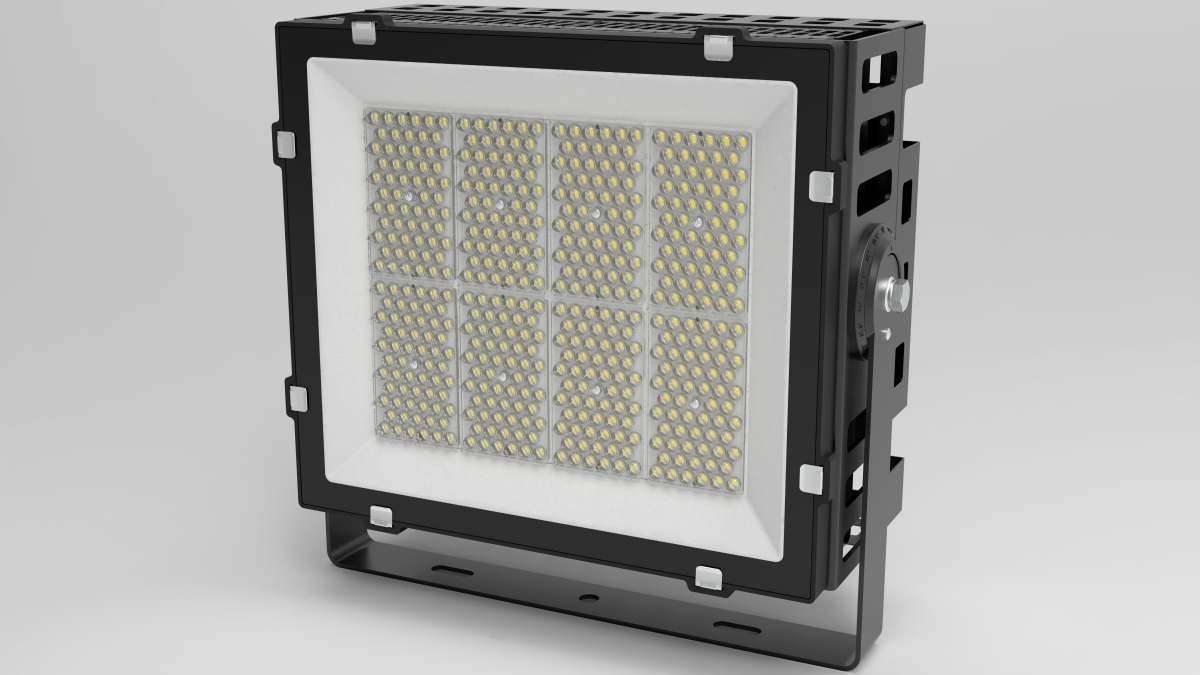

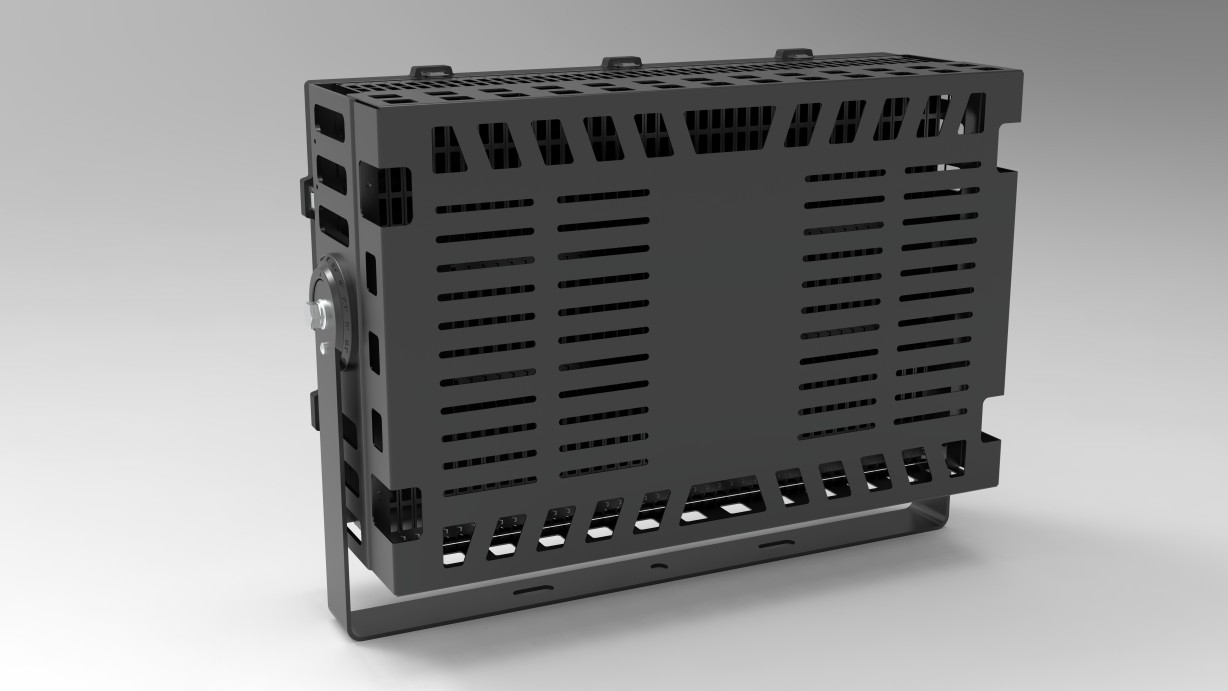

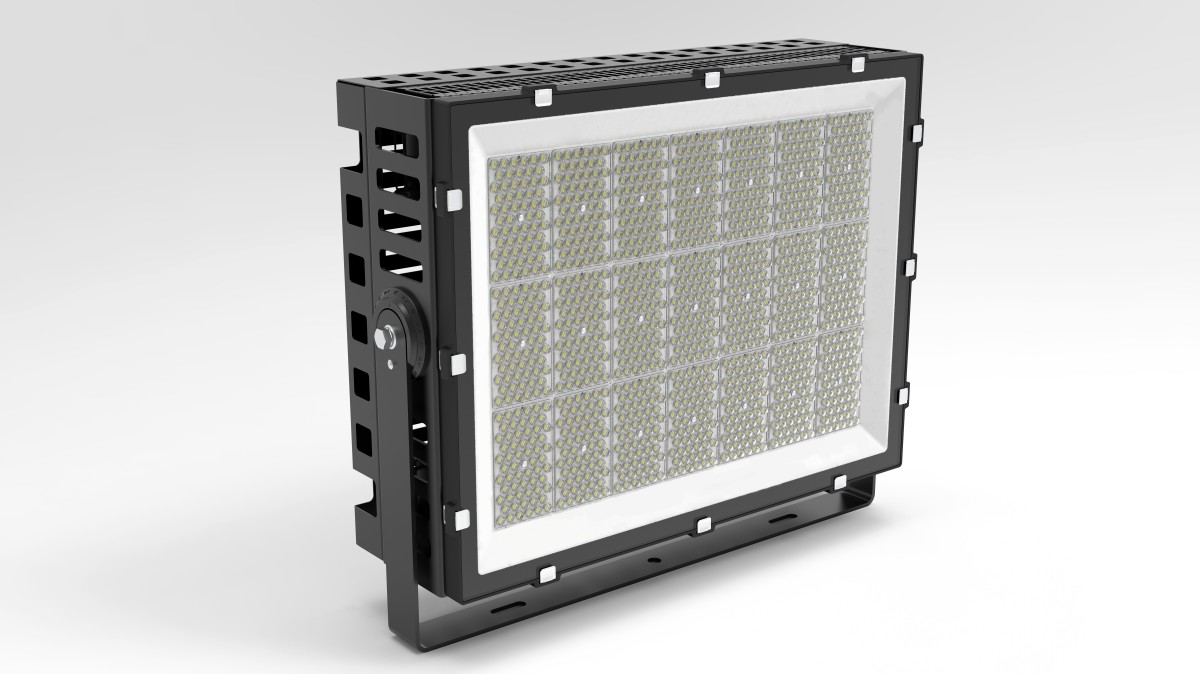

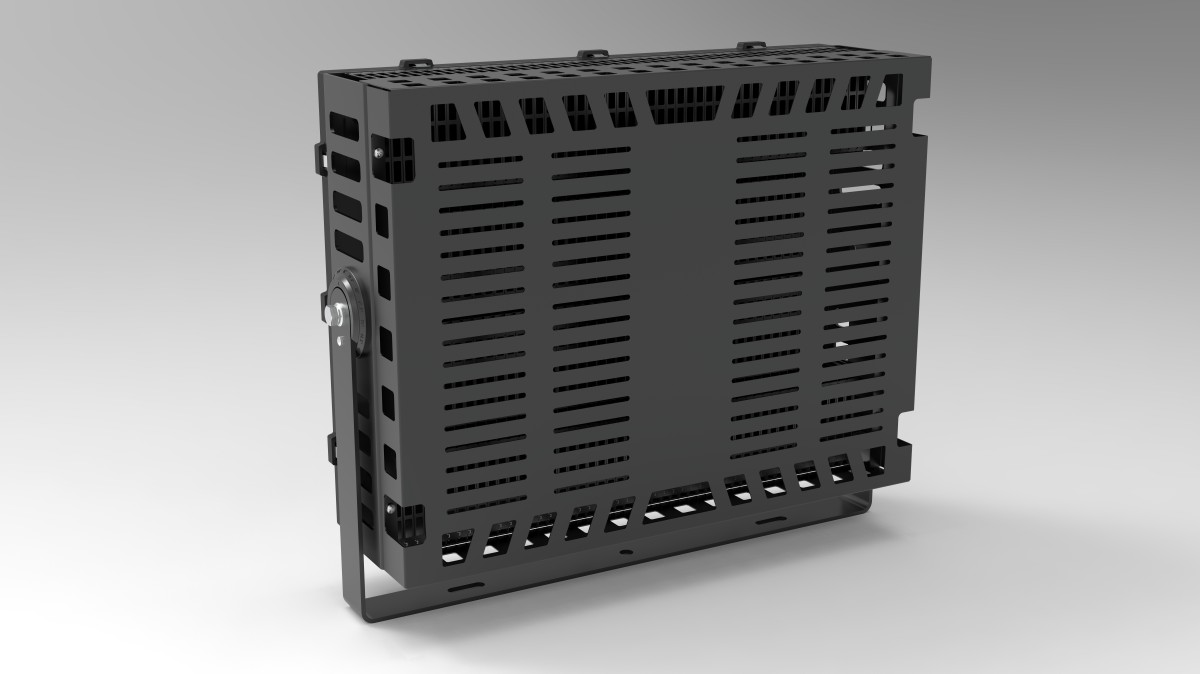

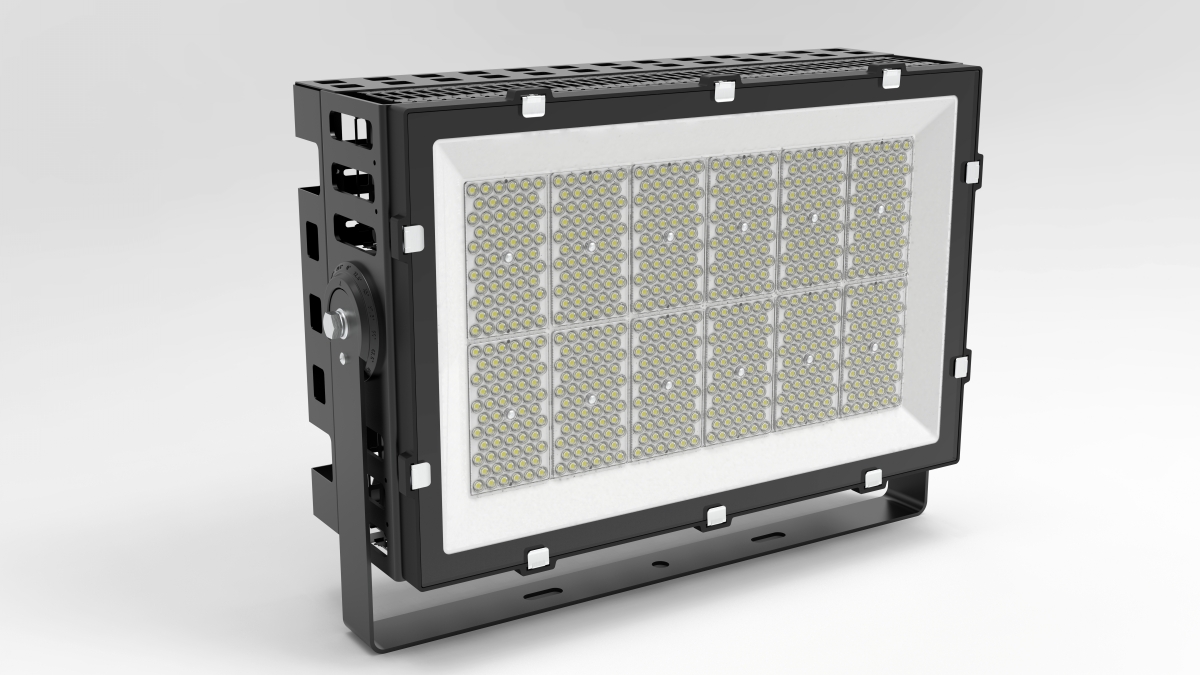

XF LED Stadium Light
XF LED Stadium Light Features: 200W|400W|600W
Efficiency: 150-160lm/w | 60 degree | 90 degree
- New mould, Fin type AL heatsink
- High efficiency, 150-160lm/w available
- Glass + PC lens, beam angle 30°60°
- IP65 for outdoor use
- Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz optional
XF LED Stadium Light Specifications
| Model no. | RYGH-FLXF-200W | RYGH-FLXF-400W | RYGH-FLXF-600W |
| Rated power | 200 Watt/300W | 400 Watt/480W/600W | 600 Watt/800W |
| Input voltage | AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz | ||
| LED Chip | 3030 SMD | 3030 SMD | 3030 SMD |
| LED Driver | MEANWELL, INVENTRONICS, SOSEN, etc | MEANWELL, INVENTRONICS, SOSEN, etc | MEANWELL, INVENTRONICS, SOSEN, etc |
| Material | AL+PC | AL+PC | AL+PC |
| CRI | 70/80/90/95/98 | 70/80/90/95/98 | 70/80/90/95/98 |
| Power Factor | >0.95 | >0.95 | >0.95 |
| CCT | WW, NW, CW | WW, NW, CW | WW, NW, CW |
| Light efficacy | 150-160LM/W | 150-160LM/W | 150-160LM/W |
| IP rating | IP65 | IP65 | IP65 |
| IK rating | IK08 | IK08 | IK08 |
| Operation temperature | -35~+50℃ | -35~+50℃ | -35~+50℃ |
| Beam angle | 30°60° | 30°60° | 30°60° |
| Warranty | 5 Years | 5 Years | 5 Years |
| Life span | 50,000 hours | 50,000 hours | 50,000 hours |
| Dimension | 393.8*372*163mm | 514.2*372*163mm | 576.2*473*163mm |
| Certificate | CE, RoHs | CE, RoHs | CE, RoHs |
| Packing size | 410*410*210mm | 530*410*210mm | 590*510*215mm |
| PCS/CTN | 1 | 1 | 1 |
Environment Requirement
Working Temperature：-35~+50℃
Storage Temperature：-35~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
XF LED Stadium Light Application:
XF LED Stadium Light can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.
Warning
- Please install the lamp according to the installation to avoid dropping and electric shock.
- Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
- Working voltage is not to be exceeded AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
Attention
- Don’t install the lamp to non-stable place.
- Installed by qualified electrician.
- Switch off the switch box and contact certified electrician if the lamp works abnormally
Warranty
5-year warranty since the date of purchase is offered for all LED flood Lights.
Warranty Terms
- Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
- RYGH will not provide paid maintenance service under conditions within warranty.
- Failure or damage due to force majeure.
- Failure or damage due to transport or unloading.
- Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
- Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
- Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
- RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
