511&512 LED Stadium Lights

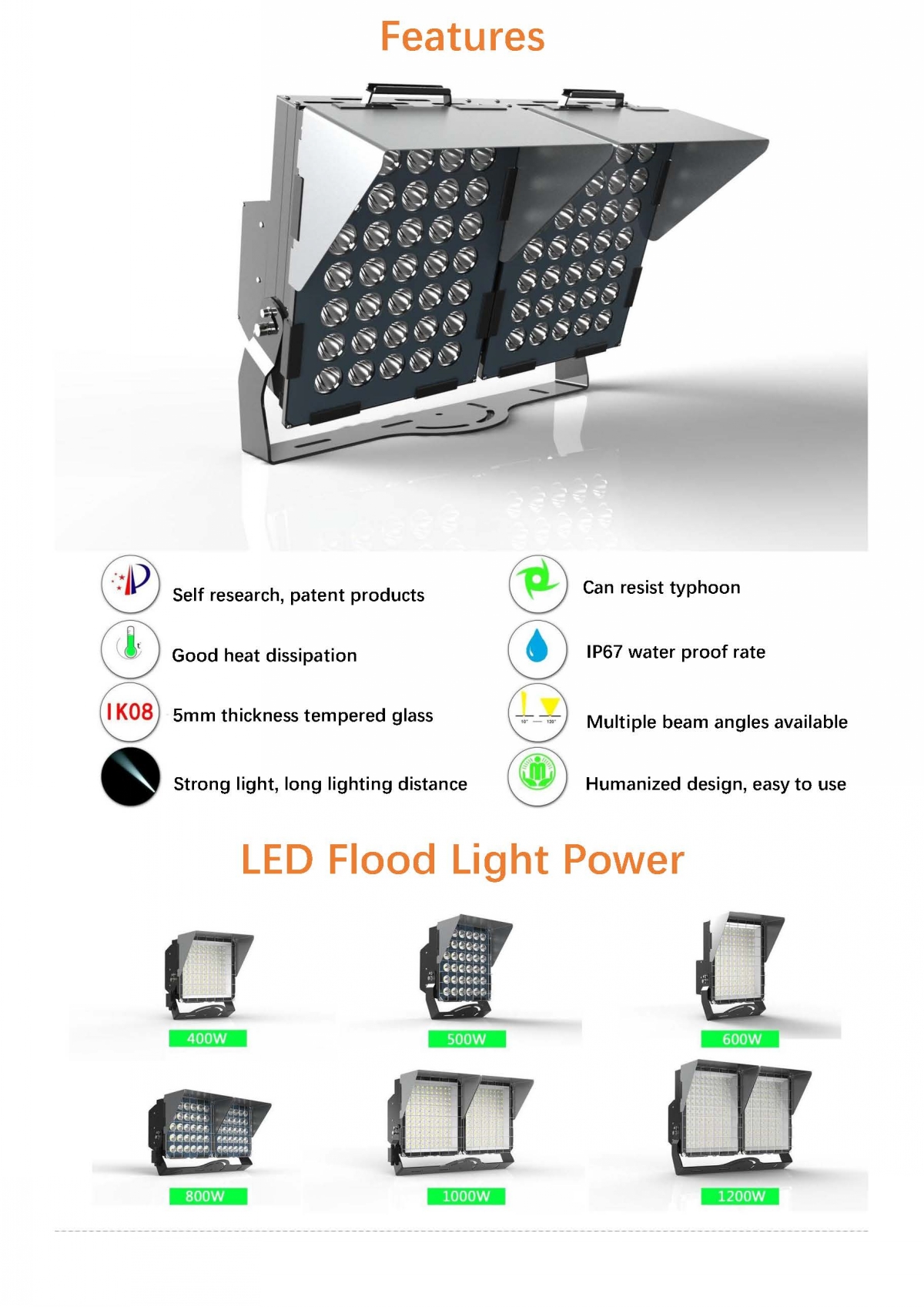

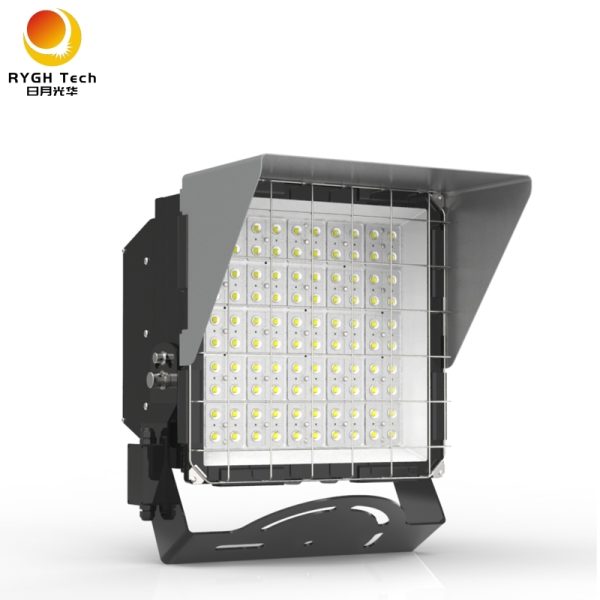

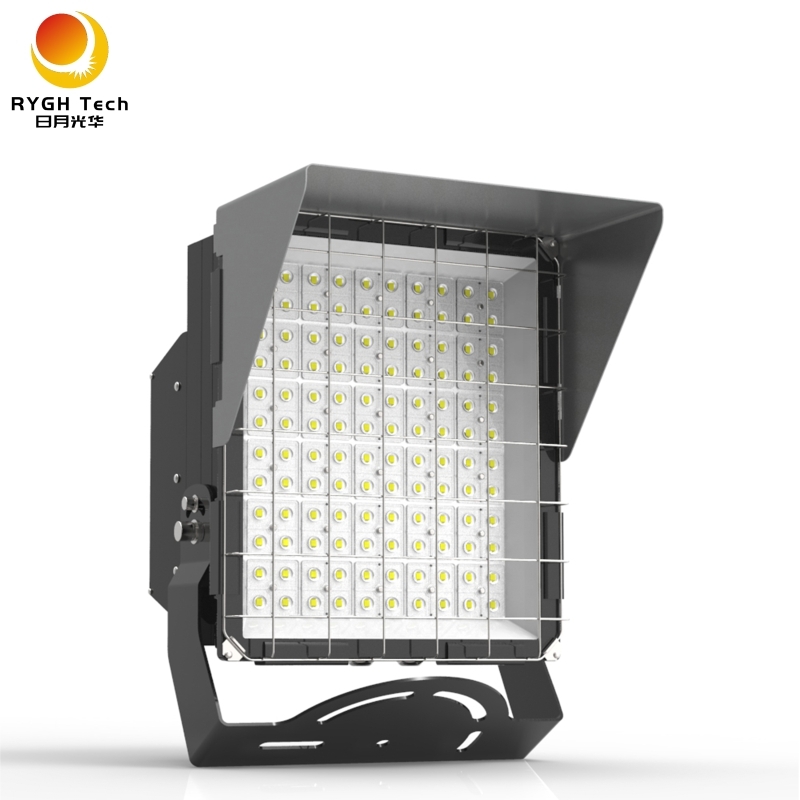

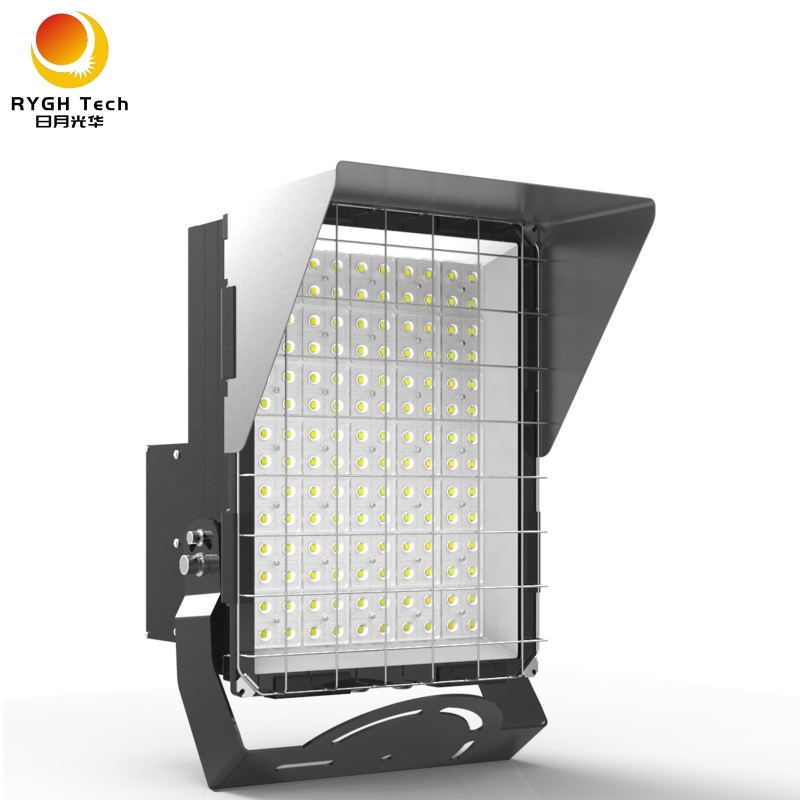

RYGH 511&512 LED Stadium Lights Features: 400W | 500W | 600W
800W | 1000W | 1200W | 100-120lm/w
CREE XTE: 15° | 30° | 60° | 90° |140*70°
CREE XHP50: 17° | 24° | 36° | 60°

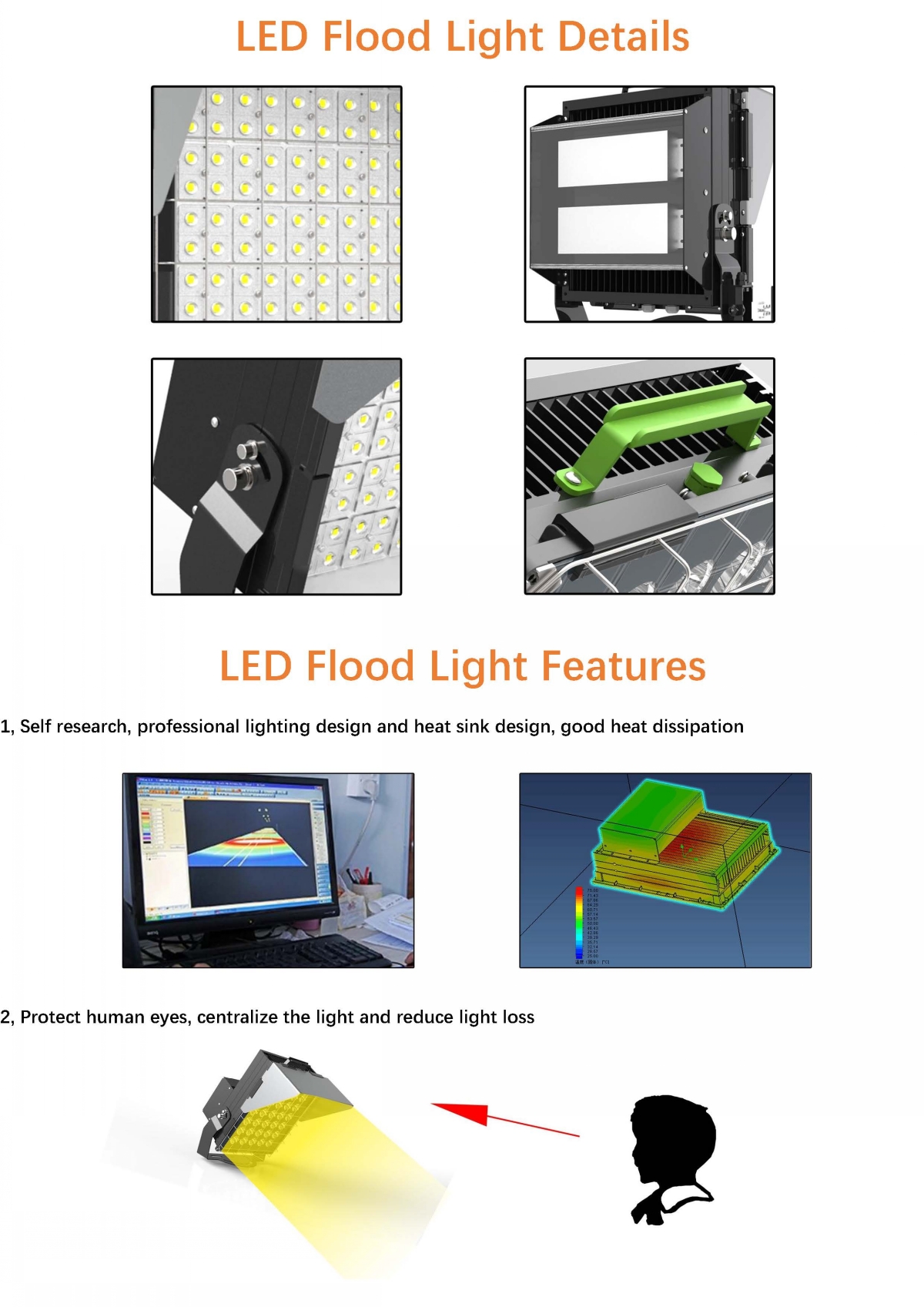

1, Self research, professional lighting design and heat sink design, good heat dissipation
2, Protect human eyes, centralize the light and reduce light loss

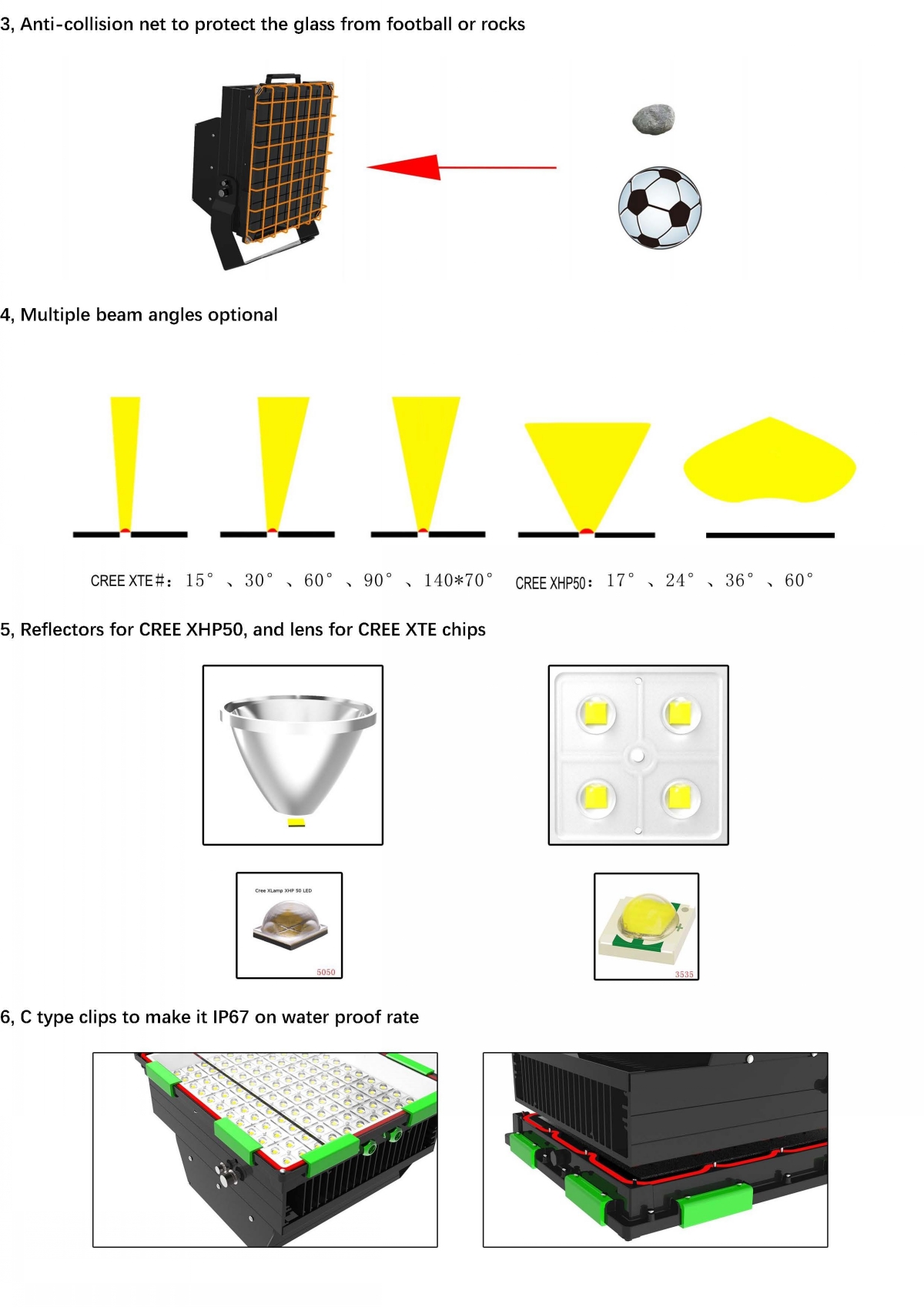

3, Anti-collision net to protect the glass from football or rocks
4, Multiple beam angles optional
5, Reflectors for CREE XHP50, and lens for CREE XTE chips
6, C type clips to make it IP67 on water proof rate

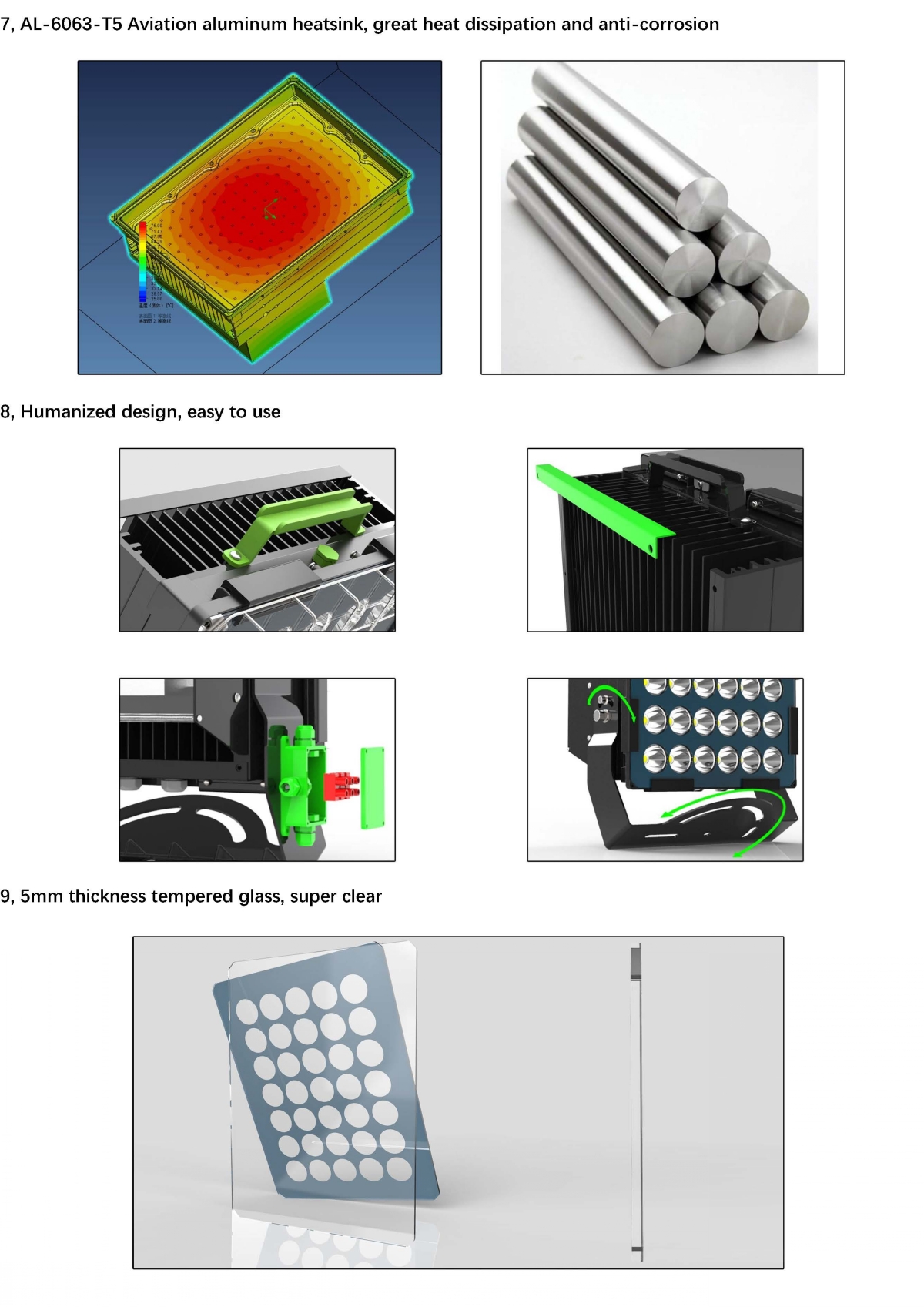

7, AL-6063-T5 Aviation aluminum heat sink, great heat dissipation and anti-corrosion
8, Humanized design, easy to use
9, 5mm thickness tempered glass, super clear

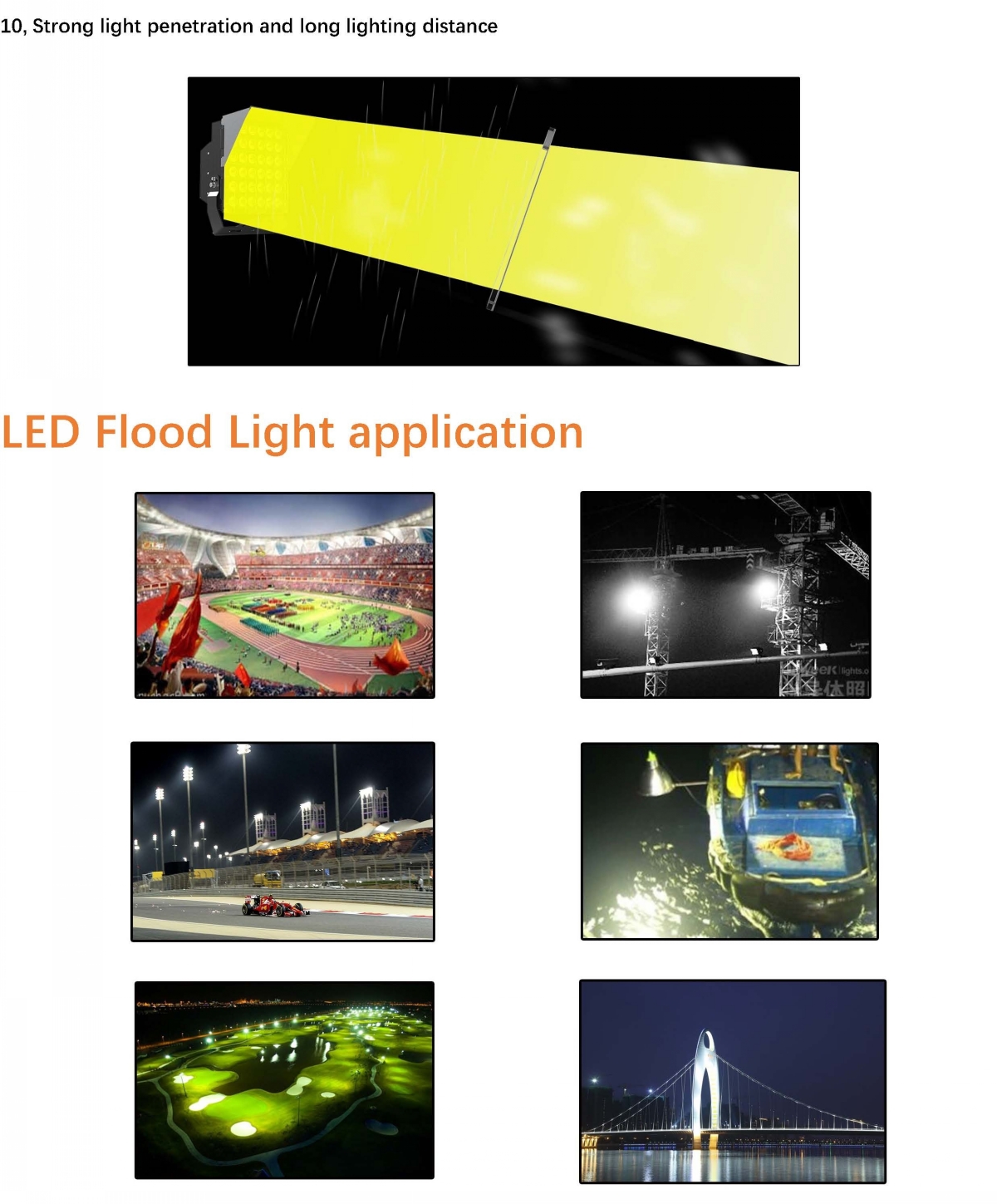

10, Strong light penetration and long lighting distance
11, Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
| 400W | 500W | 600W | ||||
| Part no. | RYGH-511-SL-040 | RYGH-512-SL-040 | RYGH-511-SL-050 | RYGH-512-SL-050 | RYGH-511-SL-060 | RYGH-512-SL-060 |
| Chip | CREE-XTE | CREE-XHP-50 | CREE-XTE | CREE-XHP-50 | CREE-XTE | CREE-XHP-50 |
| Driver | Inventronics 200W*2pcs | Inventronics 240W*2pcs | Inventronics 600W*1pc | |||
| Beam Angle | 15/30/60/90/140*70 | 17/24/36/60 | 15/30/60/90/140*70 | 17/24/36/60 | 15/30/60/90/140*70 | 17/24/36/60 |
| Light Distribution device | 8 in 1 lens | Reflector | 8 in 1 lens | Reflector | 8 in 1 lens | Reflector |
| Light efficiency | 110-130LM/W | 110-130LM/W | 110-130LM/W | 110-130LM/W | 110-130LM/W | 110-130LM/W |
| LED Connection | 50 series 4 parallel 3535, 5 series 20 parallel 5050（2 circuits ） | 15 series 2 parallel | 60 series 4 parallel 3535， 8 series 15 parallel 5050（2 circuits ） | 18 series 2 parallel | 70 series 4 parallel 3535,10 series 14 parallel 5050（2 circuits ） | 21 series 2 parallel |
| Ouput Current | 1.22A | 1.03A | 1.22A | 1.03A | 2.6A | 2.19A |
| Ouput voltage | 150V | 180V | 180V | 216V | 210V | 252V |
| Product size | L435*W347*H211mm（Normal） L435*W347*H234mm（With net） L435*W347*H377mm（With shade） |
L489*W347*H211mm（Normal） L489*W347*H234mm（With net） L489*W347*H377mm（With shade） |
L542*W347*H211mm（Normal） L542*W347*H234mm（With net） L542*W347*H377mm（With shade） |
|||
| Net net weight | 0.17kg | 0.19kg | 0.21kg | |||
| Shade net weight | 0.98kg | |||||
| Lamp N.W. | 13.5kg | 13.5 | 15.1kg | 15.1kg | 18kg | 18kg |
| Lamp G.W. | 14.5kg | 14.5 | 17.1kg | 17.kg | 20kg | 20kg |
| Packing size | 48*41*31.5cm | 48*41*31.5cm | 53.5*41*31.5cm | 53.5*41*31.5cm | 59*41*31.5cm | 59*41*31.5cm |

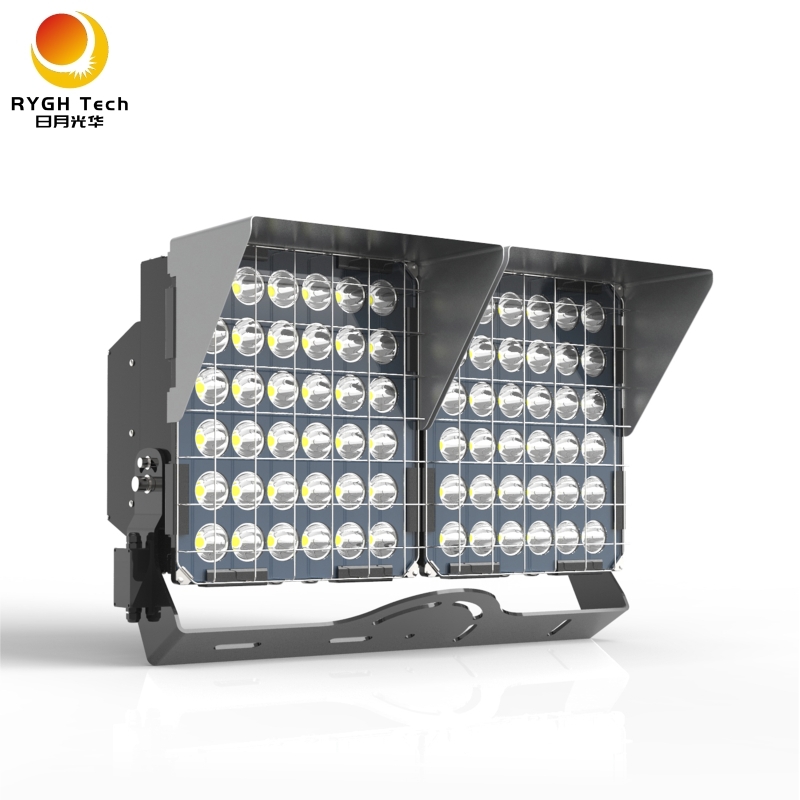

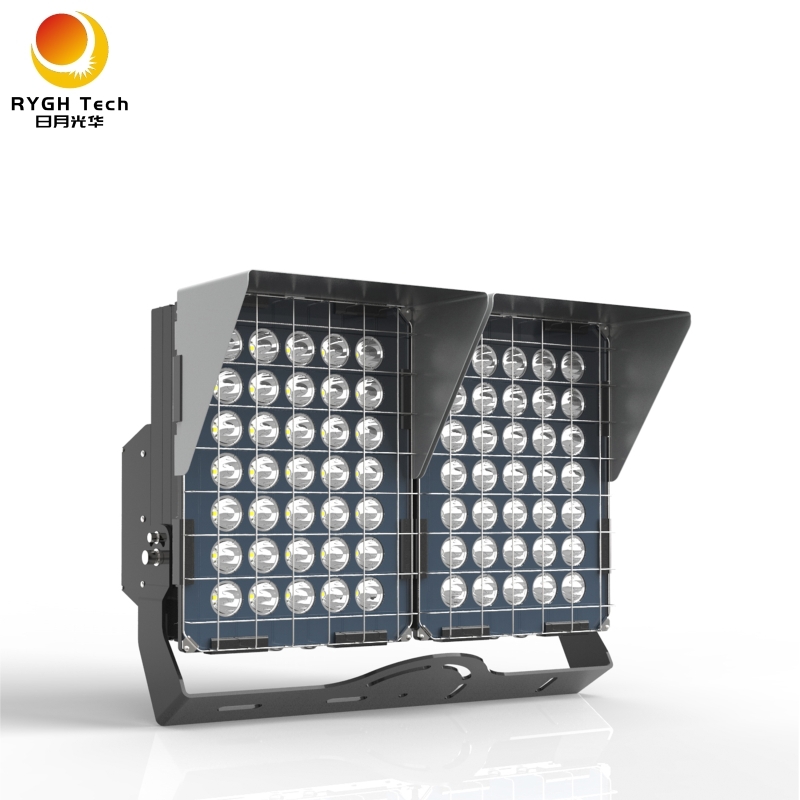

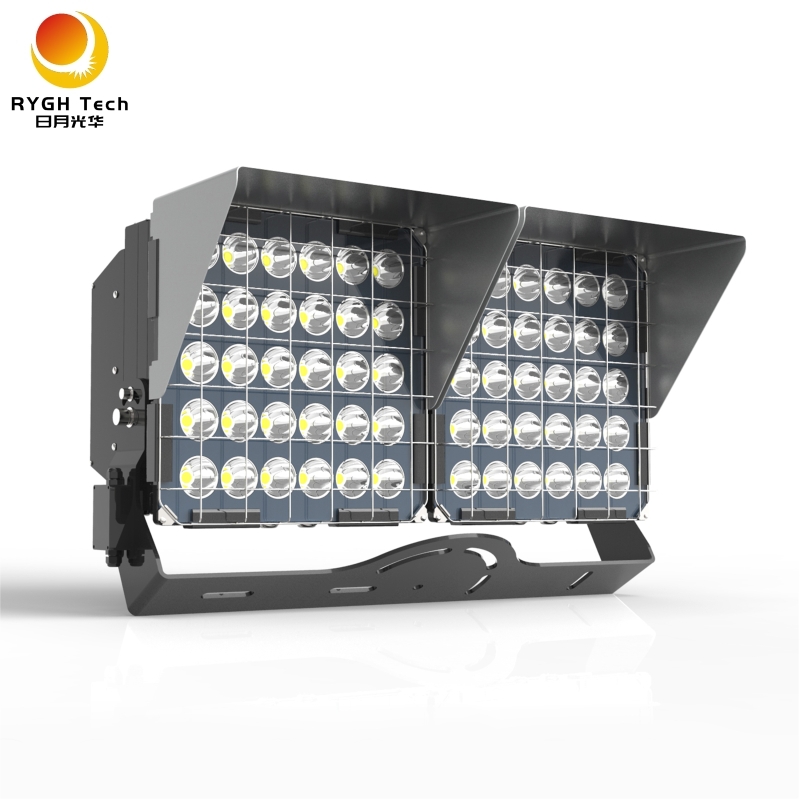

| 800W | 1000W | 1200W | ||||
| Part no. | RYGH-511-SL-080 | RYGH-512-SL-080 | RYGH-511-SL-100 | RYGH-512-SL-100 | RYGH-511-SL-120 | RYGH-512-SL-120 |
| Chip | CREE-XTE | CREE-XHP-50 | CREE-XTE | CREE-XHP-50 | CREE-XTE | CREE-XHP-50 |
| Driver | Inventronics 200W*4pcs | Inventronics 240W*4pcs | Inventronics 600W*2pcs | |||
| Beam Angle | 15/30/60/90/140*70 | 17/24/36/60 | 15/30/60/90/140*70 | 17/24/36/60 | 15/30/60/90/140*70 | 17/24/36/60 |
| Light Distribution device | 8 in 1 lens | Reflector | 8 in 1 lens | Reflector | 8 in 1 lens | Reflector |
| Light efficiency | 110-130LM/W | 110-130LM/W | 110-130LM/W | 110-130LM/W | 110-130LM/W | 110-130LM/W |
| LED Connection | 50 series 4 parallel 3535（2 circuits）
5 series 20 parallel 5050（4 circuits ） |
15 series 2 parallel *2 | 60 series 4 parallel 3535（2 circuits） 8 series 15 parallel 5050（4 circuits ） | 18 series 2 parallel *2 | 70 series 4 parallel 3535（2 circuits） 10 series 14 parallel 5050（4 circuits ） | 21 series 2 parallel *2 |
| Ouput Current | 1.22A | 1.03A | 1.22A | 1.03A | 2.6A | 2.19A |
| Ouput voltage | 150V | 180V | 180V | 216V | 210V | 252V |
| Product size | L439*W708*H211mm（Normal） L439*W708*H234mm（With net） L439*W708*H377mm（With shade） |
L493*W708*H211mm（Normal） L493*W708*H234mm（With net） L493*W708*H377mm（With shade） |
L546*W708*H211mm（Normal） L546*W708*H234mm（With net） L546*W708*H377mm（With shade） |
|||
| Net net weight | 0.34kg | 0.38kg | 0.42kg | |||
| Shade net weight | 1.96kg | |||||
| Lamp N.W. | 27.18kg | 27.18kg | 30kg | 30kg | 40kg | 40kg |
| Lamp G.W. | 29kg | 29kg | 32.5kg | 32.5kg | 42.18kg | 42.18kg |
| Packing size | 76*48*31.5cm | 76*48*31.5cm | 76*53.5*31.5 cm | 76*53.5*31.5 cm | 76*59*31.5cm | 76*59*31.5cm |
Environment Requirement
Working Temperature：-35~+50℃
Storage Temperature：-35~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
511&512 LED Stadium Lights Application:

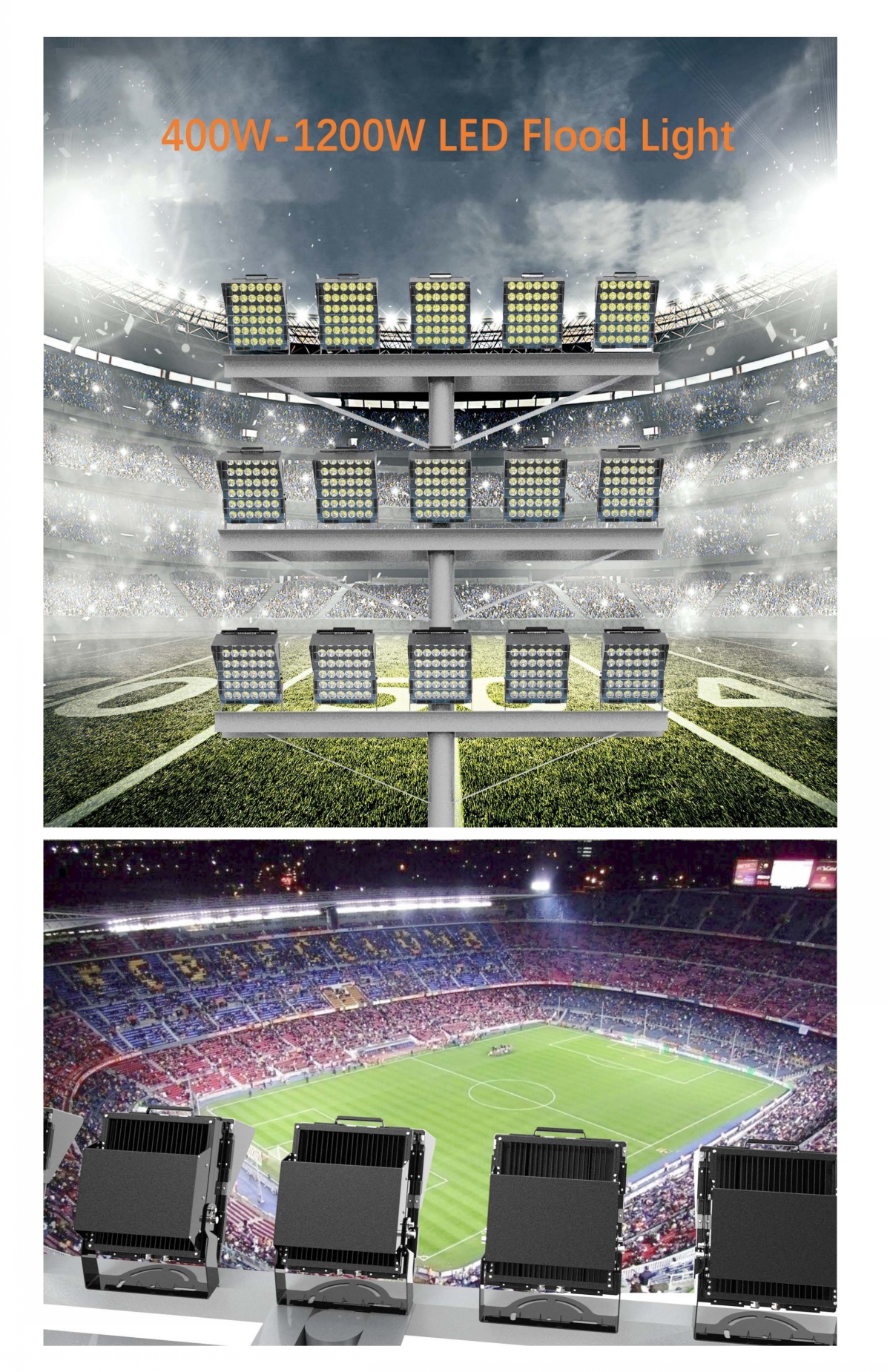

511&512 LED Stadium Lights can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.
Warning
- Please install the lamp according to the installation to avoid dropping and electric shock.
- Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
- Working voltage is not to be exceeded AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
Attention
- Don’t install the lamp to non-stable place.
- Installed by qualified electrician.
- Switch off the switch box and contact certified electrician if the lamp works abnormally
Warranty
5-year warranty since the date of purchase is offered for all LED flood Lights.
Warranty Terms
- Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
- RYGH will not provide paid maintenance service under conditions within warranty.
- Failure or damage due to force majeure.
- Failure or damage due to transport or unloading.
- Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
- Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
- Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
- RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
