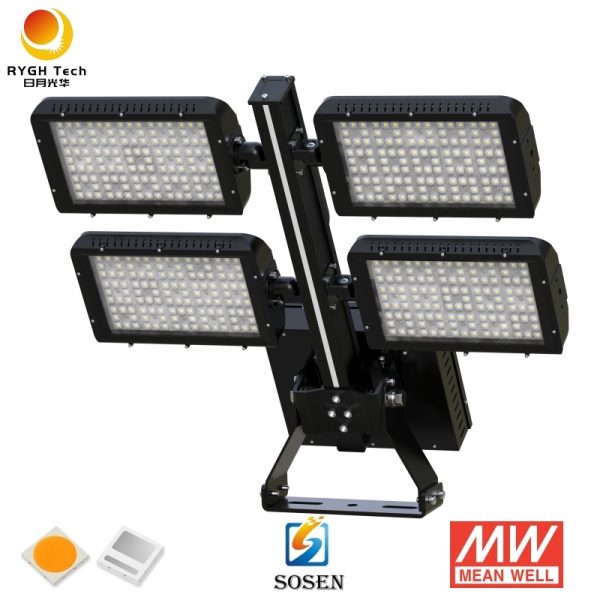

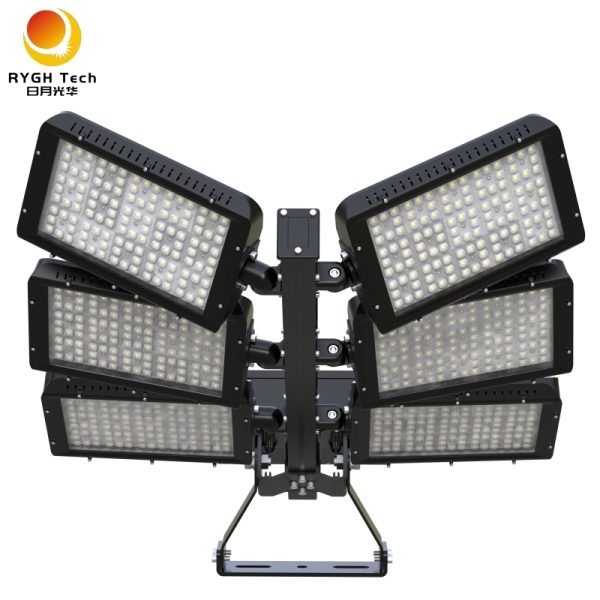

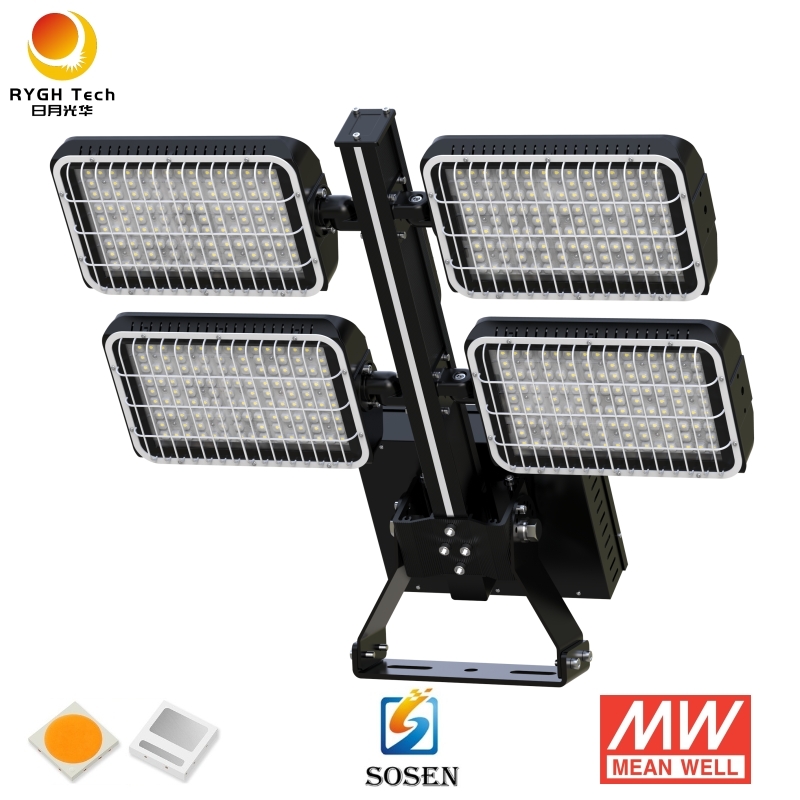

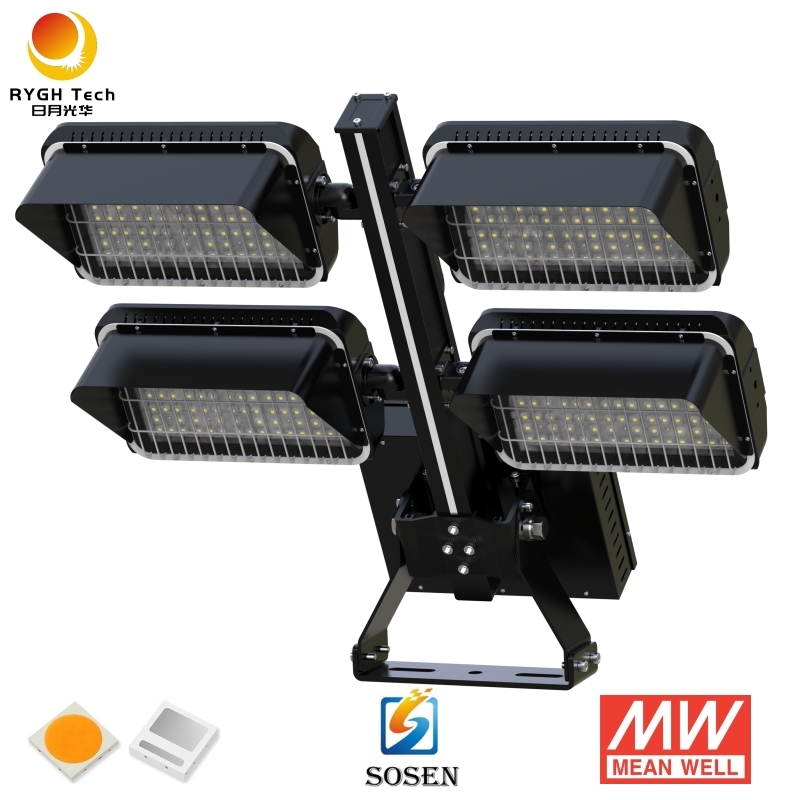

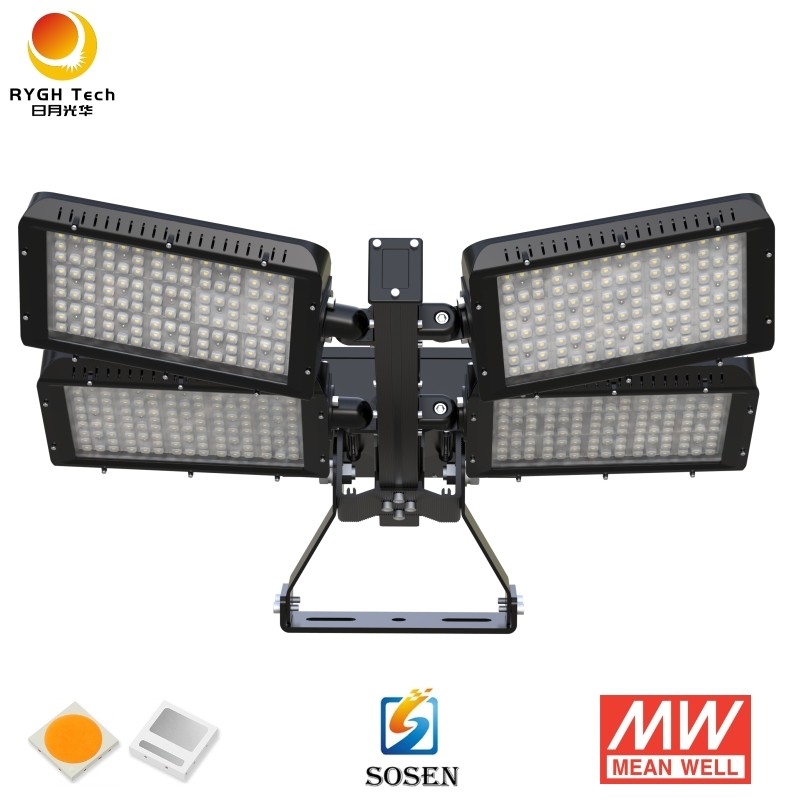

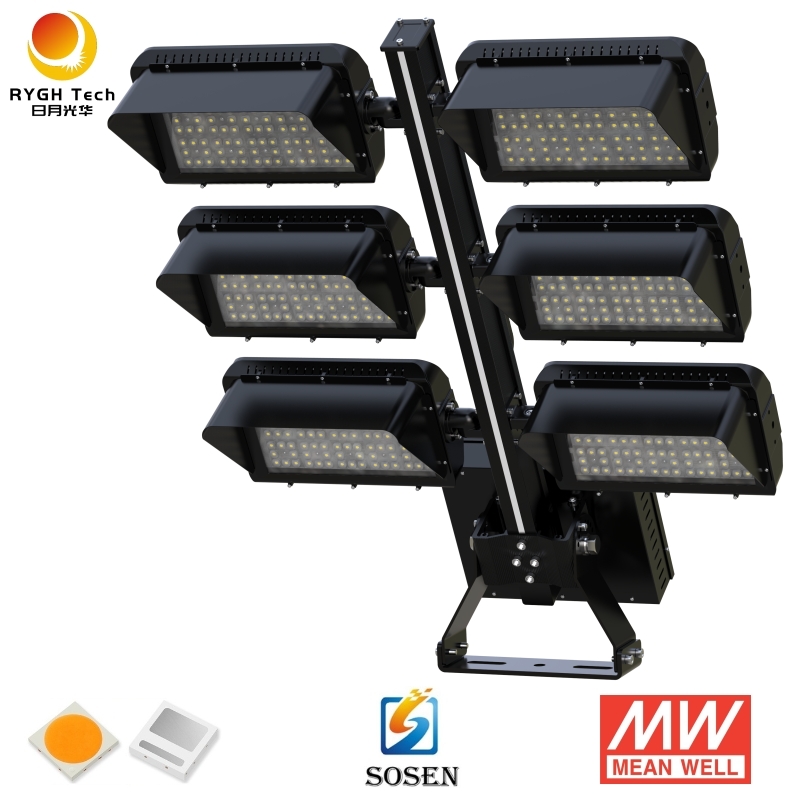

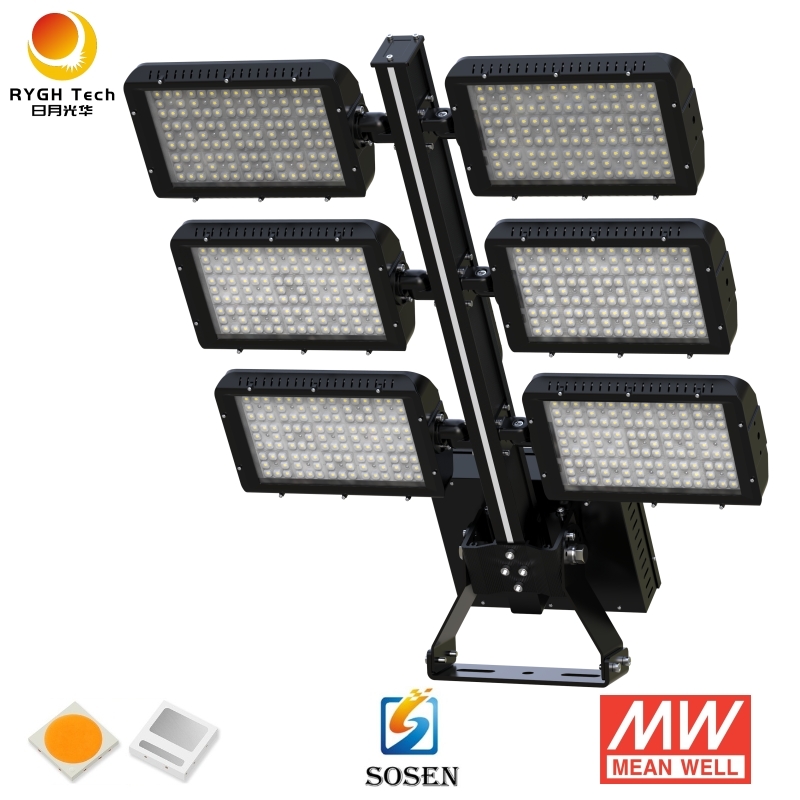

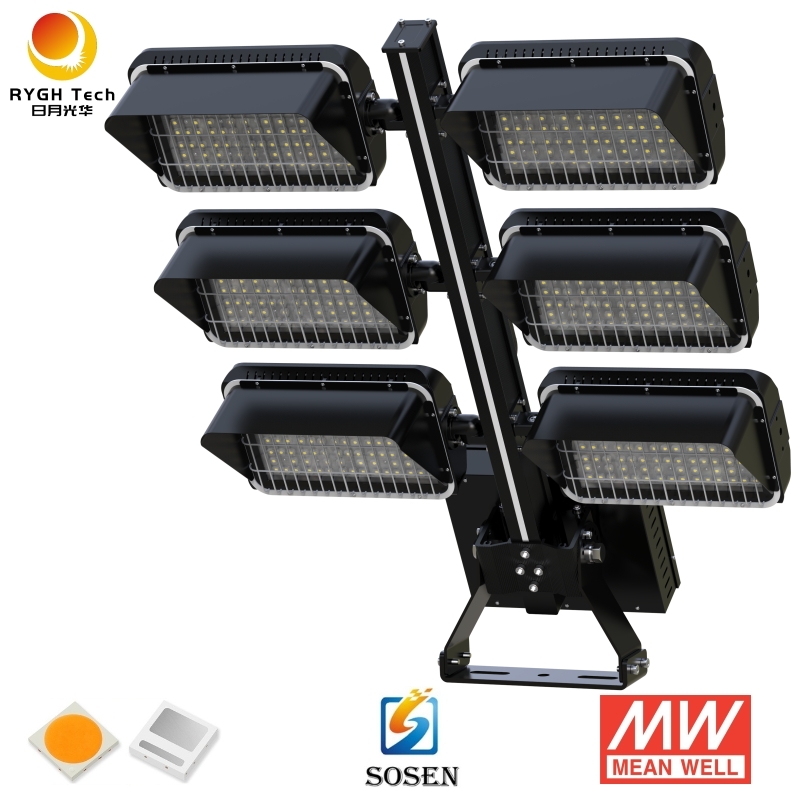

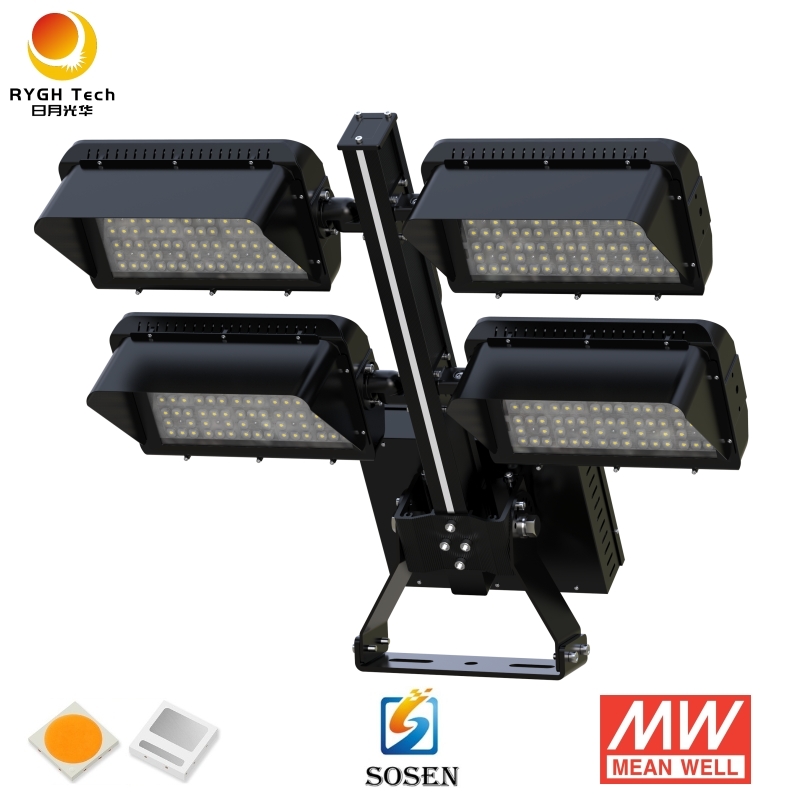

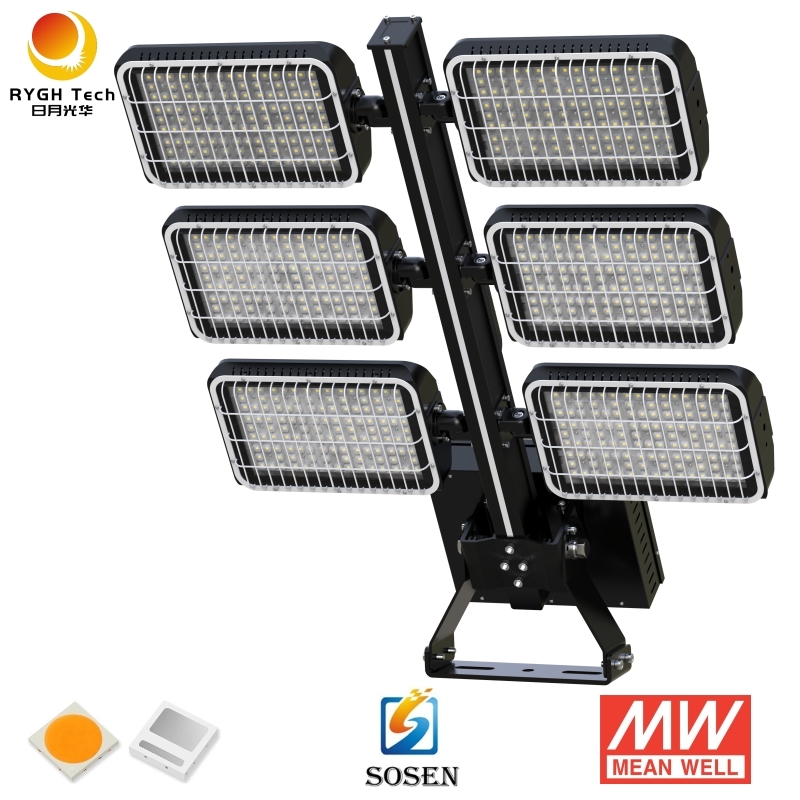

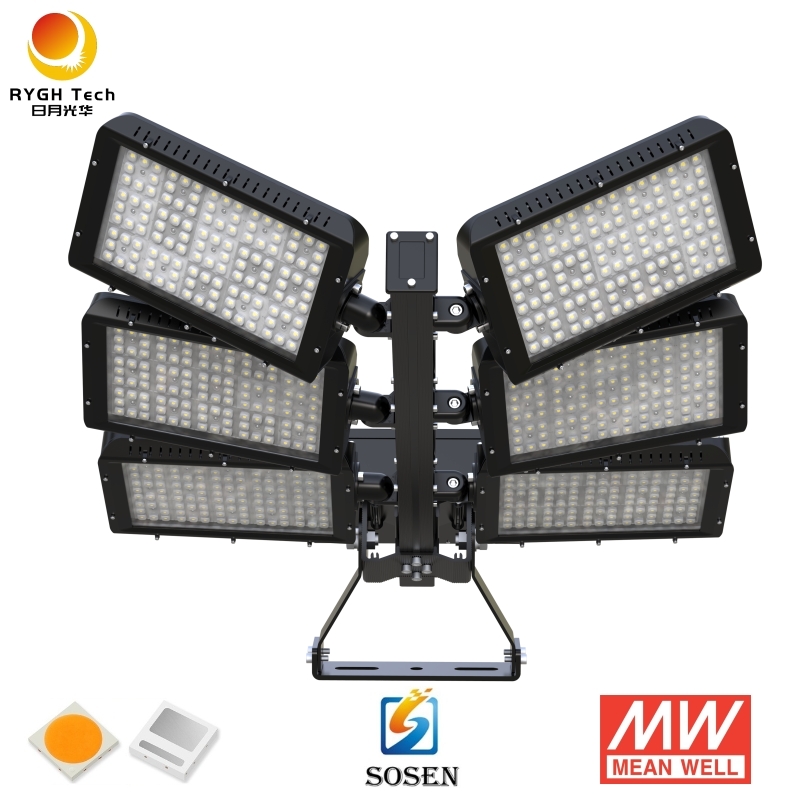

HL LED Stadium Light
HL LED Stadium Light Features: 1200W|1500W
Efficiency: 140-160lm/w | 10°|20°|40°|P50°|60°*60°|90°*90°|30°*70°
1, Die cast Aluminum Heat Sink,excellent thermal management
2, Unique and industrial look and customized color available
3, Black Frame with die cast aluminum provide high mechanical strength, best heat dissipation
4, Optical Polycarbonate Lenses provide high impact resistance IK08 and multiple lighting distributions: 30°/60°/90°/140°*100°
5, Top brand LED chip and driver, ensure the product quality and lifetime
6, 180°Adjustable Bracket, allows for precise installation
7, “L” Type extended bracket and thick arms, anti-typhoon rating 17
8, Luminous Efficacy up to 160lm/W, Lifetime 50,000H
9, Ingress Protection Rating: IP65/IP66
10, Operation Temperature: -35°-+50°
11, External 10KV SPD, provide extra surge protection
12, Working voltage: AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
HL LED Stadium Light Specification
| Model no. | RYGH-HL-1200W | RYGH-HL-1800W |
| Rated power | 1200 Watt | 1800 Watt |
| Input voltage | AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz | |
| LED Chip | 5050 SMD | 5050 SMD |
| LED Driver | MEANWELL, INVENTRONICS, SOSEN, etc | MEANWELL, INVENTRONICS, SOSEN, etc |
| Material | FIN AL+PC | FIN AL+PC |
| CRI | 70/80/90/95/98 | 70/80/90/95/98 |
| Power Factor | >0.95 | >0.95 |
| CCT | WW, NW, CW | WW, NW, CW |
| Light efficacy | 140-160LM/W | 140-160LM/W |
| IP rating | IP65 | IP65 |
| IK rating | IK08 | IK08 |
| Operation temperature | -35~+50℃ | -35~+50℃ |
| Beam angle | 10.20.40.P50.60*60.90*90.30*70 | 10.20.40.P50.60*60.90*90.30*70 |
| Warranty | 5 Years | 5 Years |
| Life span | 50,000 hours | 50,000 hours |
| Dimension | 904x923x192mm | 1204x923x192mm |
| Packing quantity | 1 piece/CTN | 1 piece/CTN |
| Net Weight | 32KG | 51KG |
| Gross Weight | 35KG | 55KG |
| Packing size | 1010x496x660mm | 1310x496x660mm |
| Certificate | CE, RoHs | CE, RoHs |
Environment Requirement
Working Temperature：-35~+50℃
Storage Temperature：-35~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
HL LED Stadium Light Application:
HL LED Stadium Light can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.
Warning
- Please install the lamp according to the installation to avoid dropping and electric shock.
- Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
- Working voltage is not to be exceeded AC 85-305V, 50/60Hz / AC 347-480V, 50/60Hz
Attention
- Don’t install the lamp to non-stable place.
- Installed by qualified electrician.
- Switch off the switch box and contact certified electrician if the lamp works abnormally
Warranty
5-year warranty since the date of purchase is offered for all LED flood Lights.
Warranty Terms
- Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
- RYGH will not provide paid maintenance service under conditions within warranty.
- Failure or damage due to force majeure.
- Failure or damage due to transport or unloading.
- Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
- Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
- Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
- RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
