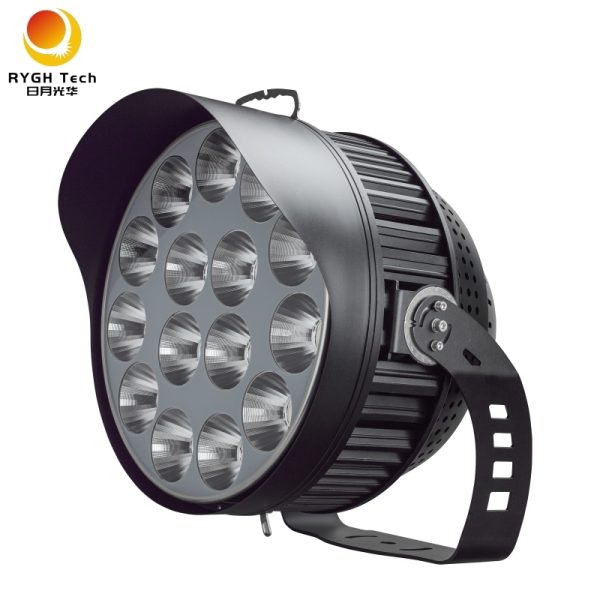

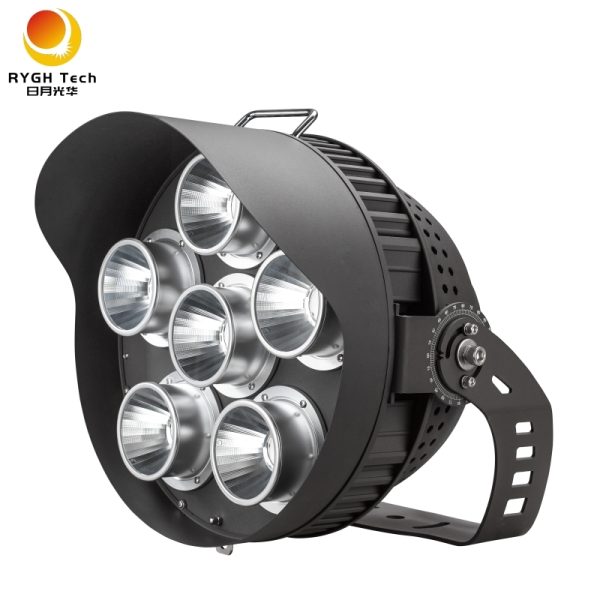

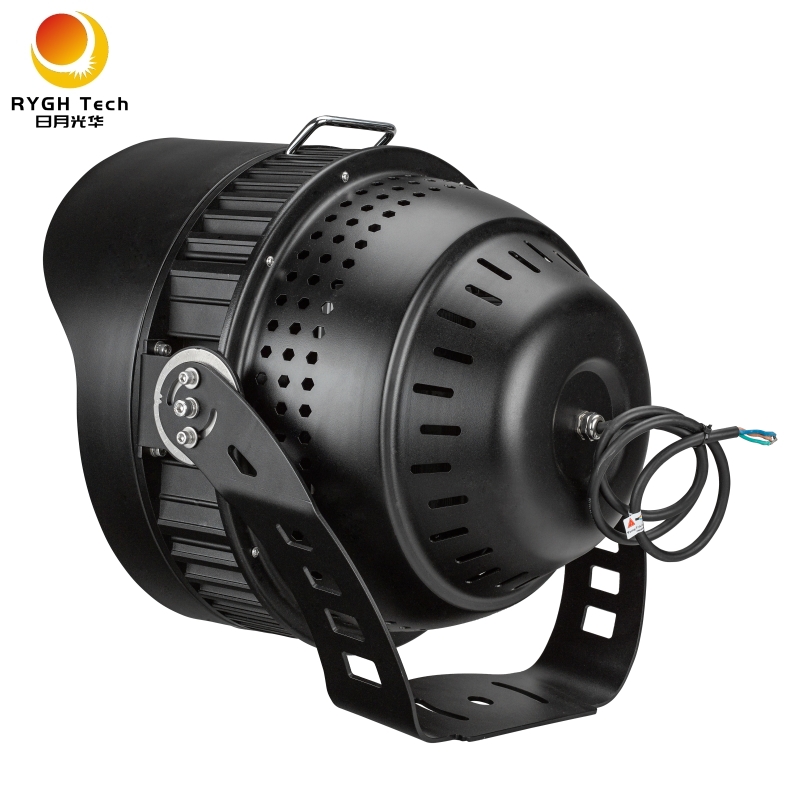

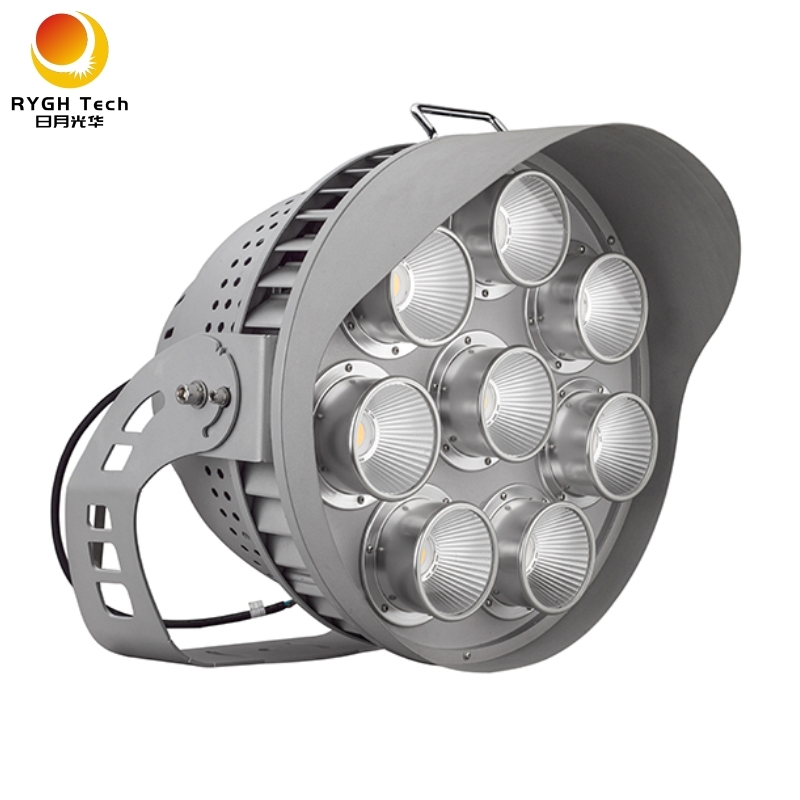

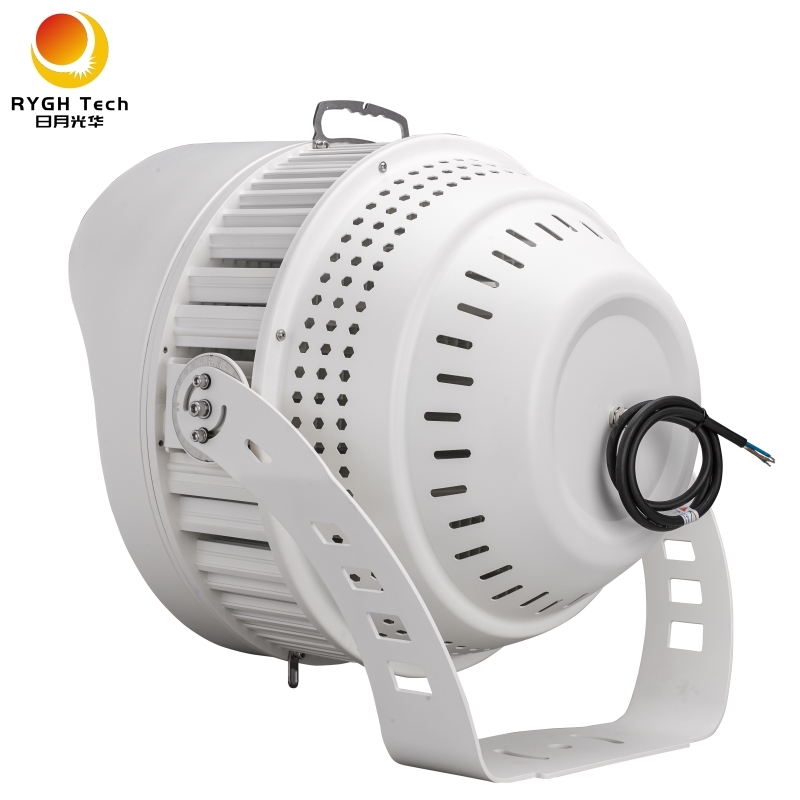

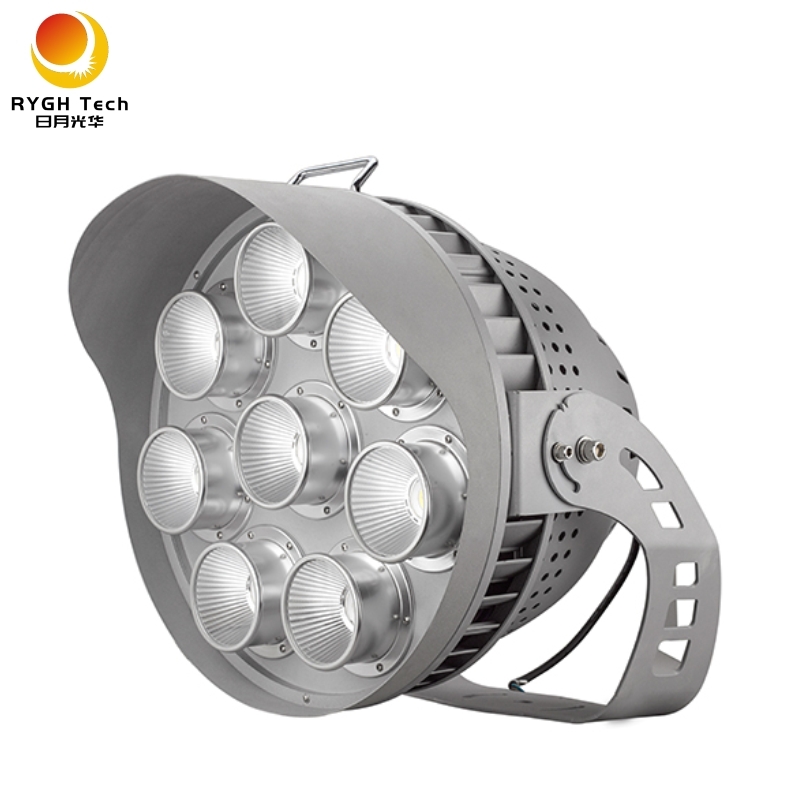

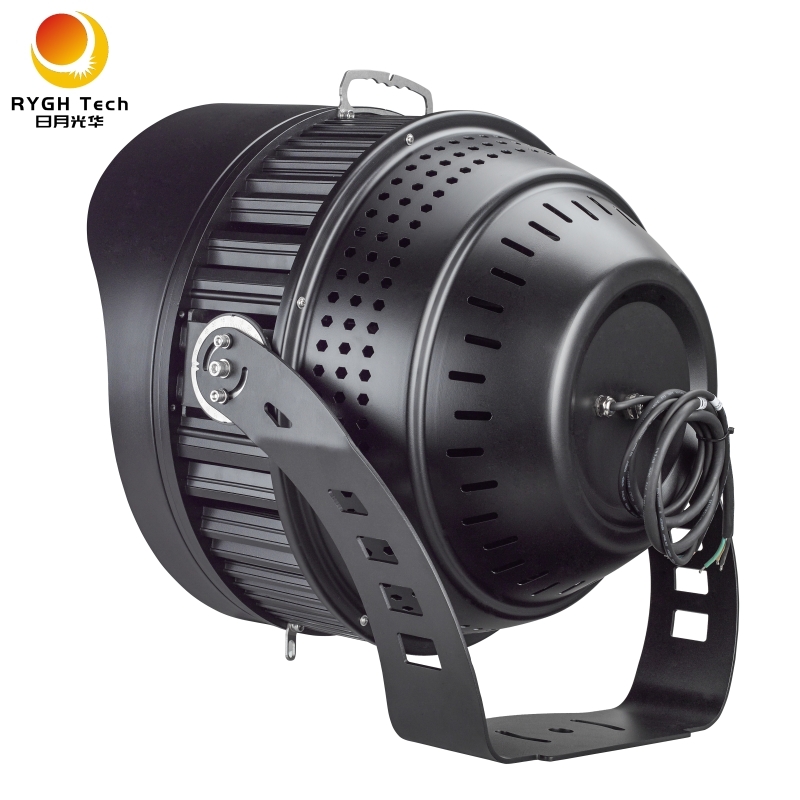

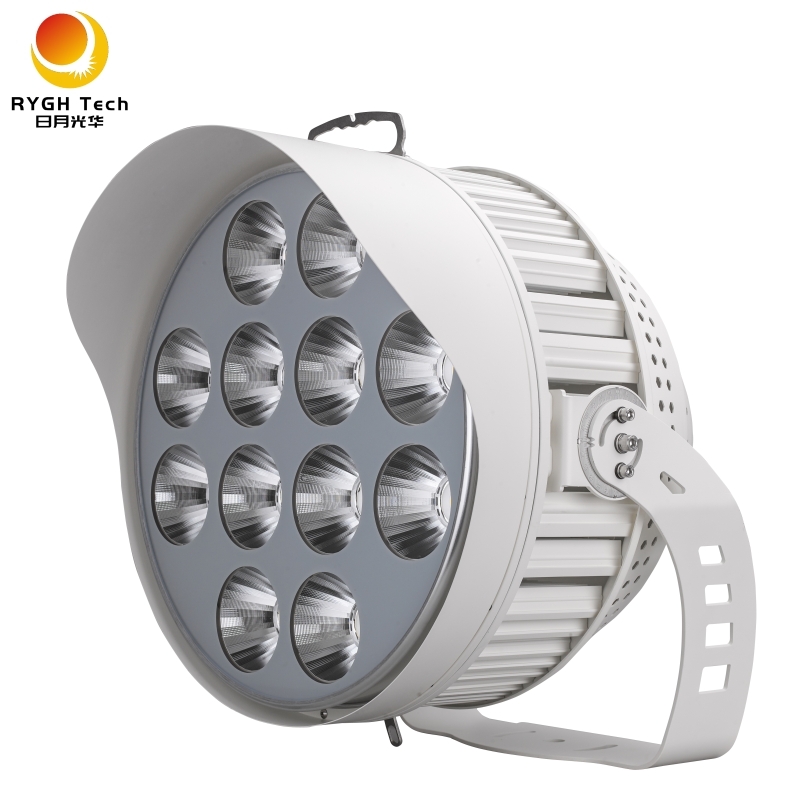

R2 COB LED Stadium Light
R2 COB LED Stadium Light Features:
Power: 500W|600W|750W|1000W|1200W
Beam angle: 15° 23° 38° 45° 60°
1, LEDs froms Citizen COB LED with high thermal conductivity, good heat-radiation, small light decay, pure light, no ghosting, stable performance and quality advantages.
2, Unique thermal management design low LED junction temperature effectively, ensure the lifespan of the light source and power.
3, Extremely light weight for safety use and installation.
R2 COB LED Stadium Light Specifications
| Model no. | SPL500A-COB-R2 | SPL600A-COB-R2 | SPL750A-COB-R2 | SPL1000A-COB-R2 | SPL1200A-COB-R2 |
| Rated power | 500 Watt | 600 Watt | 750 Watt | 1000 Watt | 1200 Watt |
| Input voltage | AC 85-305V, 50/60Hz | AC 85-305V, 50/60Hz | AC 85-305V, 50/60Hz | AC 85-305V, 50/60Hz | AC 85-305V, 50/60Hz |
| LED Chip | CITIZEN COB | CITIZEN COB | CITIZEN COB | CITIZEN COB | CITIZEN COB |
| LED Driver | INVENTRONICS | INVENTRONICS | INVENTRONICS | INVENTRONICS | INVENTRONICS |
| Material | AL+Stainless Steel | AL+Stainless Steel | AL+Stainless Steel | AL+Stainless Steel | AL+Stainless Steel |
| CRI | 70 | 70 | 70 | 70 | 70 |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| CCT | WW, NW, CW | WW, NW, CW | WW, NW, CW | WW, NW, CW | WW, NW, CW |
| Luminous flux | 60000LM | 72000LM | 90000LM | 120000LM | 144000LM |
| IP rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| IK rating | IK08 | IK08 | IK08 | IK08 | IK08 |
| Operation temperature | -35~+50℃ | -35~+50℃ | -35~+50℃ | -35~+50℃ | -35~+50℃ |
| Beam angle | 15° 23° 38° 45° 60° | ||||
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
| Life span | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
| Dimension | 449*468*442mm | 449*468*442mm | 449*468*442mm | 512*555*513mm | 512*555*513mm |
| Certificate | CE, RoHs | CE, RoHs | CE, RoHs | CE, RoHs | CE, RoHs |
| Packing size | 490*490*410MM | 450*480*150MM 9kg | 560*480*150MM | 560*560*640MM | 810*530*150MM |
| Pieces/ctn | 1 | 1 | 1 | 1 | 1 |
| Net Weight | 13.8kg | 13.8kg | 13.8kg | 25.6kg | 25.6kg |
| Gross Weight | 16.8kg | 16.8kg | 16.8kg | 28.6kg | 28.6kg |
Environment Requirement
Working Temperature：-35~+50℃
Storage Temperature：-35~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
R2 COB LED Stadium Light Application:
R2 COB LED Stadium Light can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.

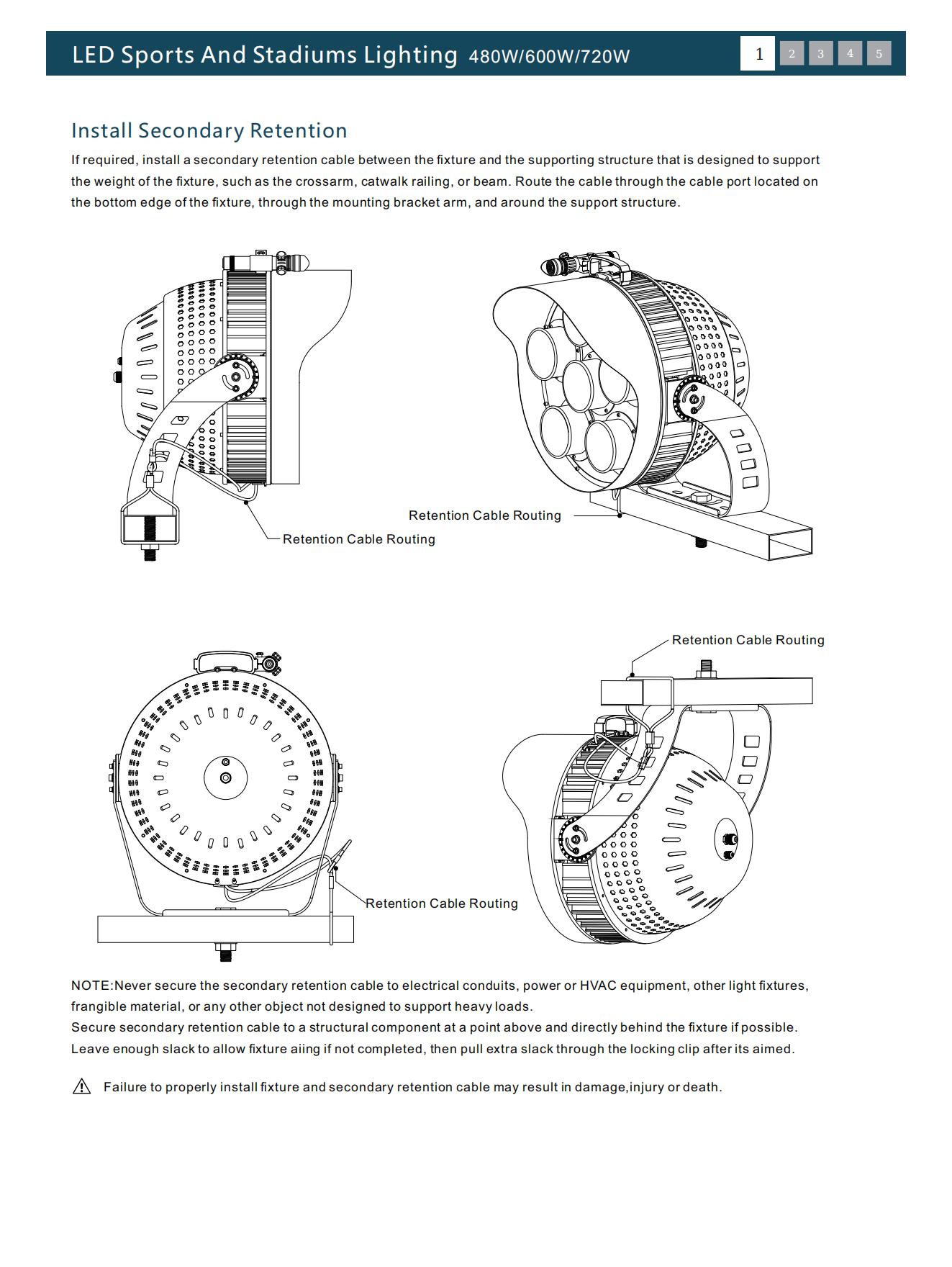

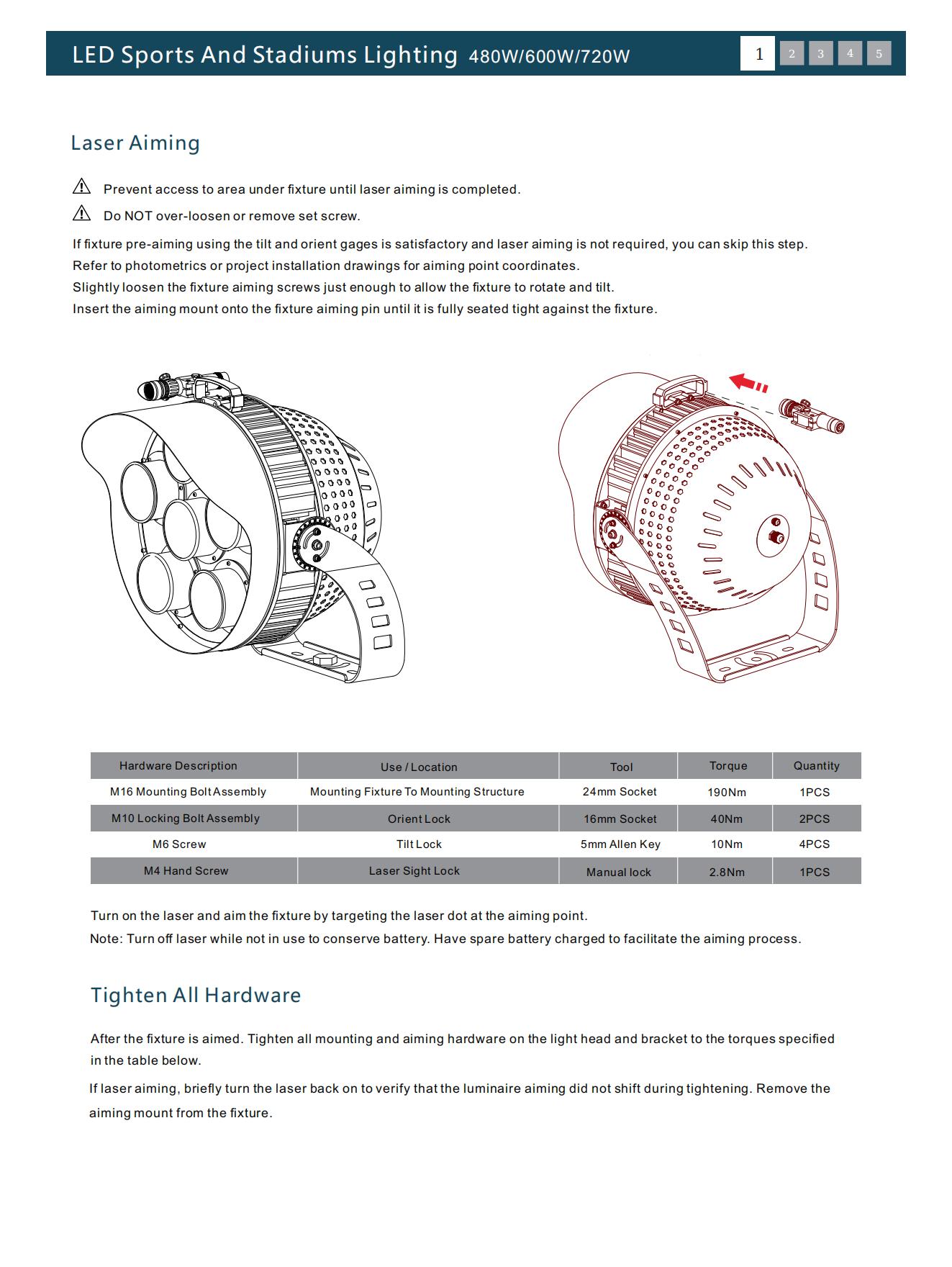

Warning
- Please install the lamp according to the installation to avoid dropping and electric shock.
- Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
- Working voltage is not to be exceeded AC100-305V 50/60Hz
Attention
- Don’t install the lamp to non-stable place.
- Installed by qualified electrician.
- Switch off the switch box and contact certified electrician if the lamp works abnormally
Warranty
5-year warranty since the date of purchase is offered for all LED flood Lights.
Warranty Terms
- Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
- RYGH will not provide paid maintenance service under conditions within warranty.
- Failure or damage due to force majeure.
- Failure or damage due to transport or unloading.
- Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
- Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
- Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
- RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
