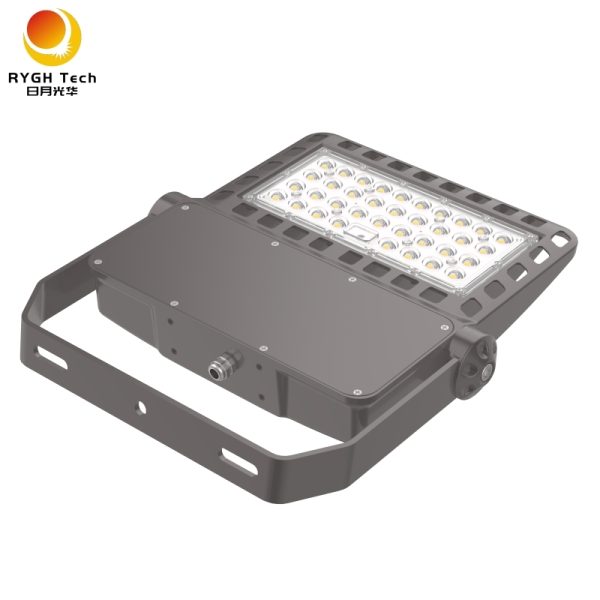

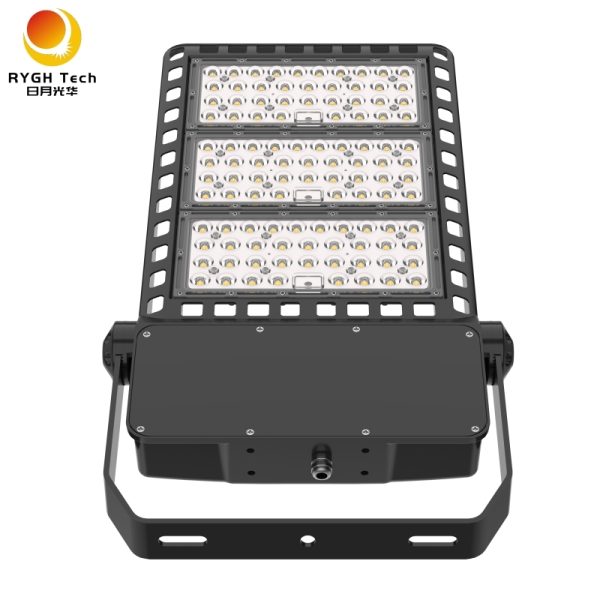

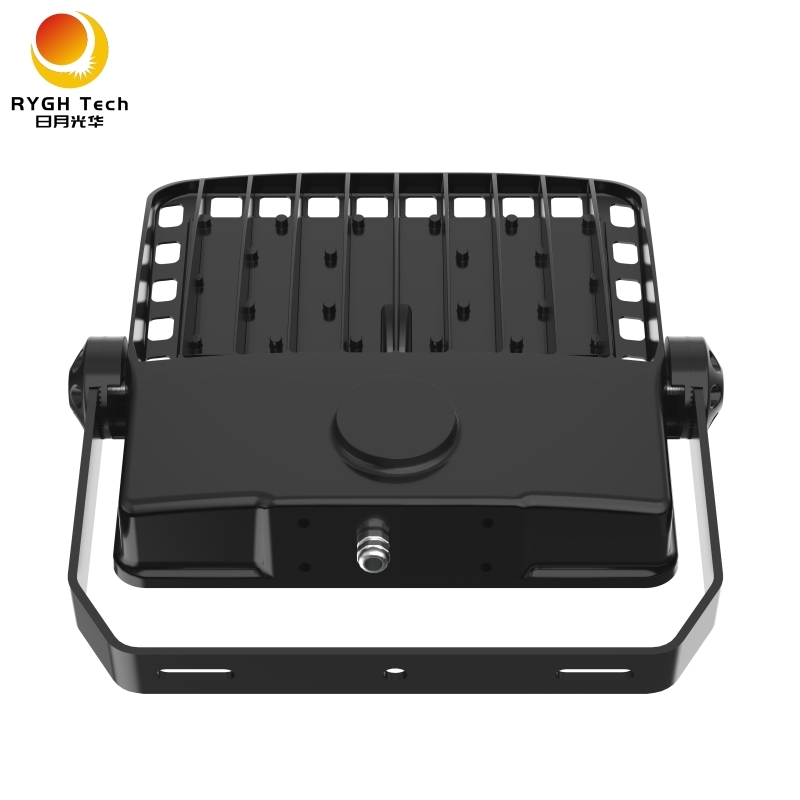

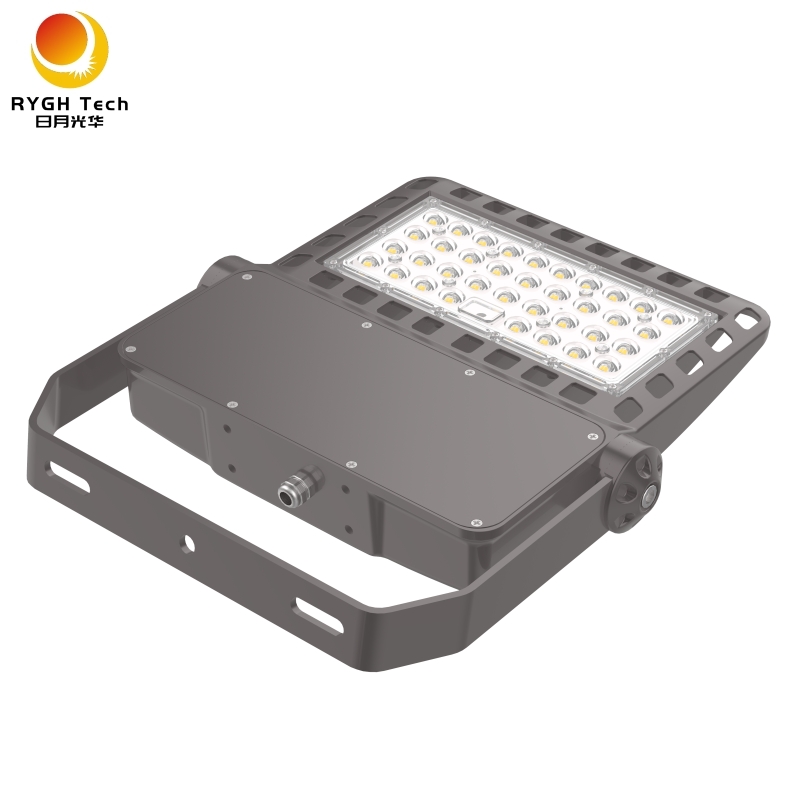

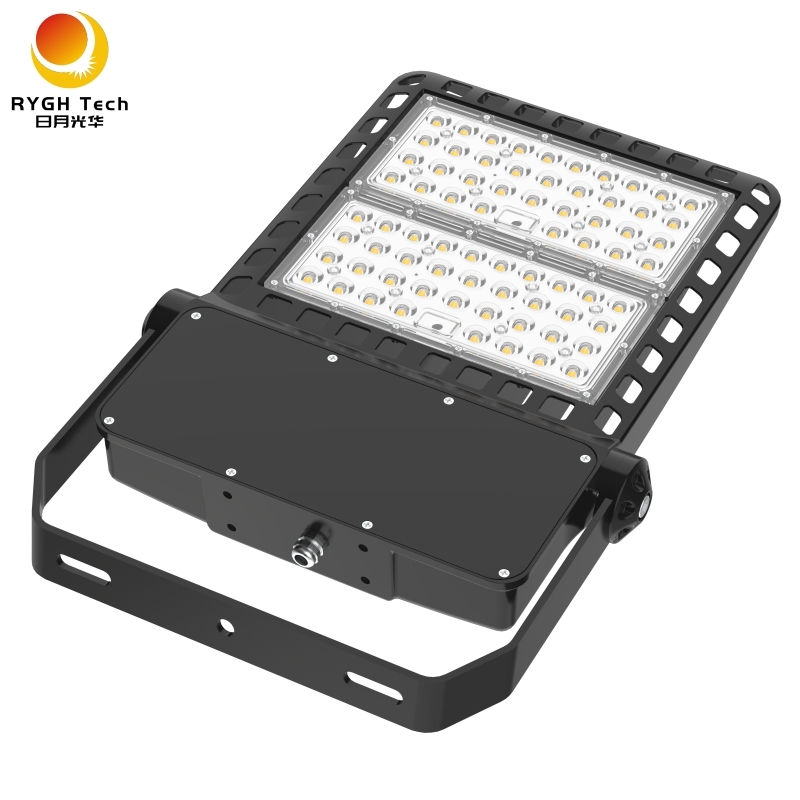

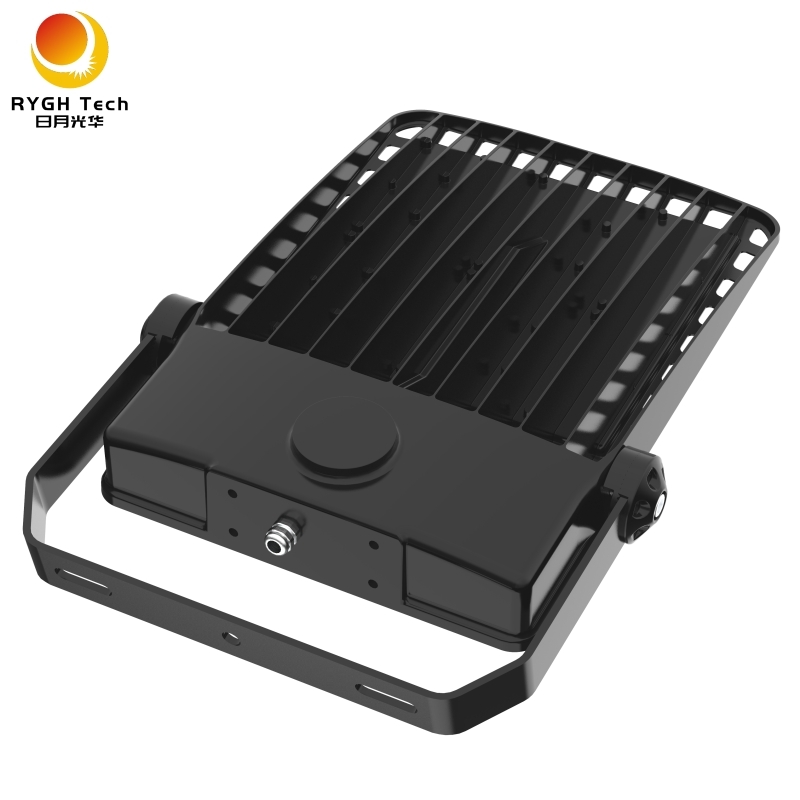

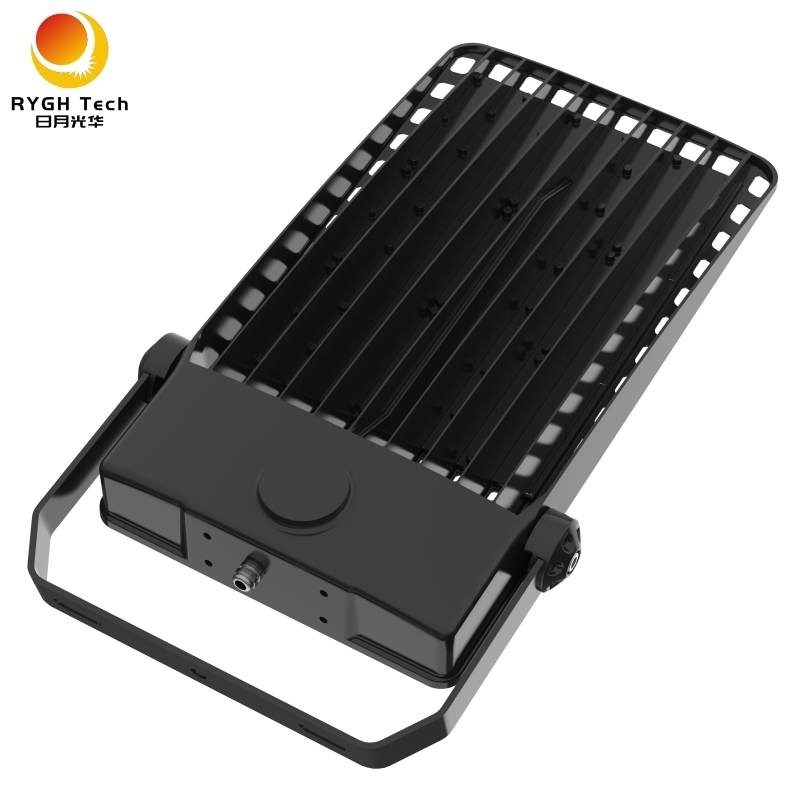

TG6F LED Flood Light

TG6F LED Flood Light Features: 100W|150W|200W|240W
300W|320W

1, Integrated die-casting AL

2, High efficiency, 130lm/w

3, Professional glare-free lens, TYPE3/TYPE4/TYPE5 available

4, 0-10V dimming/time control/light sensor

5, Bat wing light shape

6, Various applications: street light,shoe box light, projector,etc.

Category: LED Flood Light Tags: #blue led flood light, #led floodlight 200w, #outdoor flood light fixtures waterproof, #reflector led 150 watts, #reflector led 300 watts

Description
Reviews (0)

TG6F LED Flood Light Specifications

Model no.	RYGH-TG6F-100W	RYGH-TG6F-150W	RYGH-TG6F-200W	RYGH-TG6F-240W	RYGH-TG6F-300W	RYGH-TG6F-320W
Rated power	100 Watt	150 Watt	200 Watt	240 Watt	300 Watt	320 Watt
Input voltage	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz
LED Chip	3030 SMD 144 pcs	3030 SMD 216 pcs	3030 SMD 288 pcs	3030 SMD 432 pcs	3030 SMD 432 pcs	3030 SMD 648 pcs
LED Driver	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc
Material	Die cast AL+Glass	Die cast AL+Glass	Die cast AL+Glass	Die cast AL+Glass	Die cast AL+Glass	Die cast AL+Glass
CRI	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98
Power Factor	>0.95	>0.95	>0.95	>0.95	>0.95	>0.95
CCT	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW
Light efficacy	130-140LM/W	130-140LM/W	130-140LM/W	130-140LM/W	130-140LM/W	130-140LM/W
IP rating	IP66	IP66	IP66	IP66	IP66	IP66
IK rating	IK08	IK08	IK08	IK08	IK08	IK08
Operation temperature	-35~+50℃	-35~+50℃	-35~+50℃	-35~+50℃	-35~+50℃	-35~+50℃
Beam angle	15080°/50140°/140*140°
Warranty	5 Years	5 Years	5 Years	5 Years	5 Years	5 Years
Life span	50,000 hours	50,000 hours	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Dimension	L315.5W334H75mm	L315.5W334H75mm	L315.5W454.5H75mm	L315.5W454.5H75mm	L315.5W578.5H84mm	L315.5W578.5H84mm
Packing quantity	1 piece/CTN	1 piece/CTN	1 piece/CTN	1 piece/CTN	1 piece/CTN	1 piece/CTN
Net Weight	6KG	6KG	7KG	7KG	10KG	10KG
Gross Weight	6.2KG	6.2KG	8.5KG	8.5KG	12KG	12KG
Packing size	L480W390H135mm	L480W390H135mm	L600W390H135mm	L600W390H135mm	L725W390H145mm	L725W390H145mm
Certificate	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs

Environment Requirement

Working Temperature：-35~+50℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

TG6F LED Flood Light Application:

TG6F LED Flood Light can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC100-305V 50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

5-year warranty since the date of purchase is offered for all flood Light.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.
