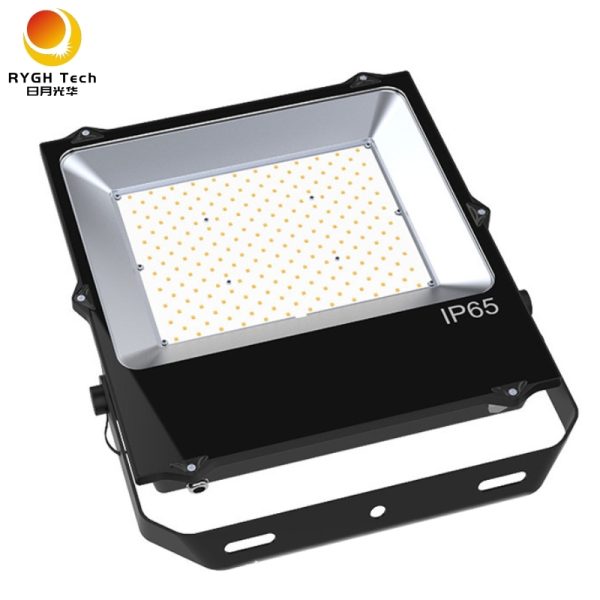

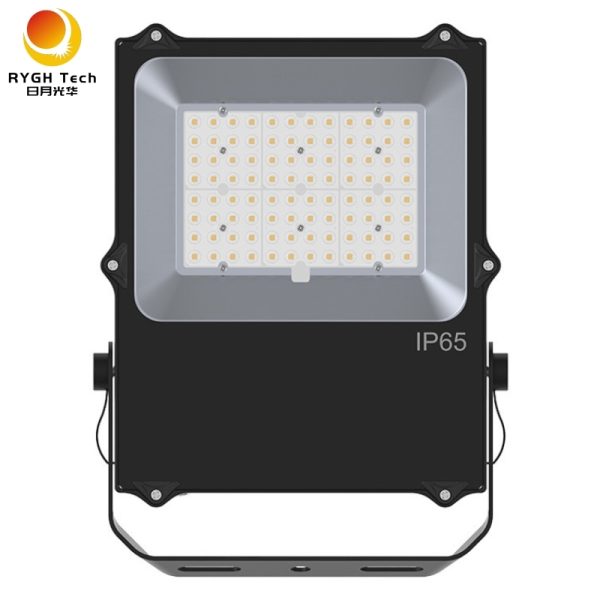

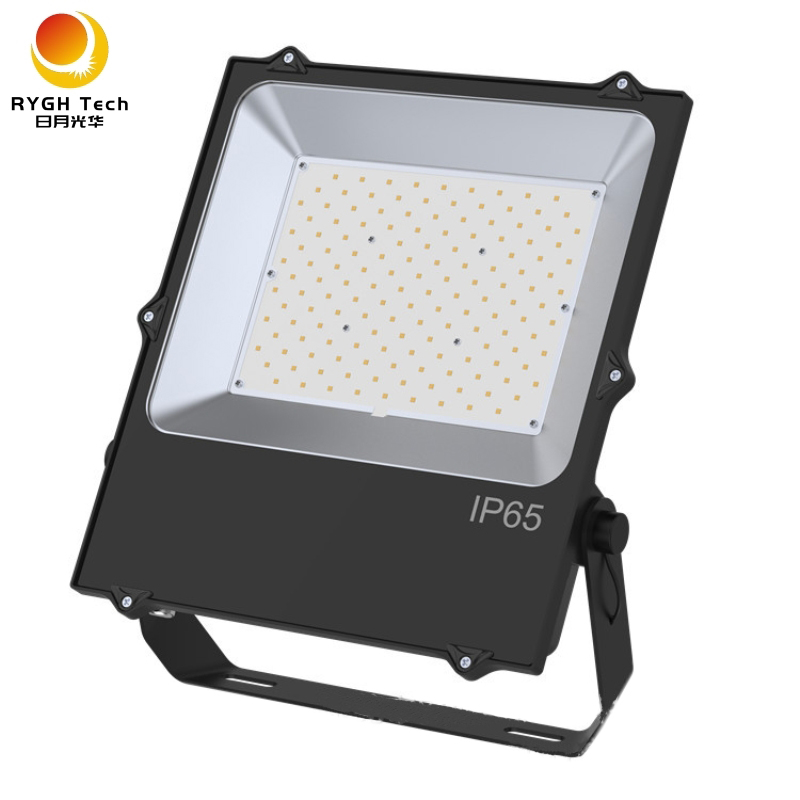

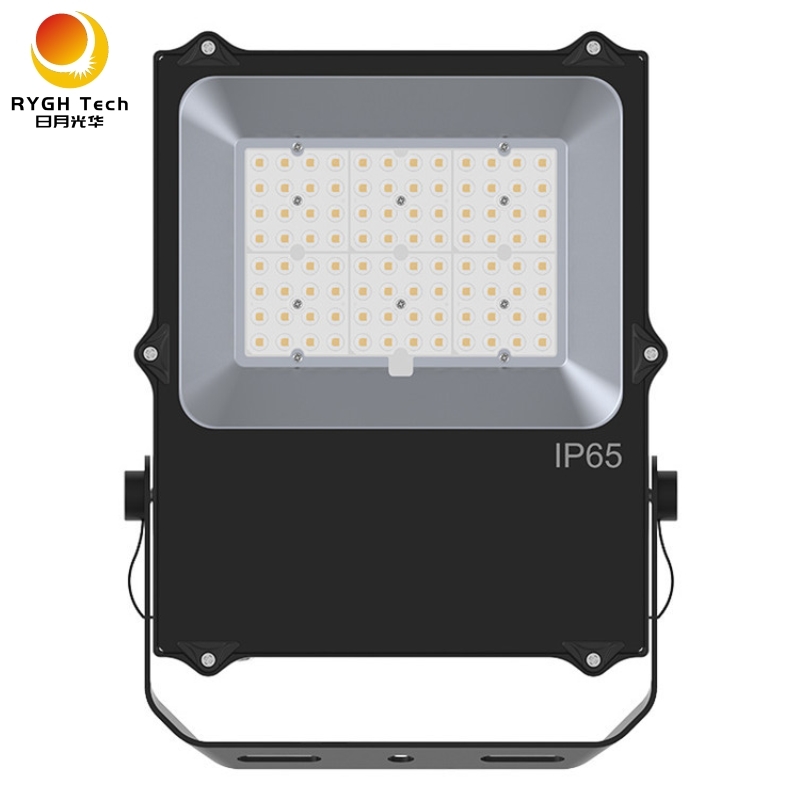

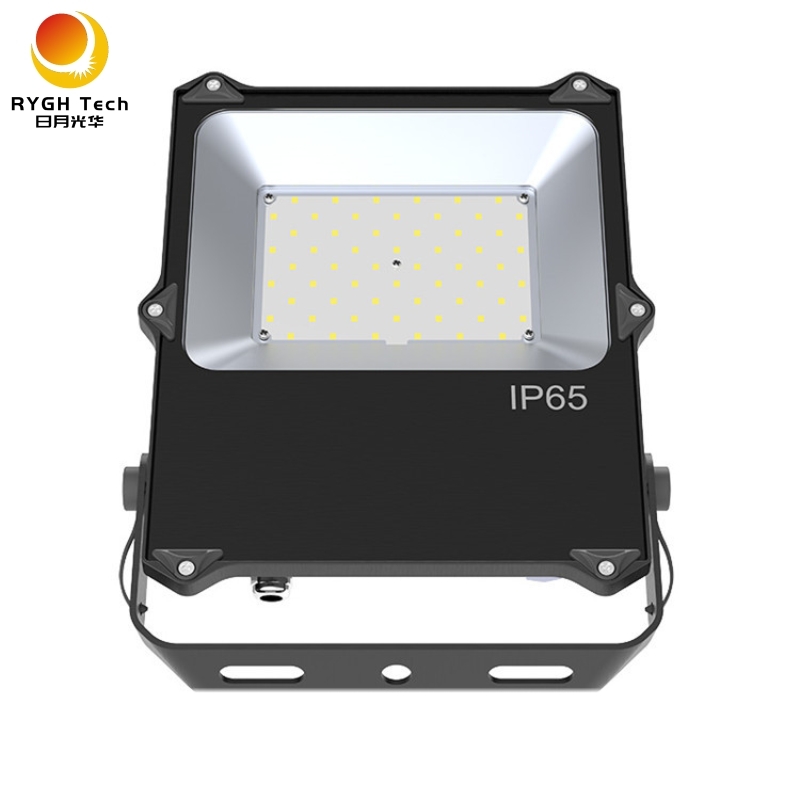

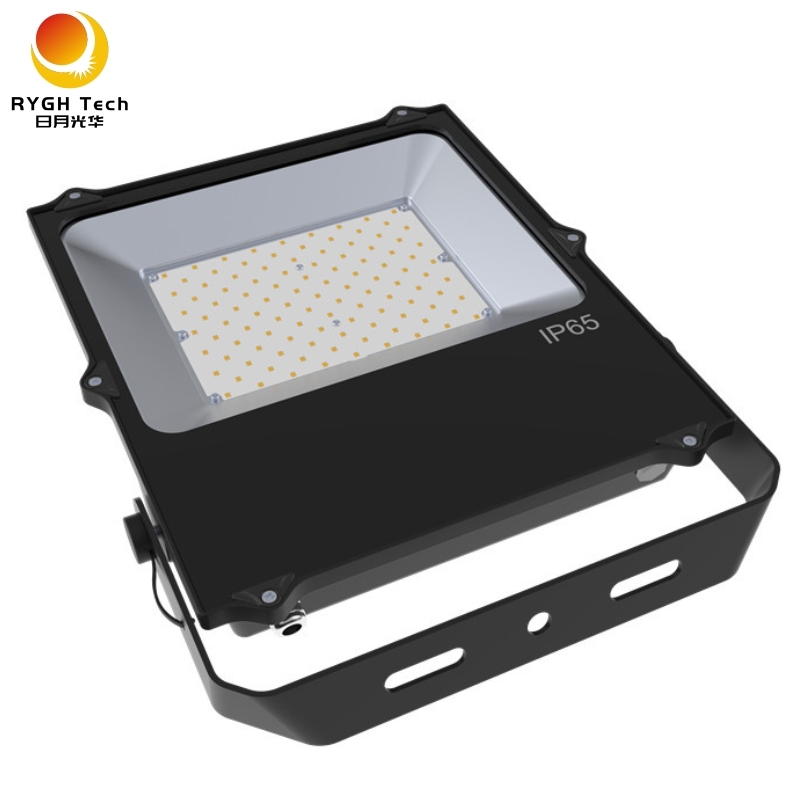

TG4A LED Flood Light Features: 50W|80W|100W|150W|200W
1, High efficiency, 100-150lm/w available
2, Beam angle: 120°
3, Integrated die-casting aluminum housing, elegant appearance
4, Good heat dissipation, long lifespan
5, Tempered glass, surface coating process, excellent corrosion-proof
6, Protection index: IP66
TG4A LED Flood Light Specifications
Model no. | RYGH-TG4A-50W | RYGH-TG4A-80W | RYGH-TG4A-100W | RYGH-TG4A-150W | RYGH-TG4A-200W |
Rated power | 50 Watt | 80 Watt | 100 Watt | 150 Watt | 200 Watt |
Input voltage | AC 85-305V, 50/60Hz | AC 85-305V, 50/60Hz | AC 85-305V, 50/60Hz | AC 85-305V, 50/60Hz | AC 85-305V, 50/60Hz |
LED Chip | 3030 50 PCS | 3030 80 PCS | 3030 100 PCS | 3030 150 PCS | 3030 240 PCS |
LED Driver | MEANWELL, INVENTRONICS, SOSEN, etc | MEANWELL, INVENTRONICS, SOSEN, etc | MEANWELL, INVENTRONICS, SOSEN, etc | MEANWELL, INVENTRONICS, SOSEN, etc | MEANWELL, INVENTRONICS, SOSEN, etc |
Material | Die cast AL+Glass | Die cast AL+Glass | Die cast AL+Glass | Die cast AL+Glass | Die cast AL+Glass |
CRI | 70/80/90/95/98 | 70/80/90/95/98 | 70/80/90/95/98 | 70/80/90/95/98 | 70/80/90/95/98 |
Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
CCT | WW, NW, CW | WW, NW, CW | WW, NW, CW | WW, NW, CW | WW, NW, CW |
Light efficacy | 110-150LM/W | 110-150LM/W | 110-150LM/W | 110-150LM/W | 120-160LM/W |
IP rating | IP66 | IP66 | IP66 | IP66 | IP66 |
IK rating | IK08 | IK08 | IK08 | IK08 | IK08 |
Operation temperature | -35~+50℃ | -35~+50℃ | -35~+50℃ | -35~+50℃ | -35~+50℃ |
Beam angle | 120° | 120° | 120° | 120° | 120° |
Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
Life span | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
Dimension | L320*W239*H50mm | L364*W264*55Hmm | L413*W315*H60mm | L440*W349*H60mm | L480*W379*H60mm |
Packing quantity | 8 piece/CTN | 6 piece/CTN | 1 Piece/CTN | 1 Piece/CTN | 1 Piece/CTN |
Net Weight | 1.83KG | 3.89KG | 4.53KG | 5.8KG | 6.6KG |
Gross Weight | 17KG | 24.34KG | 5.53KG | 6.8KG | 7.6KG |
Packing size | L370*W270*H490mm | L460*W360*H850mm | L490*W400*H140mm | L520*W440*H140mm | L560*W470*H140mm |
Certificate | CE, RoHs | CE, RoHs | CE, RoHs | CE, RoHs | CE, RoHs |
Environment Requirement
Working Temperature:-35~+50℃
Storage Temperature:-35~+50℃
Working Humidity:0%~85%
Storage Humidity:0%~90%
TG4A LED Flood Light Application:
TG4A LED Flood Light can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.
Warning
- Please install the lamp according to the installation to avoid dropping and electric shock.
- Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
- Working voltage is not to be exceeded AC100-305V 50/60Hz
Attention
- Don’t install the lamp to non-stable place.
- Installed by qualified electrician.
- Switch off the switch box and contact certified electrician if the lamp works abnormally
Warranty
5-year warranty since the date of purchase is offered for all flood Light.
Warranty Terms
- Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
- RYGH will not provide paid maintenance service under conditions within warranty.
- Failure or damage due to force majeure.
- Failure or damage due to transport or unloading.
- Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
- Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
- Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
- RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
