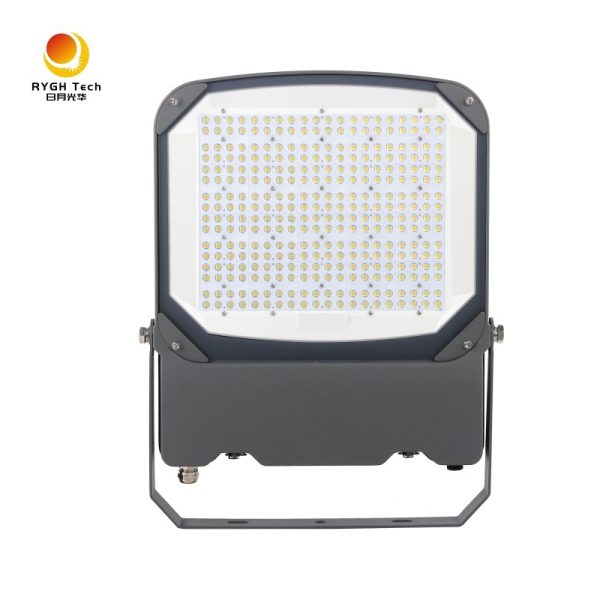

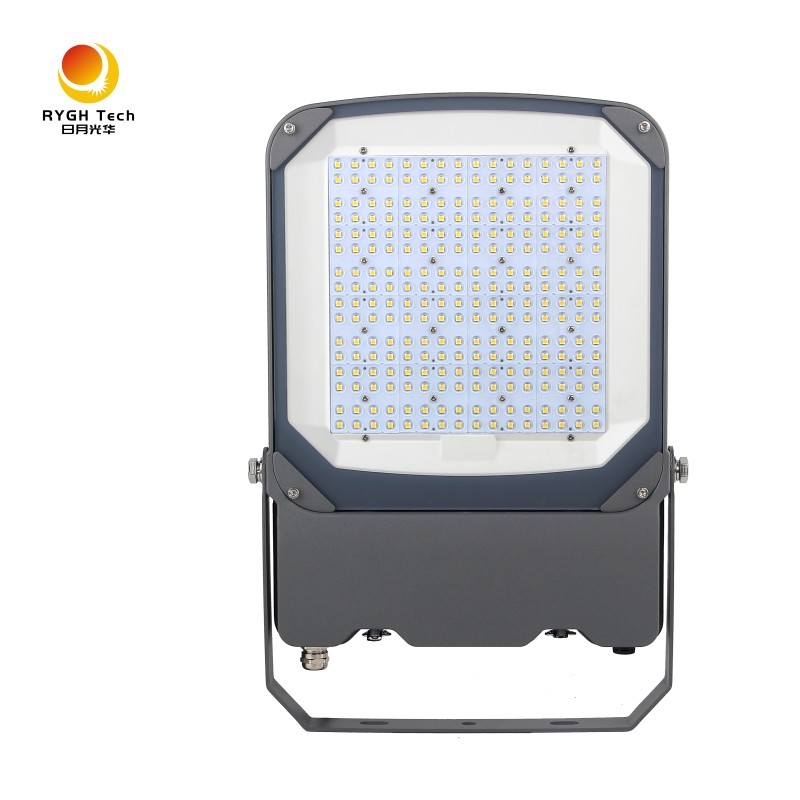

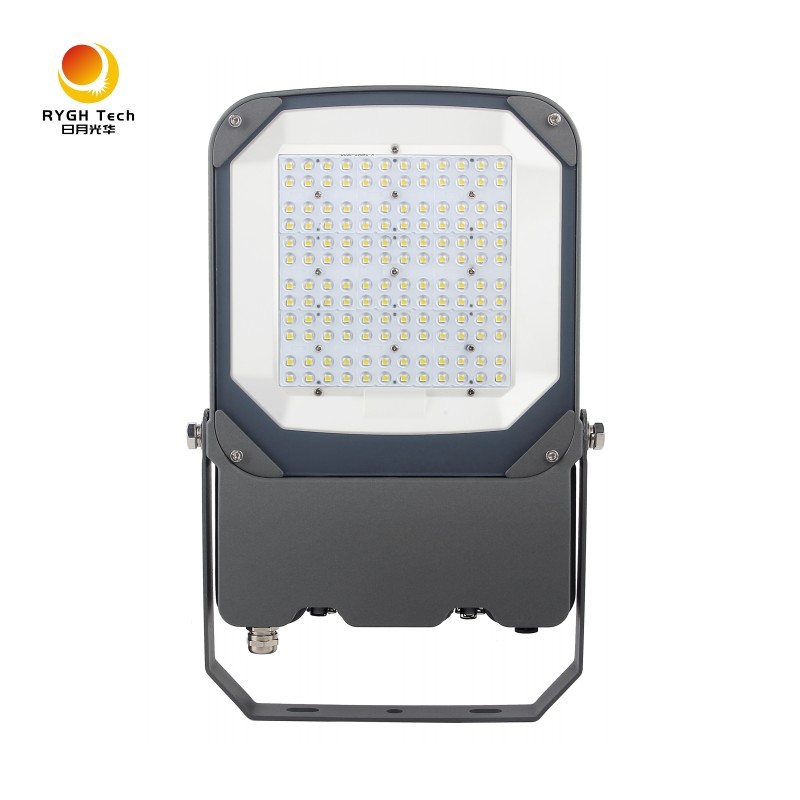

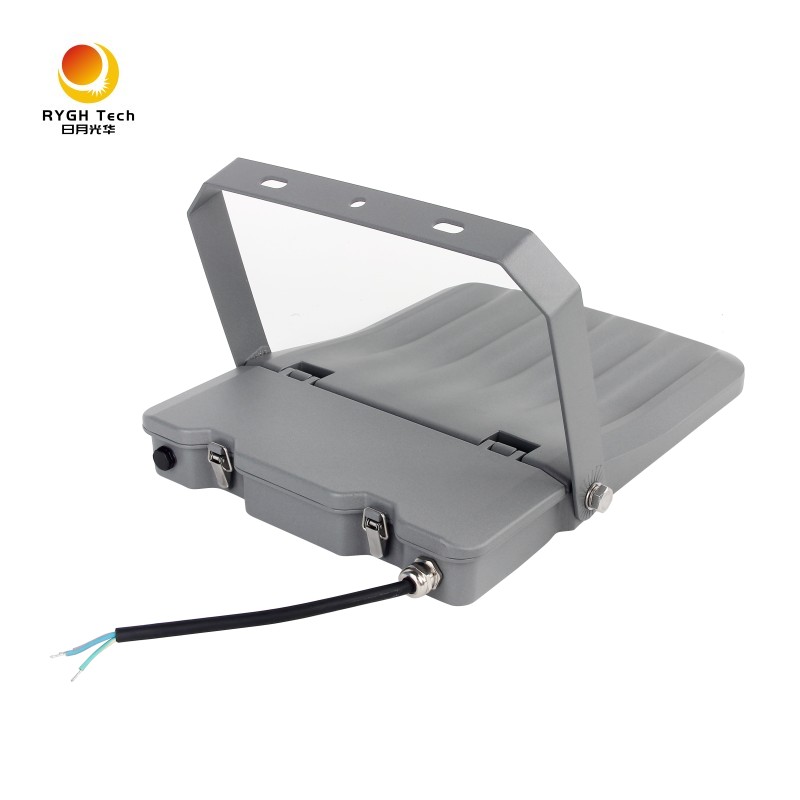

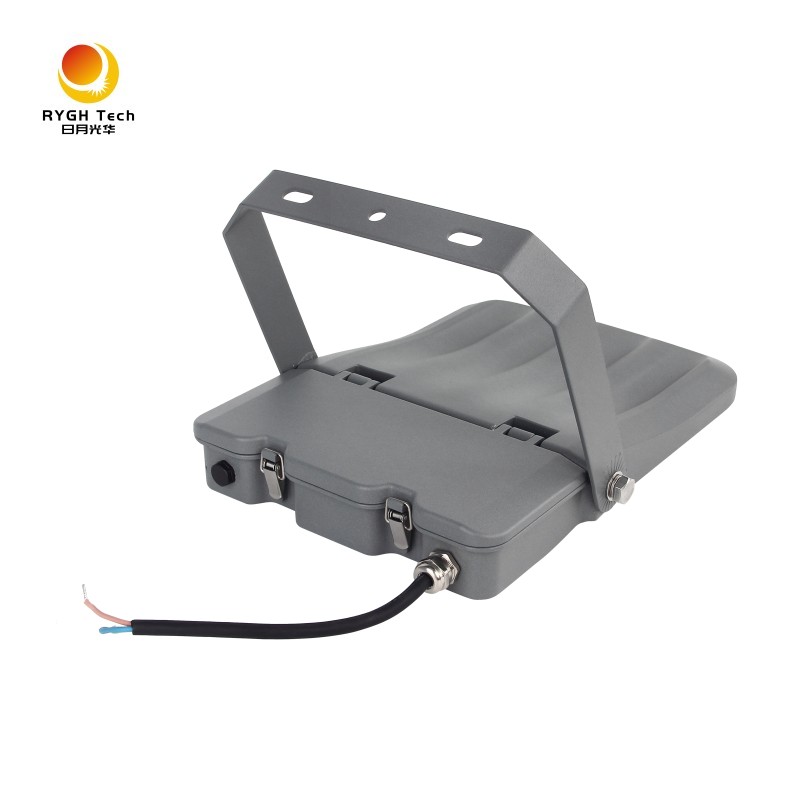

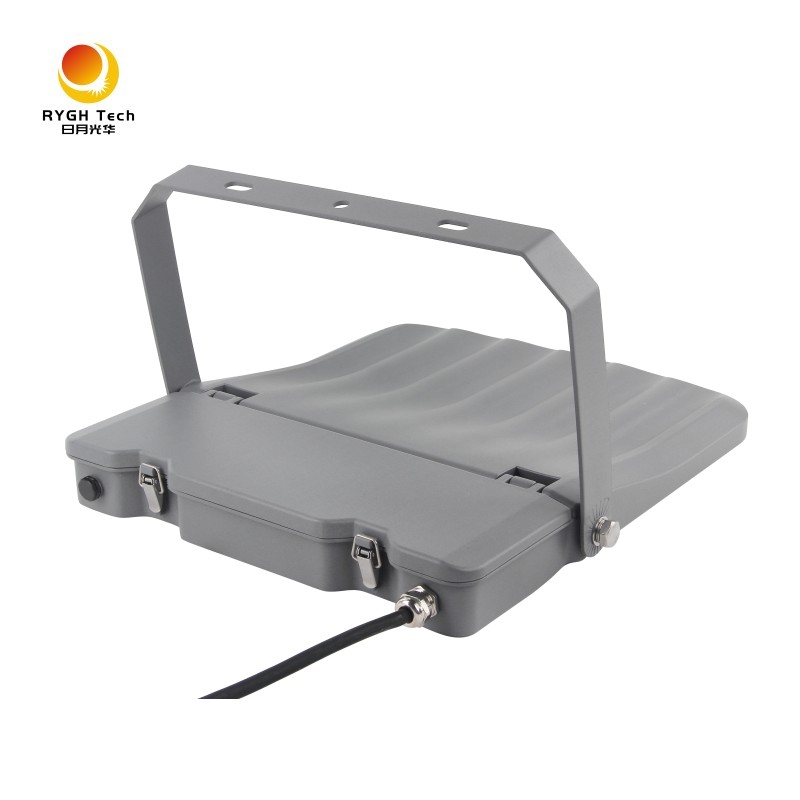

L LED Flood Light

L LED Flood Light Features: 100W|150W|200W

1, High efficiency, 130-140lm/w available

2, Beam angle 15°/30°/60°/90°/120°

3, Integrated die-casting aluminum housing, elegant appearance

4, Good heat dissipation, long lifespan

5, Tempered glass, surface coating process, excellent corrosion-proof

6, Protection index: IP66

L LED Flood Light Specifications

Model no.	RYGH-LFL-100W	RYGH-LFL-150W	RYGH-LFL-200W
Rated power	100 Watt	150 Watt	200 Watt
Input voltage	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz
LED Chip	3030 SMD	3030 SMD	3030 SMD
LED Driver	MEANWELL/INVENTRONICS/SOSEN, etc	MEANWELL/INVENTRONICS/SOSEN, etc	MEANWELL/INVENTRONICS/SOSEN, etc
Material	ADC12 AL+PC+Glass	ADC12 AL+PC+Glass	ADC12 AL+PC+Glass
CRI	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98
Power Factor	>0.95	>0.95	>0.95
CCT	WW, NW, CW	WW, NW, CW	WW, NW, CW
Light efficacy	130-140LM/W	130-140LM/W	130-140LM/W
IP rating	IP66	IP66	IP66
IK rating	IK08	IK08	IK08
Operation temperature	-35~+50℃	-35~+50℃	-35~+50℃
Beam angle	15/30/60/90/120°	15/30/60/90/120°	15/30/60/90/120°
Warranty	5 Years	5 Years	5 Years
Life span	50,000 hours	50,000 hours	50,000 hours
Dimension	L425W270H52mm	L473W320H52mm	L474W370H52mm
Packing quantity	1 piece/CTN	1 piece/CTN	1 piece/CTN
Net Weight	3.8KG	4.6KG	6KG
Gross Weight	5KG	6KG	7.5KG
Packing size	L450W275H100mm	L500W325H100mm	L500W375H100mm
Certificate	CE, RoHs	CE, RoHs	CE, RoHs

Environment Requirement

Working Temperature：-35~+50℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

L LED Flood Light Specifications application:

L LED Flood Light can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC100-305V 50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

5-year warranty since the date of purchase is offered for all flood Light.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.
