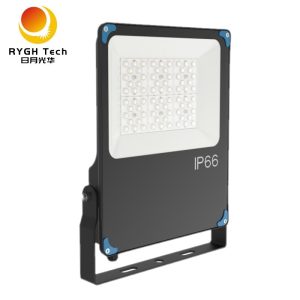

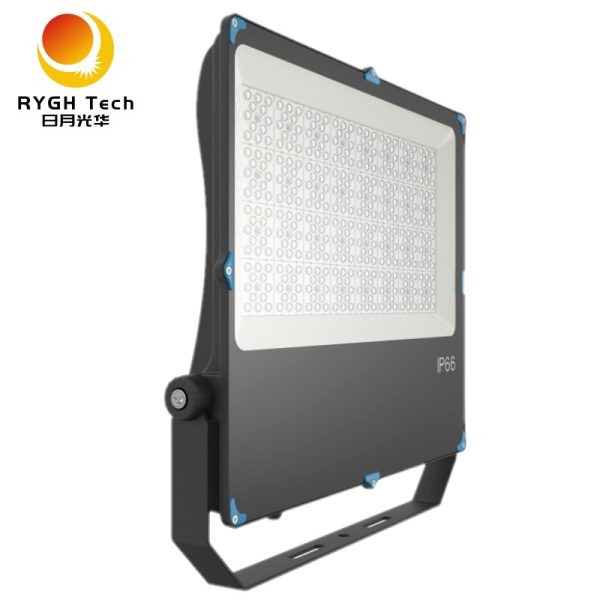

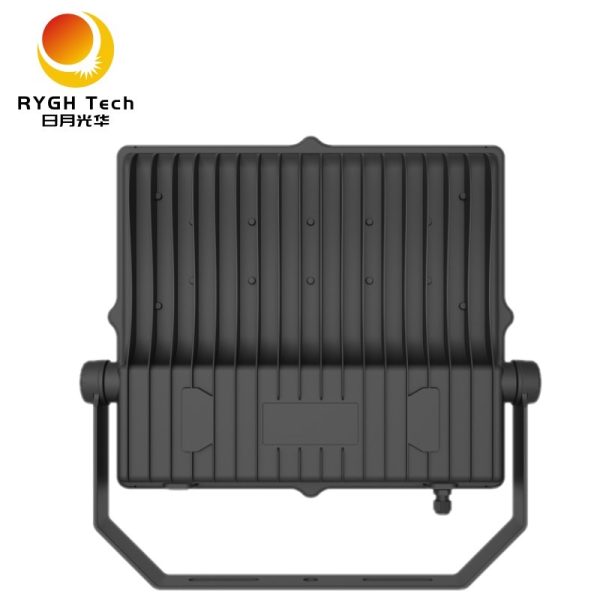

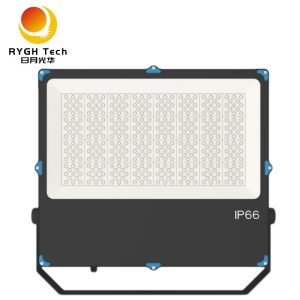

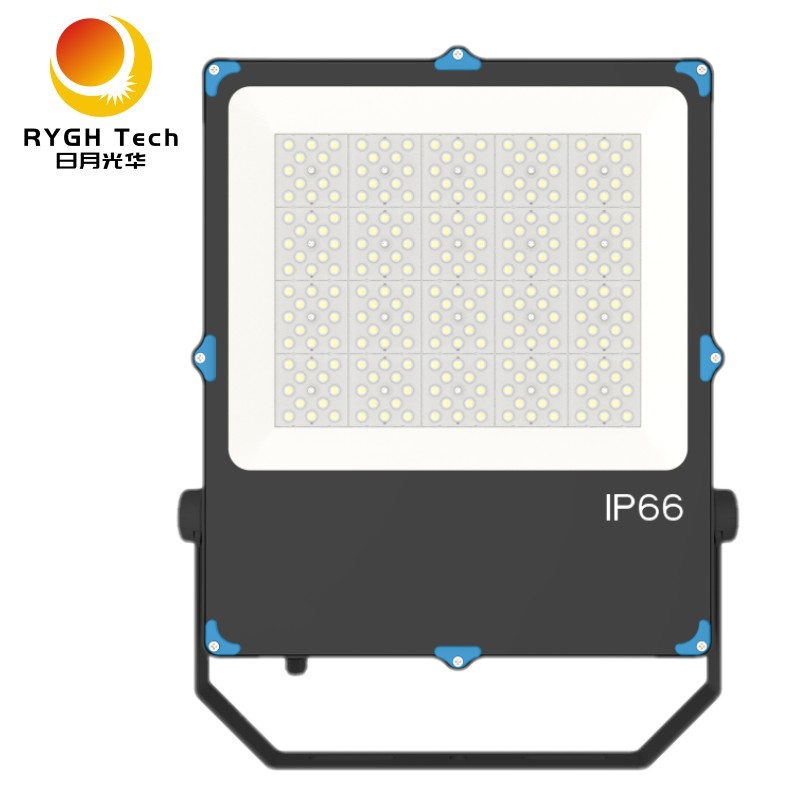

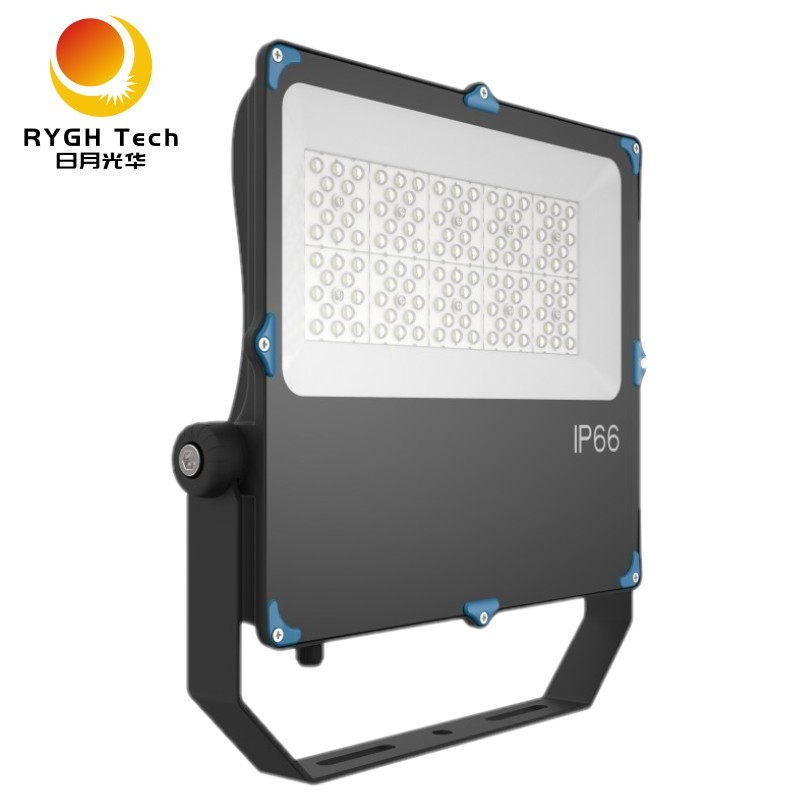

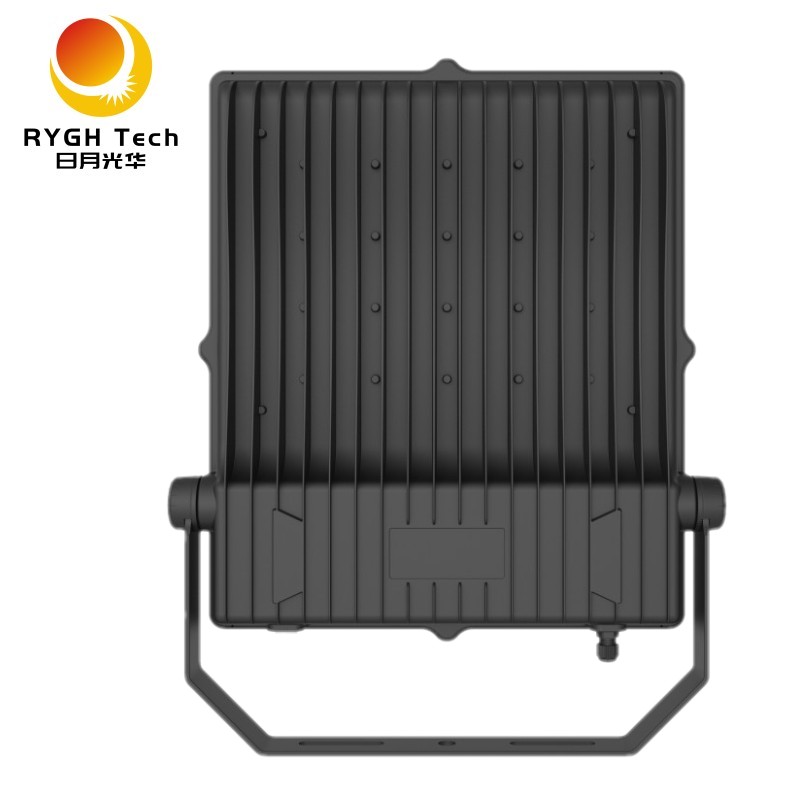

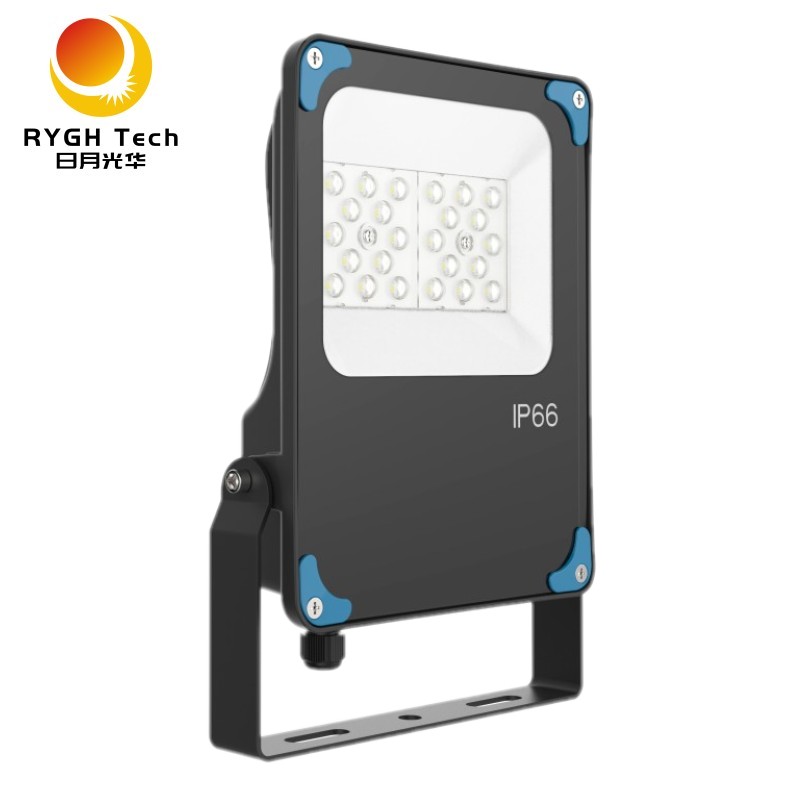

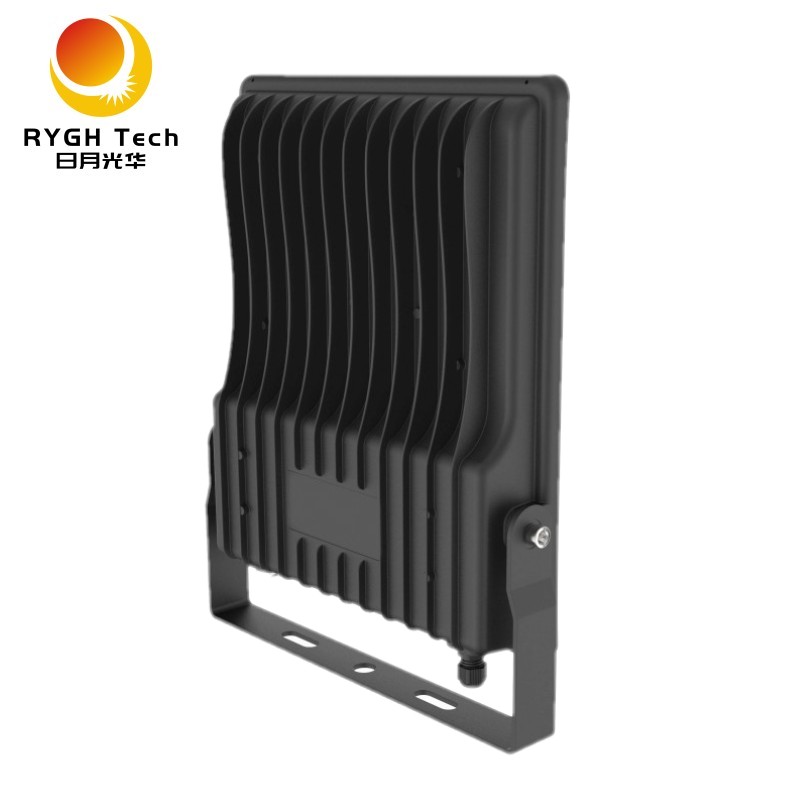

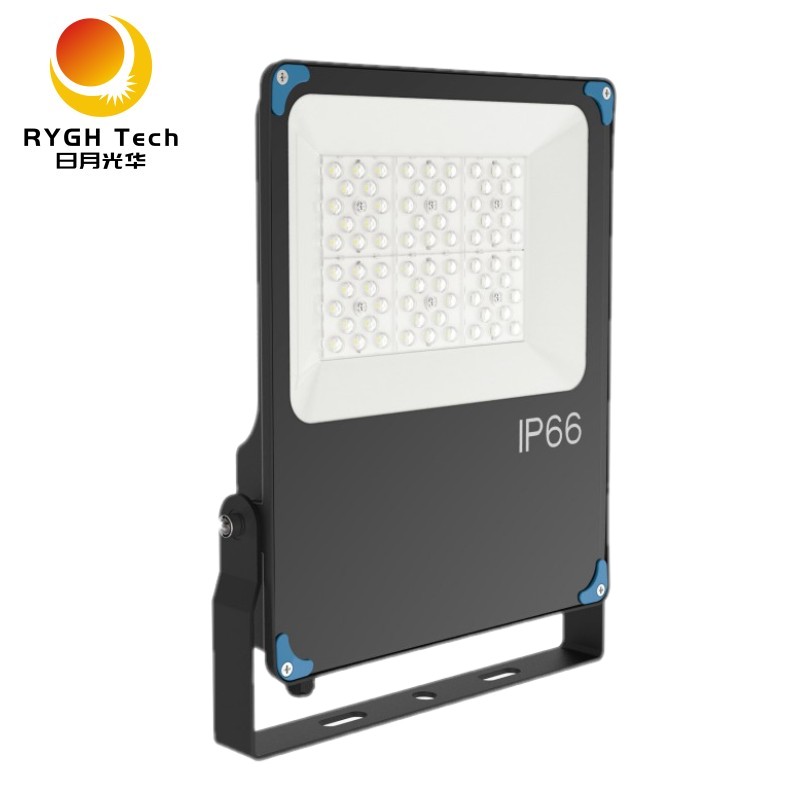

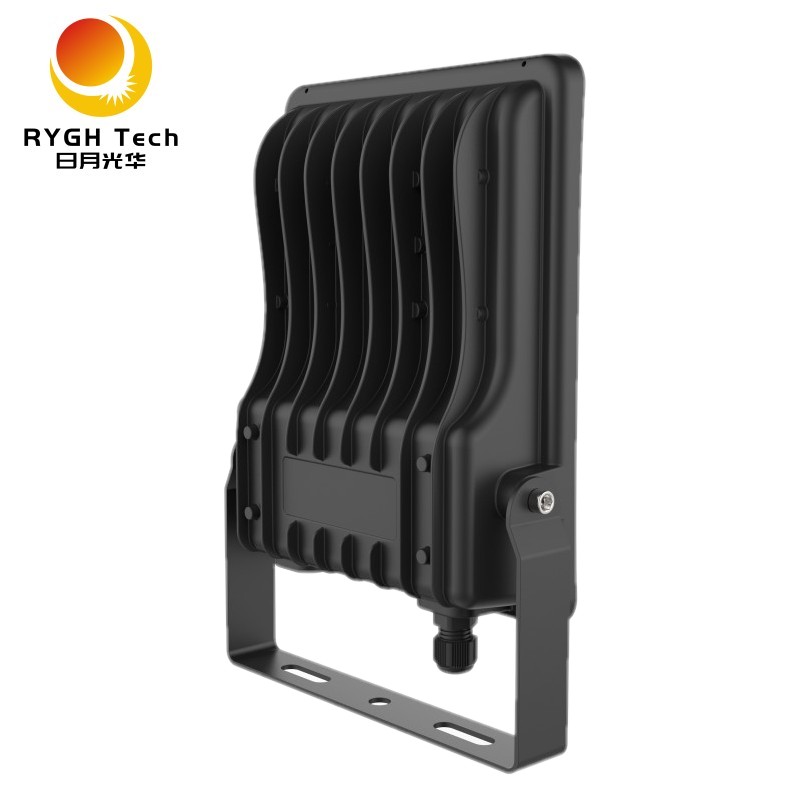

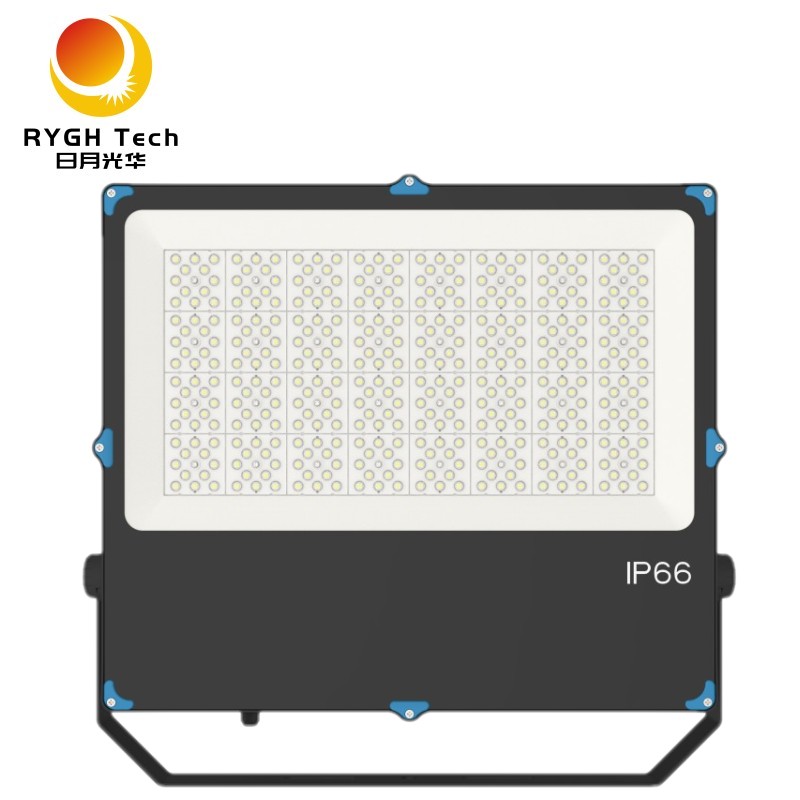

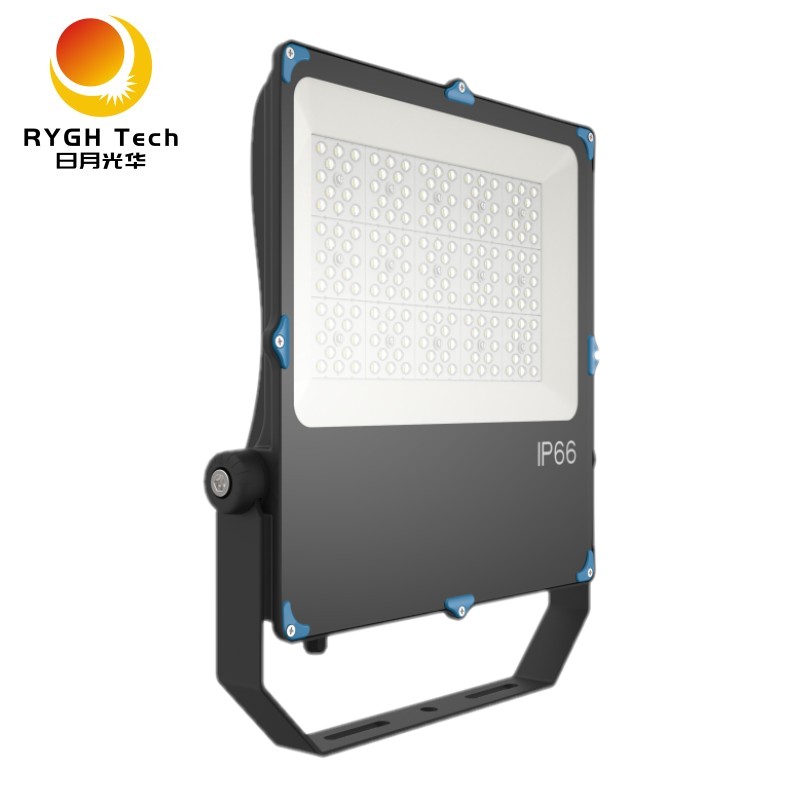

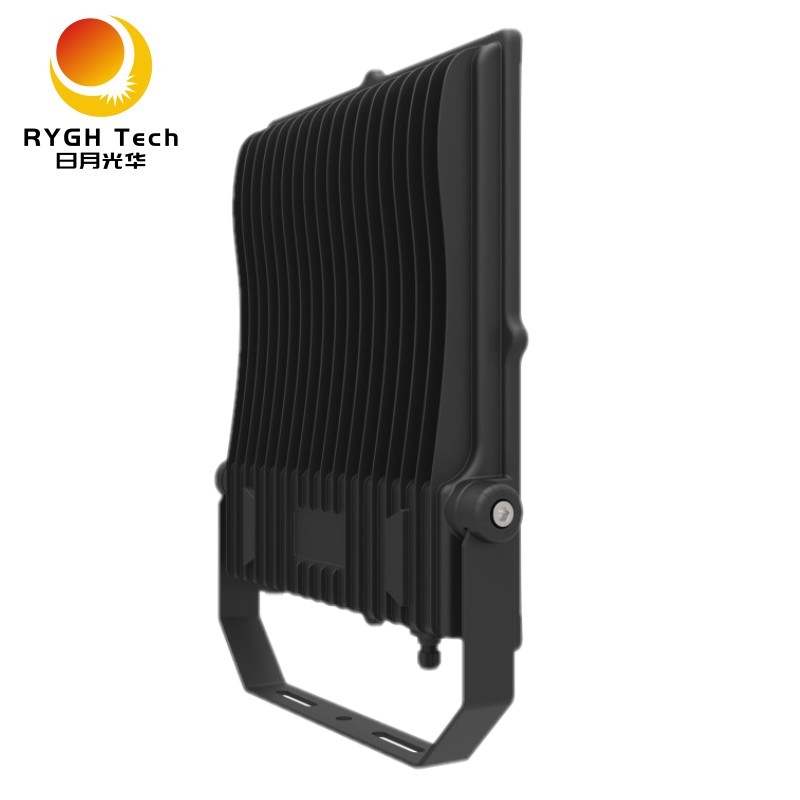

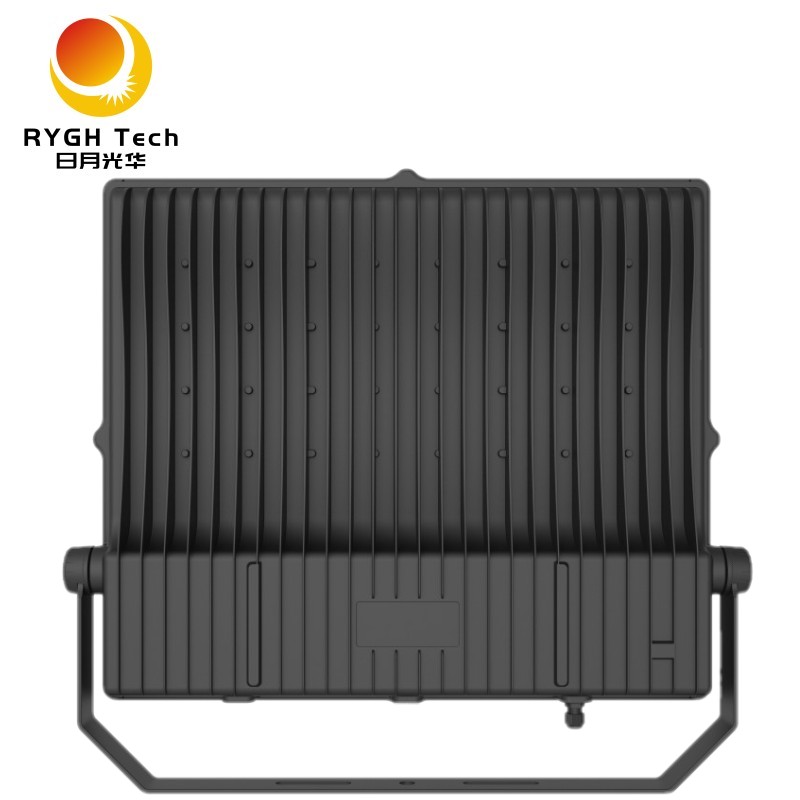

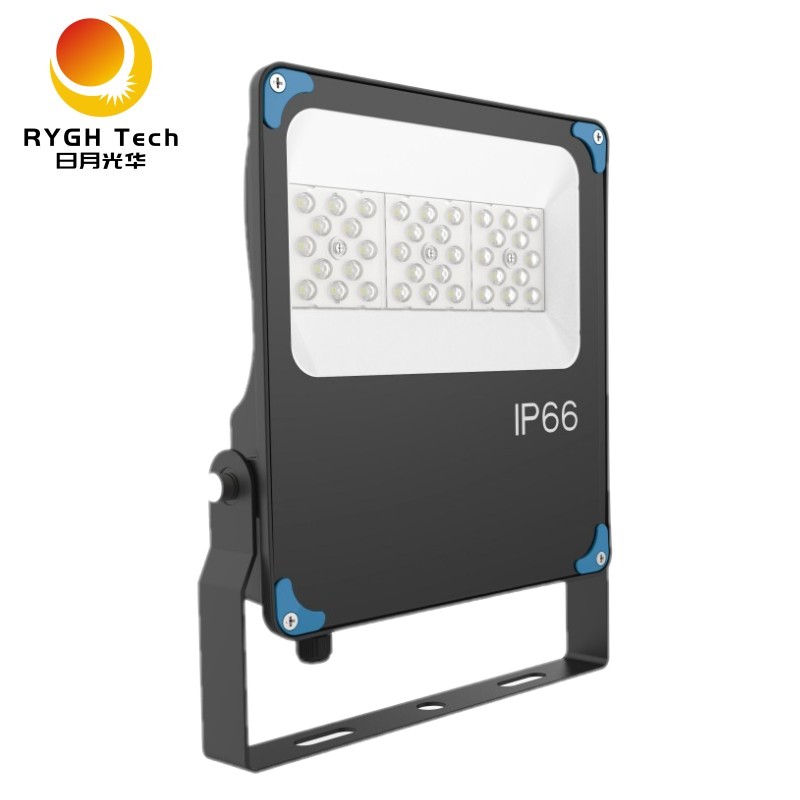

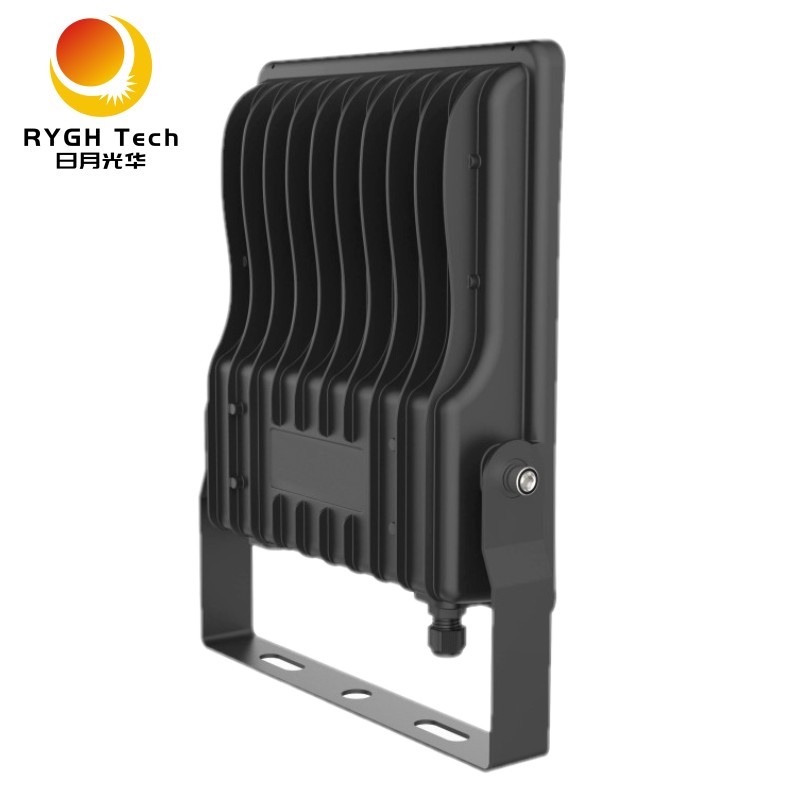

3G LED Flood Light

3G LED Flood light features

20W | 30W | 50W | 80W | 100W | 150W | 200W | 250W | 300W

1, Private mould, slim and elegant appearance;

2, Easy maintenance;

3, Good heat dissipation;

4, High Luminous Efficiency: 120-150 lm/W;

5, Top brand LED chip and driver, ensure the product quality and life time

6, Integrated molding support design, surface anti-corrosion and rust prevention treatment, solid and durable

Model no.	FDL-S3B-20W	FDL-S3B-30W	FDL-S3B-50W	FDL-S3B-80W
Rated power	20 Watt	100 Watt	150 Watt	200 Watt
Input voltage	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz
LED Chip	3030 SMD	3030 SMD	3030 SMD	3030 SMD
LED Driver	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc
Material	AL+PC	AL+PC	AL+PC	AL+PC
CRI	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98
Power Factor	>0.95	>0.95	>0.95	>0.95
CCT	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW
Light efficacy	120-150LM/W	120-150LM/W	120-150LM/W	120-150LM/W
IP rating	IP65	IP65	IP65	IP65
IK rating	IK08	IK08	IK08	IK08
Operation temperature	-35~+50℃	-35~+50℃	-35~+50℃	-35~+50℃
Beam angle	15. 30. 60. 90. 120. T2.T3，9030 polarized light 45 degree, 12050 polarized light 50 degree
Warranty	5 Years	5 Years	5 Years	5 Years
Life span	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Dimension	18812347mm	24816952mm	28322052mm	36927852mm
Certificate	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs
Packing size	395270290mm	510365315mm	465305315mm	588360315mm
PCS/CTN	20	20	10	10
Gross Weight	11kg	19kg	15kg	22kg

Model no.	FDL-S3B-100W	FDL-S3B-150W	FDL-S3B-200W	FDL-S3B-250W	FDL-S3B-300W
Rated power	100 Watt	150 Watt	200 Watt	250 Watt	300 Watt
Input voltage	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz
LED Chip	3030 SMD	3030 SMD	3030 SMD	3030 SMD	3030 SMD
LED Driver	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc
Material	AL+PC	AL+PC	AL+PC	AL+PC	AL+PC
CRI	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98
Power Factor	>0.95	>0.95	>0.95	>0.95	>0.95
CCT	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW
Light efficacy	120-150LM/W	120-150LM/W	120-150LM/W	120-150LM/W	120-150LM/W
IP rating	IP65	IP65	IP65	IP65	IP65
IK rating	IK08	IK08	IK08	IK08	IK08
Operation temperature	-35~+50℃	-35~+50℃	-35~+50℃	-35~+50℃	-35~+50℃
Beam angle	15. 30. 60. 90. 120. T2.T3，9030 polarized light 45 degree, 12050 polarized light 50 degree
Warranty	5 Years	5 Years	5 Years	5 Years	5 Years
Life span	50,000 hours	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Dimension	36927852mm	39439456mm	44539256mm	49739256mm	52354564mm
Certificate	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs
Packing size	588360315mm	440420115mm	490420115mm	540420115mm	580550115mm
PCS/CTN	10	1	1	1	1
Gross Weight	22kg	4.2kg	4.7kg	5.7kg	8.5kg

Environment Requirement

Working Temperature：-35~+50℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

3G LED Flood light can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC100-305V 50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

5-year warranty since the date of purchase is offered for all flood Light.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.
