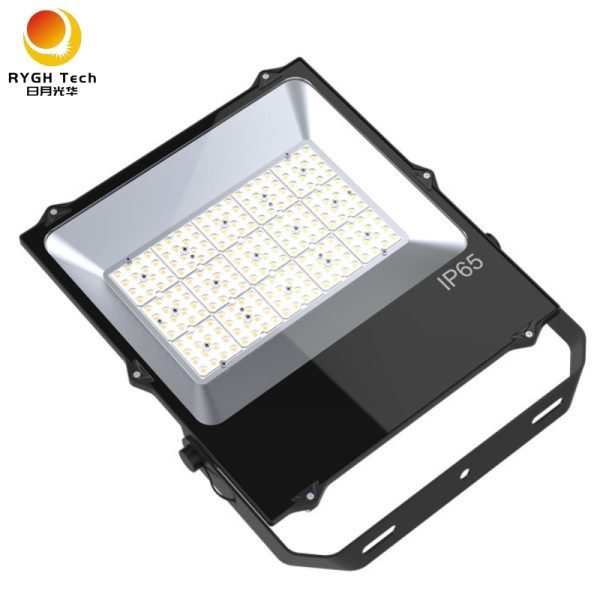

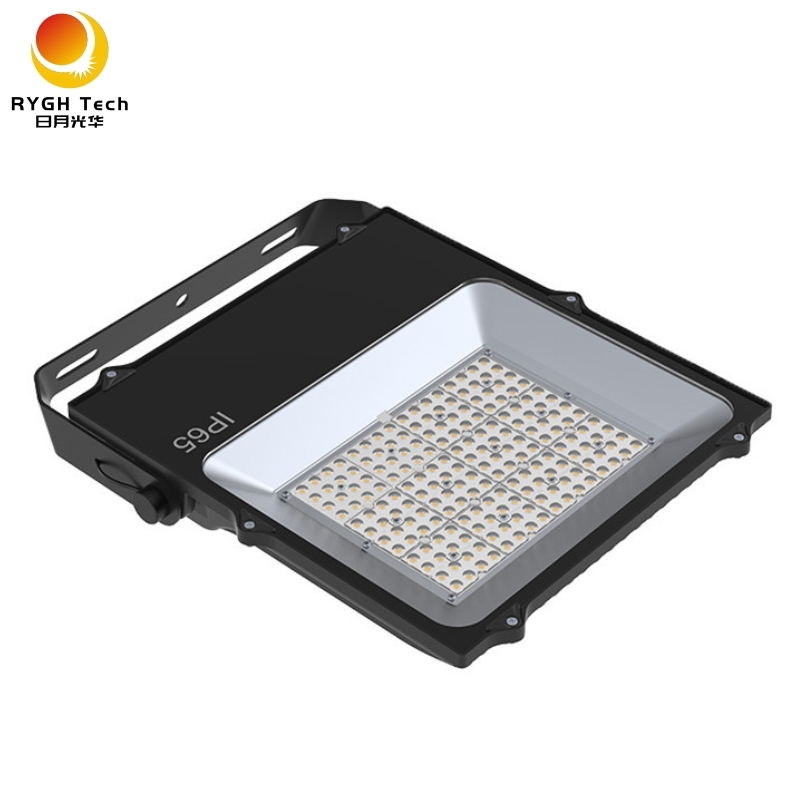

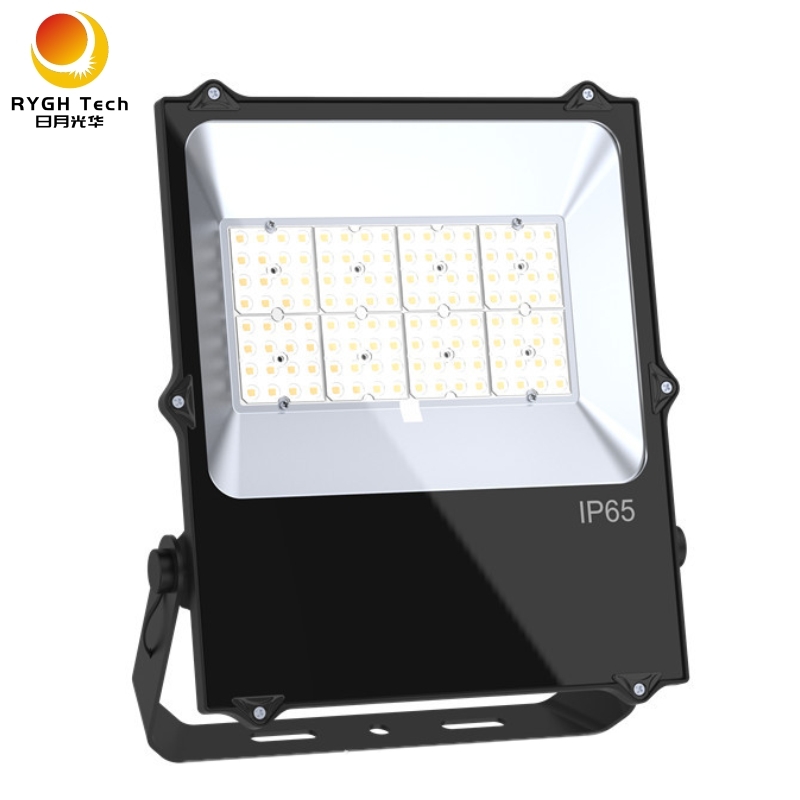

TG4B LED Flood Light

TG4B LED Flood Light Features: 50W|80W|100W|150W|200W

1, High efficiency, 125-130lm/w available

2, Narrow Beam angle: 30°/60°/90°/140*70°/70*150°/150*80°/50*140°/140*140°

3, Integrated die-casting aluminum housing, elegant appearance

4, Good heat dissipation, long lifespan

5, Tempered glass, surface coating process, excellent corrosion-proof

6, Protection index: IP66

Category: LED Flood Light Tags: #150 watt led flood light price, #led 50w floodlight, #led flood light manufacturer, #led spotlight 100w, #snap on flood light

Description
Reviews (0)

TG4B LED Flood Light Specifications

Model no.	RYGH-TG4B-50W	RYGH-TG4B-80W	RYGH-TG4B-100W	RYGH-TG4B-150W	RYGH-TG4B-200W
Rated power	50 Watt	80 Watt	100 Watt	150 Watt	200 Watt
Input voltage	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz	AC 85-305V, 50/60Hz
LED Chip	3030 64 PCS	3030 96 PCS	3030 128 PCS	3030 192 PCS	3030 240 PCS
LED Driver	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc	MEANWELL, INVENTRONICS, SOSEN, etc
Material	Die cast AL+Glass	Die cast AL+Glass	Die cast AL+Glass	Die cast AL+Glass	Die cast AL+Glass
CRI	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98	70/80/90/95/98
Power Factor	>0.95	>0.95	>0.95	>0.95	>0.95
CCT	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW
Light efficacy	120-130LM/W	120-130LM/W	120-130LM/W	120-130LM/W	120-130LM/W
IP rating	IP66	IP66	IP66	IP66	IP66
IK rating	IK08	IK08	IK08	IK08	IK08
Operation temperature	-35~+50℃	-35~+50℃	-35~+50℃	-35~+50℃	-35~+50℃
Beam angle	30°/60°/90°/14070°/70150°/15080°/50140°/140*140°
Warranty	5 Years	5 Years	5 Years	5 Years	5 Years
Life span	50,000 hours	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Dimension	L320W239H50mm	L364W26455Hmm	L413W315H60mm	L440W349H60mm	L480W379H60mm
Packing quantity	8 piece/CTN	6 piece/CTN	1 Piece/CTN	1 Piece/CTN	1 Piece/CTN
Net Weight	1.83KG	3.89KG	4.53KG	5.8KG	6.6KG
Gross Weight	17KG	24.34KG	5.53KG	6.8KG	7.6KG
Packing size	L370W270H490mm	L460W360H850mm	L490W400H140mm	L520W440H140mm	L560W470H140mm
Certificate	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs

Environment Requirement

Working Temperature：-35~+50℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

TG4B LED Flood Light Application:

TG4B LED Flood Light can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC100-305V 50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

5-year warranty since the date of purchase is offered for all flood Light.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.
