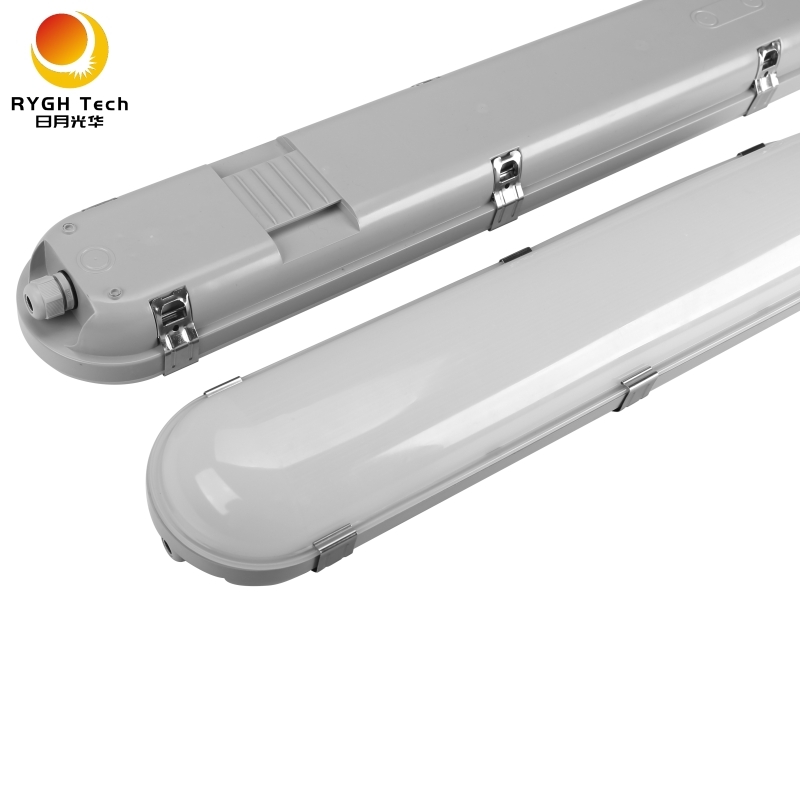

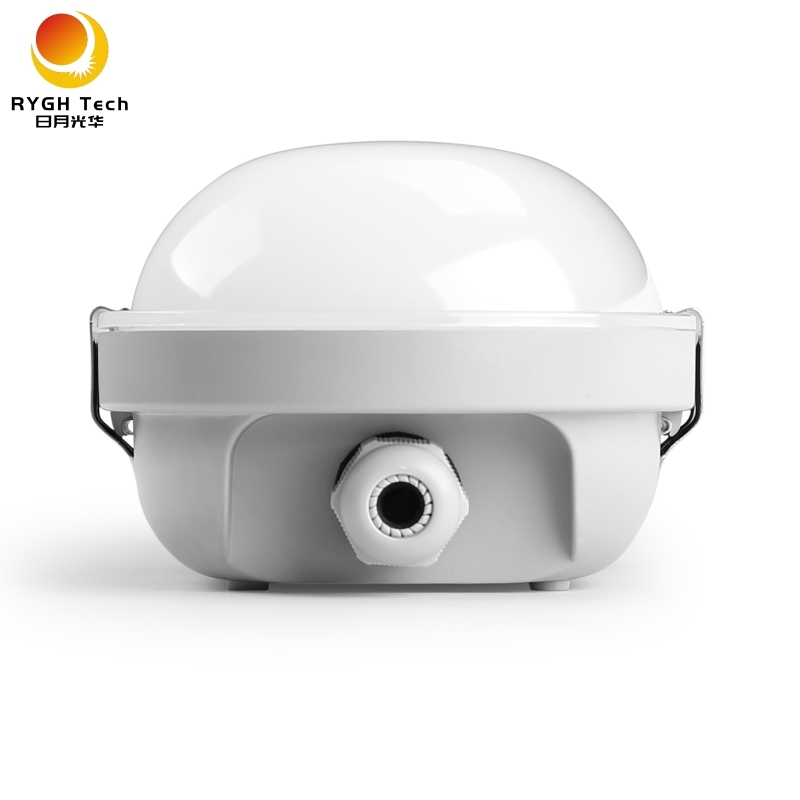

T Double LED Vapor Tight Light
T Double LED Vapor Tight Light Features: 2ft: 20W | 4ft: 40W | 5ft: 60W
6ft: 80W | Clear cover: 140lm/w | Milky cover: 130lm/w
Warranty: 5 Years
1 Slotted iron board, excellent heat dissipation
2 Driver: Osram, Philips or other Chinese brand options
3 IP65/IP66, IK08, and 850 degrees glow wire test requirement
4 Microwave sensor and PIR sensors, emergency kits, etc can be optional and easily available and installed
5 Modular installation, save labor cost
6 Linkable options with quick connection
7 Environmentally friendly, no mercury, No UV, No IR
8 Wide beam angle 120°
9 Energy Efficiency Grade: A+
10 Quick Start instant 100% luminous flux
11 Flicker Free driver/Flicker driver optional
12 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)
13 Certificate: CE,RoHs Certified
14 Surface Mount or Suspended
15 Quick Installation
16 Suitable for supermarket, warehouse, underground parking lot, garage, production plant, suitable for outdoor and wet location lighting application.
T Double LED Vapor Tight Light Size:
| Product Code | Dimentions(LxWxH)(mm) | Q’ty/ctn | Clips | LF(mm) | Inner Box(mm) | Outer Box(mm) | G.W./CTN | N.W./PCS |

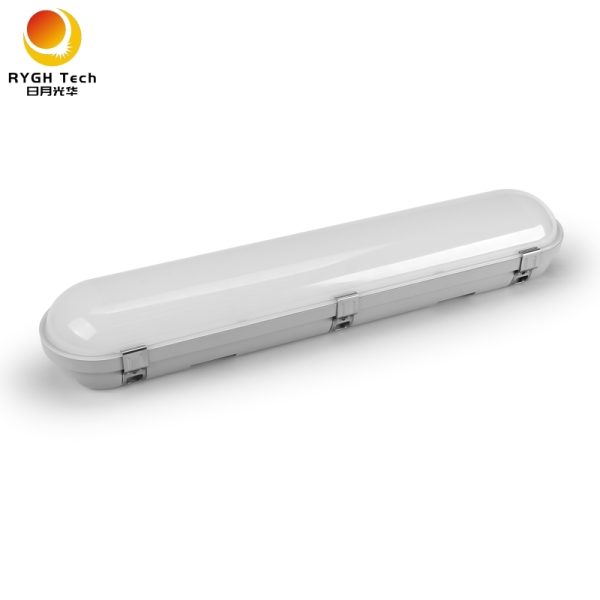

| T218 | 600x125x88 | 6 | 6 | 260-300 | 660x130x95 | 680x280x310 | 8.5kg | 1.3kg |

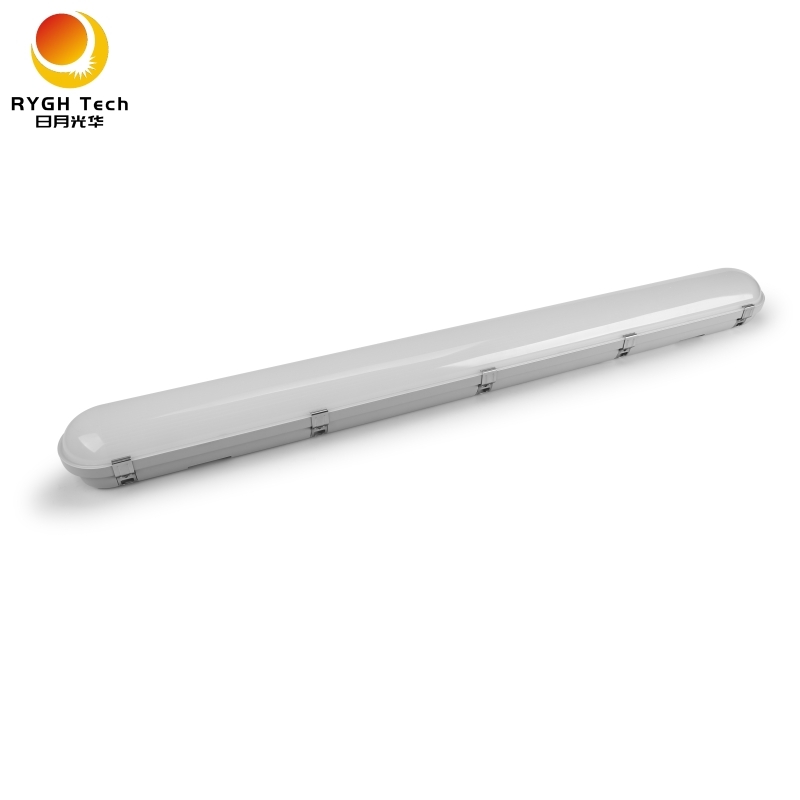

| T236 | 1200x125x88 | 6 | 10 | 800-860 | 1260x130x95 | 1280x280x310 | 14.6kg | 2.16kg |

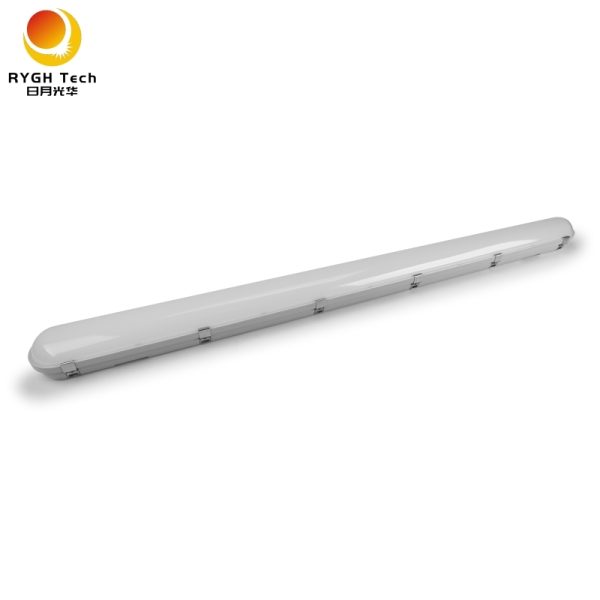

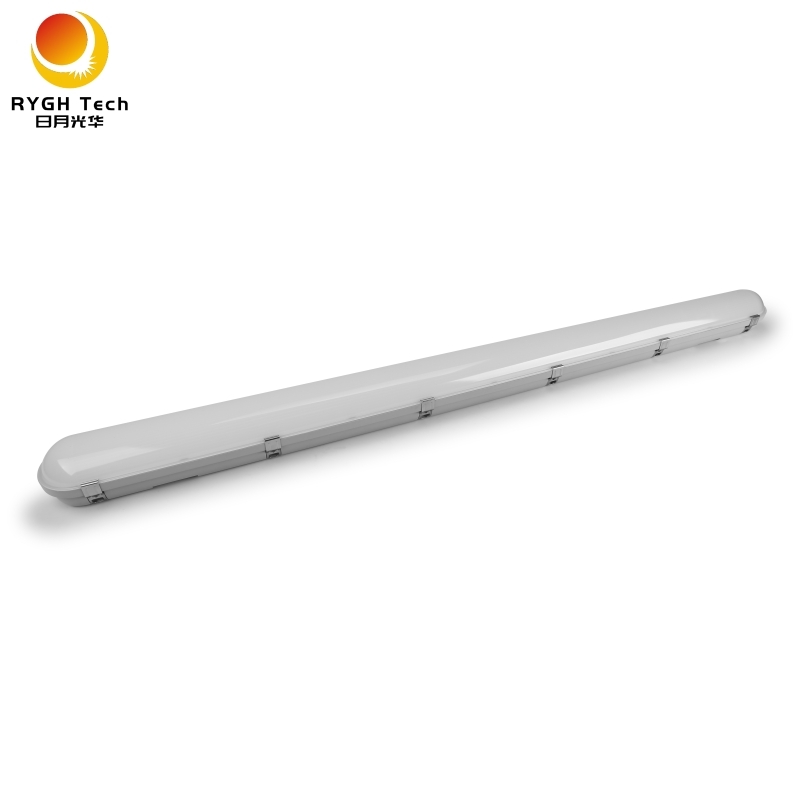

| T258 | 1500x125x88 | 6 | 12 | 1080-1150 | 1560x130x95 | 1580x280x310 | 17kg | 2.5kg |
| T270 | 1800x125x88 | 4 | 16 | 860-1050 | 1860x130x95 | 1880x280x210 | 14kg | 3.2kg |
T Double LED Vapor Tight Light Specifications:
| Item | Symbol | L=600/2ft | L=1200/4ft | L=1500/5ft | L=1800/6ft |
| Product Code | / | T-218 | T-236 T-258 | T-258 | T270 |
| Rated Power | W | 20W | 40W | 60W | 80W |

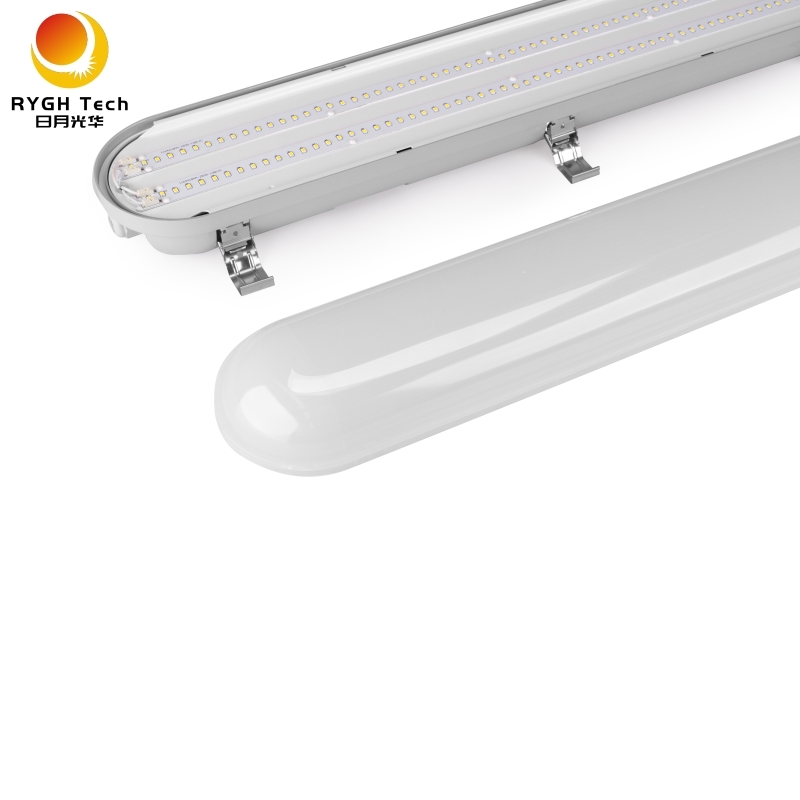

| LED Type/Qty | SMD2835 | 120 | 240 | 360 | 364 |
| Luminous Flux(LM) | Clear | 2800 | 5600 | 8400 | 9600 |
| Milky white | 2600 | 5200 | 7800 | 10400 | |
| Power Factor | PF | PF >0.9 | |||
| Color Temperature | TC(K) | WW:3000-3500K, NW:4000-4500K, PW:5000-5500K, CW:6000-6500K | |||
| Viewing Angle | Degree | 120 degree | |||
| Input Voltage | V | AC100-277V 50/60HZ | |||
| IP Class | IP | IP65 | |||
| Temperature | °C | Operation:-20°C ~ +40°C Storage:-30°C – +60°C | |||
| Life Time | h | 50,000 hours | |||
| Warranty | / | 5 years | |||
Environment Requirement
Working Temperature：-20~+40℃
Storage Temperature：-30~+60℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
T Double LED Vapor Tight Light Application:
T Double LED Vapor Tight Light can be widely applied for Food processing and poultry lighting industry, Food & Beverage as well as the vehicle industry, factory, stadium, washroom, swimming pool, dressing room, supermarket, restaurant, school, subway, tunnel, kitchen, canteen, pedestrian passage, corridor, , overpass, elevated, airport server, Layer and Breeder Lighting, Broiler and Pullet Lighting, Swine Lighting, Dairy Barn Lighting.
Warning
- Please install the lamp according to the installation to avoid dropping and electric shock.
- Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
- Working voltage is not to be exceeded AC 85-265V 50/60Hz
Attention
- Don’t install the lamp to non-stable place.
- Installed by qualified electrician.
- Switch off the switch box and contact certified electrician if the lamp works abnormally
Warranty
3-5 year warranty since the date of purchase is offered for all led vapor tight light.
Warranty Terms
- Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
- RYGH will not provide paid maintenance service under conditions within warranty.
- Failure or damage due to force majeure.
- Failure or damage due to transport or unloading.
- Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
- Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
- Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
- RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
