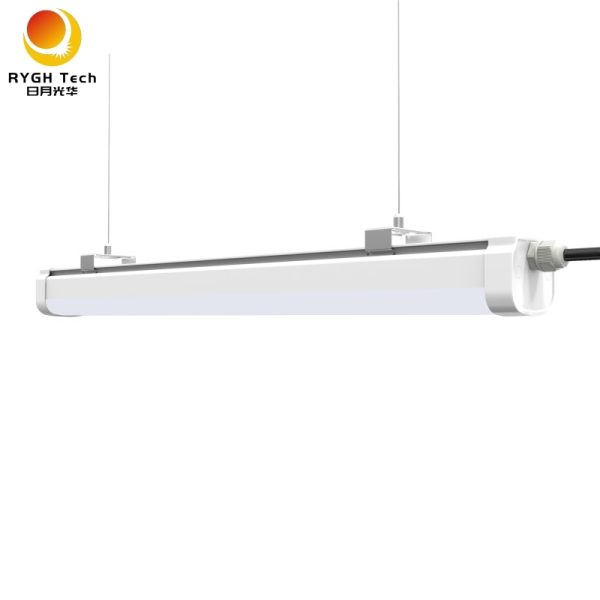

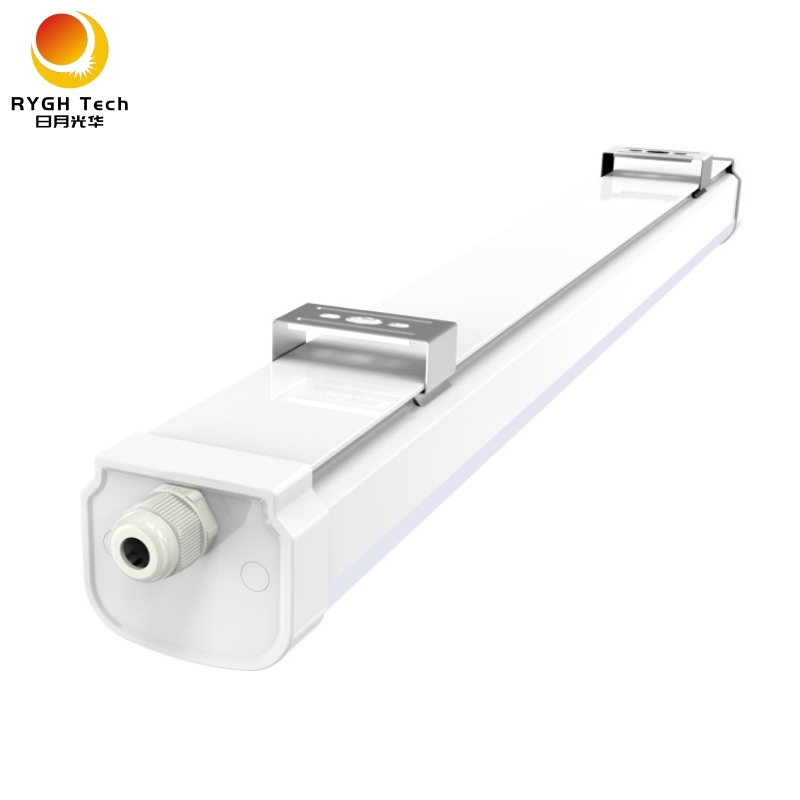

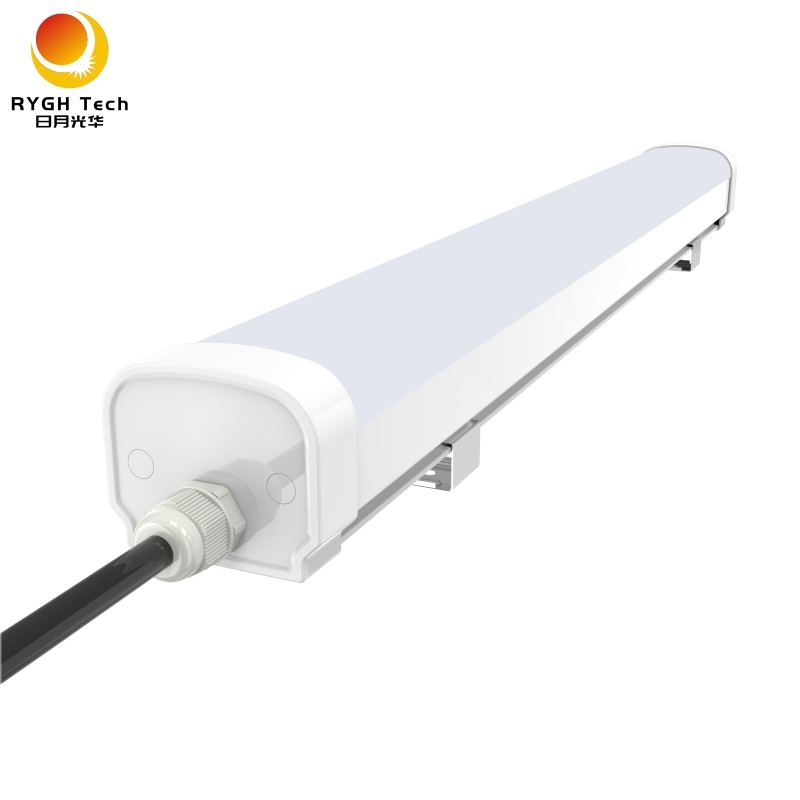

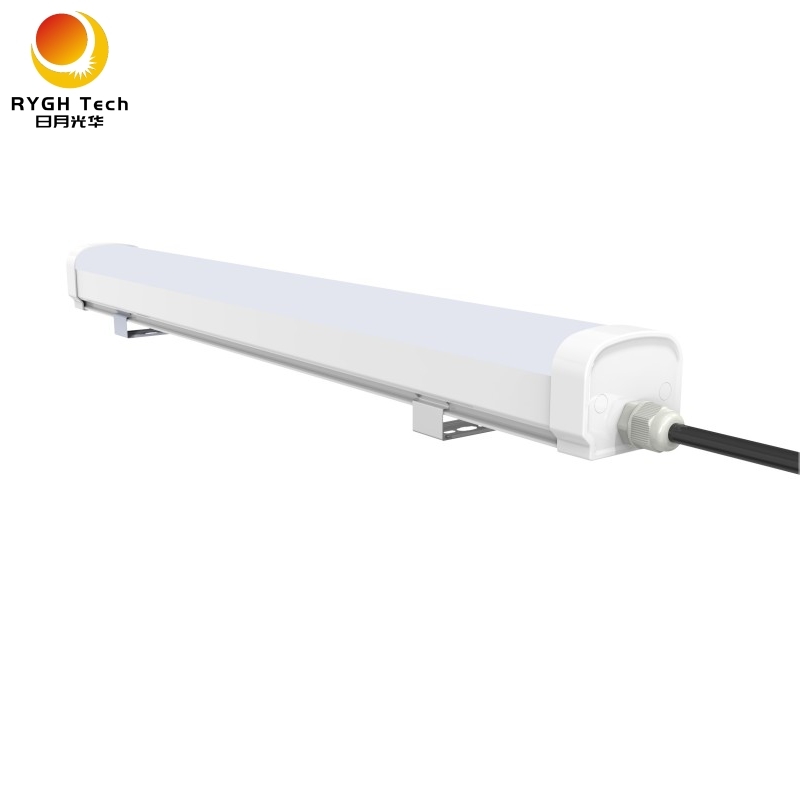

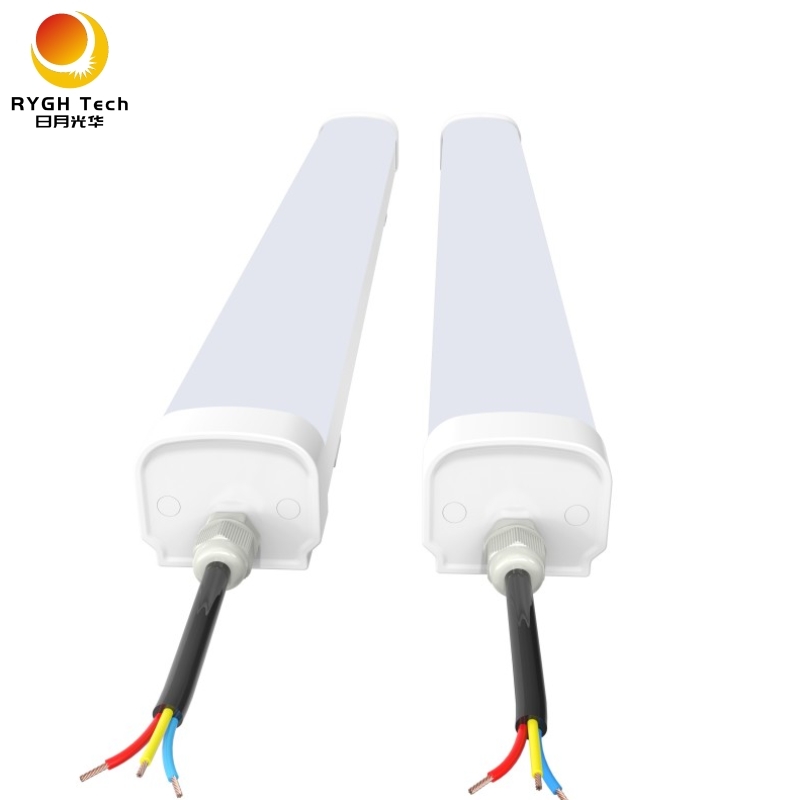

A3 LED Vapor Tight Light Features: 2ft: 18W | 4ft: 36W | 5ft: 45W
1 IP65 to IP66
2 IK08
3 System efficiency up to 130lm/W & 150lm/W option
4 High CRI >80
5 UGR<19 option
6 Linkable options with quick connection
7 Environmentally friendly, no mercury, No UV, No IR
8 Wide beam angle 120°
9 Energy Efficiency Grade: A+
10 Quick Start instant 100% luminous flux
11 Flicker Free driver/Flicker driver optional
12 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)
13 Certificate: CE,RoHs Certified
14 Surface Mount or Suspended
15 Quick Installation .
16 Microwave Sensor – Optional .
17 Emergency Kit integrated – Optional
A3 LED Vapor Tight Light specifications
Model | A3-600 | A3-1200 | A3-1500 |
Length | 60cm (2ft) | 120cm (4ft) | 150cm(5ft) |
LED Qty | 96pcs 0.2W LED | 192pcs 0.2W LED | 240pcs 0.2W LED |
Power Consumption | 18W±2% | 36W±2% | 45W±2% |
LED Initial Flux | 30~32lm/LED | 30~32lm/LED | 30~32lm/LED |
Luminous Efficiency | >110LM/W | >110LM/W | >110LM/W |
Weight | 300g | 600g | 700g |
Internal | Aluminum profile Heat Sink inside +PCB | ||
Outer Casing | Double color PC tube | ||
SMD 2835 LED Source | Epistar Chip , Packaing with TAIWAN Edison factory | ||
PF | >0.95 | ||
CRI | >80Ra | ||
Input Voltage | AC220~240V | ||
Light Source | SMD2835 | ||
Beam Angle | >180° | ||
IP & IK Rating | IP65 , IK08 | ||
Operation Temperature | -30~50℃ | ||
Working Environment | Indoor use or Outdoor application |
A3 LED Vapor Tight Light Dimension
Size & Dimension | L | W | H | Net Weight |
60cm/2FT | 60cm | 65.00mm | 55.00mm | 300g |
120cm/4FT | 120cm | 65.00mm | 55.00mm | 600g |
150cm/5FT | 150cm | 65.00mm | 55.00mm | 700g |
A3 LED Vapor Tight Light Package
Size | Quter Carton size | Qty/CTN | Gross Weight/GTN |
2FT | 700×230×200mm | 9PCS/CTN | 2.8 KG |
4FT | 1300×230×200mm | 9PCS/CTN | 5.5 KG |
5FT | 1600×230×200mm | 9PCS/CTN | 6.5 KG |
A3 LED Vapor Tight Light Installation:
① Remove the screw cap and unscrew the plug with a screw driver.

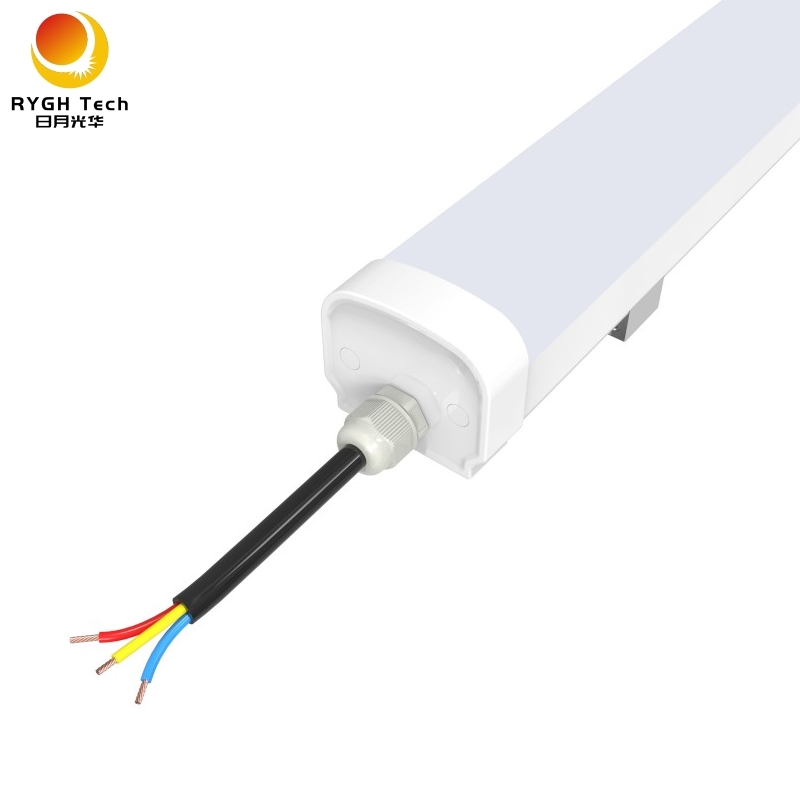

② First install the waterproof connector, then connect the input line of the lamp with the corresponding line of the aluminum substrate.
③ Reinstall the return plug.
④ Four mounting buckles need to be installed , in parallel with nounting brackets, Push the buckle slightly into the back of the PC tube.
Environment Requirement
Working Temperature:-30~+50℃
Storage Temperature:-30~+50℃
Working Humidity:0%~85%
Storage Humidity:0%~90%
A3 LLED Vapor Tight Light Application:
A3 LED Vapor Tight Light can be widely applied for Food processing and poultry lighting industry, Food & Beverage as well as the vehicle industry, factory, stadium, washroom, swimming pool, dressing room, supermarket, restaurant, school, subway, tunnel, kitchen, canteen, pedestrian passage, corridor, , overpass, elevated, airport server, Layer and Breeder Lighting, Broiler and Pullet Lighting, Swine Lighting, Dairy Barn Lighting.
Warning
Attention
Warranty
3-5 year warranty since the date of purchase is offered for all led vapor tight light.
Warranty Terms
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
