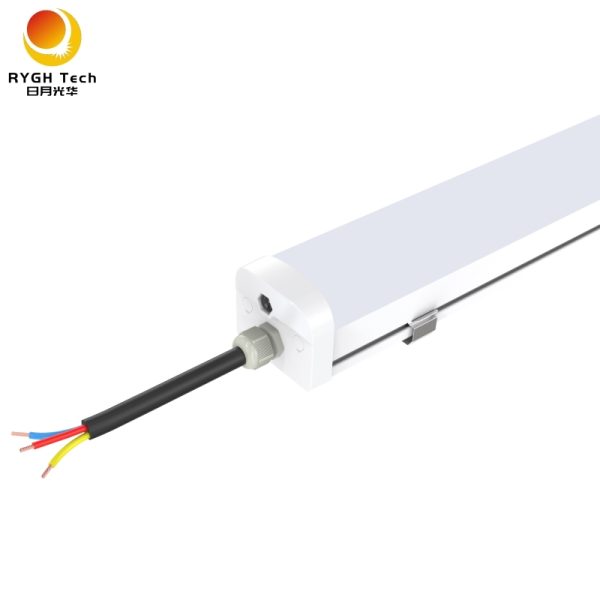

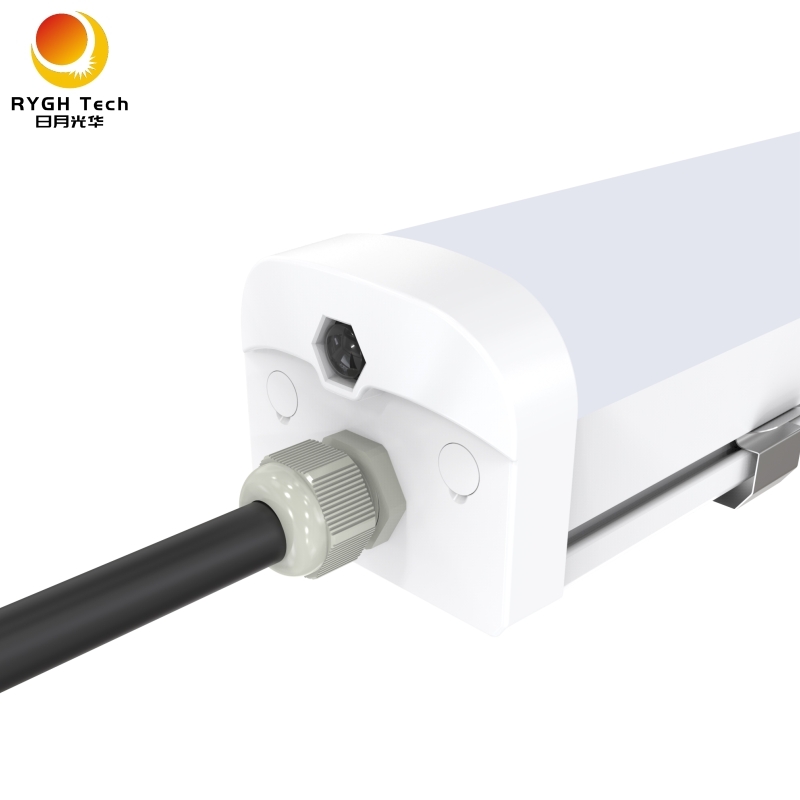

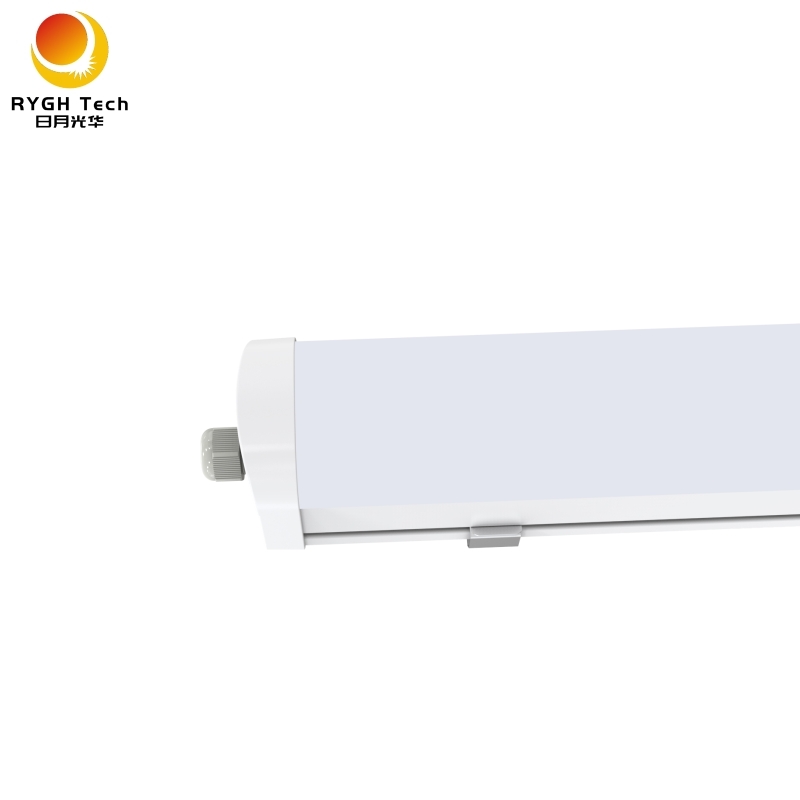

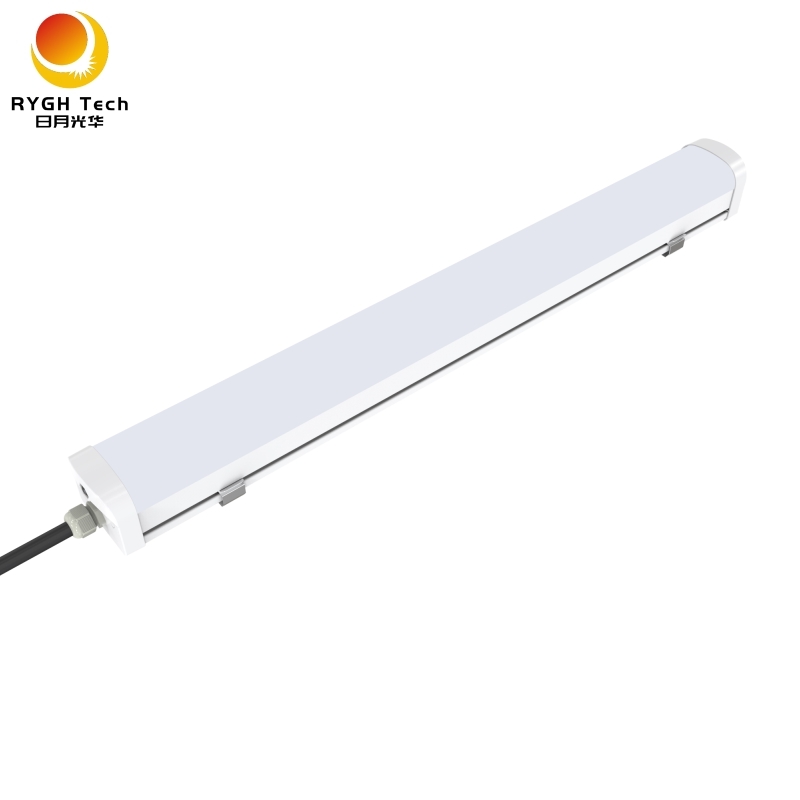

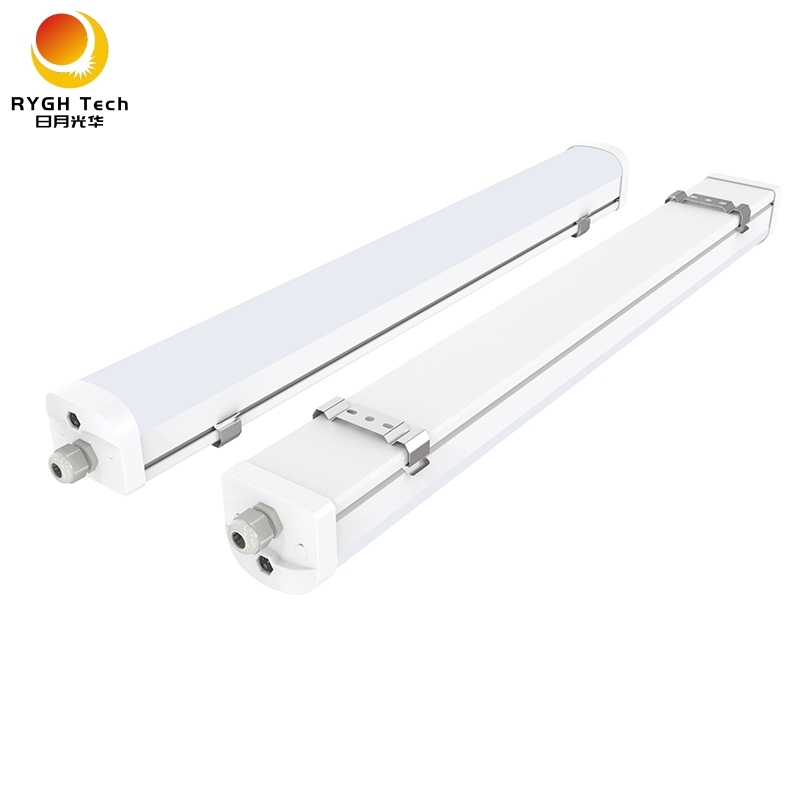

H107 LED Vapor Tight Light
H107 LED Vapor Tight Light Features: 2ft: 20W | 4ft: 40W | 5ft: 55W
1 IP65 to IP66
2 IK08
3 System efficiency up to 130lm/W & 150lm/W option
4 High CRI >80
5 UGR<19 option
6 Linkable options with quick connection
7 Environmentally friendly, no mercury, No UV, No IR
8 Wide beam angle 120°
9 Energy Efficiency Grade: A+
10 Quick Start instant 100% luminous flux
11 Flicker Free driver/Flicker driver optional
12 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)
13 Certificate: CE,RoHs Certified
14 Surface Mount or Suspended
15 Quick Installation .
16 Microwave Sensor – Optional .
17 Emergency Kit integrated – Optional
H107 LED Vapor Tight Light Specifications
| Model | H107-600 | H107-1200 | H107-1500 |
| Length | 60cm (2ft) | 120cm (4ft) | 150cm(5ft) |
| LED Qty | 144pcs 0.2W LED | 288pcs 0.2W LED | 360pcs 0.2W LED |
| Power Consumption | 20W±2% | 40W±2% | 55W±2% |
| LED Initial Flux | 30~32lm/LED | 30~32lm/LED | 30~32lm/LED |
| Luminous Efficiency | >130LM/W | >130LM/W | >130LM/W |
| Weight | 450g | 800g | 1100g |

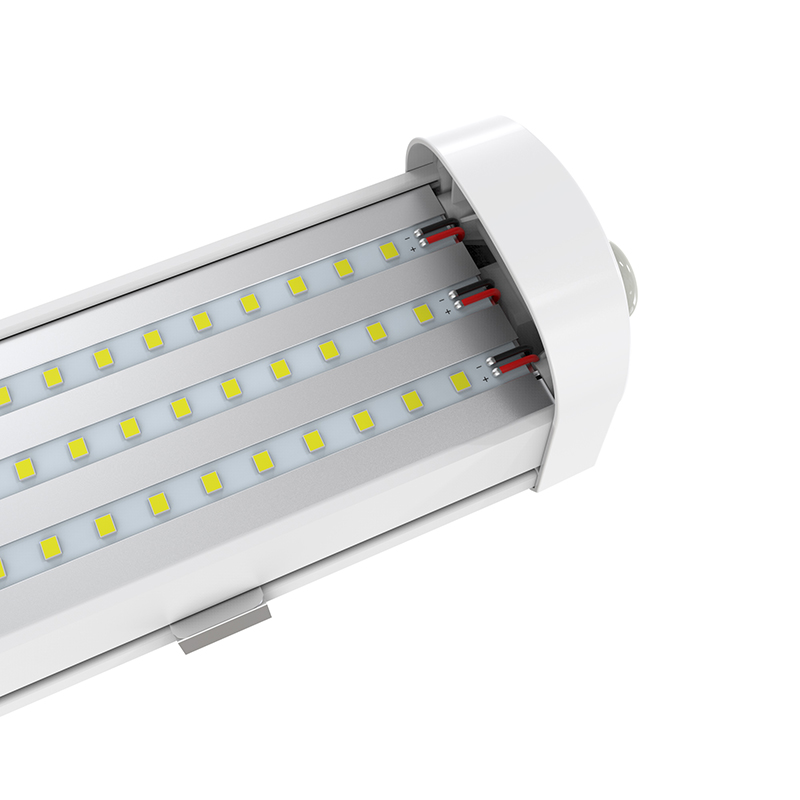

| Internal | Aluminum profile Heat Sink inside +PCB | ||
| Outer Casing | Double color PC tube | ||
| SMD2835 LED Source | Epistar Chip , Packaing with TAIWAN Edison factory | ||
| PF | >0.95 | ||
| CRI | >80Ra | ||
| Input Voltage | AC220~240V | ||
| Light Source | SMD2835 | ||
| Beam Angle | >180° | ||
| IP & IK Rating | IP65 , IK08 | ||
| Operation Temperature | -30~50℃ | ||
| Working Environment | Indoor use or Outdoor application | ||
H107 LED Vapor Tight Light Dimension
| Size & Dimension | L | W | H | Net Weight |
| 60cm/2FT | 60cm | 73.34mm | 63.34mm | 650g |
| 120cm/4FT | 120cm | 73.34mm | 63.34mm | 1060g |
| 150cm/5FT | 150cm | 73.34mm | 63.34mm | 1280g |
H107 LED Vapor Tight Light Package
| Size | Quter Carton size | Qty/CTN | Gross Weight/GTN |
| 2FT | 700×254×224mm | 9PCS/CTN | 6.1 KG |
| 4FT | 1300×254×224mm | 9PCS/CTN | 10.8 KG |
| 5FT | 1600×254×224mm | 9PCS/CTN | 12.4 KG |
How to install H107 LED Vapor Tight Light:
Remove the screw cap, use a screw driver to unscrew the screw that holds the plug and profile together, connect the cable through the water- proof connector to the power box, and finally reinstall the screw.
Environment Requirement
Working Temperature：-30~+50℃
Storage Temperature：-30~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
H107 LED Vapor Tight Light Application:
H107 LED Vapor Tight Light can be widely applied for Food processing and poultry lighting industry, Food & Beverage as well as the vehicle industry, factory, stadium, washroom, swimming pool, dressing room, supermarket, restaurant, school, subway, tunnel, kitchen, canteen, pedestrian passage, corridor, , overpass, elevated, airport server, Layer and Breeder Lighting, Broiler and Pullet Lighting, Swine Lighting, Dairy Barn Lighting.
Warning
- Please install the lamp according to the installation to avoid dropping and electric shock.
- Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
- Working voltage is not to be exceeded AC 85-265V 50/60Hz
Attention
- Don’t install the lamp to non-stable place.
- Installed by qualified electrician.
- Switch off the switch box and contact certified electrician if the lamp works abnormally
Warranty
3-5 year warranty since the date of purchase is offered for all led vapor tight light.
Warranty Terms
- Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
- RYGH will not provide paid maintenance service under conditions within warranty.
- Failure or damage due to force majeure.
- Failure or damage due to transport or unloading.
- Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
- Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
- Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
- RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
