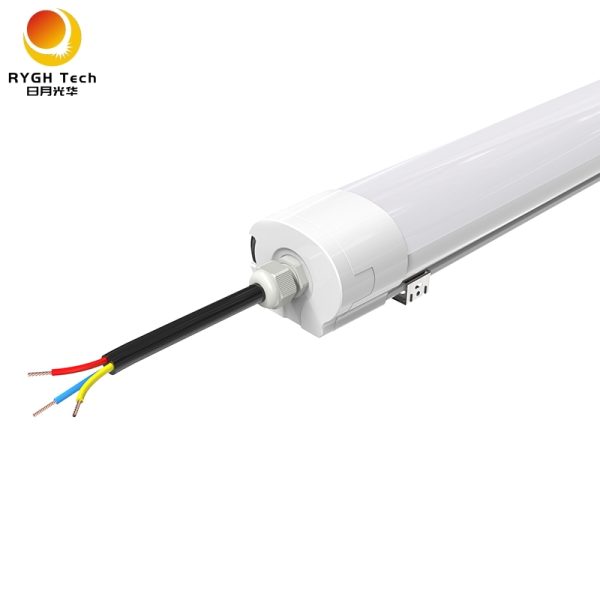

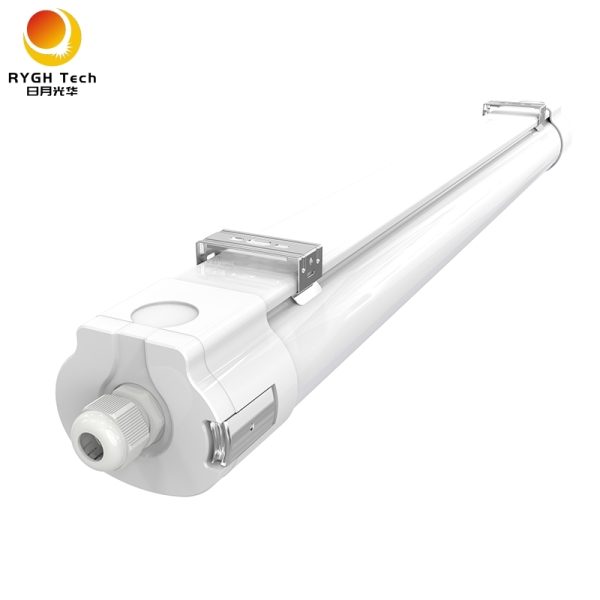

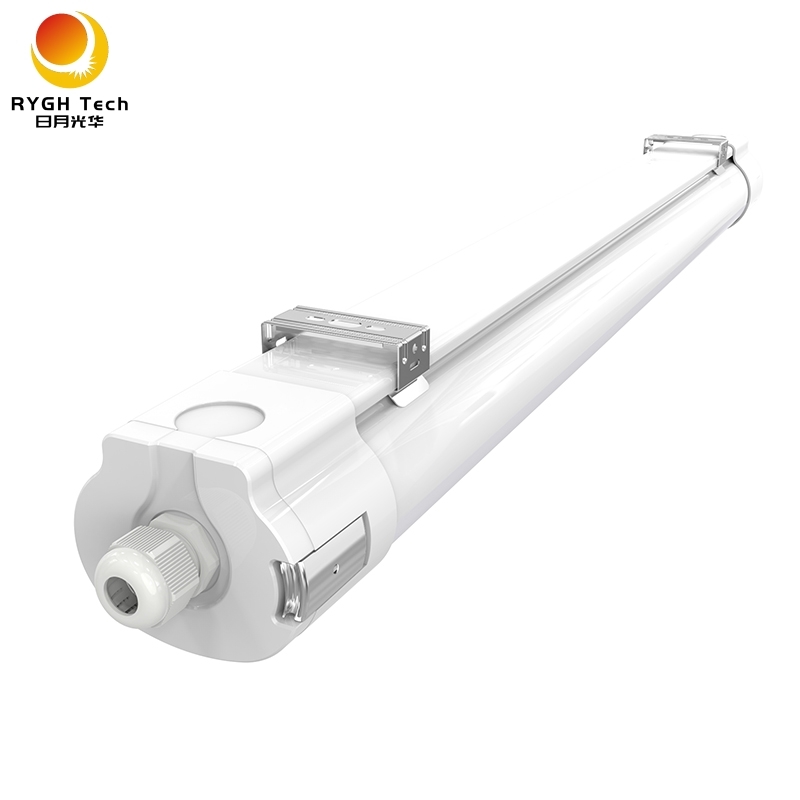

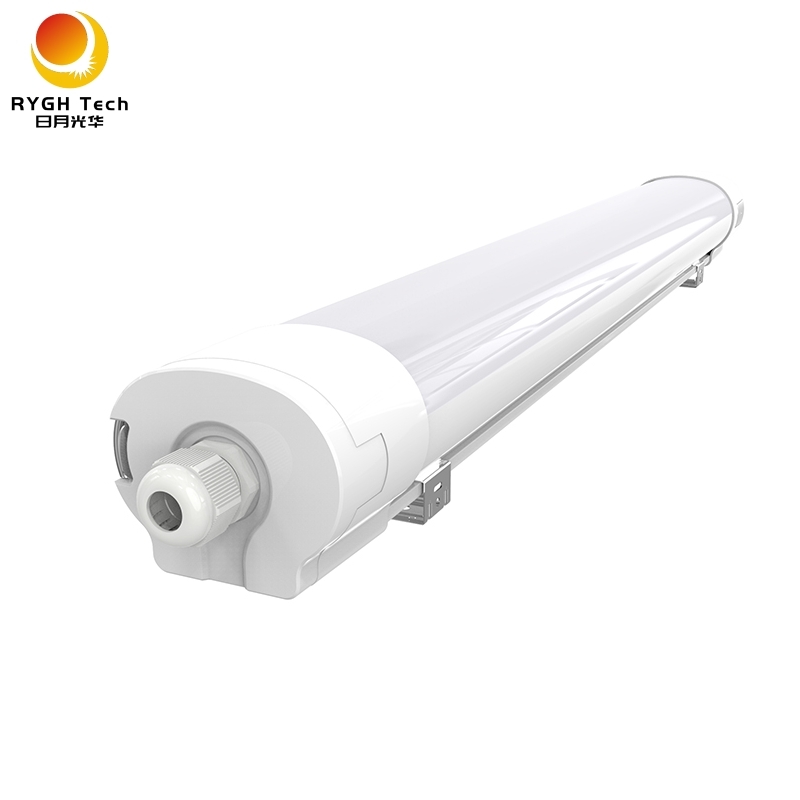

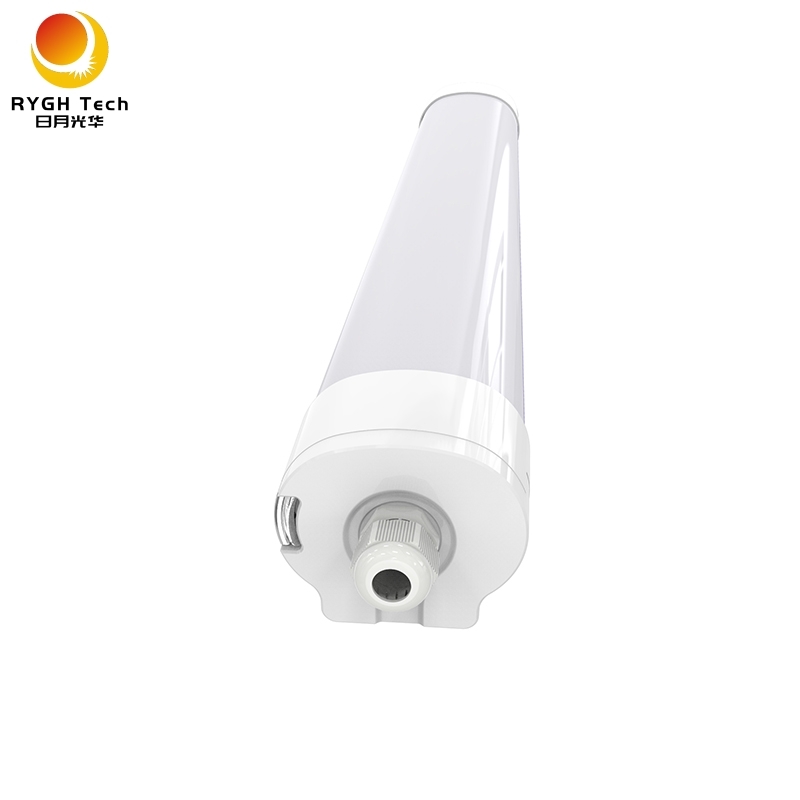

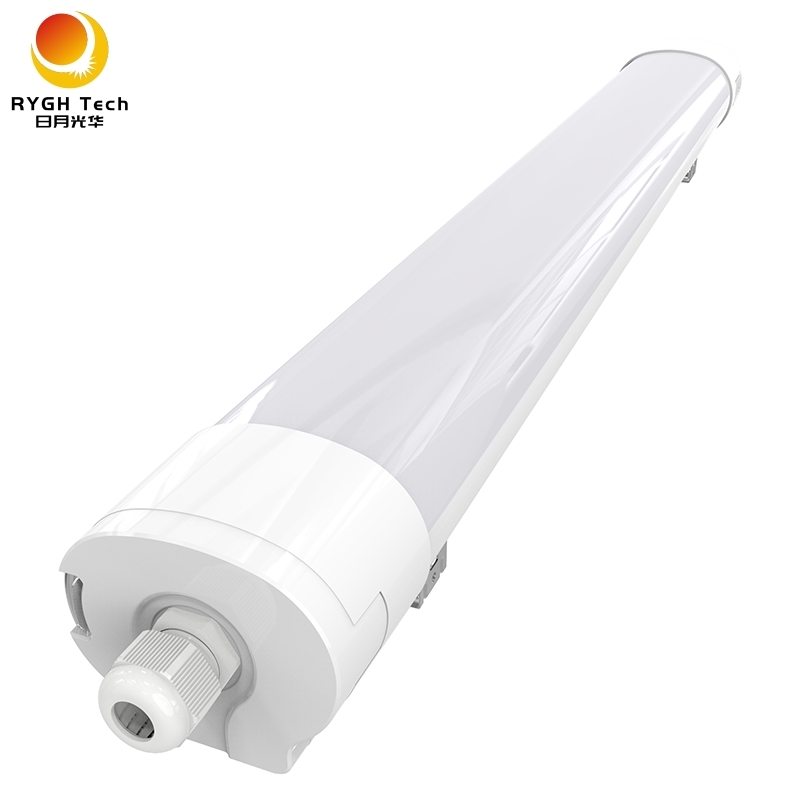

H108 LED Vapor Tight Light
H108 LED Vapor Tight Light Features: 2ft: 36W | 4ft: 54W | 5ft: 65W
1 IP65 to IP66
2 IK08
3 System efficiency up to 130lm/W & 150lm/W option
4 High CRI >80
5 UGR<19 option
6 Linkable options with quick connection
7 Environmentally friendly, no mercury, No UV, No IR
8 Wide beam angle 120°
9 Energy Efficiency Grade: A+
10 Quick Start instant 100% luminous flux
11 Flicker Free driver/Flicker driver optional
12 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)
13 Certificate: CE,RoHs Certified
14 Surface Mount or Suspended
15 Quick Installation .
16 Microwave Sensor – Optional .
17 Emergency Kit integrated – Optional
H108 LED Vapor Tight Light specifications
| Model | H108-600 | H108-1200 | H108-1500 | H108-1500 |
| Length | 60cm | 120cm | 150cm | 150cm |
| LED Qty | SMD2835, 192pcs | SMD2835, 288pcs | SMD2835, 240pcs | SMD2835, 360pcs |
| Power Consumption | 36W | 54W | 45W | 65W |
| LED Initial Flux | 30~32lm/LED | 30~32lm/LED | 30~32lm/LED | 30~32lm/LED |
| Luminous Efficiency | >130LM/W | >130LM/W | >130LM/W | >130LM/W |
| Weight | 1.6±0.2kg | 1.7±0.2kg | 2.0±0.2kg | 2.1±0.2kg |
| Internal | Aluminum profile heat Sink inside +PCB Board | |||
| Outer Casing | Full Plastic Casing | |||
| SMD2835 LED Source | Epistar Chip , Packaing with TAIWAN Edison factory | |||
| PF | >0.95 | |||
| CRI | >82Ra | |||
| Input Voltage | AC220~240V | |||
| Light Souce | SMD2835 | |||
| Beam Angle | >180° | |||
| IP& IK Rating | IP65 , IK10 | |||
| Operation Temperature | -30~50 °C | |||
| Working Environment | Indoor use or Outdoor application | |||
LED Vapor Tight Light Dimension
| Size & Dimension | L | W | W | Net Weight |
| 2FT | 60cm | 85.22mm | 70.69mm | 0.8±0.2kg |
| 4FT | 120cm | 85.22mm | 70.69mm | 1.6±0.2kg |
| 5 FT | 150cm | 85.22mm | 70.69mm | 2.1±0.2kg |
LED Vapor Tight Light Package
| Size | Outer Carton size | Qty/CTN | Gross Weight/GTN |
| 2FT | 700X300X250mm | 9PCS/CTN | 10.1 KG |
| 4FT | 1300X300X250mm | 9PCS/CTN | 16.3 KG |
| 5FT | 1600X300X250mm | 9PCS/CTN | 20.8 KG |

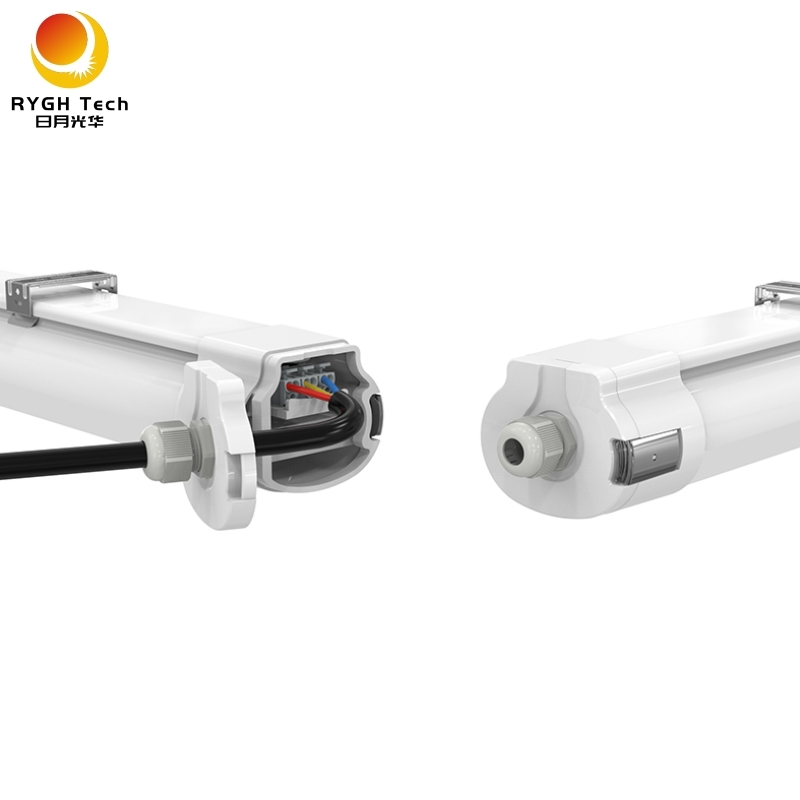

How to install H108 LED Vapor Tight Light:
- Connect the wire to the side of the plug
- Connect wires to the top of the plug
① Unscrew the stopper and open the plug.
② Loosen the waterproof connector and connect the cable to the terminal.
③ Close the plug and lock the screw
Environment Requirement
Working Temperature：-30~+50℃
Storage Temperature：-30~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
H108 LED Vapor Tight Light Application:
H108 LED Vapor Tight Light can be widely applied for Food processing and poultry lighting industry, Food & Beverage as well as the vehicle industry, factory, stadium, washroom, swimming pool, dressing room, supermarket, restaurant, school, subway, tunnel, kitchen, canteen, pedestrian passage, corridor, , overpass, elevated, airport server, Layer and Breeder Lighting, Broiler and Pullet Lighting, Swine Lighting, Dairy Barn Lighting.
Warning
- Please install the lamp according to the installation to avoid dropping and electric shock.
- Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
- Working voltage is not to be exceeded AC 85-265V 50/60Hz
Attention
- Don’t install the lamp to non-stable place.
- Installed by qualified electrician.
- Switch off the switch box and contact certified electrician if the lamp works abnormally
Warranty
3-5 year warranty since the date of purchase is offered for all led vapor tight light.
Warranty Terms
- Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
- RYGH will not provide paid maintenance service under conditions within warranty.
- Failure or damage due to force majeure.
- Failure or damage due to transport or unloading.
- Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
- Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
- Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
- RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
