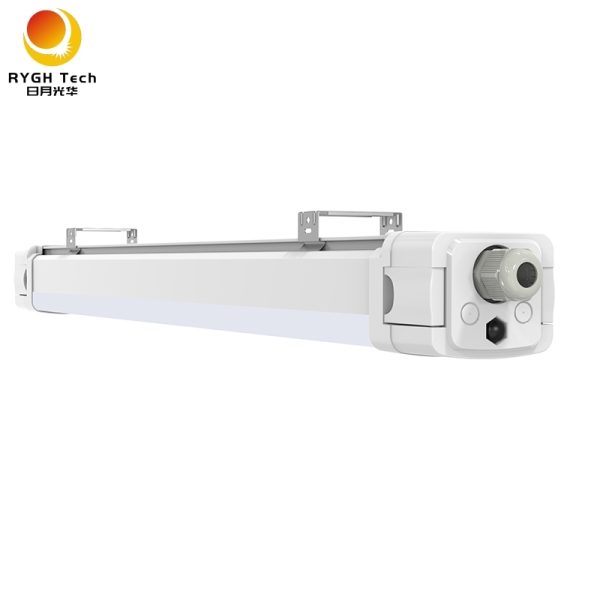

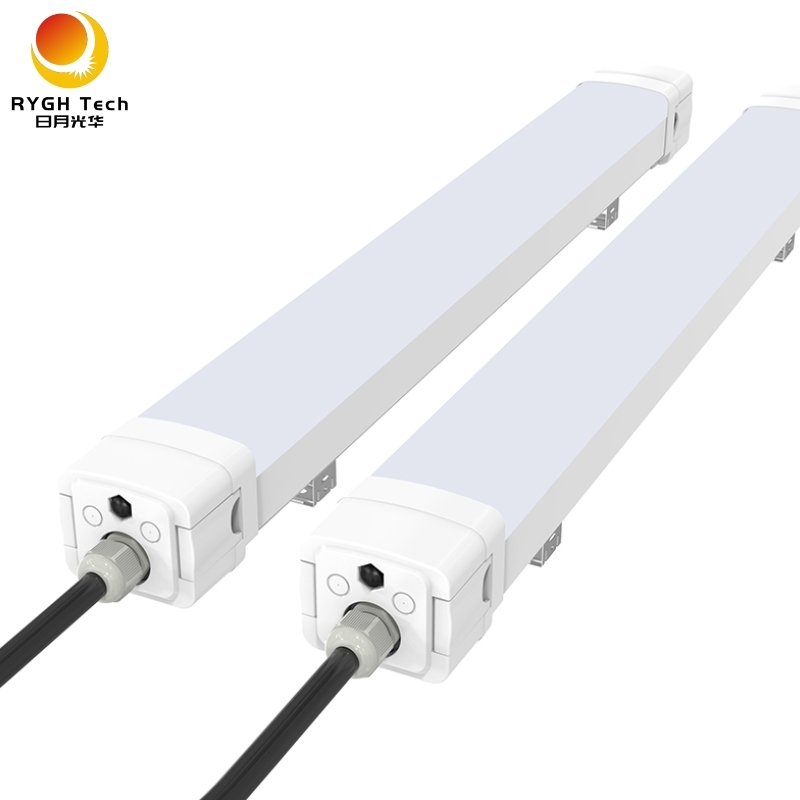

H106 LED Vapor Tight Light
H106 LED Vapor Tight Light Features: 2ft: 20W | 4ft: 40W | 5ft: 55W
1 IP65 to IP66
2 IK08
3 System efficiency up to 130lm/W & 150lm/W option
4 High CRI >80
5 UGR<19 option
6 Linkable options with quick connection
7 Environmentally friendly, no mercury, No UV, No IR
8 Wide beam angle 120°
9 Energy Efficiency Grade: A+
10 Quick Start instant 100% luminous flux
11 Flicker Free driver/Flicker driver optional
12 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)
13 Certificate: CE,RoHs Certified
14 Surface Mount or Suspended
15 Quick Installation .

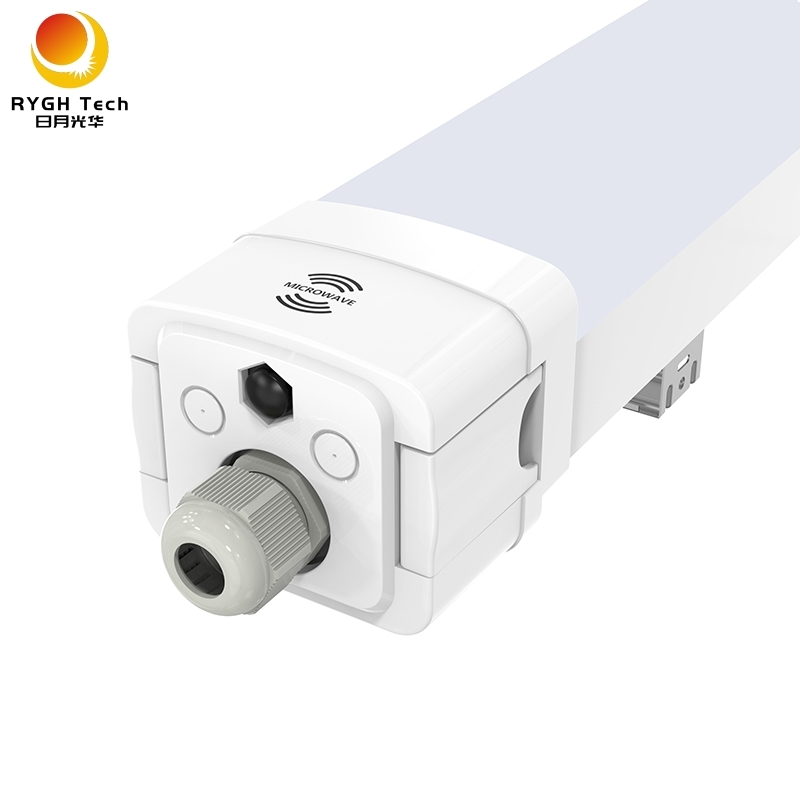

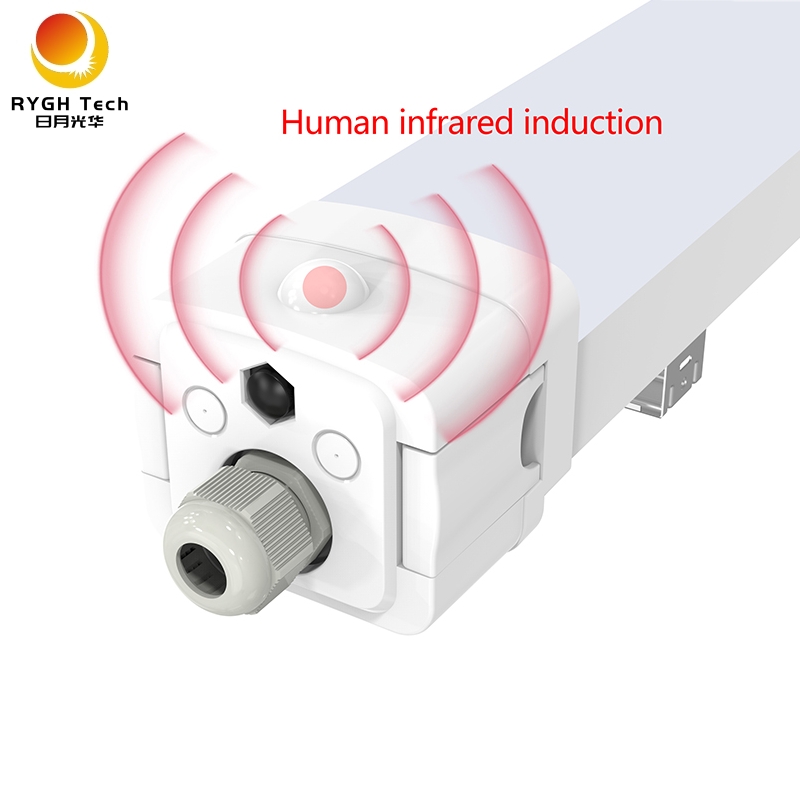

16 Microwave Sensor – Optional .

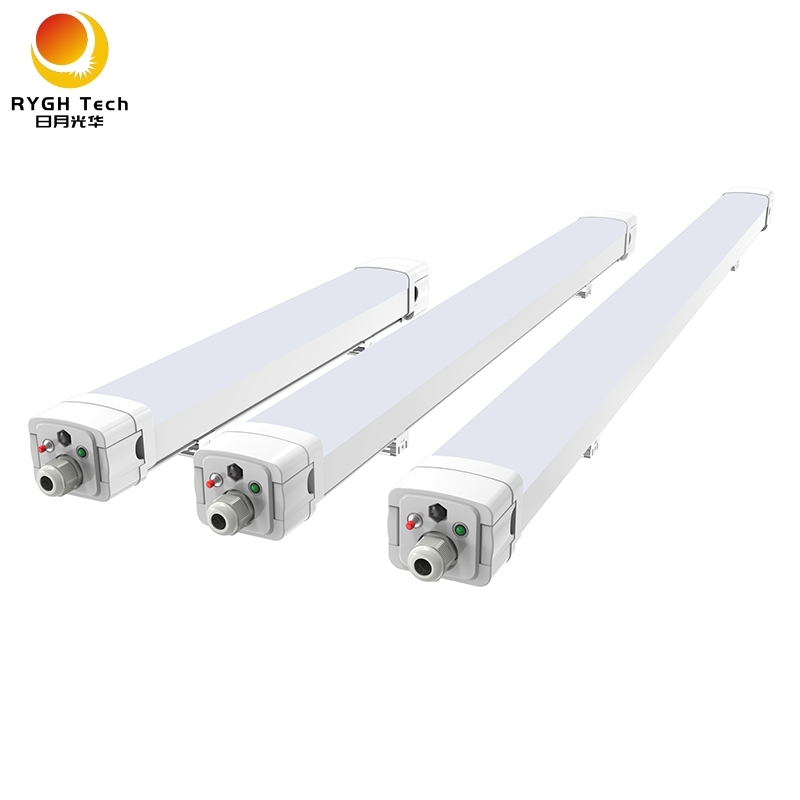

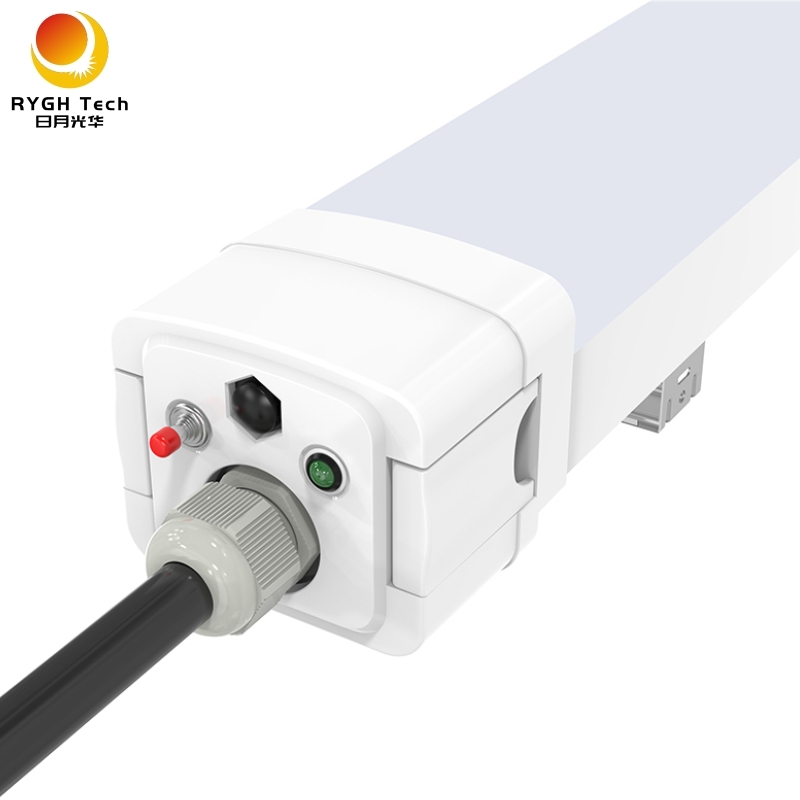

17 Emergency Kit integrated – Optional
H106 LED Vapor Tight Light Specifications
| Model: | H106-600 | H106-1200 | H106-1500 |
| Length | 60cm (2ft) | 120cm (4ft) | 150cm(5ft) |
| LED Qty | 144pcs 0.2W LED | 288pcs 0.2W LED | 360pcs 0.2W LED |
| Power Consumption | 20W±2% | 40W±2% | 55W±2% |
| LED Initial Flux | 30~32lm/LED | 30~32lm/LED | 30~32lm/LED |
| Luminous Efficiency | >130LM/W | >130LM/W | >130LM/W |
| Weight | 650g | 1150g | 1400g |
| Internal | Aluminum profile Heat Sink inside +PCB | ||
| Outer Casing | Double color PC tube | ||
| SMD2835 LED Source | Epistar Chip , Packaing with TAIWAN Edison factory | ||
| PF | >0.95 | ||
| CRI | >80Ra | ||
| Input Voltage | AC220~240V | ||

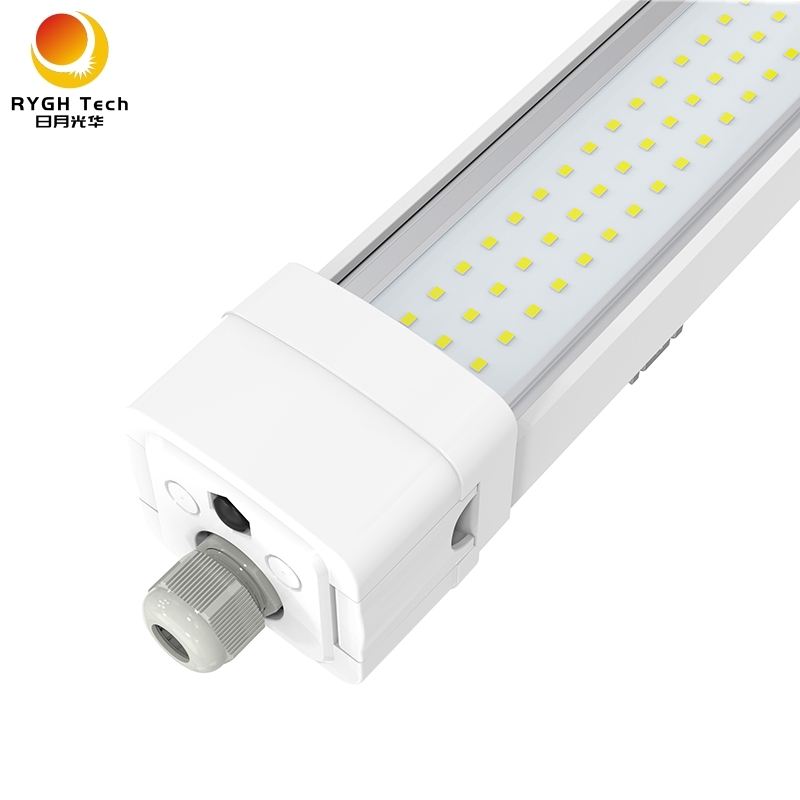

| Light Source | SMD2835 | ||
| Beam Angle | >180° | ||
| IP & IK Rating | IP66 , IK10 | ||
| Operation Temperature | -30~50℃ | ||
| Working Environment | Indoor use or Outdoor application | ||
| Additional functions | Emergency lighting | ||
H106 LED Vapor Tight Light Dimension
| Size | L | W | H | Net weight |
| 60cm/2ft | 600mm | 73.93mm | 60.57mm | 950g |
| 120cm/4ft | 1200mm | 73.93mm | 60.57mm | 1470g |
| 150cm/5ft | 1500mm | 73.93mm | 60.57mm | 1700g |
H106 LED Vapor Tight Light Package
| Size | Outer carton size | Qty/CTN | G.W./CTN |
| 60cm/2ft | 700×260×215mm | 9 PCS/CTN | 8.82KG |
| 120cm/4ft | 1300×260×215mm | 9 PCS/CTN | 13.7KG |
| 150cm/5ft | 1600×260×215mm | 9 PCS/CTN | 16.2KG |
How to install H106 LED Vapor Tight Light:
Open the two buttons on the side of the plug by hand to separate the plug, then connect the cable with the corresponding connection line of the terminal, and then close the plug.
Environment Requirement
Working Temperature：-30~+50℃
Storage Temperature：-30~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
H106 LED Vapor Tight Light Application:
H106 LED Vapor Tight Light can be widely applied for Food processing and poultry lighting industry, Food & Beverage as well as the vehicle industry, factory, stadium, washroom, swimming pool, dressing room, supermarket, restaurant, school, subway, tunnel, kitchen, canteen, pedestrian passage, corridor, , overpass, elevated, airport server, Layer and Breeder Lighting, Broiler and Pullet Lighting, Swine Lighting, Dairy Barn Lighting.
Warning
- Please install the lamp according to the installation to avoid dropping and electric shock.
- Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
- Working voltage is not to be exceeded AC 85-265V 50/60Hz
Attention
- Don’t install the lamp to non-stable place.
- Installed by qualified electrician.
- Switch off the switch box and contact certified electrician if the lamp works abnormally
Warranty
3-5 year warranty since the date of purchase is offered for all led vapor tight light.
Warranty Terms
- Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
- RYGH will not provide paid maintenance service under conditions within warranty.
- Failure or damage due to force majeure.
- Failure or damage due to transport or unloading.
- Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
- Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
- Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
- RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
