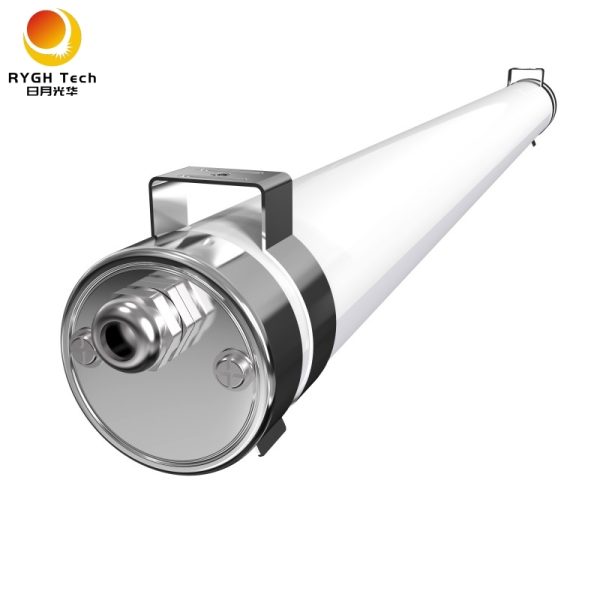

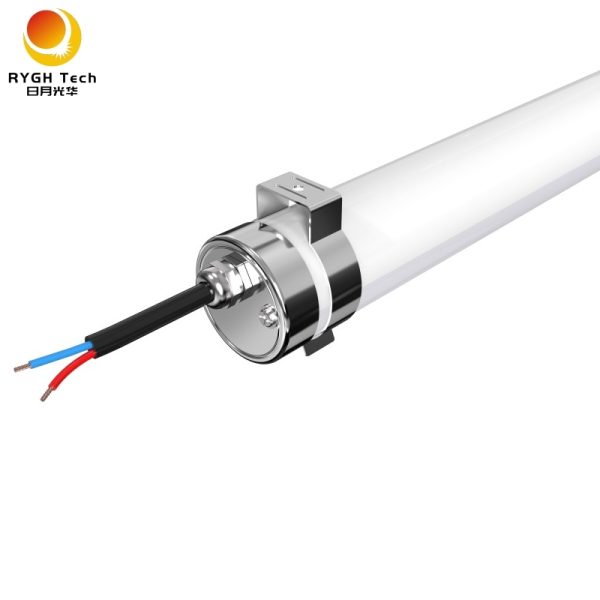

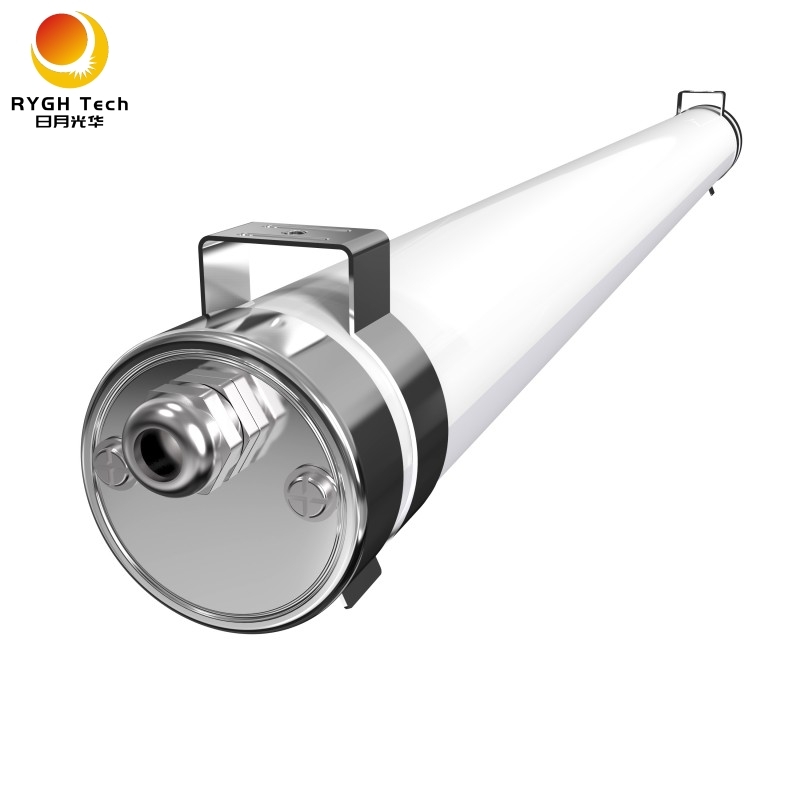

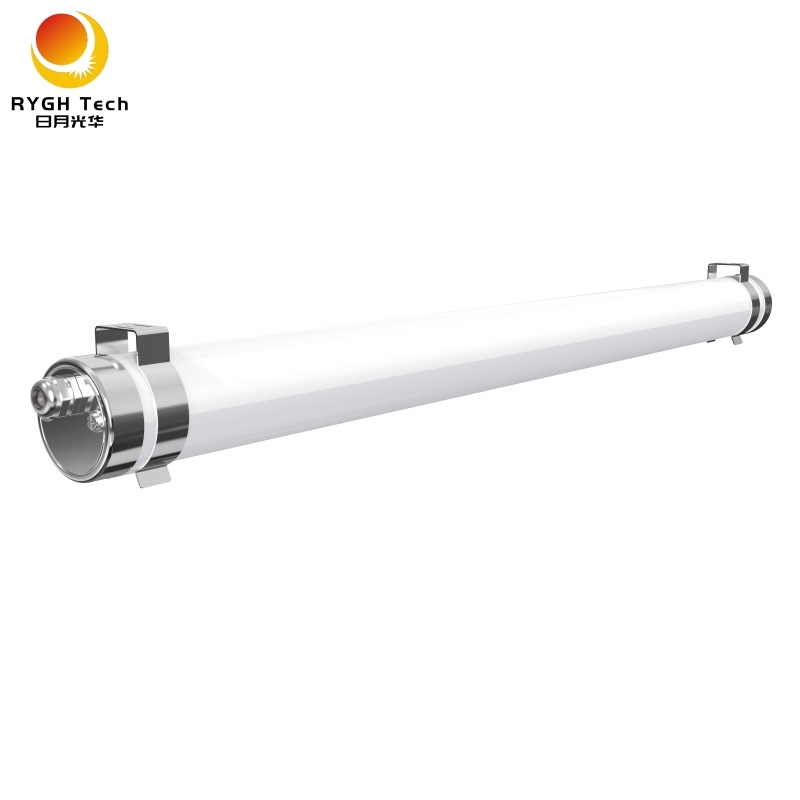

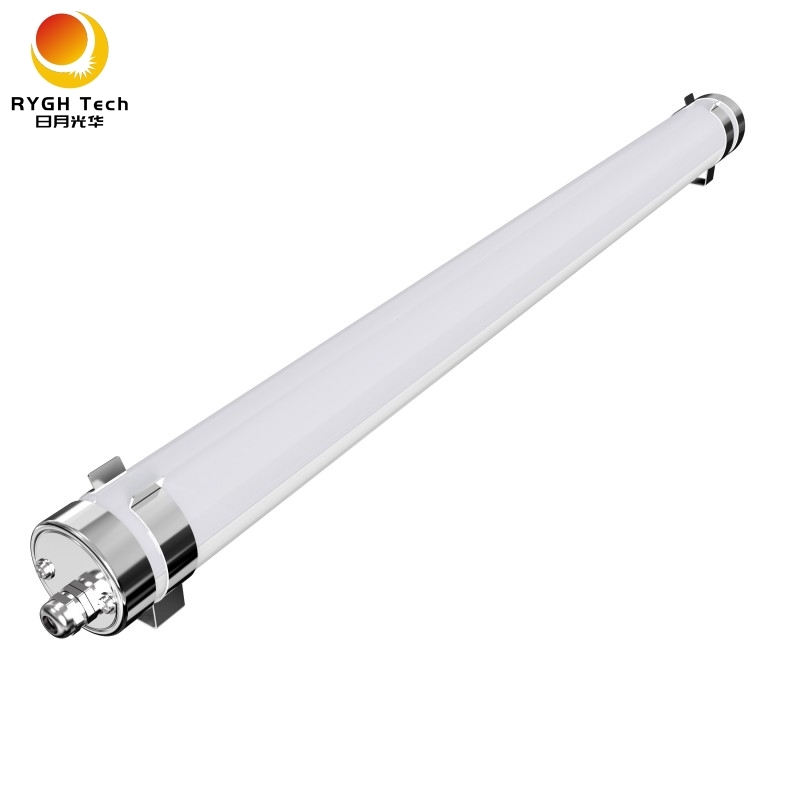

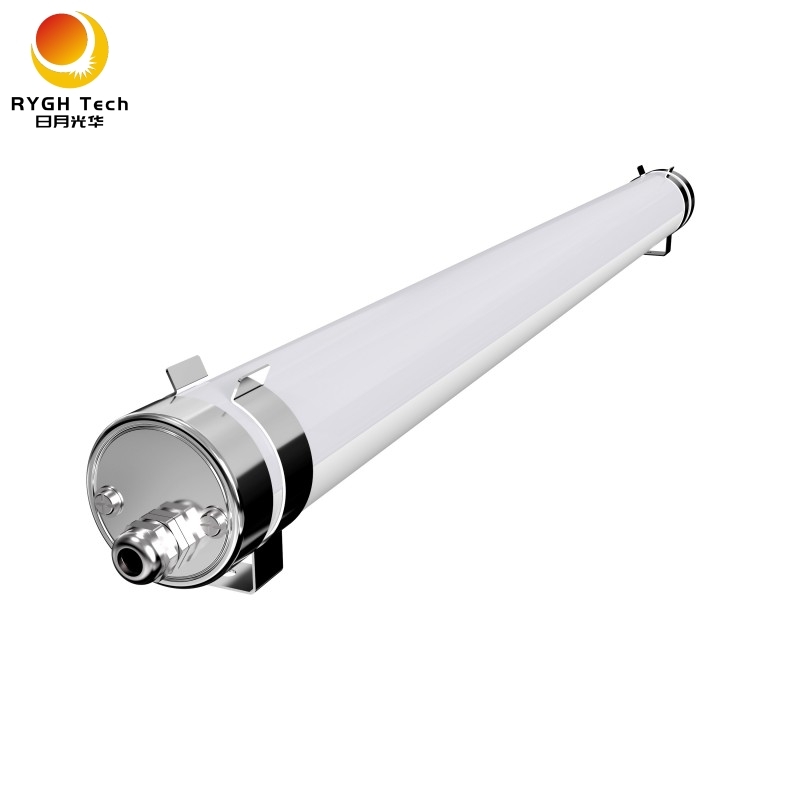

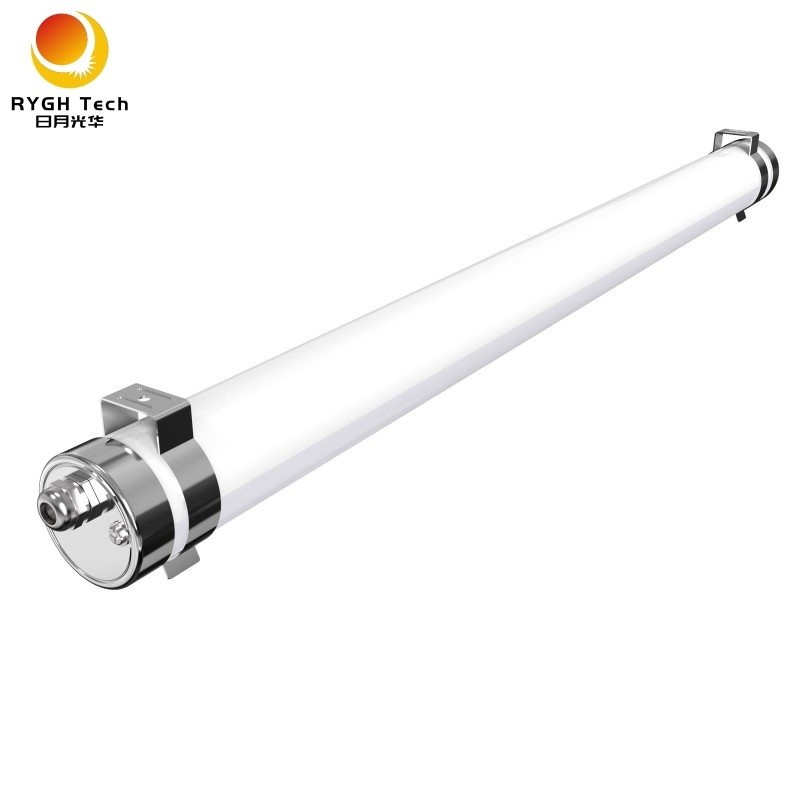

H114 LED Vapor Tight Light

H114 LED Vapor Tight Light Features: 2ft: 18W | 4ft: 36W | 5ft: 45W

1 IP65 to IP66

2 IK08

3 System efficiency up to 130lm/W & 150lm/W option

4 High CRI >80

5 UGR<19 option

6 Linkable options with quick connection

7 Environmentally friendly, no mercury, No UV, No IR

8 Wide beam angle 120°

9 Energy Efficiency Grade: A+

10 Quick Start instant 100% luminous flux

11 Flicker Free driver/Flicker driver optional

12 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)

13 Certificate: CE,RoHs Certified

14 Surface Mount or Suspended

15 Quick Installation .

16 Microwave Sensor – Optional .

17 Emergency Kit integrated – Optional

Description
Reviews 0

H114 LED Vapor Tight Light Specifications

Model	H114-600	H114-1200	H114-1500
Length	60cm (2ft)	120cm (4ft)	150cm(5ft)
LED Qty	96pcs 0.2W LED	192pcs 0.2W LED	240pcs 0.2W LED
Power Consumption	18W±2%	36W±2%	45W±2%
LED Initial Flux	30~32lm/LED	30~32lm/LED	30~32lm/LED
Luminous Efficiency	>130LM/W	>130LM/W	>130LM/W
Weight	470g	850g	1050g
Internal	Aluminum profile Heat Sink inside +PCB
Outer Casing	Double color PC tube
SMD2835 LED Source	Epistar Chip , Packaing with TAIWAN Edison factory
PF	>0.95
CRI	>80Ra
Input Voltage	AC220~240V
Light Source	SMD2835
Beam Angle	>180°
IP & IK Rating	IP65 , IK08
Operation Temperature	-30~50℃
Working Environment	Indoor use or Outdoor application

H114 LED Vapor Tight Light Dimension

Size & Dimension	L	W	H	Net Weight
60cm/2FT	60cm	46.8mm	46.8mm	470g
120cm/4FT	120cm	46.8mm	46.8mm	850g
150cm/5FT	150cm	46.8mm	46.8mm	1050g

H114 LED Vapor Tight Light Package

Size	Quter Carton size	Qty/CTN	Gross Weight/GTN
2FT	700×285×260mm	9PCS/CTN	4.3 KG
4FT	1300×285×260mm	9PCS/CTN	7.7 KG
5FT	1600×285×260mm	9PCS/CTN	9.5 KG

How to install H114 LED Vapor Tight Light:

1.Drill holes in the ceiling or wall with an electric hammer drill, install expansion screws, and install the lamp tube latch with self-tapping screws.

2.Buckle the lamp into the stainless steel clasp.

3.Remove the two screws securing the plug and the aluminum using a screwdriver.

4.Install waterproof joint.

5.The input line of the luminaire is connected with the corresponding line of the aluminum substrate.

6.Reinstall the plug and waterproof connector, power on can light the lamps and lanterns.

Environment Requirement

Working Temperature：-30~+50℃

Storage Temperature：-30~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

H114 LED Vapor Tight Light Application:

H114 LED Vapor Tight Light can be widely applied for Food processing and poultry lighting industry, Food & Beverage as well as the vehicle industry, factory, stadium, washroom, swimming pool, dressing room, supermarket, restaurant, school, subway, tunnel, kitchen, canteen, pedestrian passage, corridor, , overpass, elevated, airport server, Layer and Breeder Lighting, Broiler and Pullet Lighting, Swine Lighting, Dairy Barn Lighting.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC 85-265V 50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

3-5 year warranty since the date of purchase is offered for all led vapor tight light.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.
