K LED Street Light
12/20/2021L LED Street Light
12/20/2021G led street light

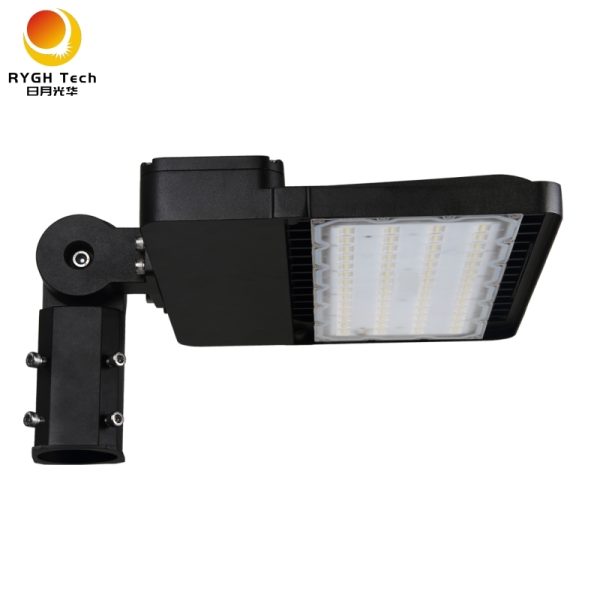

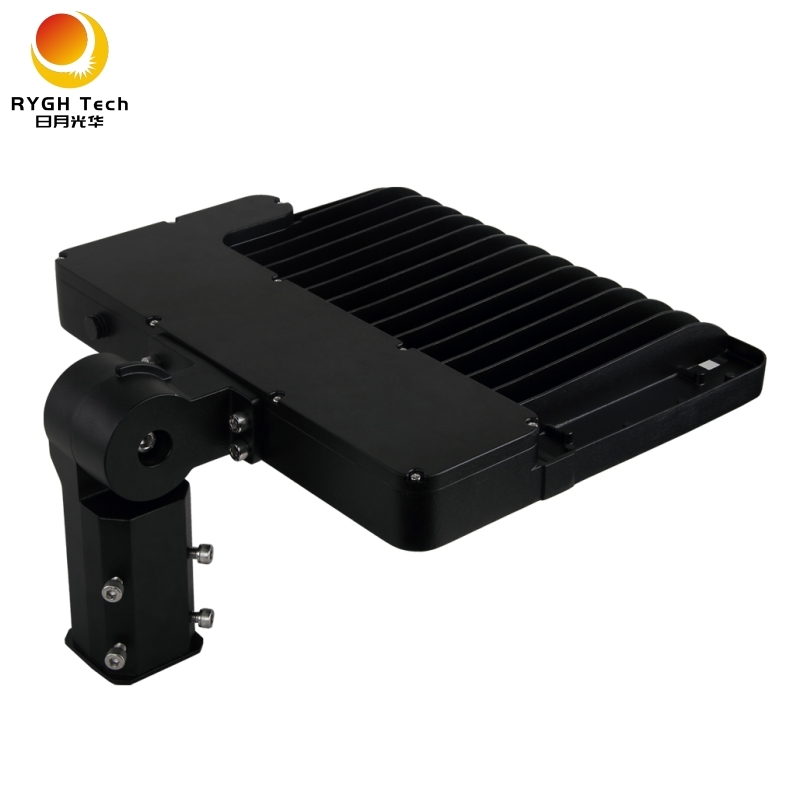

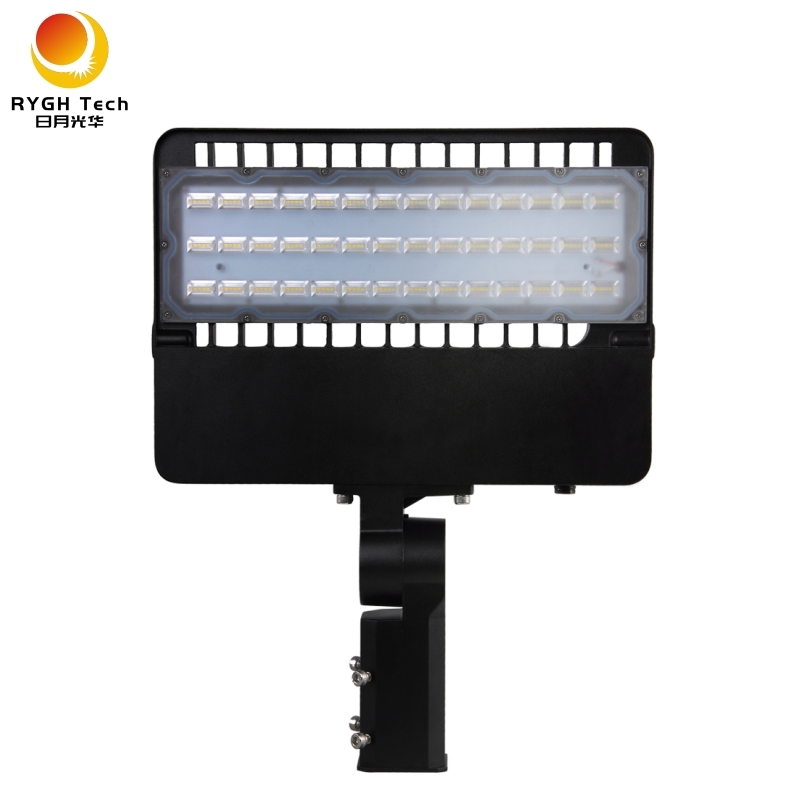

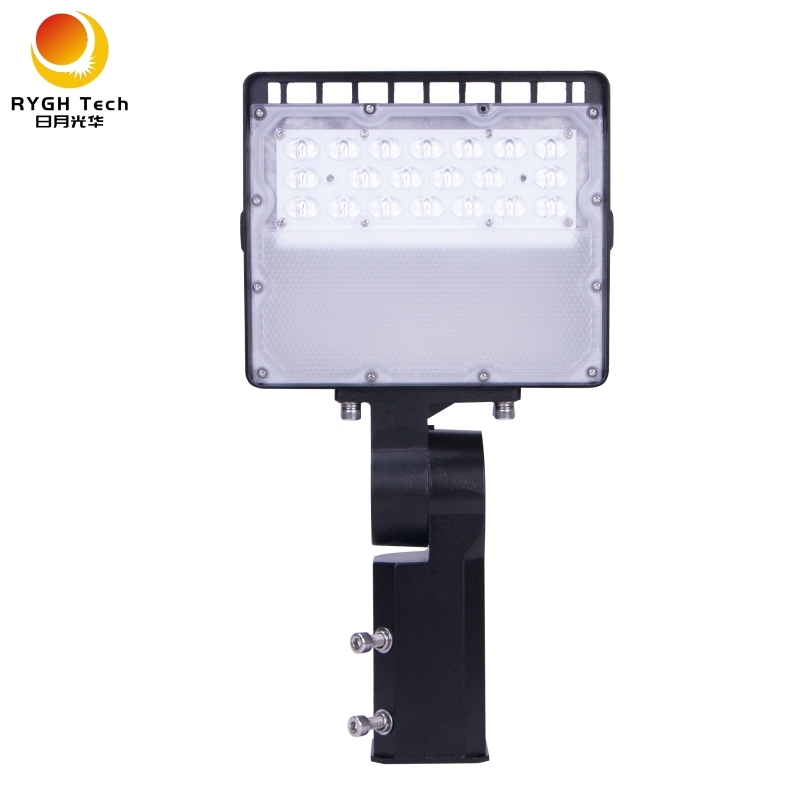

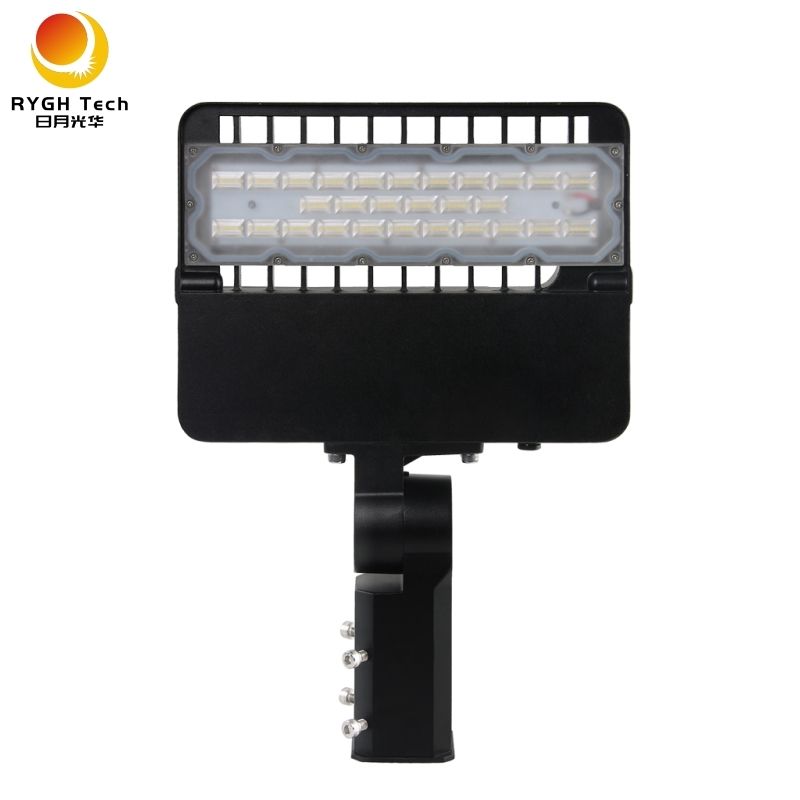

G Series Led Street Light Features: 100W | 150W | 200W | 300W
110-160lm/w
1, Slim and elegant appearance
2, Shoebox type
3, Multi beam angles: Type I, Type II, Type III, Type V
4, SPD 10KV
5, Photocell optional
6, 0-10V dimming optional
7, High transparency PC lens
G Series Led Street Light Specifications
Model No | RYGH-LDG-100W | RYGH-LDG-150W | RYGH-LDG-200W | RYGH-LDG-300W |
Size | 482*326*80mm | 517*406*80mm | 552*406*80mm | 564*406*80mm |
Holder | 64mm | 64mm | 64mm | 64mm |
Watts | 100W | 150W | 200W | 300W |
Luminous efficiency | 110-160lm/w | 110-160lm/w | 110-160lm/w | 110-160lm/w |
LED Qty | 112/154 pcs 3030, 40 pcs 5050 | 168/280 pcs 3030, 70 pcs 5050 | 224/392 pcs 3030, 98 pcs 5050 | 336/540 pcs 3030, 140 pcs 5050 |
Material | Aluminum, LED Chip, Lens, Screws | |||
Kelvin | 3000K, 4000K, 5000K, 5700K, 6500K or Specified Color | |||
LED option | SMD3030, SMD5050, (Note: normal are SMD3030 chip) | |||
CRI | 90Ra, 80Ra, 75Ra, 70Ra (Note: normal are 70Ra) | |||
Lens Angle | 3030: 120*90 degrees, 5050: 150*80 degree | |||
Driver option | Sosen, Inventronics, Meanwell or Specified brand | |||
Input Voltage | 90-277Vac (Sosen), 110-240Vac (Meanwell ELG), 90-305Vac (Meanwell HLG); 50/60Hz; PF>0.95 | |||
Lifetime | 50, 000 – 100, 000 hours | |||
IP Level | IP66 | |||
Lighting Way | AC Normal Lighting, AC Dimming Lighting, Solar Lighting, Photocell | |||
Certificate | CE, RoHS | |||
Packing size | 530*375*115MM | 565*455*115MM | 600*455*115MM | 710*455*135MM |
Net Weight | 4.1kg | 5.5kg | 6kg | 9.8kg |
Gross Weight | 5.5kg | 7kg | 7.5kg | 11.8kg |
Environment Requirement
Working Temperature:-35~+50℃
Storage Temperature:-35~+50℃
Working Humidity:0%~85%
Storage Humidity:0%~90%
G Series Led Street Light Application:
G Series Led Street Light are widely used for Street, Road, highway, viaduct, overpass, sidewalk, outdoor lighting places, such as squares,schools, residential areas and parks.
Warning
- Please install the lamp according to the installation to avoid dropping and electric shock.
- Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
- Working voltage is not to be exceeded AC100-305V 50/60Hz
Attention
- Don’t install the lamp to non-stable place.
- Installed by qualified electrician.
- Switch off the switch box and contact certified electrician if the lamp works abnormally
Warranty
5-year warranty since the date of purchase is offered for all street Light.
Warranty Terms
- Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
- RYGH will not provide paid maintenance service under conditions within warranty.
- Failure or damage due to force majeure.
- Failure or damage due to transport or unloading.
- Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
- Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
- Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
- RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
