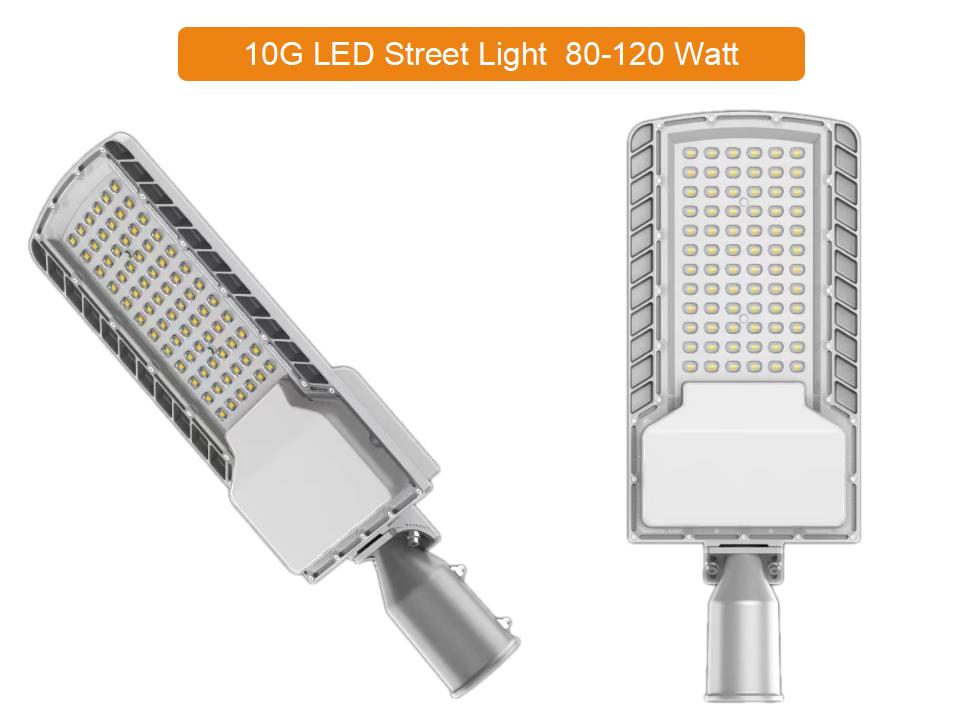

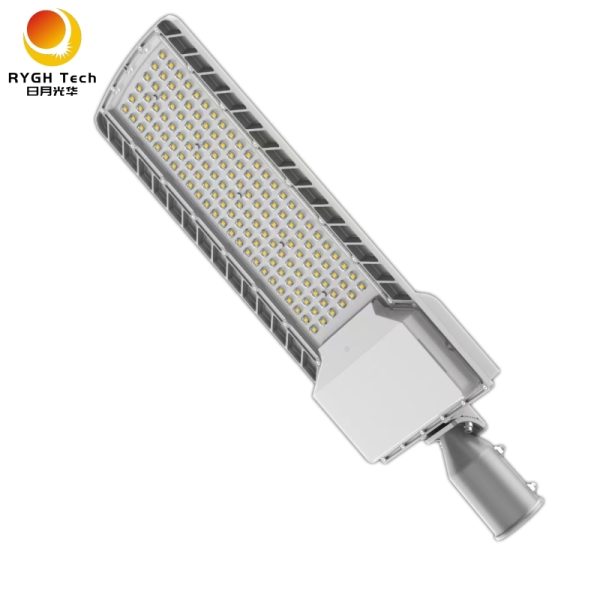

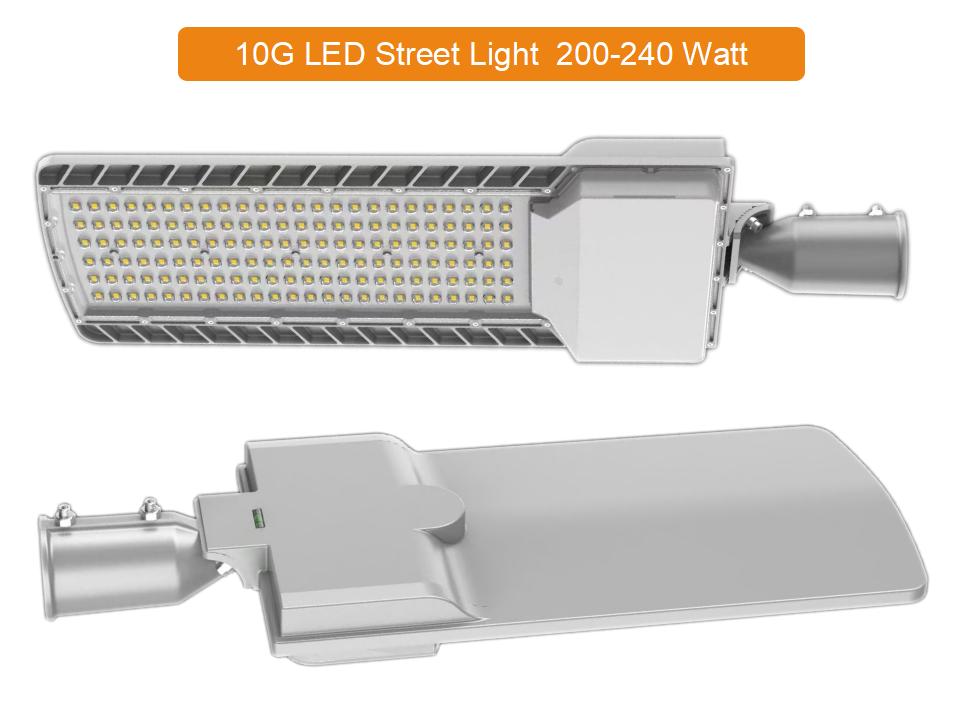

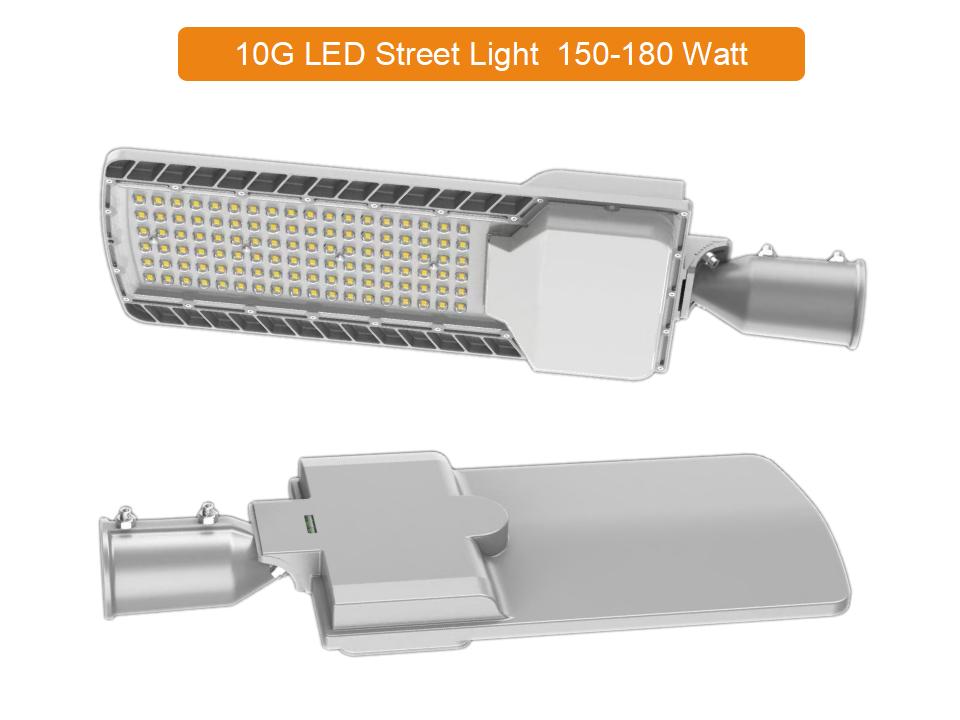

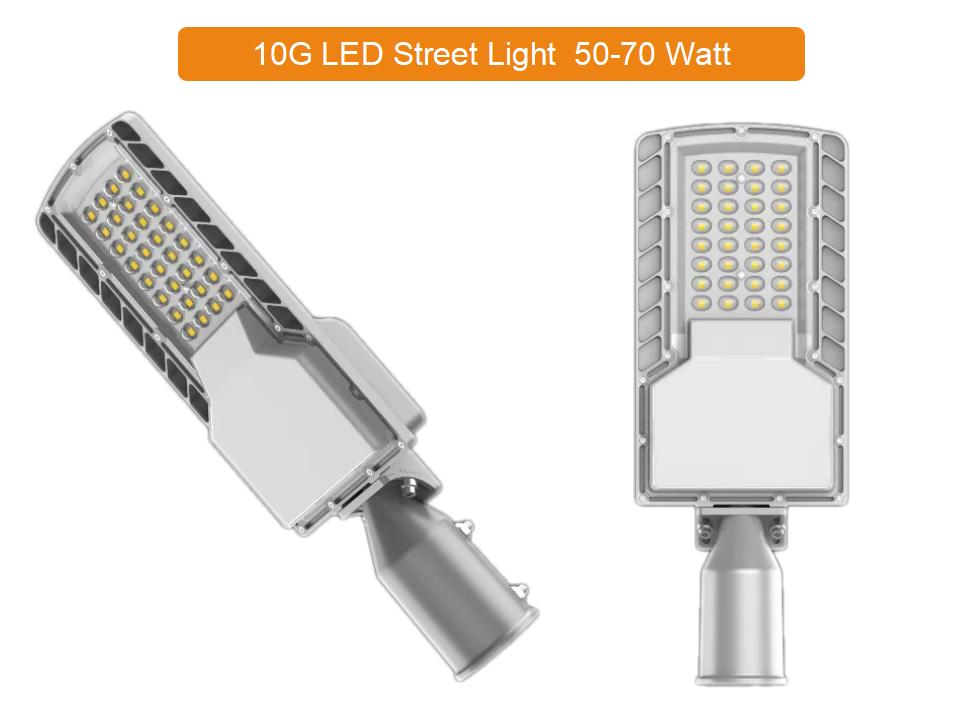

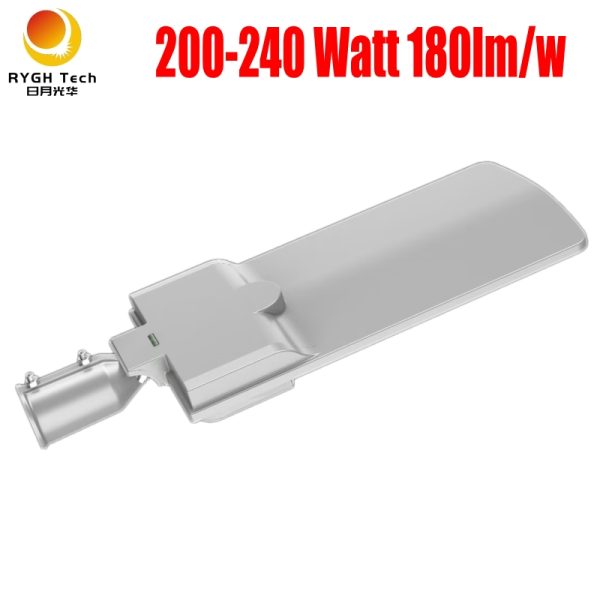

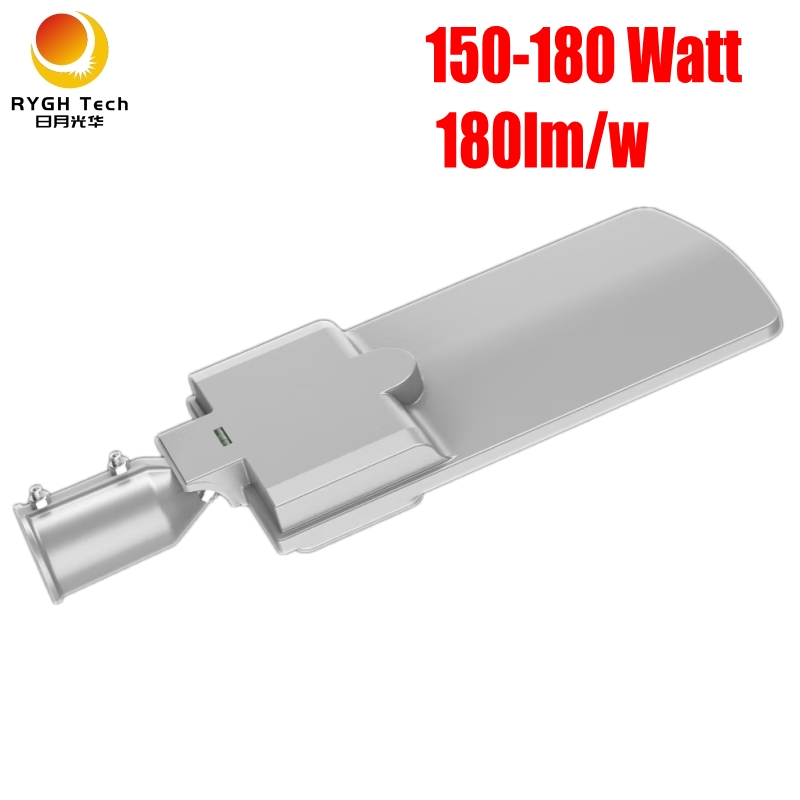

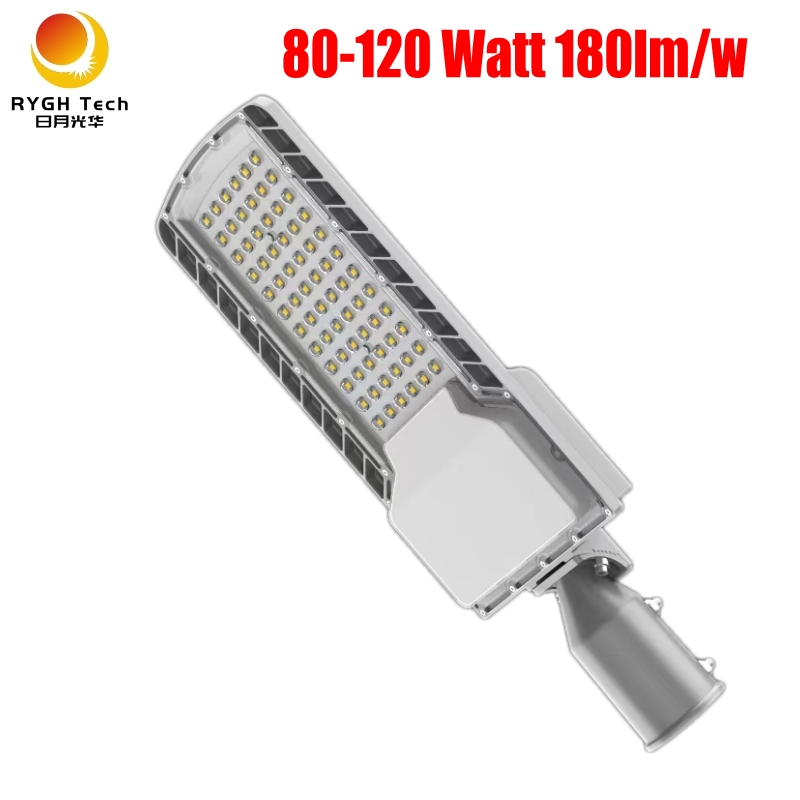

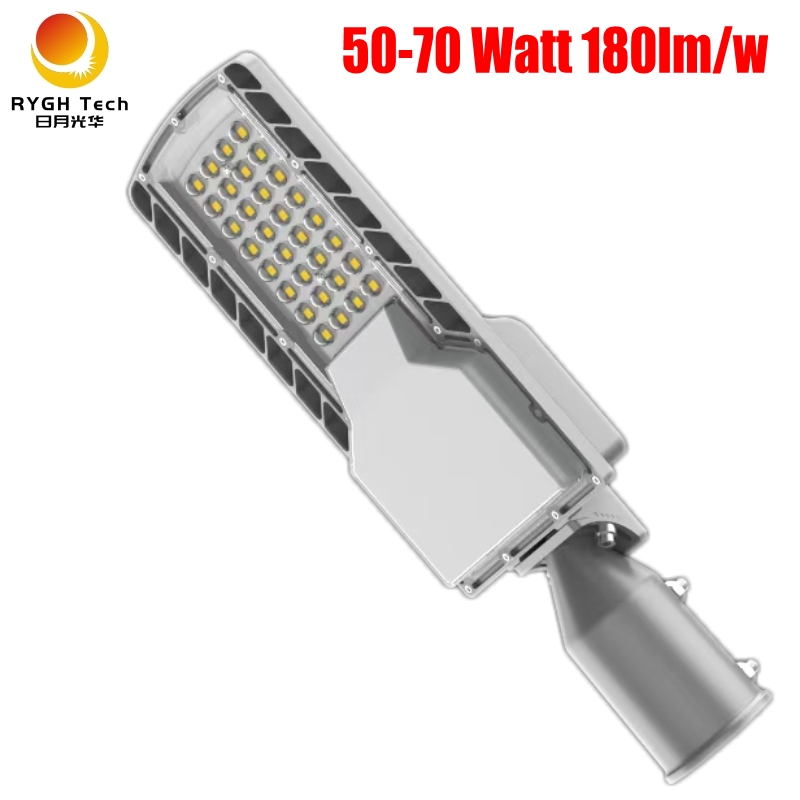

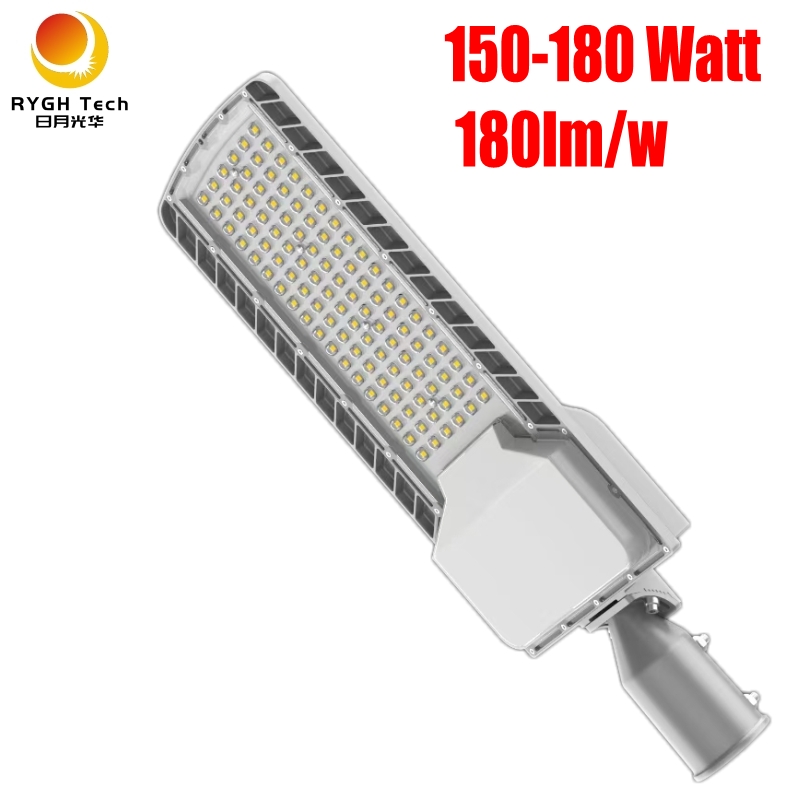

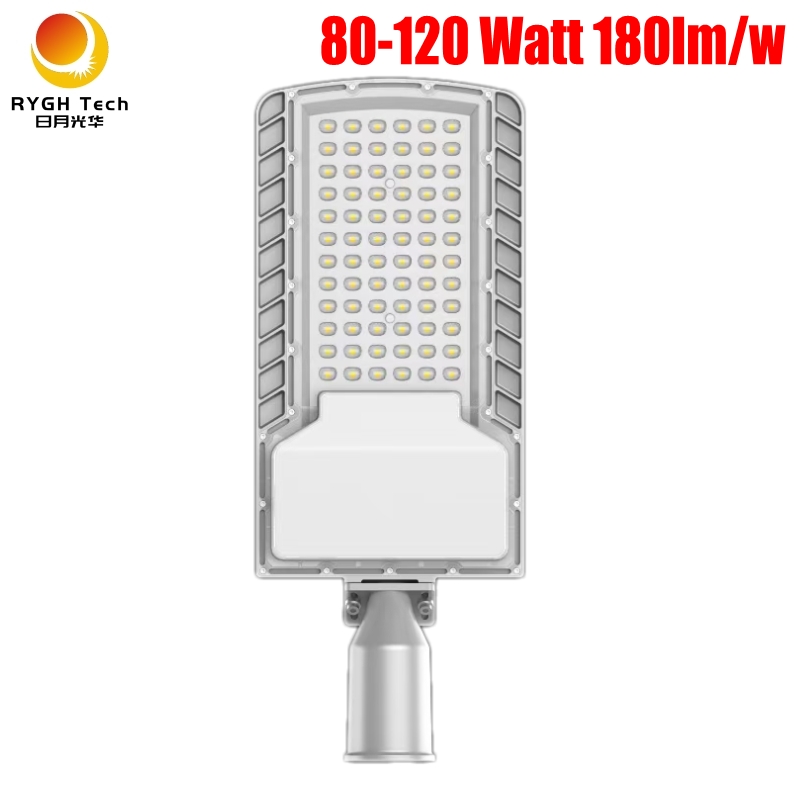

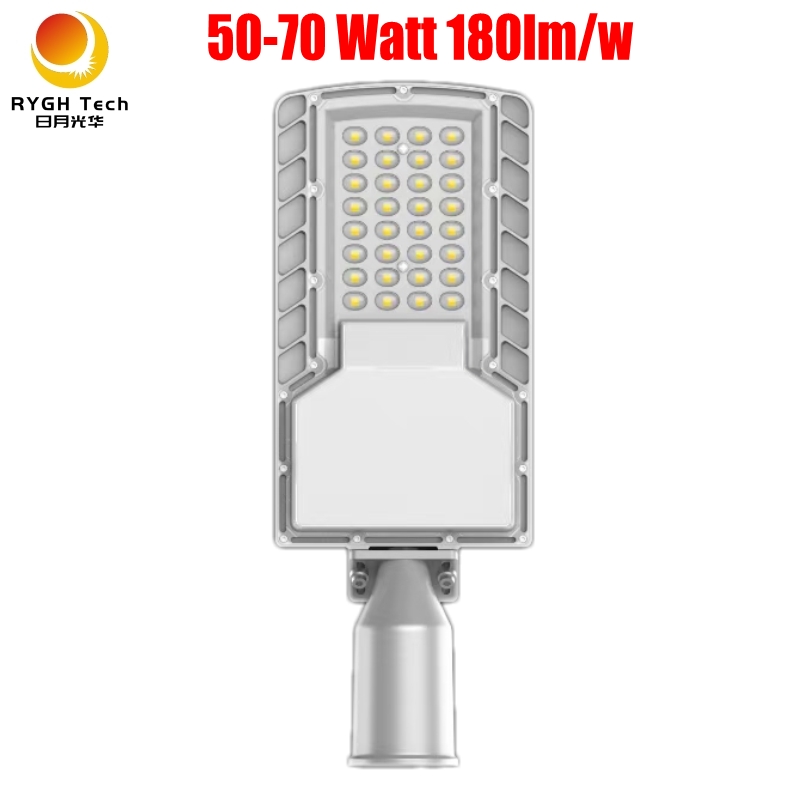

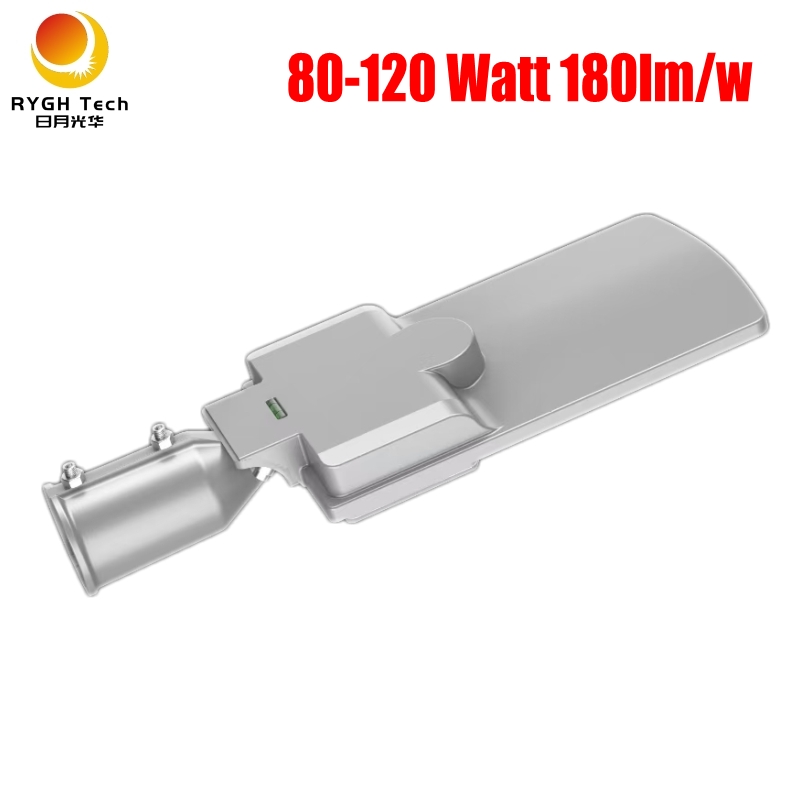

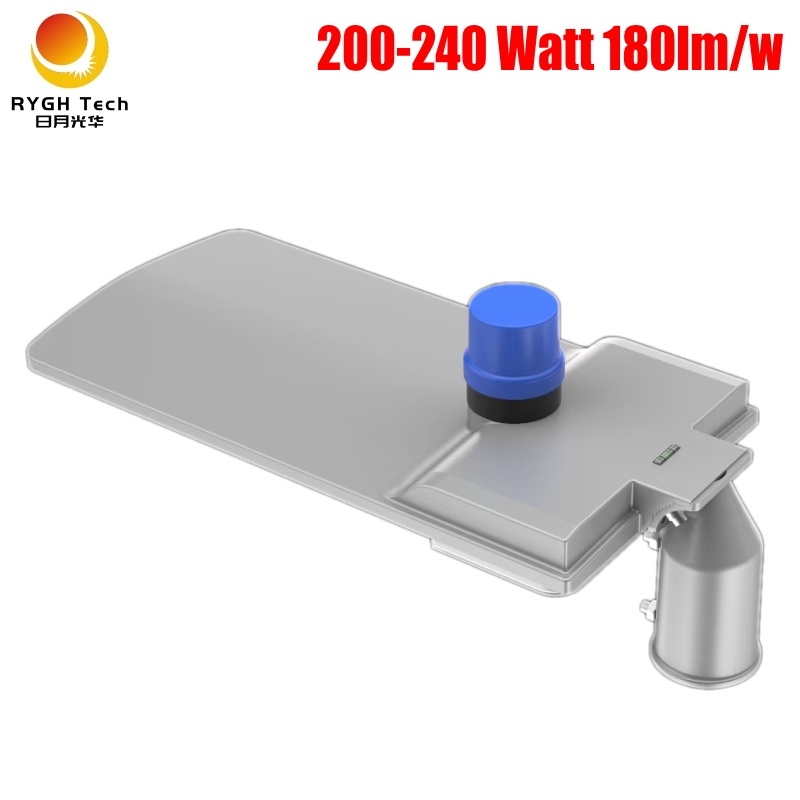

10G Led Street Light Features: 20W | 30W | 50W
| 80W | 100W | 150W | 180W | 200W | 240W
1, Patent private mould, integrated die-casting AL.
2, High efficiency, 180lm/w available.

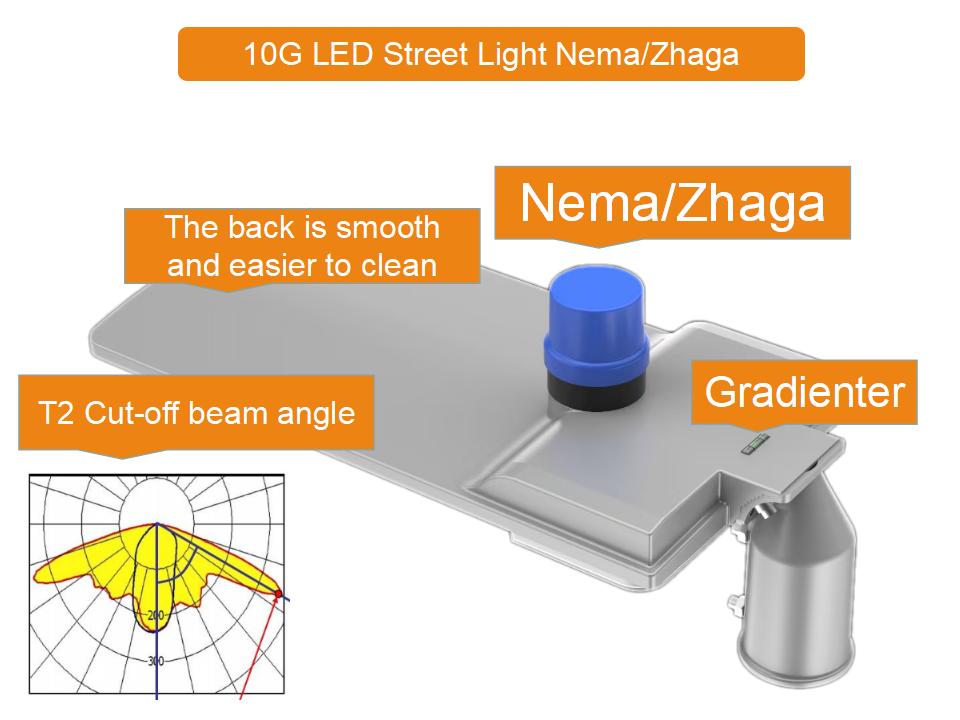

3, Use professional anti-glare full cut-off light distribution: T2.
4, 0-10V dimming/time control/light sensor/IOT control available.
5, Flat honeycomb design, good heat dissipation.

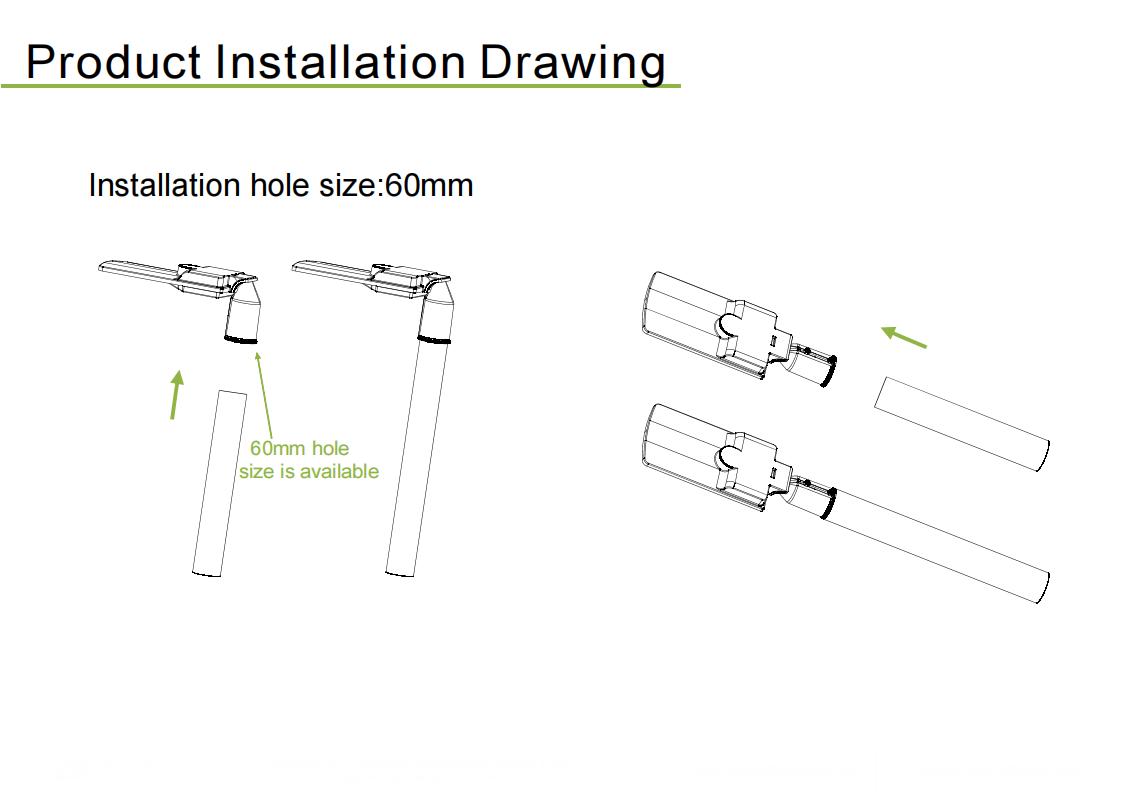

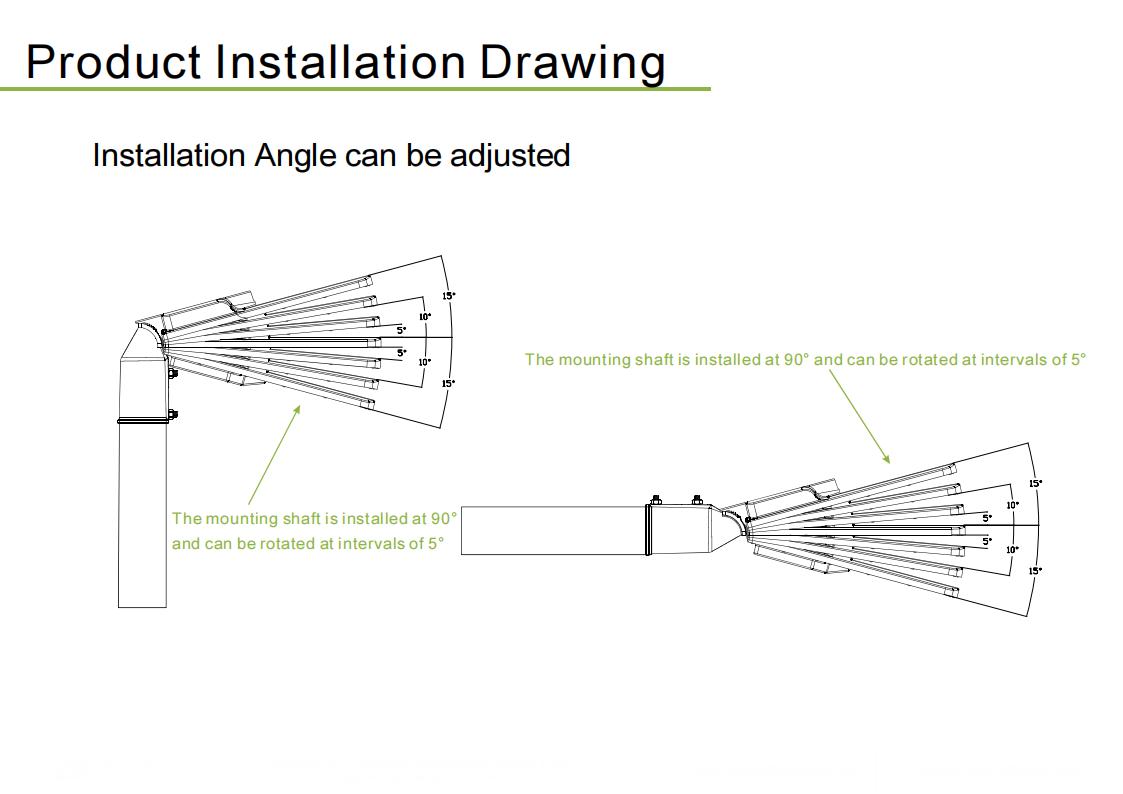

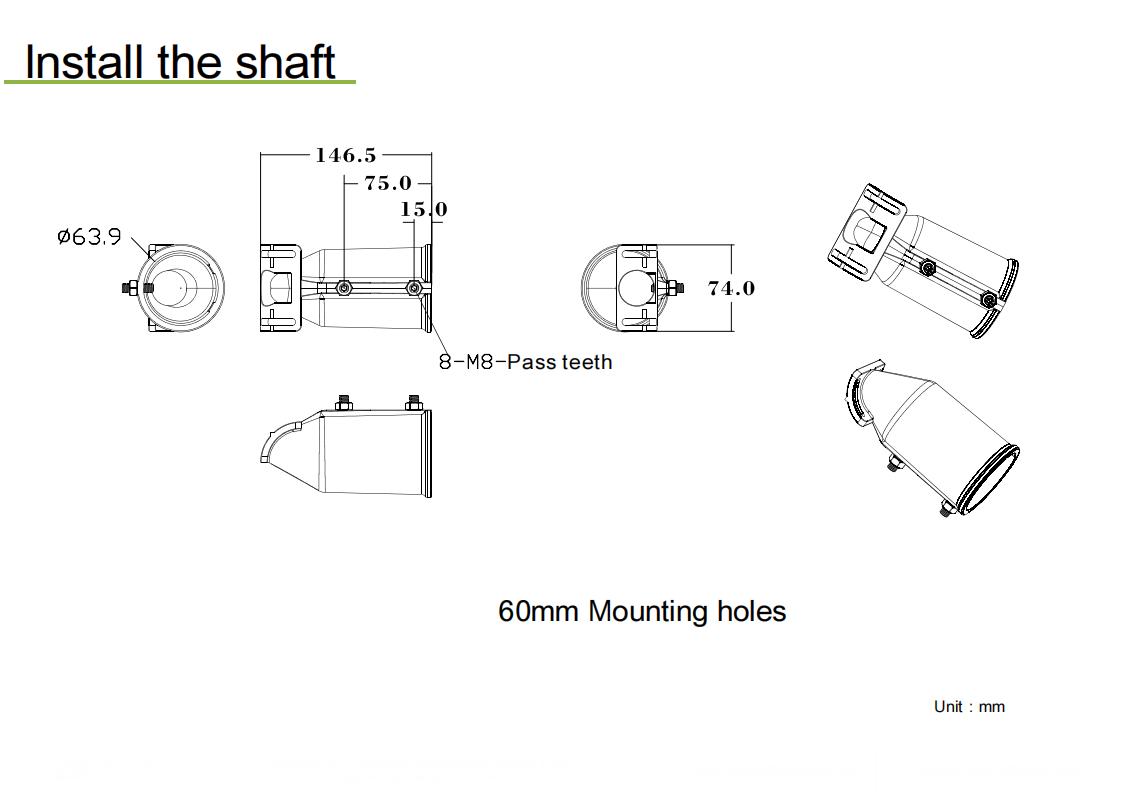

6, Angle of mounting shaft can be installed and adjusted 90/180°(±15°).
7, The protection level reaches Ip66.

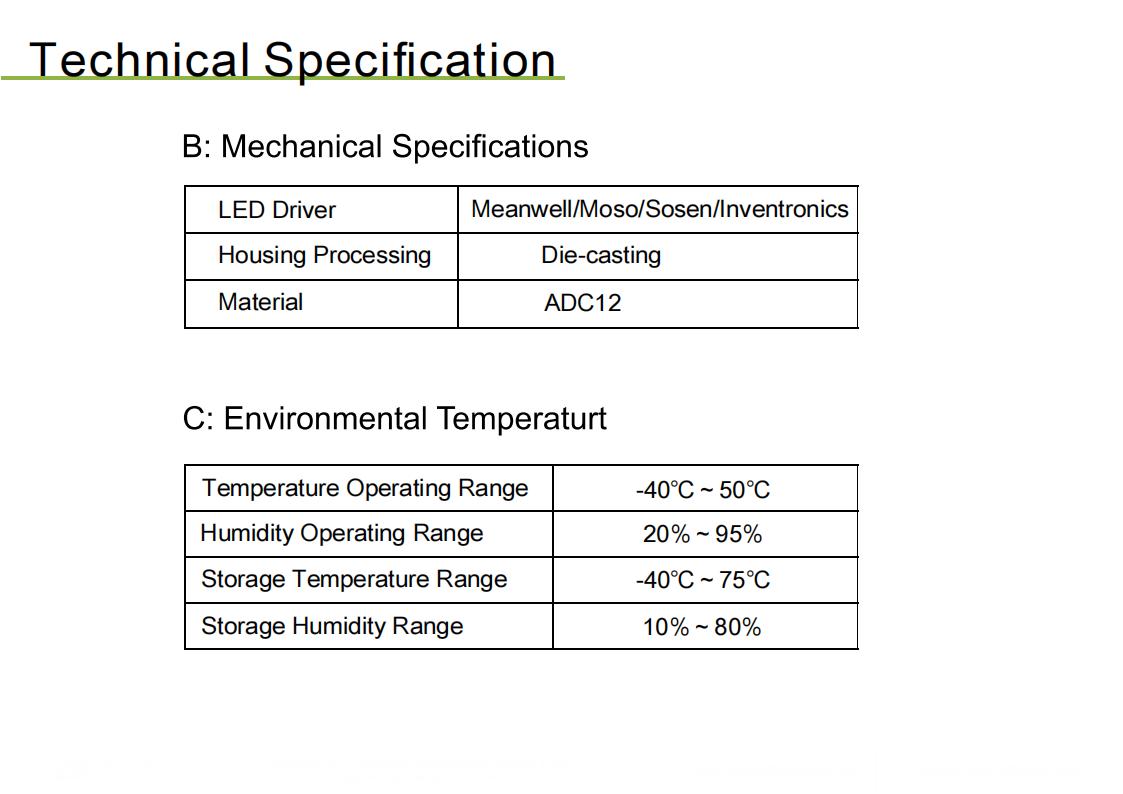

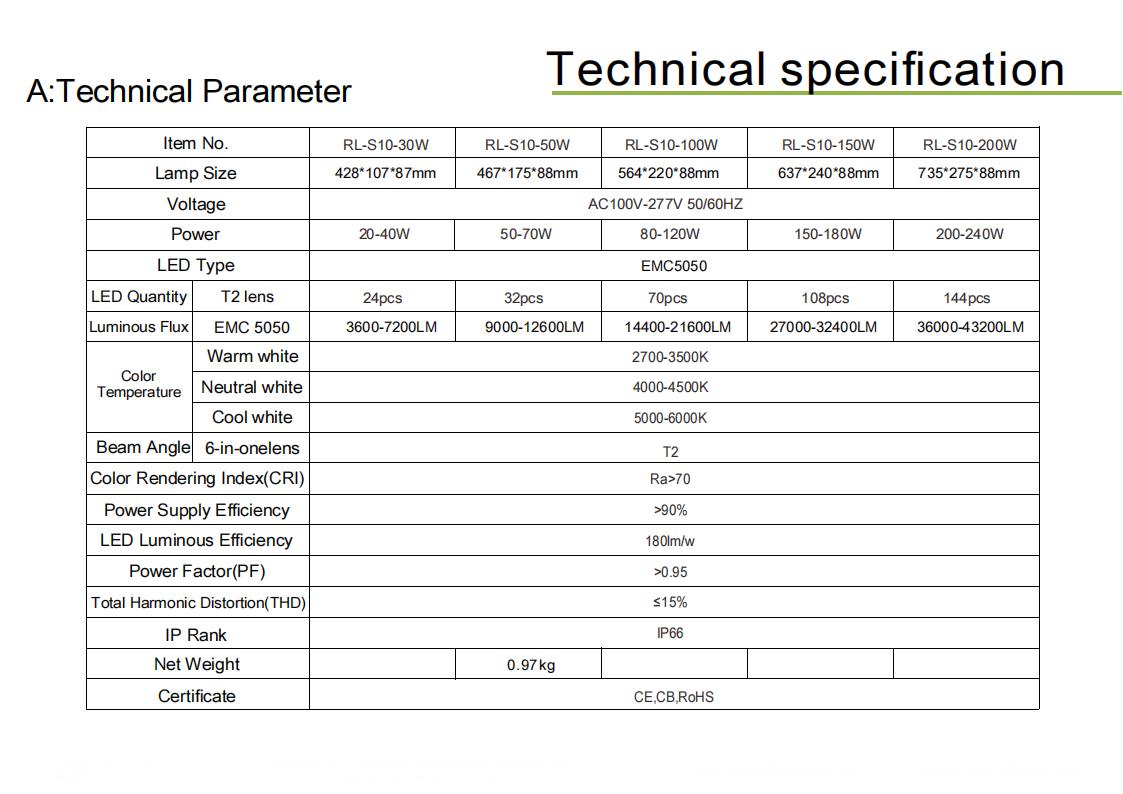

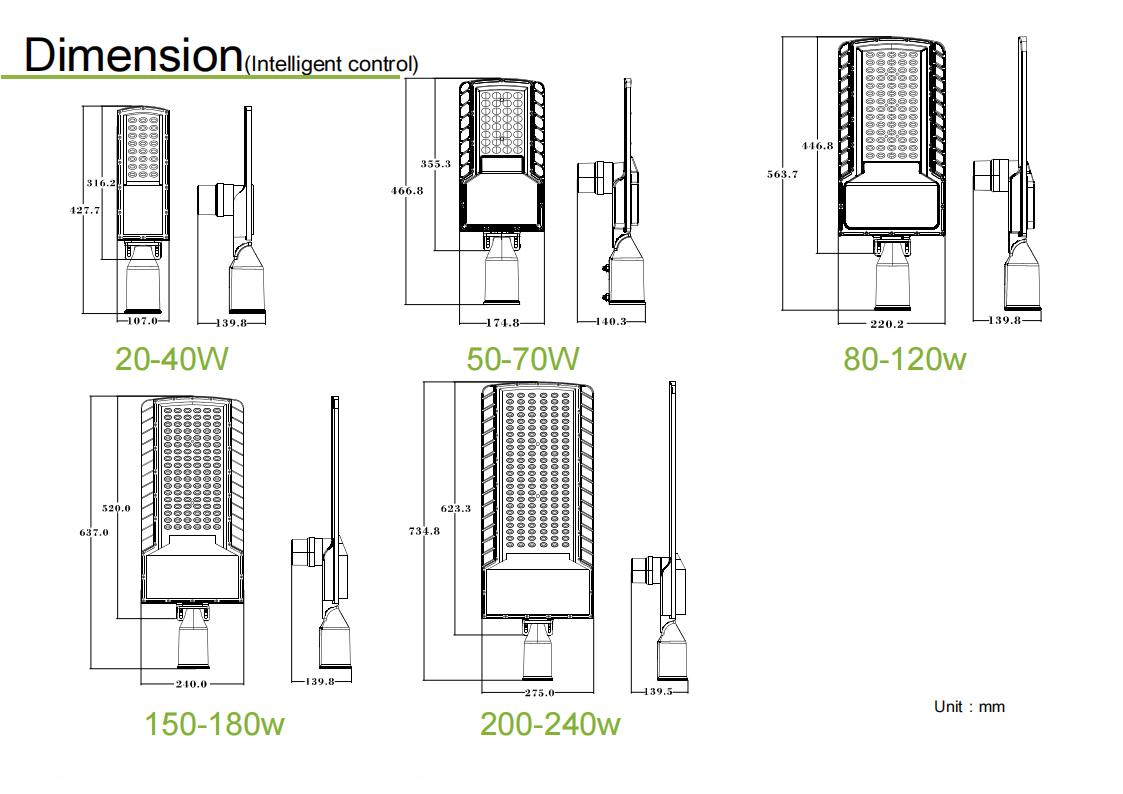

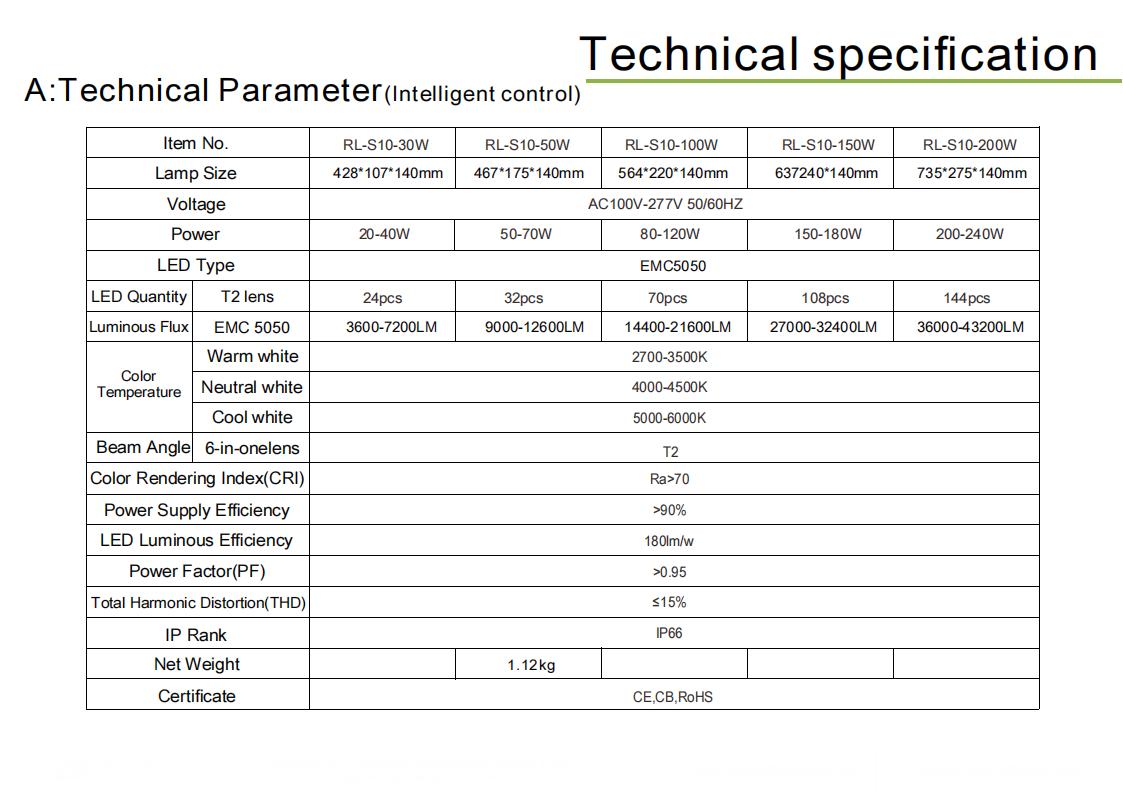

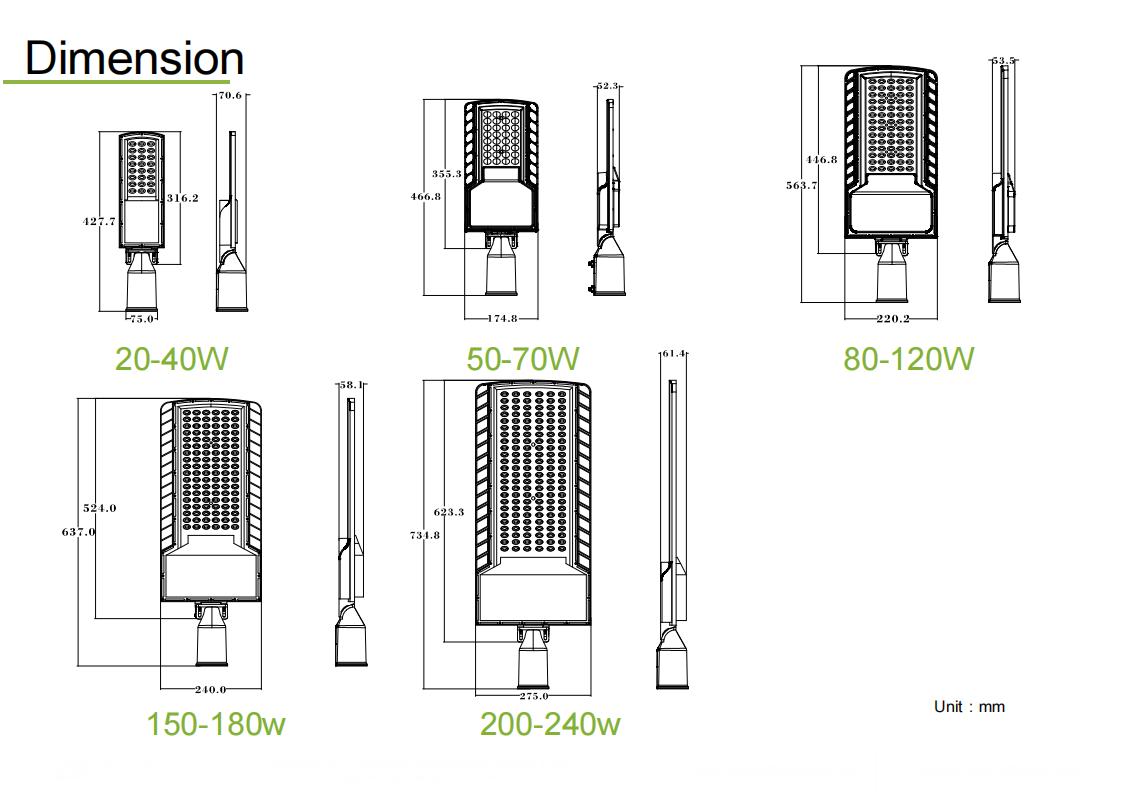

10G Led Street Light Specifications
Working Temperature:-40~+55℃
Storage Temperature:-40~+55℃
Working Humidity:0%~85%
Storage Humidity:0%~90%

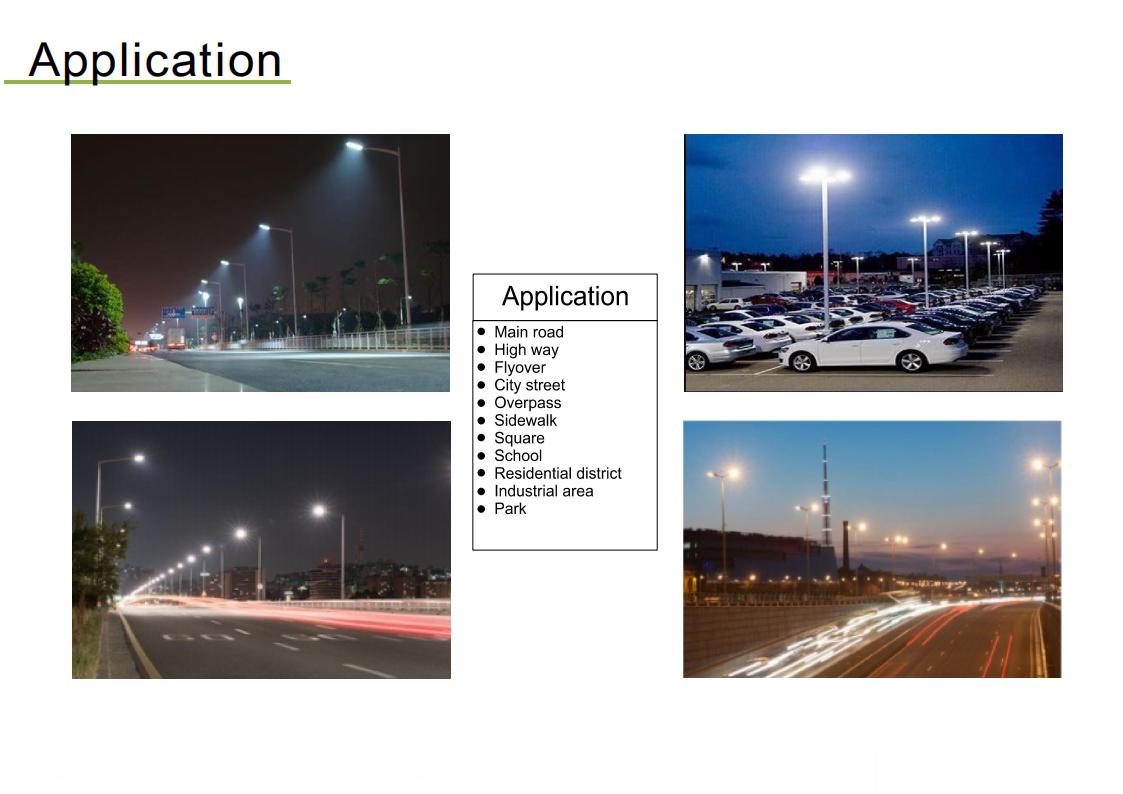

10G Led Street Light Application:
10G Led Street Light are widely used for street, road, highway, viaduct, overpass, sidewalk, outdoor lighting places, such as squares,schools, residential areas and parks.
Warning

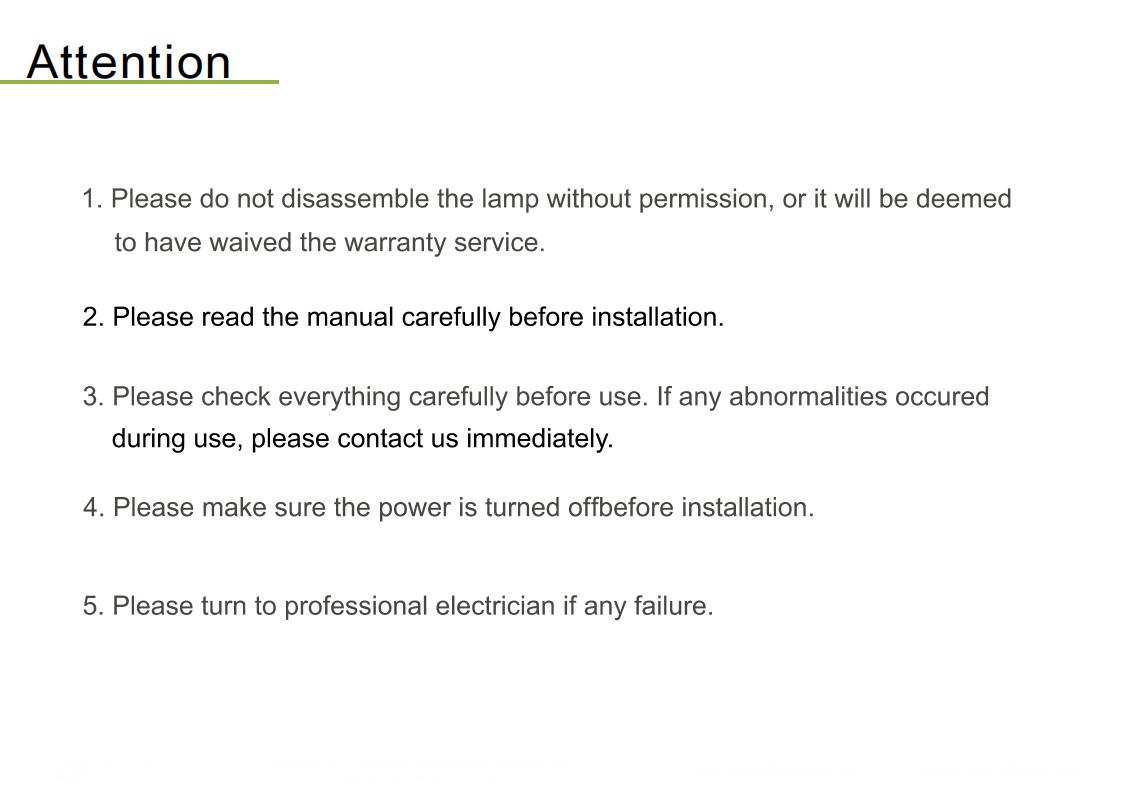

Attention
Warranty
5-year warranty since the date of purchase is offered for street Light.

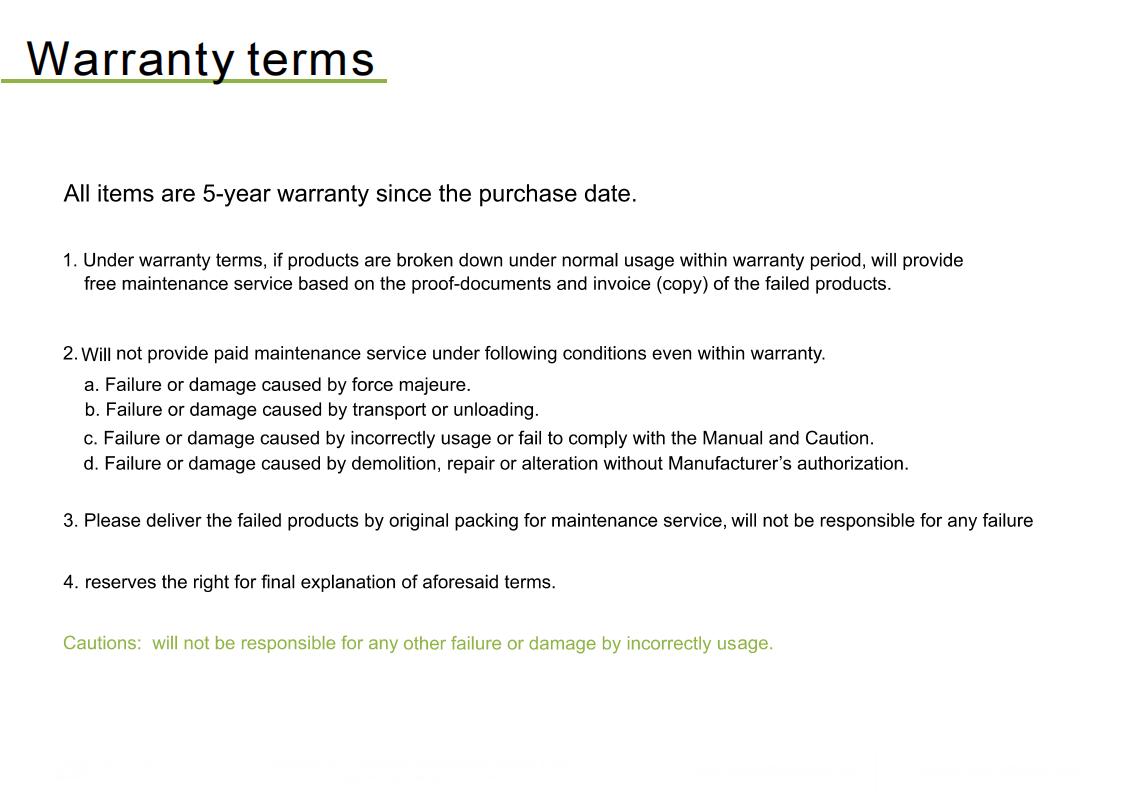

Warranty Terms
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
You must be logged in to post a review.
8G Led Street Light features:25W | 50W | 60W | 80W
100W | 120W | 150W
1, Patent private mould, integrated die-casting AL.
2, High efficiency, 130-170lm/w available.
3, Professional glare-free lens, 60°/90°/120°/T2M/T3M/T4M.
4, 0-10V dimming/time control/light sensor/IOT control available.
5, Flat honeycomb design, good heat dissipation.
6, Gradienter design: easy for horizontal installation.
7, Snap-on type installation, tool-free disassembly
8, Tempered glass panel, no glue fixed
9, IP66
1G Series Shoebox Led Street Light Features: 100W | 150W | 200W | 300W
1, Integrated die-casting AL
2, High efficiency, 130lm/w
3, Professional glare-free lens, TYPE3/TYPE4/TYPE5 available
4, 0-10V dimming/time control/light sensor/IOT control available
5, Bat wing light shape
6, Various applications: street light,shoe box light, projector,etc.
OB2 Series Led Street Light Features: 40W | 50W | 60W | 80W
100W | 120W | 150W
1, Elegant appearance;
2, Snap on power cover, tool free removal
3, Multi beam angles: Type 3, Type 4, Type 5
4, SPD 10KV
5, Photocell optional
6, 0-10V dimming optional
7, High transparency PC lens
BY Series Led Street Light Features:
1, 30W 丨 50W 丨 60W | 90W 丨 100W 丨 120W 丨 150W 丨 180W 丨 200W 丨 210W 丨 240W
2, Lamp body ADC12 Aliminum,Powder spraying surface treatment, corrosion resistance
3, 500H salt spray test;
4, Optical lens;
5, LED source and driver seperatly;
6, Open power supply chamber by top cover, knob type tools free;
7, Smooth back cover, easy to clean
8, Efficiency 135-170lm/w, LED source 2835/3030/5050 optianal;
9, T2-M,T2-S light distribution
10, IP66/IK08;
11, L80:50000H/100000H
LD05A Series Led Street Light Features: 40W | 60W | 80W | 100W
120W | 150W | 180W | 200W | 110-120lm/w
1, Slim and elegant appearance;
2, Snap on power cover, tool free removal
3, Multi beam angles: Type I, Type II, Type III, Type V
4, SPD 10KV
5, Photocell optional
6, 0-10V dimming optional
7, Both high transparency PC lens and tempered glass
6G Series Led Street Light features: 25W | 30W | 50W | 60W | 80W
100W | 120W | 150W | 180W | 200W | 250W | 300W | 360W | 400W
1, Patent private mould, integrated die-casting AL
2, High efficiency, 130lm/w,150lm/w,170lm/w available
3, Professional glare-free lens, TYPE2/TYPE3/TYPE4 available
4, 0-10V dimming/time control/light sensor/IOT control available
5, Specilized aluminum sheet design, glue-free for glass fixation
6,Ingradienter design: easy for horizontal installation
7, Snap-on type driver housing tool-free disassembly
8, Bat wing light shape
9, Various applications: street light,shoe box light, projector,etc.
G Series Led Street Light Features: 100W | 150W | 200W | 300W
110-160lm/w
1, Slim and elegant appearance
2, Shoebox type
3, Multi beam angles: Type I, Type II, Type III, Type V
4, SPD 10KV
5, Photocell optional
6, 0-10V dimming optional
7, High transparency PC lens
K LED Street Light Features: 40W | 60W | 80W | 100W | 120W
150W | 180W | 200W | 240W | 130-140LM/W
1, Slim and elegant appearance;
2, Snap on power cover, tool free removal
3, Multi beam angles: Type I, Type II, Type III, Type V
4, SPD 10KV
5, Photocell optional
6, 0-10V dimming optional
7, Both high transparency PC lens and tempered glass
City star Led Street Light Features: 30W | 50W
| 100W | 120W | 150W
City Star led street light features:
1, Integrated die-casting AL, Excellent thermal management
2, High efficiency, 120lm/w-130lm/w
3, Dedicated lens for different road configurations
4, 0-10V dimming/time control/light sensor/IOT control optional
5, Lightweight housing design
6, Input voltage 85 – 305 Vac
7, Type of protection IP 65
8, Impact type of protection IK 08
9,Glass / PC Lens optional
SB Series Shoebox Led Street Light Features:
60W | 75W | 100W | 120W | 150W | 200W
| 240W | 300W
Parking lot shoebox led street light features:
1, Integrated die-casting AL
2, High efficiency, 120lm/w-160lm/w
3, Professional glare-free lens, TYPE3/TYPE4/TYPE5 available
4, 0-10V dimming/time control/light sensor/IOT control available
5, Bat wing light shape
6, Various applications: street light,shoe box light, projector,etc.
7, 4 adaptor available: adaptor A, adaptor B-1, adaptor C, adaptor D
CP Led Street Light Features: 20W | 30W | 50W
| 80W | 100W | 150W
1, Integrated die-casting AL, Excellent thermal management
2, High efficiency, 100lm/w-130lm/w
3, Dedicated lens for different road configurations
4, Lightweight housing design
5, Input voltage 85 – 265 Vac
6, Type of protection IP 65
7, Impact type of protection IK 08
L Series Led Street Light Features: 40W | 60W | 80W | 100W
120W | 150W | 180W | 200W | 130-140lm/w
1, Slim and elegant appearance;
2, Snap on power cover, tool free removal
3, Multi beam angles: Type I, Type II, Type III, Type V
4, SPD 10KV
5, Photocell optional
6, 0-10V dimming optional
7, Both high transparency PC lens and tempered glass
BPR Led Street Light Features: 60W | 80W
| 100W | 120W | 150W | 180W | 200W | 240W
| 300W | 320W
BRP led street light features:
1, Integrated die-casting AL, Excellent thermal management
2, High efficiency, 120lm/w-160lm/w
3, Dedicated lens for different road configurations
4, 0-10V dimming/time control/light sensor/IOT control optional
5, Tool-free maintenance
6, Lightweight housing design
7, Wind force 0.134 m²
8, Input voltage 85 – 305 Vac
9, Type of protection IP 66
10, Impact type of protection IK 08
7G Series Led Street Light Features: 25W | 50W | 60W | 70W
80W | 100W | 120W | 150W | 180W | 200W | 250W | 300W
1, Patent private mould, integrated die-casting AL.
2, High efficiency, 130-170lm/w available.
3, Professional glare-free lens, 60°/90°/120°/T2M/T3M/T4M.
4, 0-10V dimming/time control/light sensor/IOT control available.
5, Flat honeycomb design, good heat dissipation.
6, Gradienter design: easy for horizontal installation.
7, Snap-on type installation, tool-free disassembly
8, Tempered glass panel, no glue fixed
9, IP66
LD7G Shoebox LED Street Light Features: 100W | 150W | 200W | 300W
1, Integrated die-casting AL
2, High efficiency, 130lm/w
3, Professional glare-free lens, TYPE3/TYPE4/TYPE5 available
4, 0-10V dimming/time control/light sensor/IOT control available
5, Bat wing light shape
6, Various applications: street light,shoe box light, projector,etc.
371 Series Led Street Light Features: 30W | 50W | 100W | 150W | 130lm/w
1, Slim and elegant appearance;
2, Snap on power cover, tool free removal
3, Beam angles: 140° * 60°
4, SPD 10KV
5, Photocell optional
6, 0-10V dimming optional
7, High transparency PC lens
