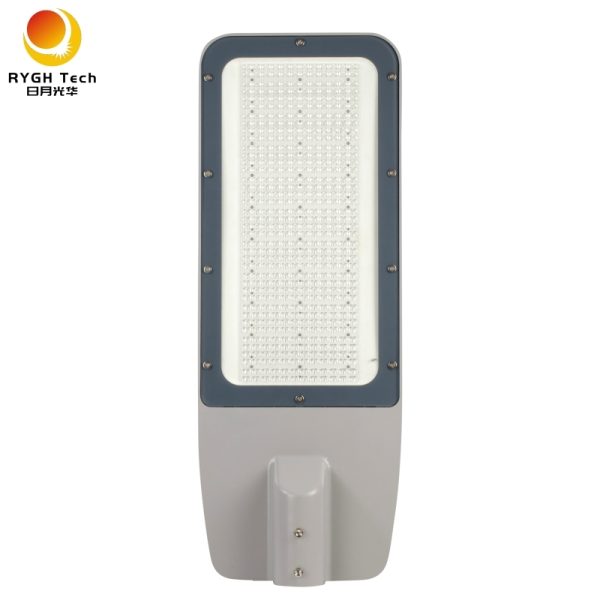

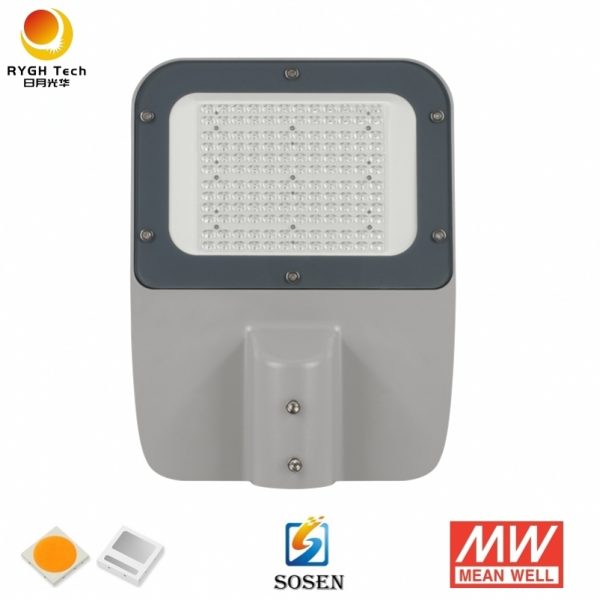

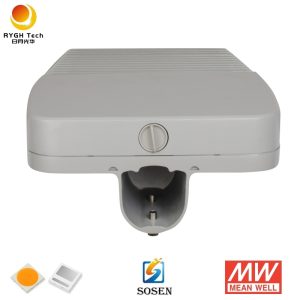

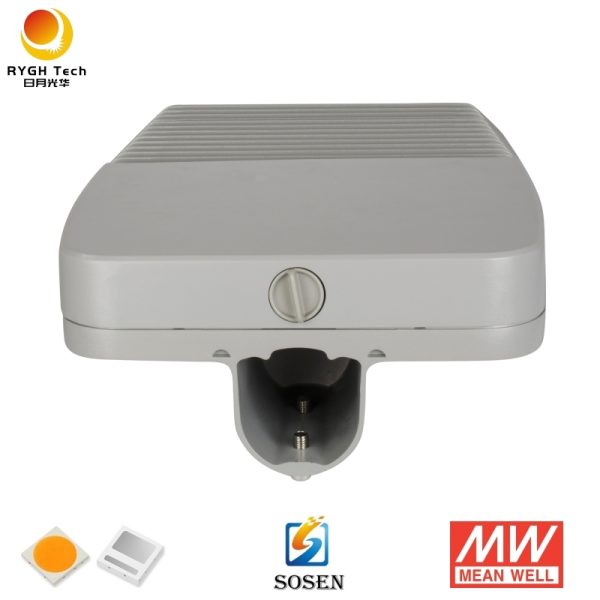

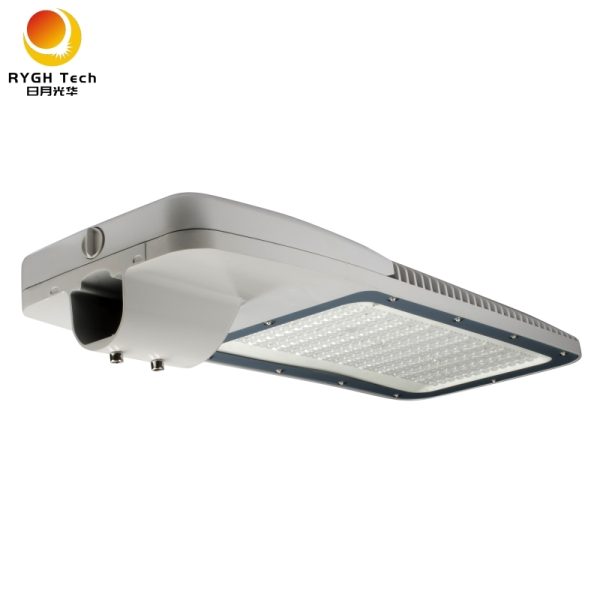

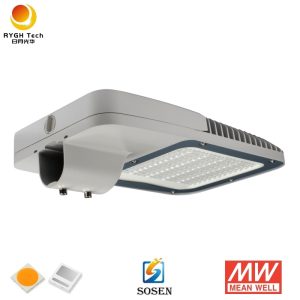

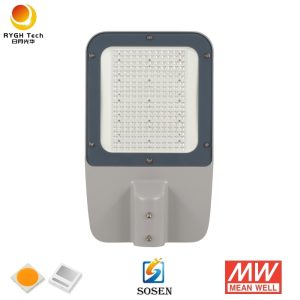

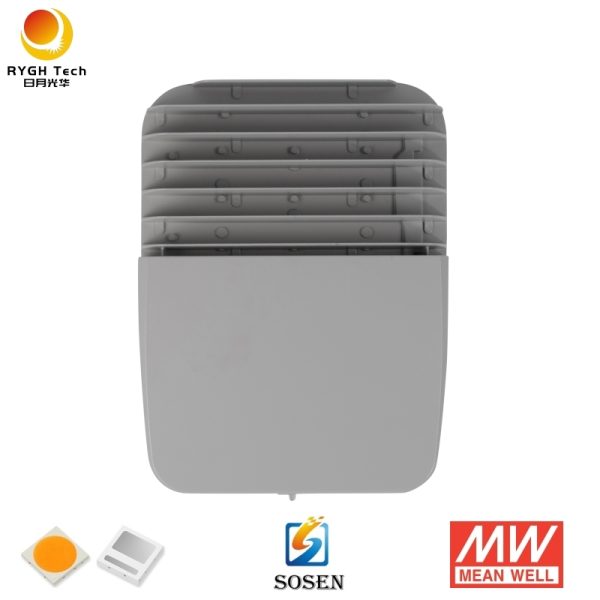

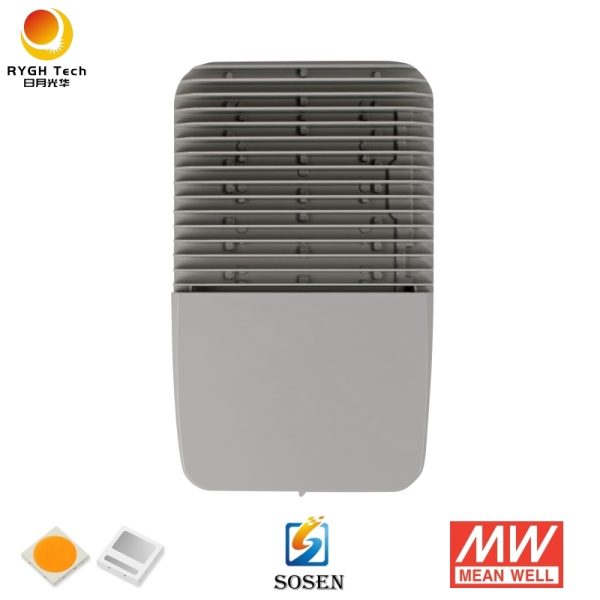

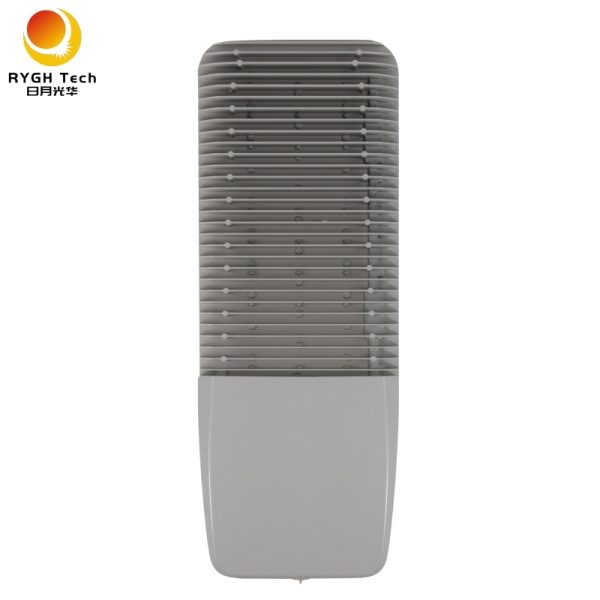

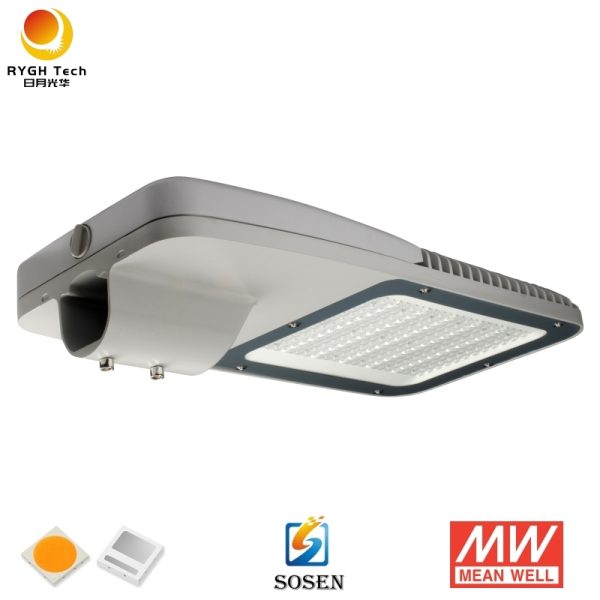

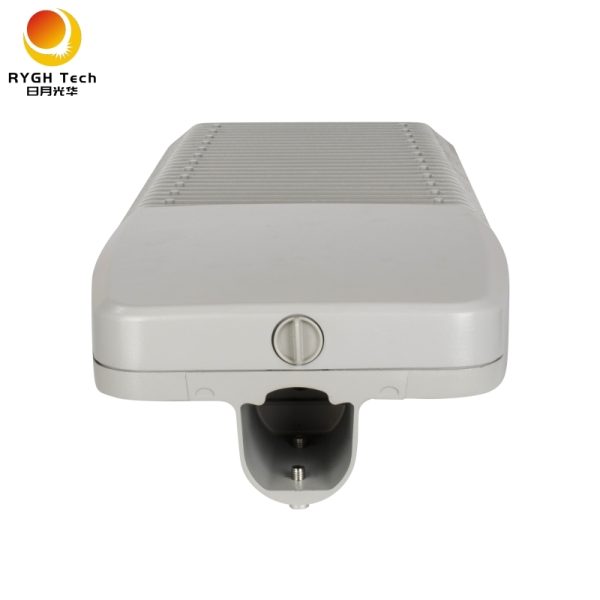

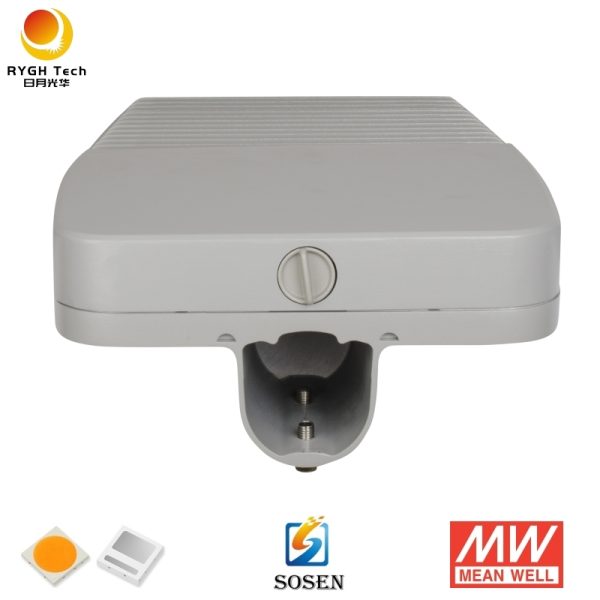

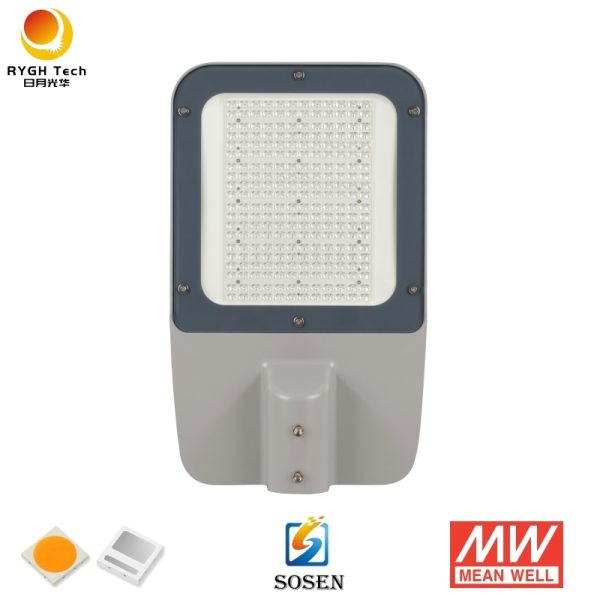

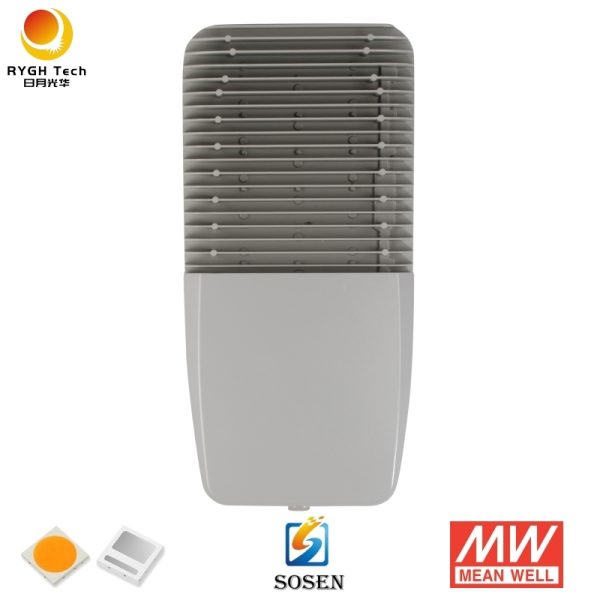

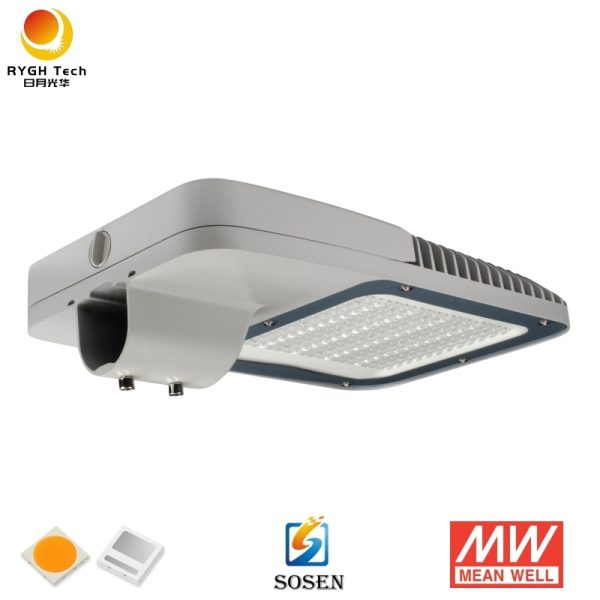

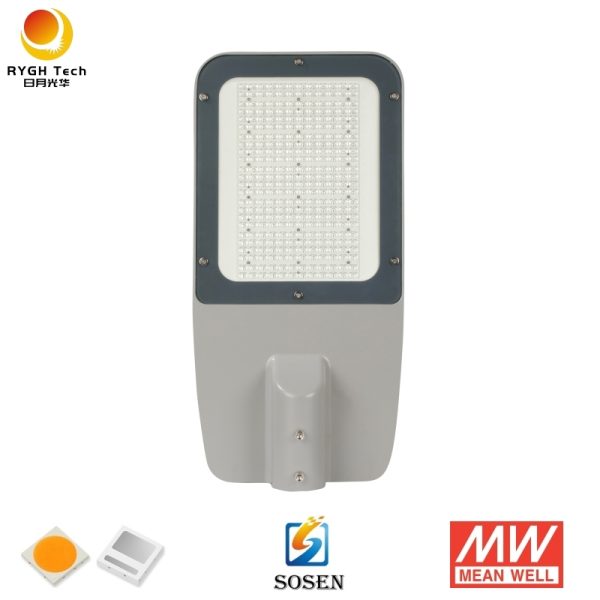

BRP LED Street Light

BPR Led Street Light Features: 60W | 80W
| 100W | 120W | 150W | 180W | 200W | 240W
| 300W | 320W

BRP led street light features:

1, Integrated die-casting AL, Excellent thermal management

2, High efficiency, 120lm/w-160lm/w

3, Dedicated lens for different road configurations

4, 0-10V dimming/time control/light sensor/IOT control optional

5, Tool-free maintenance

6, Lightweight housing design

7, Wind force 0.134 m²

8, Input voltage 85 – 305 Vac

9, Type of protection IP 66

10, Impact type of protection IK 08

Category: LED Street Light Tags: #150 watt led shoebox light, #led retrofit for shoebox fixtures, #led shoebox flood light, #led shoebox light, #led shoebox light 150w, #led shoebox retrofit, #metal halide shoebox fixtures, #shoebox light led retrofit, #shoebox with light

Description
Reviews (0)

BPR Led Street Light Specifications

Item No	RYGH-BRP-60W	RYGH-BRP-80W	RYGH-BRP-100W	RYGH-BRP-120W	RYGH-BRP-150W
Lamp Size	422310132mm, pipe 48-60mm	422310132mm, pipe 48-60mm	422310132mm, pipe 48-60mm	422310132mm, pipe 48-60mm	52.231.813.2cm, pipe 48-60mm
Voltage	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz
Power	60W	80W	100W	120W	150W
LED Type	3030/5050 SMD	3030/5050 SMD	3030/5050 SMD	3030/5050 SMD	3030/5050 SMD
LED Quantity	3030 96 Piece	3030 144 Piece	3030 144 Piece	3030 144 Piece	3030 192 Piece
Color Temperature	2700-6500K	2700-6500K	2700-6500K	2700-6500K	2700-6500K
Beam Angle	150*70°	150*70°	150*70°	150*70°	150*70°
Color Rendering Index (CRI)	Ra>70	Ra>70	Ra>70	Ra>70	Ra>70
Power Supply Efﬁciency	>92%	>92%	>92%	>92%	>92%
LED Luminous Efﬁciency	120-160lm/W	120-160lm/W	120-160lm/W	120-160lm/W	120-160lm/W
Power Factor (PF)	>0.95	>0.95	>0.95	>0.95	>0.95
Total Harmonic Distortion (THD)	≤15%	≤15%	≤15%	≤15%	≤15%
IP Rank	IP 65	IP 65	IP 65	IP 65	IP 65
Life time	50,000 hrs	50,000 hrs	50,000 hrs	50,000 hrs	50,000 hrs
Packing size	46.53318CM	46.53318CM	46.53318CM	46.53318CM	55.23318cm
Gross Weight	6.5KG	6.5KG	6.5KG	6.5KG	8KG
Certiﬁcate	CE, Rohs	CE, Rohs	CE, Rohs	CE, Rohs	CE, Rohs
IK Rating	IK08	IK08	IK08	IK08	IK08
Warranty	5 years	5 years	5 years	5 years	5 years

Item No	RYGH-BRP-180W	RYGH-BRP-200W	RYGH-BRP-240W	RYGH-BRP-300W	RYGH-BRP-320W
Lamp Size	52.231.813.2cm, pipe 48-60mm	52.231.813.2cm, pipe 48-60mm	6531.813.2cm, pipe 48-60mm	85.531.813.2cm, pipe 48-60mm	85.531.813.2cm, pipe 48-60mm
Voltage	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz	AC85V-277V 47-63Hz
Power	180W	200W	240W	300W	320W
LED Type	3030/5050 SMD	3030/5050 SMD	3030/5050 SMD	3030/5050 SMD	3030/5050 SMD
LED Quantity	3030 240 Piece	3030 240 Piece	288 Piece	288 Piece	336 Piece
Color Temperature	2700-6500K	2700-6500K	2700-6500K	2700-6500K	2700-6500K
Beam Angle	150*70°	150*70°	150*70°	150*70°	150*70°
Color Rendering Index (CRI)	Ra>70	Ra>70	Ra>70	Ra>70	Ra>70
Power Supply Efﬁciency	>92%	>92%	>92%	>92%	>92%
LED Luminous Efﬁciency	120-160lm/W	120-160lm/W	120-160lm/W	120-160lm/W	120-160lm/W
Power Factor (PF)	>0.95	>0.95	>0.95	>0.95	>0.95
Total Harmonic Distortion (THD)	≤15%	≤15%	≤15%	≤15%	≤15%
IP Rank	IP 65	IP 65	IP 65	IP 65	IP 65
Life time	50,000 hrs	50,000 hrs	50,000 hrs	50,000 hrs	50,000 hrs
Packing size	55.23318cm	55.23318cm	683518cm	913621cm/1pc	913621cm/1pc
Gross Weight	8KG	8KG	10KG	14KG	14KG
Certiﬁcate	CE, Rohs	CE, Rohs	CE, Rohs	CE, Rohs	CE, Rohs
IK Rating	IK08	IK08	IK08	IK08	IK08
Warranty	5 years	5 years	5 years	5 years	5 years

Environment Requirement

Working Temperature：-35~+50℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

BPR Led Street Light Application:

BPR Led Street Light are widely used for street, road, highway, viaduct, overpass, sidewalk, outdoor lighting places, such as squares,schools, residential areas and parks.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC100-305V 50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

5-year warranty since the date of purchase is offered for all street Light.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.

Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
