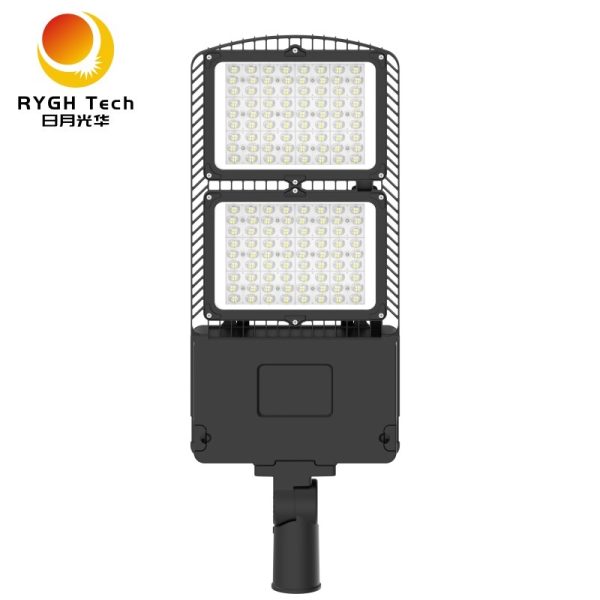

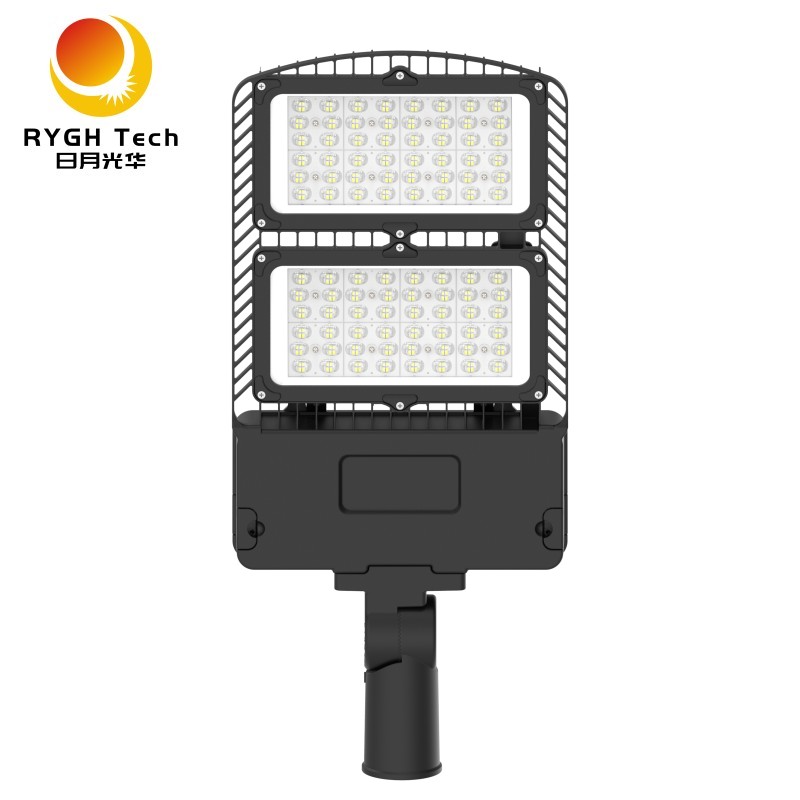

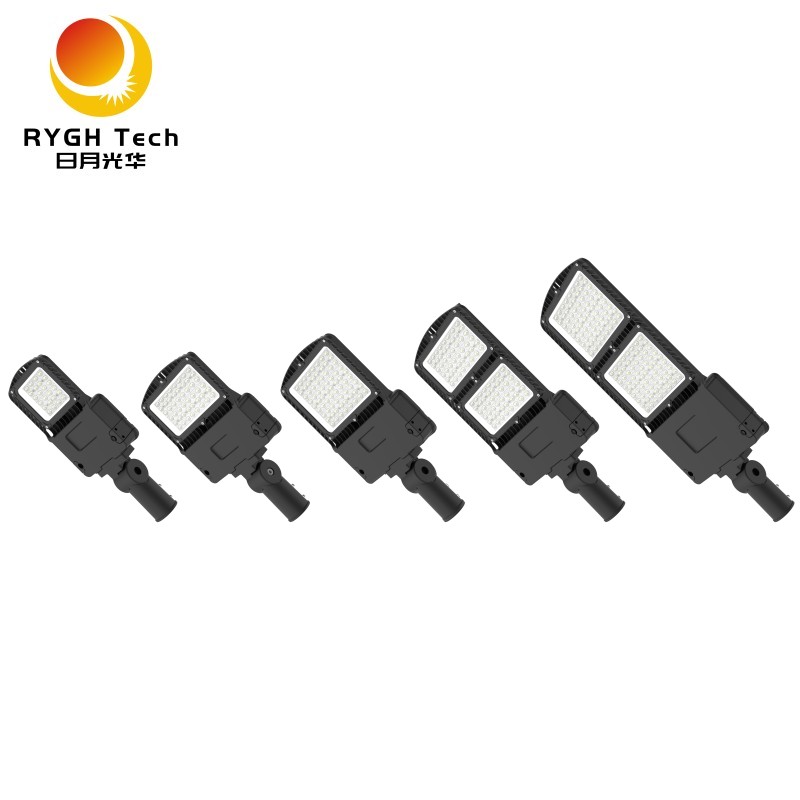

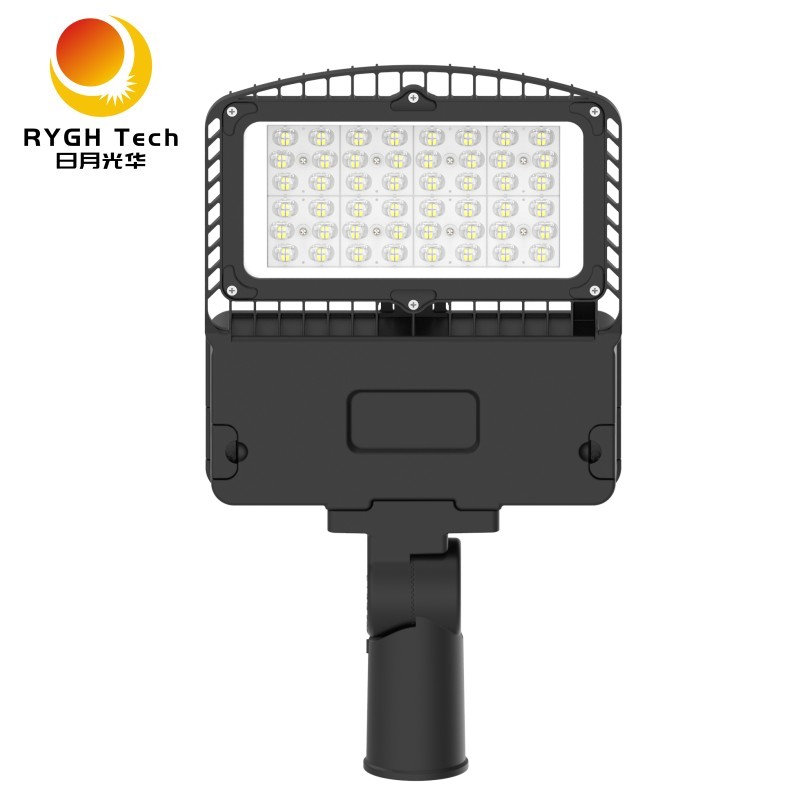

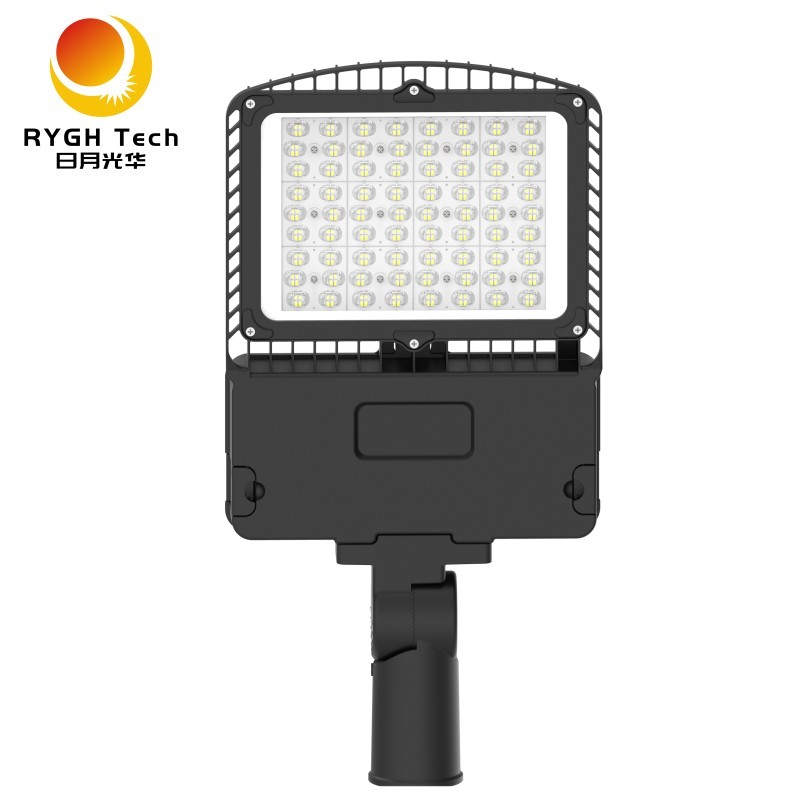

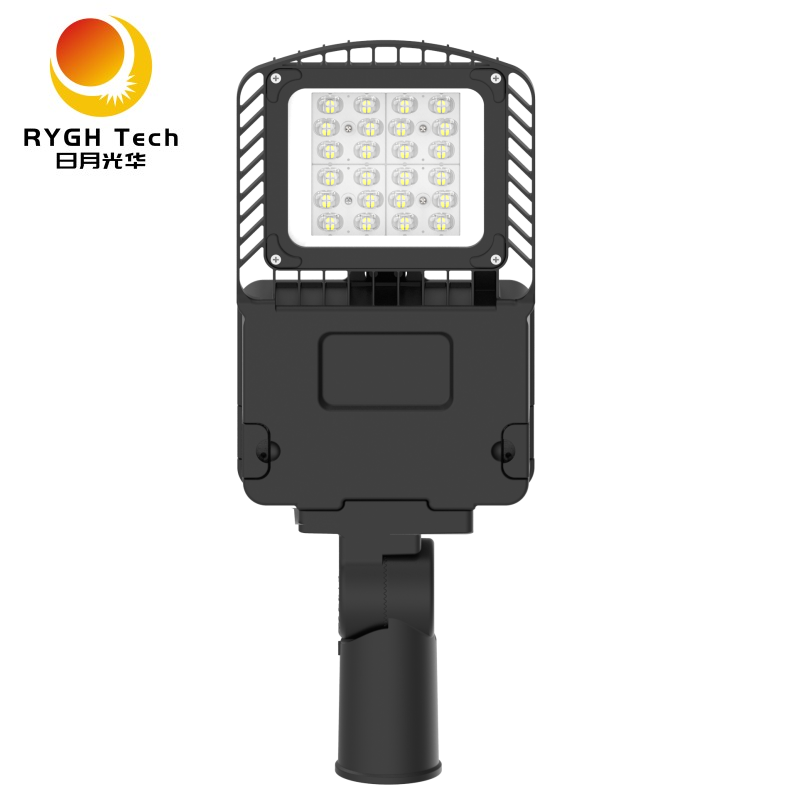

6G LED Street Light

6G Series Led Street Light features: 25W | 30W | 50W | 60W | 80W
100W | 120W | 150W | 180W | 200W | 250W | 300W | 360W | 400W

1, Patent private mould, integrated die-casting AL

2, High efficiency, 130lm/w,150lm/w,170lm/w available

3, Professional glare-free lens, TYPE2/TYPE3/TYPE4 available

4, 0-10V dimming/time control/light sensor/IOT control available

5, Specilized aluminum sheet design, glue-free for glass ﬁxation

6,Ingradienter design: easy for horizontal installation

7, Snap-on type driver housing tool-free disassembly

8, Bat wing light shape

9, Various applications: street light,shoe box light, projector,etc.

Category: LED Street Light Tags: #european street lights, #highway lighting solutions, #highway lights and accessories, #highway road light, #highways england street lighting, #ip65 street light, #led street light 100 watt price, #led street light 120w, #led street light 150w price, #led street light 200 watt

Description
Reviews (0)

6G Series Led Street Light Specifications

Item No	RL-S6-25W	RL-S6-30W	RL-S6-50W	RL-S6-60W	RL-S6-80W	RL-S6-80W	RL-S6-100W	RL-S6-120W		RL-S6-150W
Lamp Size	52220590mm	52220590mm	52220590mm	52220590mm	52220590mm	50829194mm	50829194mm	50829194mm		50829194mm
Voltage	AC100V-240V 50/60HZ
Power	25W	30W	50W	60W	80W	80W	100W	120W		150W
LED Type	3030
LED Quantity	64pcs	64pcs	64pcs	64pcs	96pcs	128pcs	128pcs	128pcs		192pcs
Luminous Flux	3750±10	4500±10	6500±10	7200±10	9600±10	10800±10	13000±10	14400±10		18750±10
Color Temperature	2800-3500K, 3800-4500K, 5000-6000K
Beam Angle	T2M,T3M,T4M
Color Rendering Index (CRI)	Ra>70
Power Supply Efﬁciency	>88%
LED Luminous Efﬁciency	120-130lm/W
Power Factor (PF)	>0.95
Total Harmonic Distortion (THD)	≤15%
IP Rank	IP 66
Gross Weight	4.0KG	4.0KG	4.0KG	4.0KG	4.0KG	5.0KG	5.0KG	5.0KG		5.0KG
Certiﬁcate	CE, CB
Packing size	575257145mm	575257145mm	575257145mm	575257145mm	575257145mm	562345145mm	562345145mm	562345145mm	562345145mm

Item No	RL-S6150W	RL-S6180W	RL-S6-200W	RL-S6-200W	RL-S6-250W	RL-S6-300W	RL-S6-300W	RL-S6-360W		RL-S6-400W
Lamp Size	56929194mm	56929194mm	56929194mm	68030794mm	68030794mm	68030794mm	84230794mm	84230794mm		84230794mm
Voltage	AC100V-240V 50/60HZ
Power	150W	180W	200W	200W	250W	300W	300W	360W		400W
LED Type	3030
LED Quantity	192pcs	192pcs	288pcs	256pcs	256pcs	384pcs	384pcs	384pcs		576pcs
Luminous Flux	18750±10	21600±10	27000±10	26000±10	30000±10	39000±10	39000±10	43200±10		52000±10
Color Temperature	2800-3500K, 3800-4500K, 5000-6000K
Beam Angle	T2M,T3M,T4M
Color Rendering Index (CRI)	Ra>70
Power Supply Efﬁciency	>88%
LED Luminous Efﬁciency	120-130lm/W
Power Factor (PF)	>0.95
Total Harmonic Distortion (THD)	≤15%
IP Rank	IP 66
Gross Weight	6.0KG	6.0KG	6.0KG	7.0KG	7.0KG	7.0KG	8.0KG	8.0KG		8.0KG
Certiﬁcate	CE, CB
Packing size	623345145mm	623345145mm	623345145mm	733360145mm	733360145mm	733360145mm	895360145mm	895360145mm	895360145mm

Environment Requirement

Working Temperature：-35~+50℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

6G Series Led Street Light Application:

6G Series Led Street Lights are widely used Street, Road, highway, viaduct, overpass, sidewalk, outdoor lighting places, such as squares,schools, residential areas and parks.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC100-305V 50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

5-year warranty since the date of purchase is offered for all street Light.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.

Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
