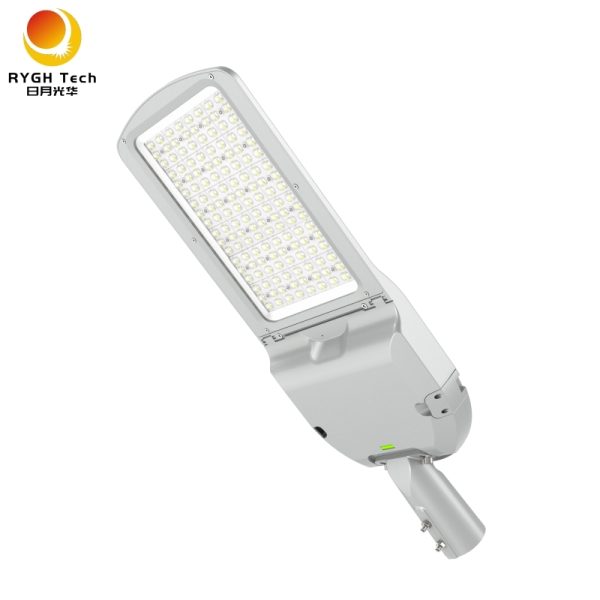

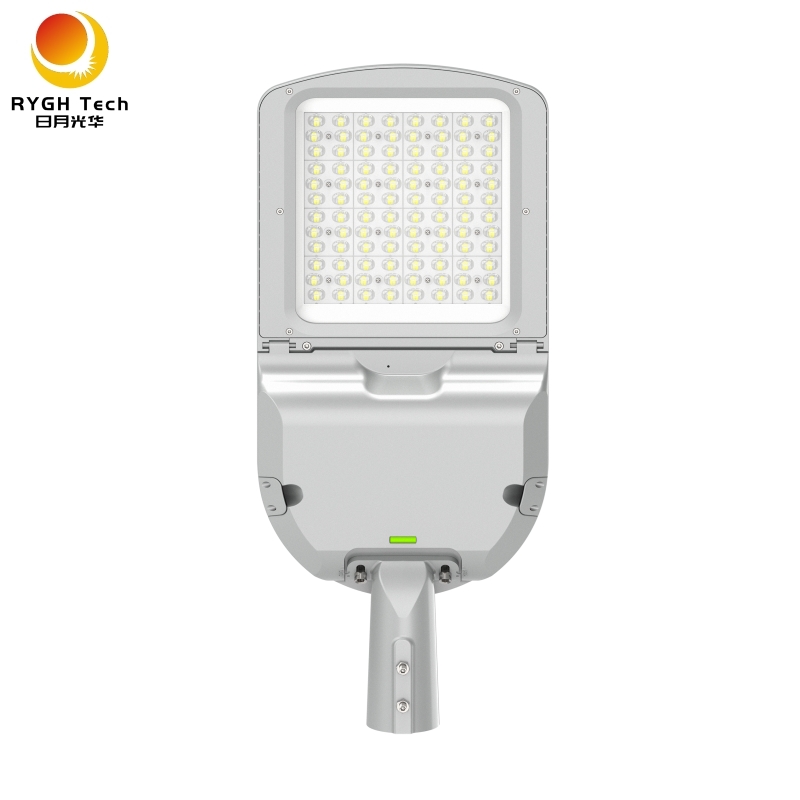

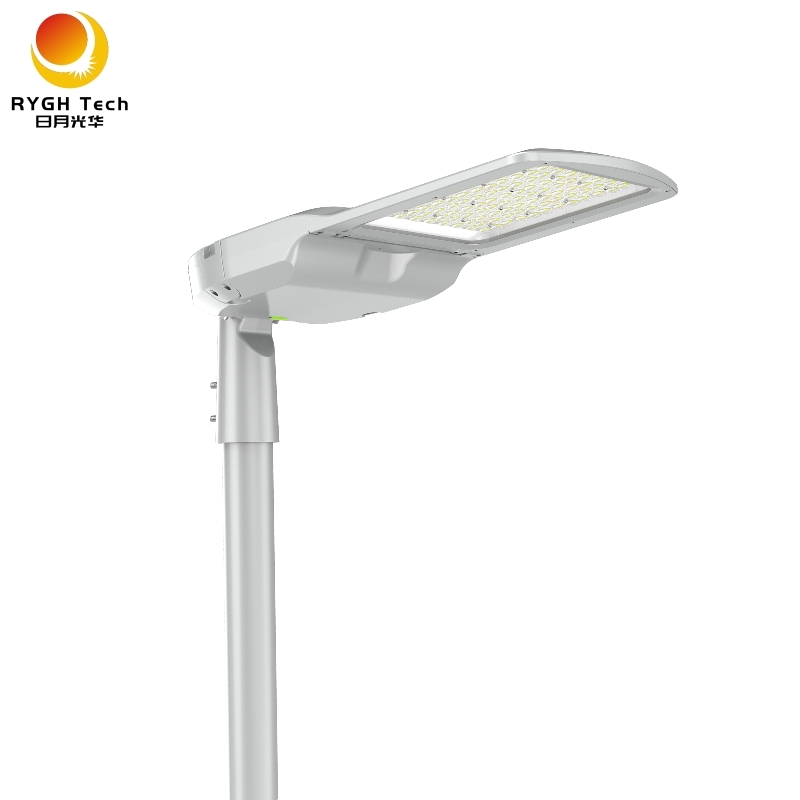

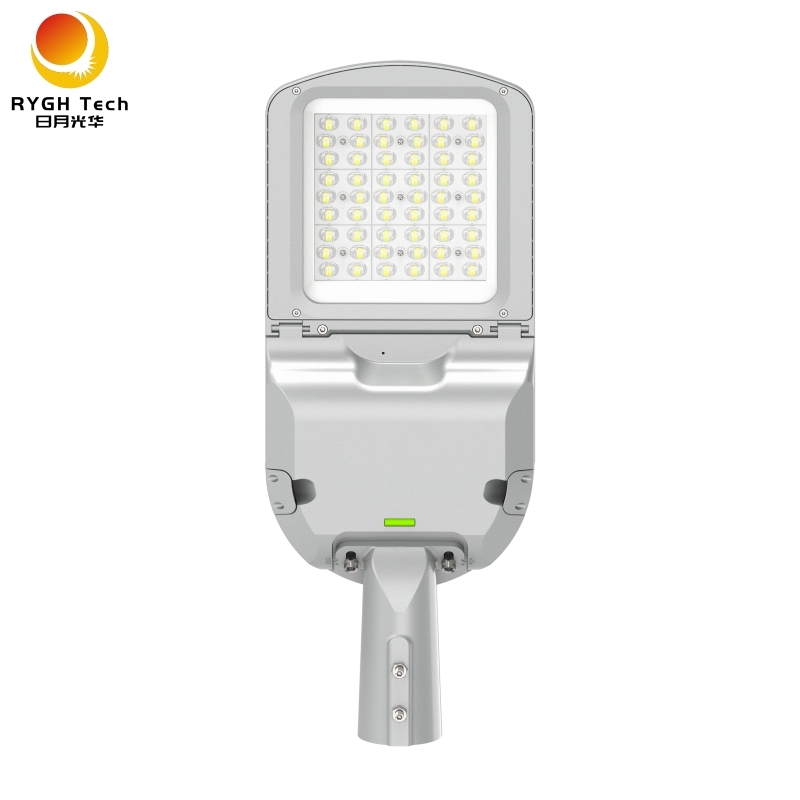

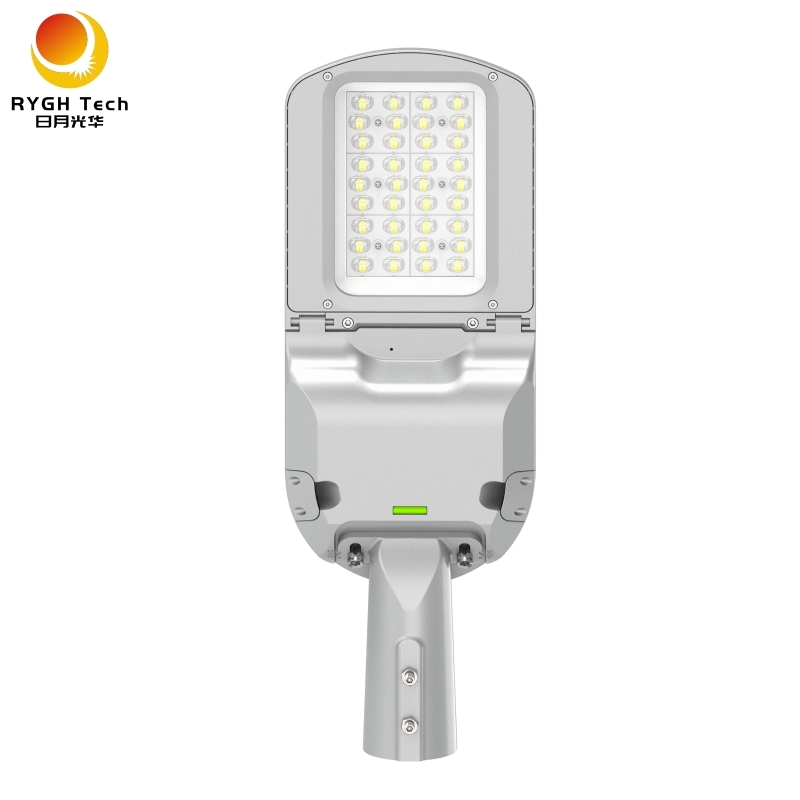

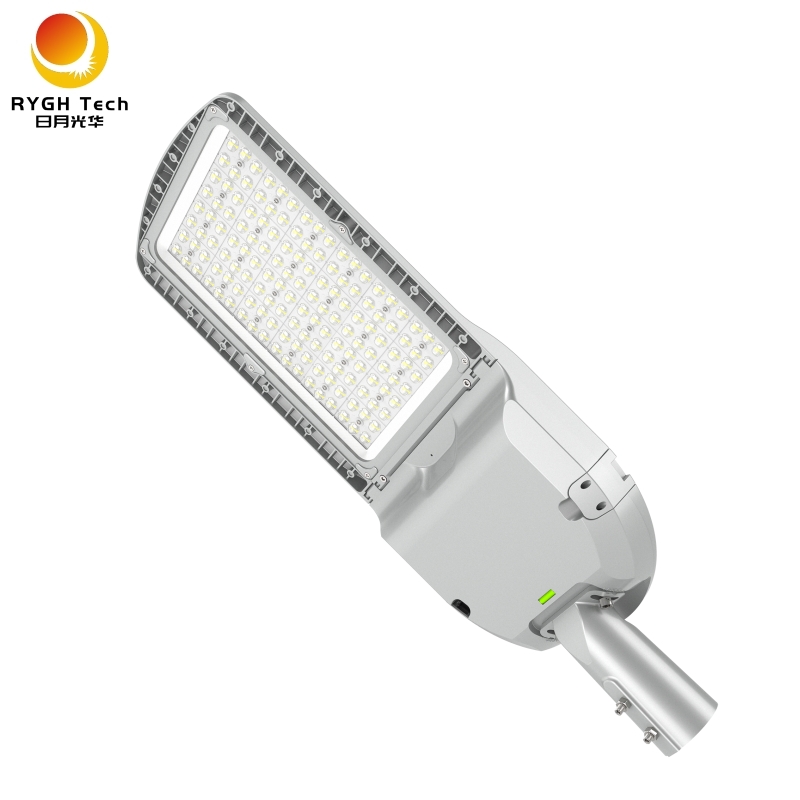

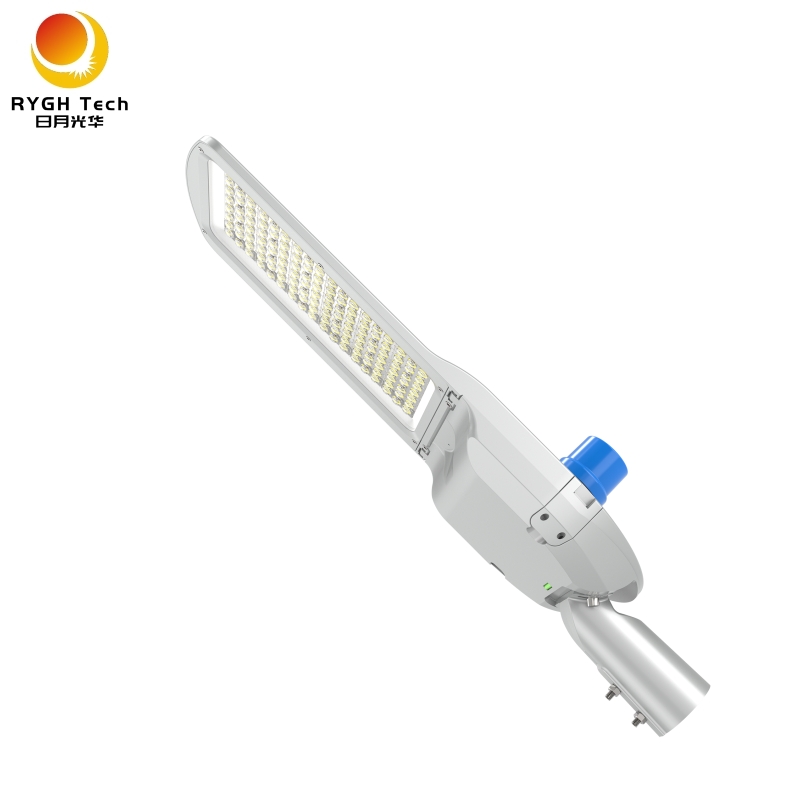

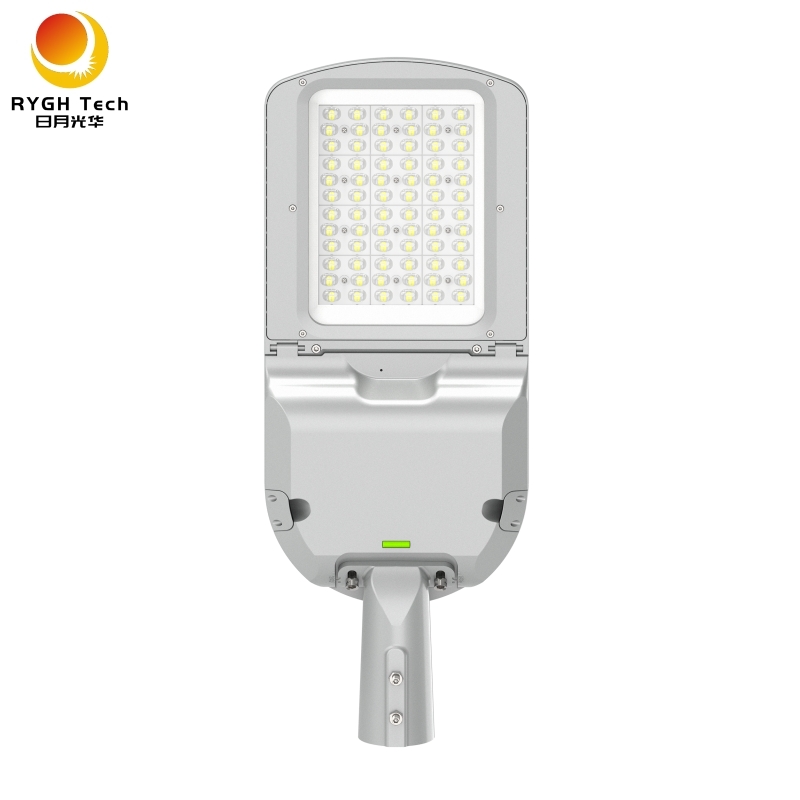

7G LED Street Light

7G Series Led Street Light Features: 25W | 50W | 60W | 70W
80W | 100W | 120W | 150W | 180W | 200W | 250W | 300W

1, Patent private mould, integrated die-casting AL.

2, High efficiency, 130-170lm/w available.

3, Professional glare-free lens, 60°/90°/120°/T2M/T3M/T4M.

4, 0-10V dimming/time control/light sensor/IOT control available.

5, Flat honeycomb design, good heat dissipation.

6, Gradienter design: easy for horizontal installation.

7, Snap-on type installation, tool-free disassembly

8, Tempered glass panel, no glue fixed

9, IP66

Category: LED Street Light Tags: # country road led street lighting, #cobra head light fixture, #cobra led street light, #commercial street lights for sale, #community led street lights, #double street light, #downtown street lights, #highway led street light, #led street light cree chips

Description
Reviews (0)

7G Series Led Street Light Specifications

Item No.		RL-S7-25W	RL-S7-50W	RL-S7-60W	RL-S7-80W	RL-S7-100W	RL-S7-120W
Power		25W	50W	60W	80W	100W	120W
LED Luminous Eﬃciency		120-130lm/w
LED Quantity	4-in-onelens	96pcs 3030	96pcs 3030	96pcs 3030	144pcs 3030	144pcs 3030	144pcs 3030
Luminous Flux	Lumileds 3030	3600±10%	6500±10%	7200±10%	10800±10%	13000±10%	14400±10%
LED Luminous Eﬃciency		140-150lm/w
LED Quantity	6-in-onelens	144pcs 3030	144pcs 3030	144pcs 3030	216pcs 3030	216pcs 3030	216pcs 3030
Luminous Flux	Lumileds 3030	3800±10%	7500±10%	8700±10%	12000±10%	14500±10%	16800±10%
LED Luminous Eﬃciency		170-180lm/w
LED Quantity	8-in-onelens	48pcs 5050	48pcs 5050	48pcs 5050	72pcs 5050	72pcs 5050	72pcs 5050
Luminous Flux	Lumileds 5050	4500±10%	8700±10%	10200±10%	14000±10%	17500±10%	20400±10%
Lamp A Size		568200109mm	568200109mm	568200109mm	613240109mm	613240109mm	613240109mm
Lamp A Size with photocell		568200130mm	568200130mm	568200130mm	613240130mm	613240130mm	613240130mm
Voltage		AC100V-240V 50/60HZ
LED Type		Lumileds 3030
Color Temperature	Warm white	3000-4000K
	Neutral white	4000-5000K
	Cool white	5000-6000K
Beam Angle	4-in-onelens	60°/90°/120°/T2M/T3M/T4M
Color Rendering Index(CRI)		Ra>70
Power Supply Eﬃciency		>88%
Power Factor(PF)		>0.95
Total Harmonic Distortion(THD)		≤15%
IP Rank		IP 66
Model A Net Weight		4.0KG	4.0KG	4.0KG	4.92KG	4.92KG	4.92KG
Model A Net Weight with photocell		4.4KG	4.4KG	4.4KG	5.32KG	5.32KG	5.32KG
Model B Net Weight		3.9KG	3.9KG	3.9KG	4.8KG	4.8KG	4.8KG
Model B Net Weight with photocell		4.3KG	4.3KG	4.3KG	5.2KG	5.2KG	5.2KG
Certiﬁcate		CE,CB,RoHS

Item No.		RL-S7-150W	RL-S7-180W	RL-S7-200W	RL-S7-250W	RL-S7-300W
Power		150W	180W	200W	250W	300W
LED Luminous Eﬃciency		120-130lm/w
LED Type		Lumileds 3030
LED Quantity	4-in-onelens	192pcs 3030	192pcs 3030	256pcs 3030	256pcs 3030	384pcs 3030
Luminous Flux	Lumileds 3030	18750±10%	21600±10%	26000±10%	30000±10%	39000±10%
LED Luminous Eﬃciency		140-150lm/w
LED Type		Lumileds 3030
LED Quantity	6-in-onelens	288pcs 3030	288pcs 3030	384pcs 3030	384pcs 3030	576pcs 3030
Luminous Flux	Lumileds 3030	21700±10%	25000±10%	29000±10%	35000±10%	43000±10%
LED Luminous Eﬃciency		170-180lm/w
LED Type		Lumileds 5050
LED Quantity	8-in-onelens	96pcs	96pcs	128pcs	128pcs	192pcs
Luminous Flux	Lumileds 5050	26250±10%	30600±10%	35000±10%	42000±10%	51000±10%
Lamp Size		683260109mm	683260109mm	693300109mm	693300109mm	793300109mm
Lamp Size with photocell		683260130mm	683260130mm	693300130mm	693300130mm	793300130mm
Voltage		AC100V-240V 50/60HZ
Color Temperature	Warm white	3000-4000K
	Neutral white	4000-5000K
	Cool white	5000-6000K
Beam Angle	4-in-onelens	60°/90°/120°/T2M/T3M/T4M
Color Rendering Index(CRI)		Ra>70
Power Supply Eﬃciency		>88%
Power Factor(PF)		>0.95
Total Harmonic Distortion(THD)		≤15%
IP Rank		IP 66
Model A Net Weight		5.86KG	5.86KG	6.47KG	6.47KG	7.7KG
Model A Net Weight with photocell		6.26KG	6.26KG	6.87KG	6.87KG	8.1KG
Model B Net Weight		5.7KG	5.7KG	6.3KG	6.3KG	7.5KG
Model B Net Weight with photocell		6.1KG	6.1KG	6.7KG	6.7KG	7.9KG
Certiﬁcate		CE,CB,RoHS

Packing information:

Model number	Size of outer case	QTY	G.W. A	G.W. A With Photocell	G.W. B	G.W. B With Photocell
RL-S7-25W	623255150mm	1pcs	4.6KG	5.0kg	4.5 KG	4.9kg
RL-S7-50W	623255150mm	1pcs	4.6KG	5.0kg	4.5 KG	4.9kg
RL-S7-60W	623255150mm	1pcs	4.6KG	5.0kg	4.5 KG	4.9kg
RL-S7-80W	666295150mm	1pcs	5.58KG	5.98kg	5.46KG	5.86kg
RL-S7-100W	666295150mm	1pcs	5.58KG	5.98kg	5.46KG	5.86kg
RL-S7-120W	666295150mm	1pcs	5.58KG	5.98kg	5.46KG	5.86kg
RL-S7-150W	736315150mm	1pcs	6.56KG	6.96kg	6.4kg	6.8kg
RL-S7-180W	736315150mm	1pcs	6.56KG	6.96kg	6.4kg	6.8kg
RL-S7-200W	747355150mm	1pcs	7.37KG	7.77kg	7.2kg	7.6kg
RL-S7-250W	747355150mm	1pcs	7.37KG	7.77kg	7.2kg	7.6kg
RL-S7-300W	846355150mm	1pcs	8.7KG	9.1kg	8.5kg	8.9kg

Mechanical specifications

LED Driver: Meanwell/Moso/Sosen/Inventronics

Housing Processing: Die-casting

Material: ADC12

Environment Requirement

Working Temperature：-35~+50℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

7G Series Led Street Light Application:

7G Series Led Street Light are widely used for street, road, highway, viaduct, overpass, sidewalk, outdoor lighting places, such as squares,schools, residential areas and parks.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC100-305V 50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

5-year warranty since the date of purchase is offered for all street Light.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.

Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
