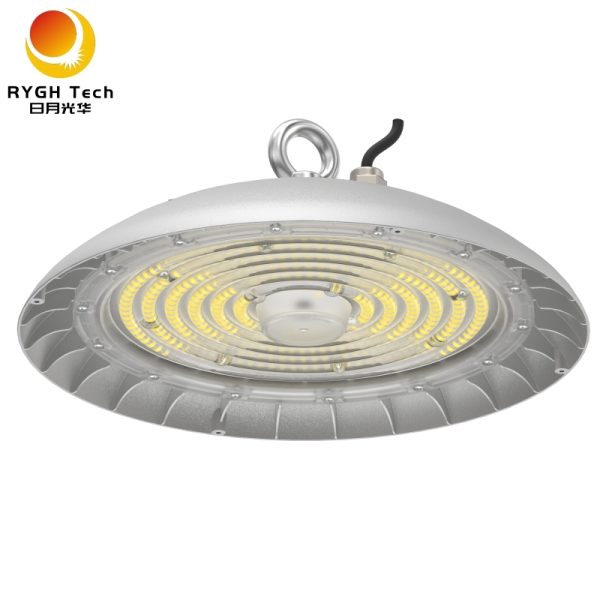

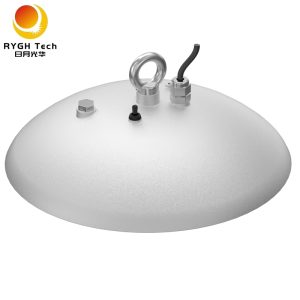

Food UFO LED High Bay Light
Food UFO LED High Bay Light Features: 100W | 150W | 200W
- New mould, Die-casted AL heatsink
- High efficiency, 150-180lm/w available
- Aluminium + pc lens, beam angle 60° 90° 120°
- IP65 for indoor use
Food UFO LED High Bay Light Specifications
| Model no. | FL-60W | FL-80W | FL-100W | FL-120W | FL-150W | FL-180W | FL-200W |
| Rated power | 60 Watt | 80 Watt | 100 Watt | 120 Watt | 150 Watt | 180 Watt | 200 Watt |
| Input voltage | AC 85-277V, 50/60Hz | ||||||
| LED Chip | Samsung, Osram Philips SMD | ||||||
| LED Driver | Constant current driver | ||||||
| Material | Die-casted AL+PC | ||||||
| CRI | 70/80/90/95/98 | ||||||
| Power Factor | >0.95 | ||||||
| CCT | WW, NW, CW | ||||||
| Light efficacy | 160lm/w | 185lm/w | 148lm/w | 180lm/w | 150lm/w | 150lm/w | 150lm/w |
| IP rating | IP65 | ||||||
| IK rating | IK08 | ||||||
| Operation temperature | -35~+50℃ | ||||||
| Beam angle | 60° 90° 120° | ||||||
| Warranty | 3 Years | ||||||
| Life span | 50,000 hours | ||||||
| Dimension | D300*125MM | Φ264mm*31mm | φ300mm*35mm | D300*125MM | D300*125MM | D345*136MM | D345*136MM |
| Certificate | CE, RoHs | ||||||
| Packing size | 335*330*125mm | 380*375*135mm | |||||
| PCS/CTN | 1 | 1 | |||||
| N.W. | 1.7KG | 2.3kg | |||||
| G.W. | 2.1KG | 2.8kg | |||||
Environment Requirement
Working Temperature：-35~+50℃
Storage Temperature：-35~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
Food UFO LED High Bay Light Application:
Food UFO LED High Bay Light can be widely applied in Warehouse, Factory, Workshop, Plant, Supermarket, Gas Station, Highway Toll Station, Food Factories, Livestock Farms etc.
Warning
- Please install the lamp according to the installation to avoid dropping and electric shock.
- Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
- Working voltage is not to be exceeded AC85-305V 50/60Hz
Attention
- Don’t install the lamp to non-stable place.
- Installed by qualified electrician.
- Switch off the switch box and contact certified electrician if the lamp works abnormally
Warranty
3-year warranty since the date of purchase is offered for all bay Lights.
Warranty Terms
- Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
- RYGH will not provide paid maintenance service under conditions within warranty.
- Failure or damage due to force majeure.
- Failure or damage due to transport or unloading.
- Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
- Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
- Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
- RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
