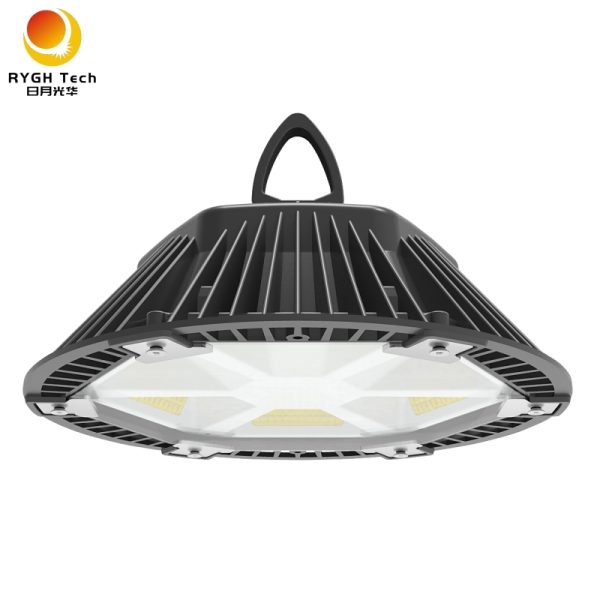

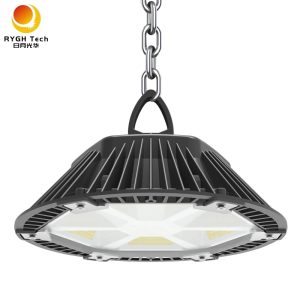

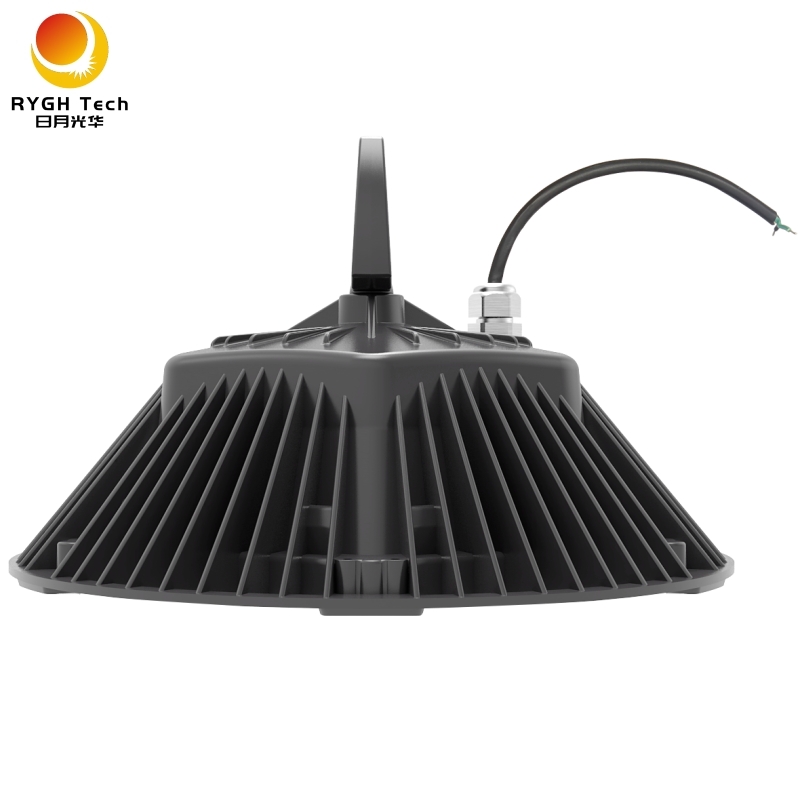

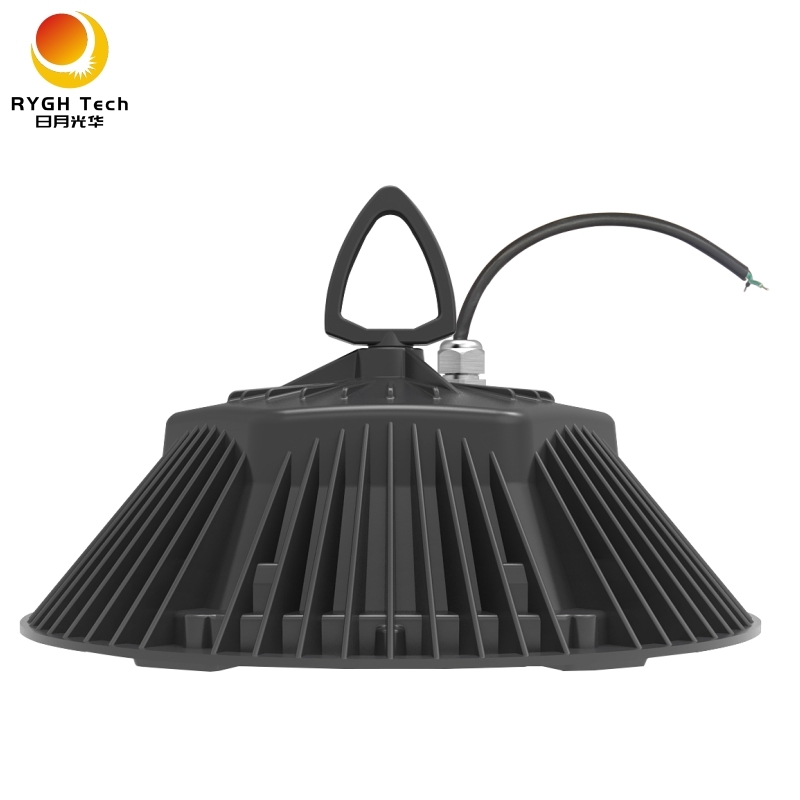

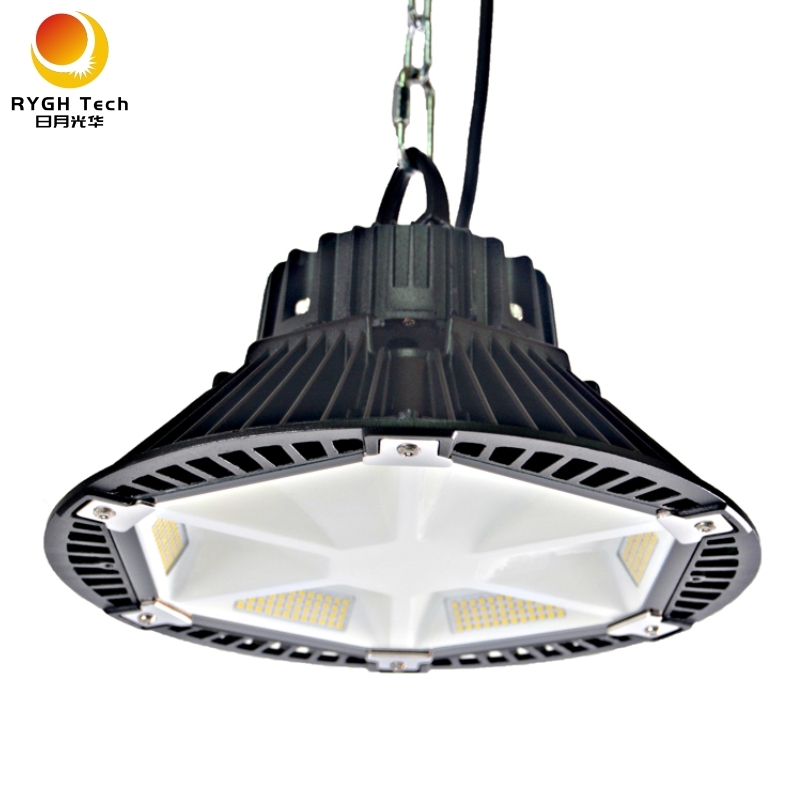

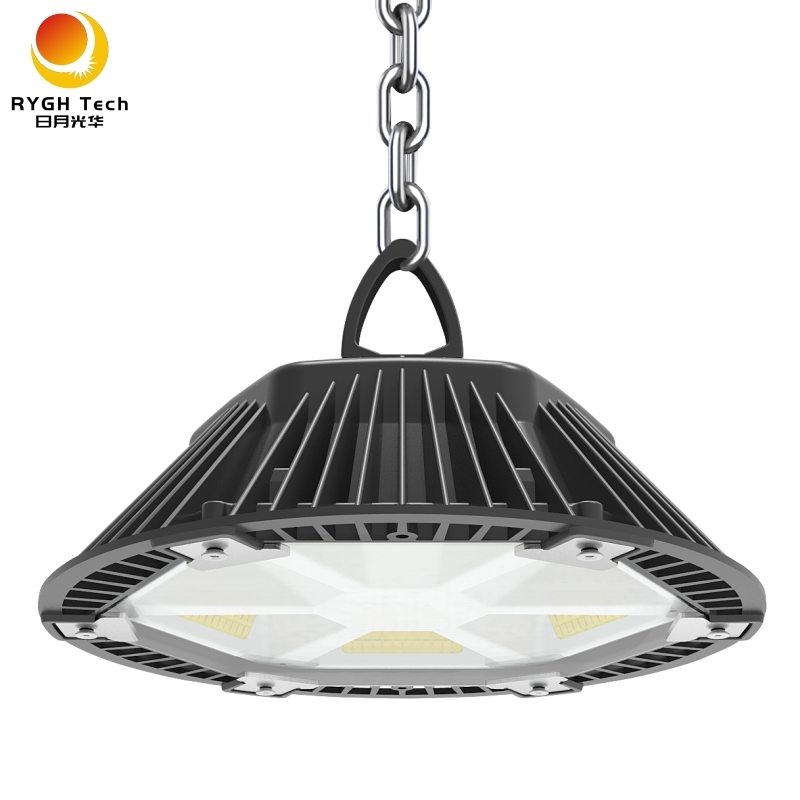

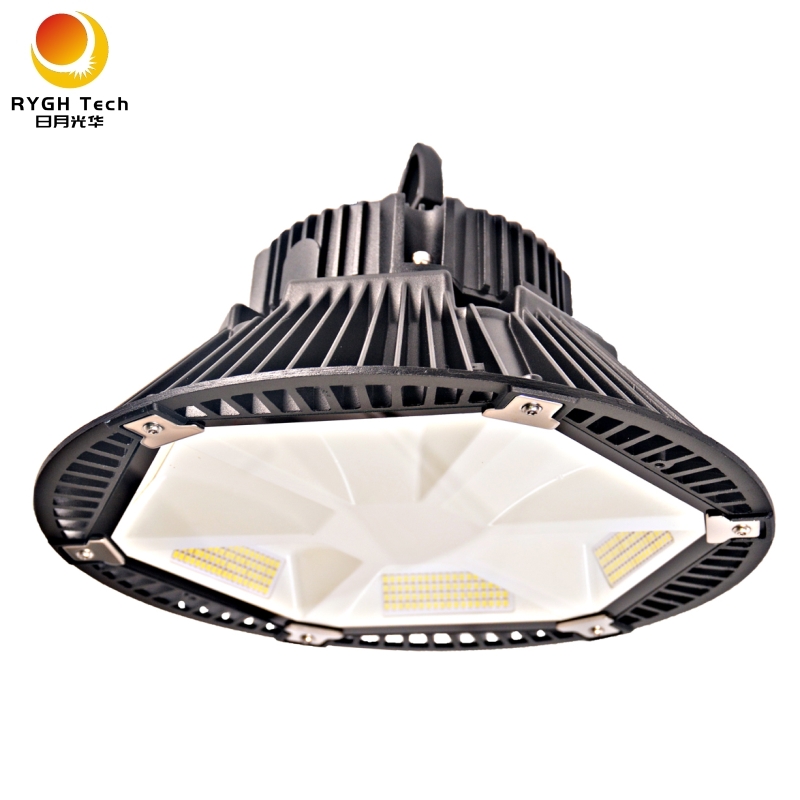

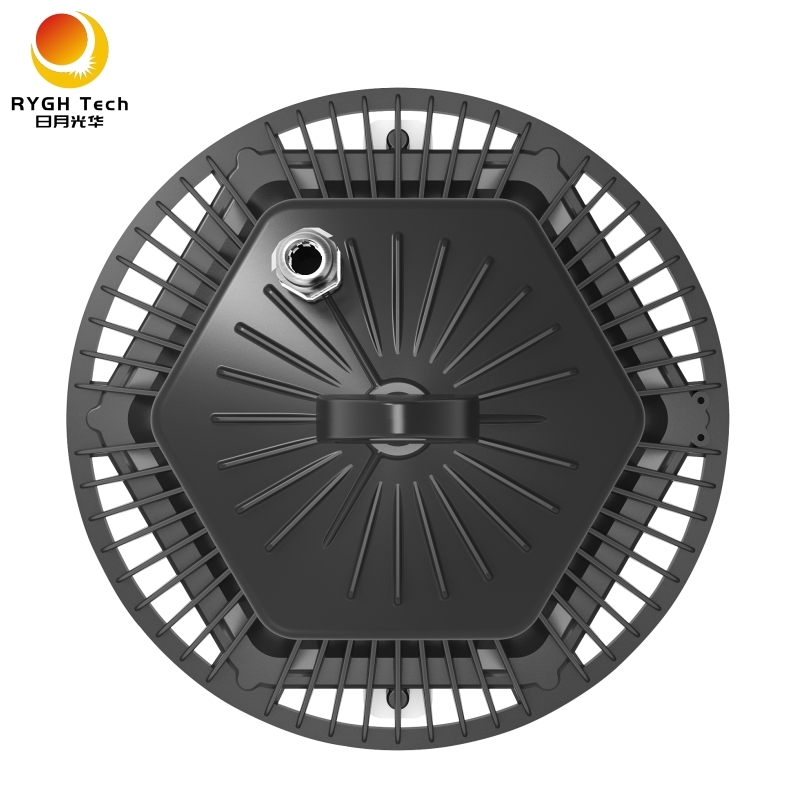

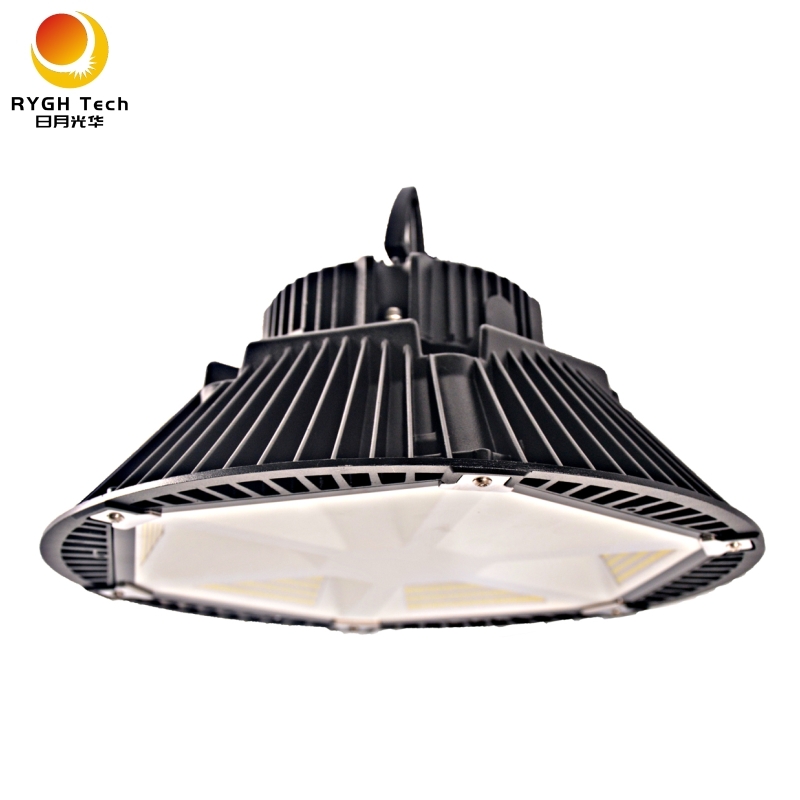

451 LED Bay Light

RYGH 451 LED Bay Light Features: 60W | 100W | 150W | 200W | 145-180LM/W

1, New patented products with independent development, design and mold opening;

2, The product is designed based on the side light-emitting principle, with pet reflective treatment and anti glare design treatment inside;

3, Integrated die casting heat dissipation. The heat dissipation material is ADC12 Aluminum, with small volume, light weight, uniform heat dissipation and temperature rise of only 35 degrees; The surface is sprayed to ensure that the lamps will never corrode and rust in humid, high temperature and other harsh environments;

4, High power factor and high efficiency outdoor waterproof power supply drive are adopted, and the key components are world brands to ensure the service life of lamps;

5, The imported chip smd3030 is used as the light source to achieve the advantages of low light attenuation, high light efficiency, energy conservation and environmental protection;

6, Lifting rings are independently designed, with various installation methods such as hoisting and ceiling installation;

Category: LED High Bay Light Tags: #120v led high bay lights, #150w ufo led shop light 5700k 20098 lumens, #347v led high bay, #5000k high bay light, #60000 lumen led high bay, #70w led high bay lights, #90w led high bay, #high bay light motion sensor, #industrial gym lighting, #led high bay 1000w equivalent, #led high bay commercial ceiling lights, #led high bay light manufacturers, #led warehouse fixtures, #round industrial light fixture, #warehouse natural lighting, #warehouse style lighting fixtures

Description
Reviews (0)

RYGH 451 LED Bay Light Specifications

Part No.	RYGH-HB451-60W	RYGH-HB451-100W	RYGH-HB451-150W		RYGH-HB451-200W
Power	60W	100W	150W		200W
Size	Φ220*134mm	Φ280*198mm	Φ320*207mm		Φ355*215mm
Material	ADC12+PET+Glass
Beam Angle	120°
Input Voltage	AC90-277V
Power Factor	>0.9
Chip	SMD3030
Chip quantity	144PCS	288PCS	432PCS		576PCS
CCT	PW:5800-6500K NW:4800-5500K CW:3800-4500K WW:2800-3500K
CRI	>80
Light efficiency	145LM/W
Life Time	>50000H
IP Rating	IP66
Protection Rating	CLASS I
Anti-corrosion Rating	WF2
Working Temperature	-20℃~50℃
Storage Temperature	-40℃~70℃
Packing size(mm)	250250140	310310205	350350210	385385220
N.W.	1.2KG	2.75KG	3.65KG	4.18KG

Environment Requirement

Working Temperature：-35~+50℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

RYGH 451 LED Bay Light Application:

RYGH 451 LED Bay Light can be widely applied in Warehouse, Factory, Workshop, Plant, Supermarket, Gas Station, Highway Toll Station, Food Factories, Livestock Farms etc.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC85-305V 50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

5-year warranty since the date of purchase is offered for all bay Lights.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.

Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
