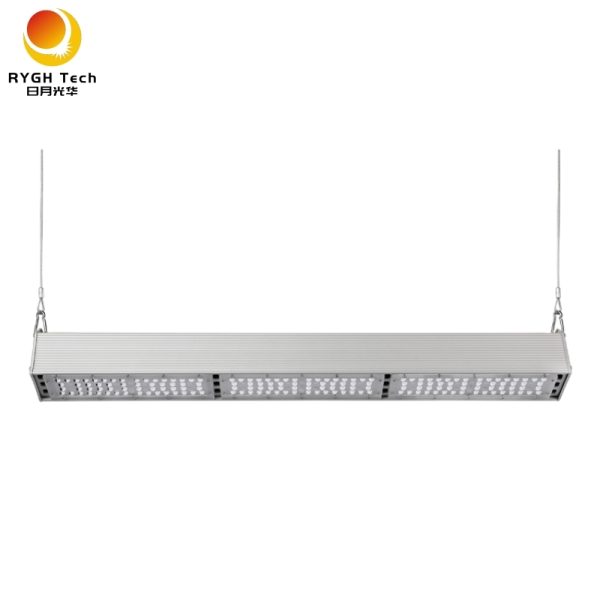

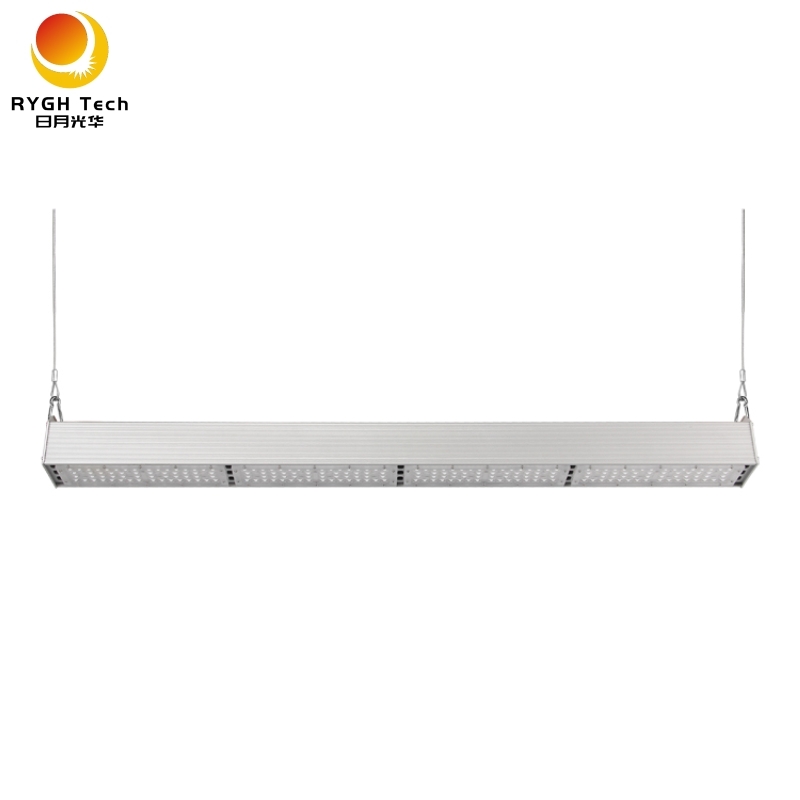

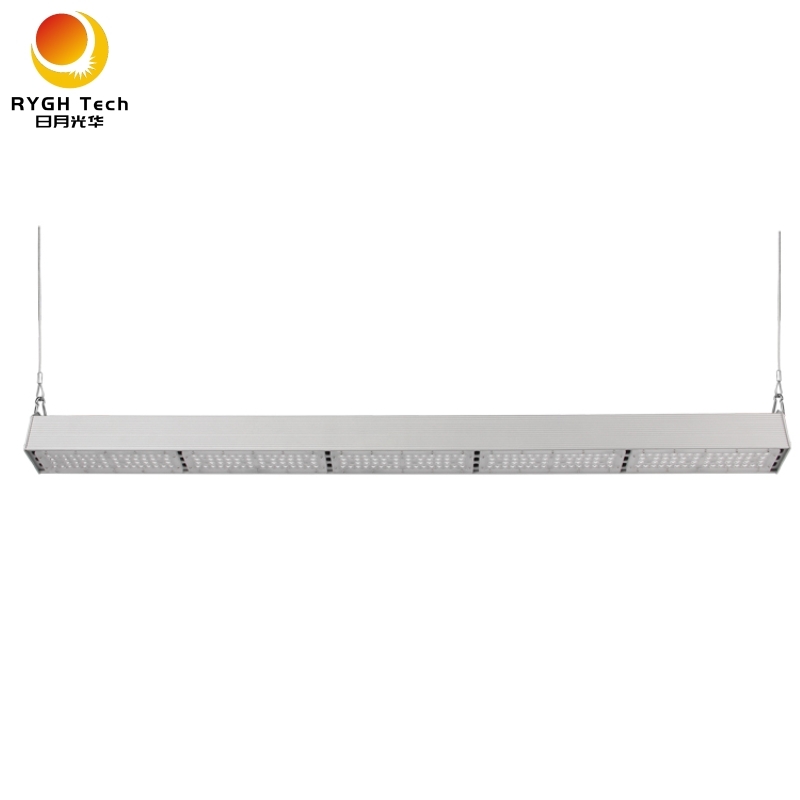

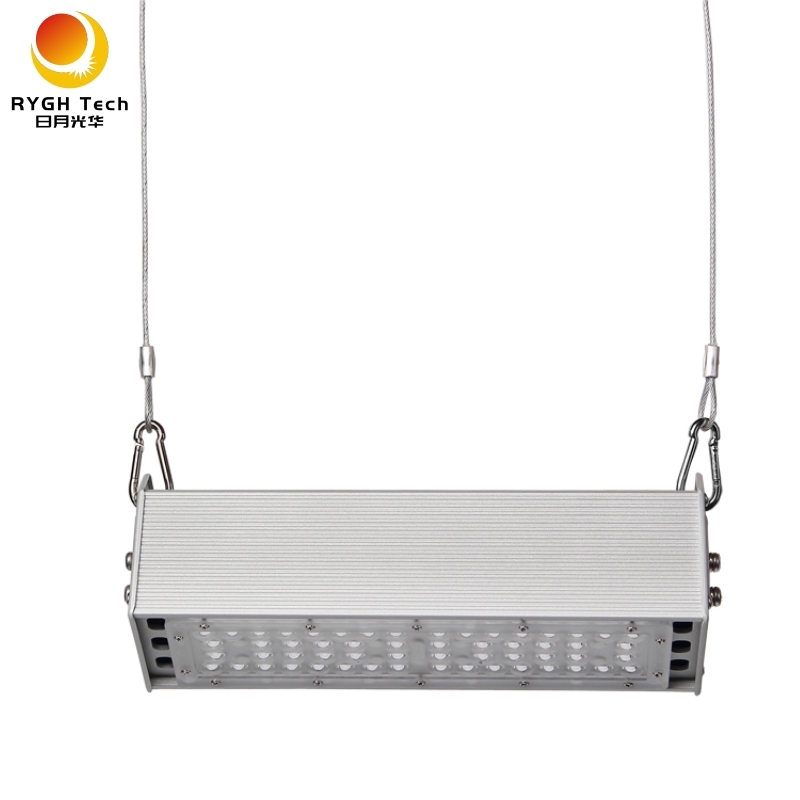

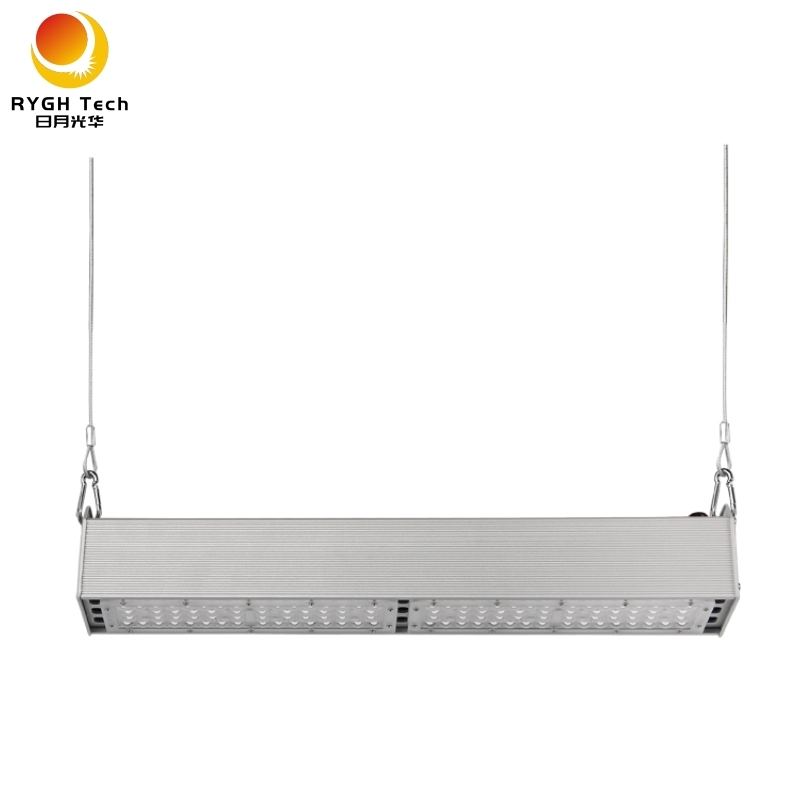

B LED Linear High Bay Light
B LED Linear High Bay Light Features: 50W | 100W | 150W | 200W | 250W
1, High efficiency, 110-130lm/w available
2, Beam angle 30/60/90/60*120/30*70/140*80 degree
3, aluminum modules, max 250W
4, Good heat dissipation, long lifespan
5, surface coating process
6, Protection index: IP65
B LED Linear High Bay Light Specifications
| Part No. | AD-LBB-50W | AD-LBB-100W | AD-LBB-150W | AD-LBB-200W | AD-LBB-250W |
| Power: | 50W | 100W | 150W | 200W | 250W |
| Size: | 353*115*93mm | 620*115*93mm | 887*115*93mm | 1154*115*93mm | 1421*115*93mm |
| Input Voltage: | AC 85-277V, 50/60Hz | ||||
| Led: | 3030 56 pcs | 3030 112 pcs | 3030 168 pcs | 3030 224 pcs | 3030 280 pcs |
| Chip: | OSRAM / Philips / Bridgelux | ||||
| Material: | Aluminium + PC Lens | ||||
| Surge Voltage | 3.75V | 3.75V | 3.75V | 3.75V | 3.75V |
| Driver: | MEANWELL ELG, HLG, SOSEN, Inventronics,Philips | ||||
| Color Temp: | 2800-3200K / 4000-4500K / 5000-5500K / 6000-6500K | ||||
| CRI: | 70/80/90/98 | ||||
| Total Lumen: | 6000-6500LM | 12000-13000LM | 18000-19500LM | 24000-26000LM | 30000-32500LM |
| Beam Angle: | 30/60/90/60*120/30*70/140*80 degree | ||||
| Power Factor: | >95 | > 0.95 | > 0.95 | > 0.95 | >95 |
| IP Grade: | IP65 | ||||
| Lamp Lifespan: | 50000 hours | ||||
| Certificate: | Comply with CE, RoHS | ||||
| Ctn Size(mm) | 335*110*165MM | 630*110*165MM | 900*110*165MM | 1165*110*165MM | 1430*110*165MM |
| Pcs/ Ctn: | 1 pc | 1 pc | 1 pc | 1 pc | 1 pc |
| Weight/Ctn(kg): | 2kg | 3.65kg | 4.8kg | 6.2kg | 6.8kg |
Environment Requirement
Working Temperature：-35~+50℃
Storage Temperature：-35~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
B LED Linear High Bay Light Application:
B LED Linear High Bay Light can be widely applied in Work shop, Factory building, warehouse, Mine, Tunnel, Road toll station, gas station, large-scale supermarket, exhibition hall, stadium and other places。
Warning
- Please install the lamp according to the installation to avoid dropping and electric shock.
- Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
- Working voltage is not to be exceeded AC100-305V 50/60Hz
Attention
- Don’t install the lamp to non-stable place.
- Installed by qualified electrician.
- Switch off the switch box and contact certified electrician if the lamp works abnormally
Warranty
5-year warranty since the date of purchase is offered for all led linear high bay Lights.
Warranty Terms
- Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
- RYGH will not provide paid maintenance service under conditions within warranty.
- Failure or damage due to force majeure.
- Failure or damage due to transport or unloading.
- Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
- Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
- Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
- RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
