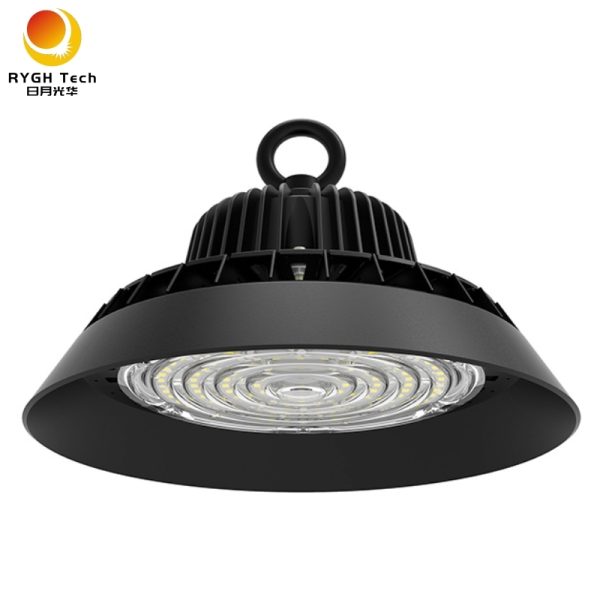

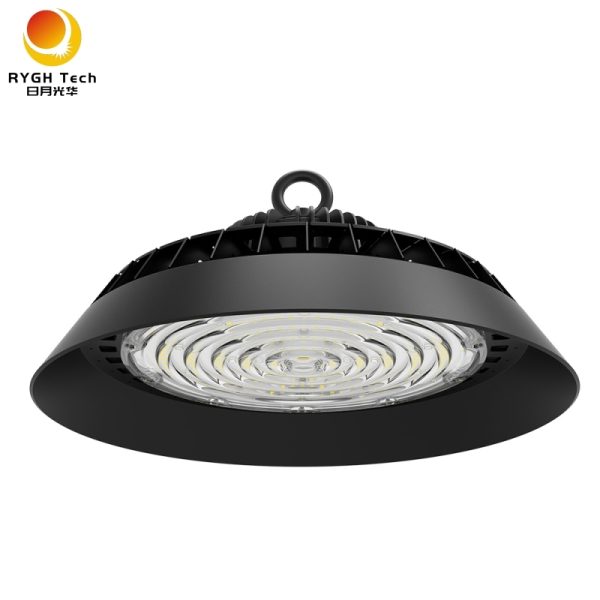

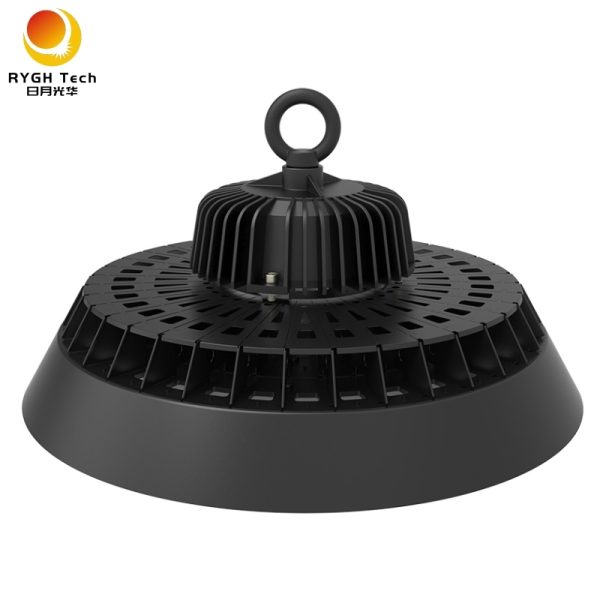

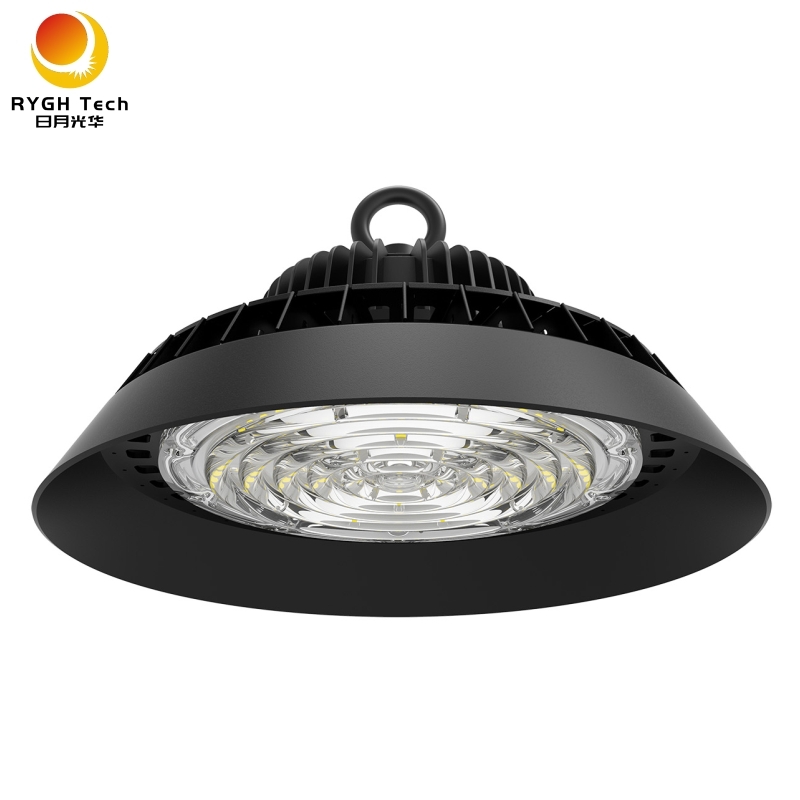

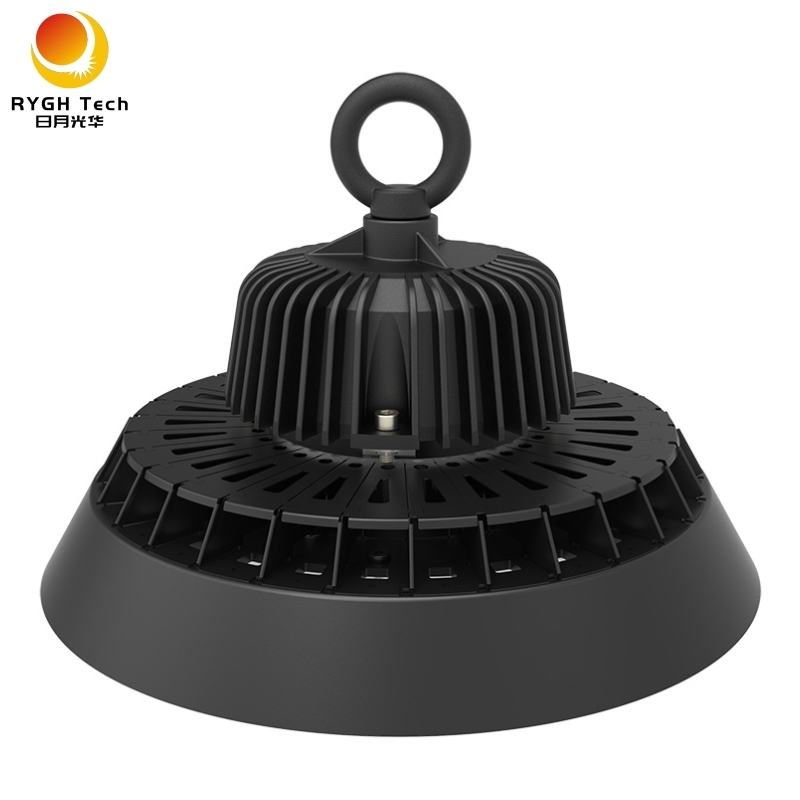

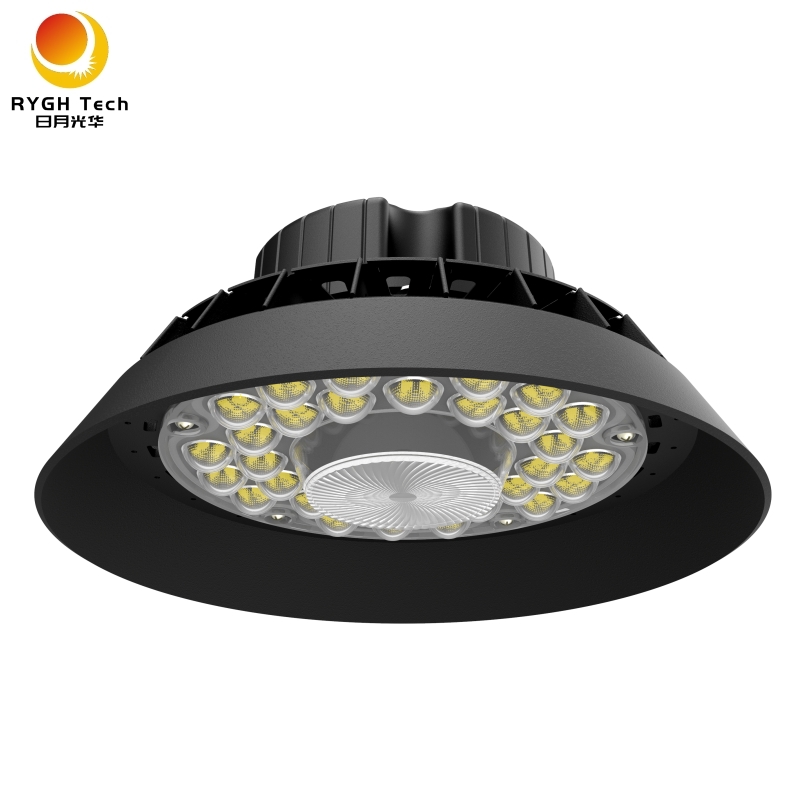

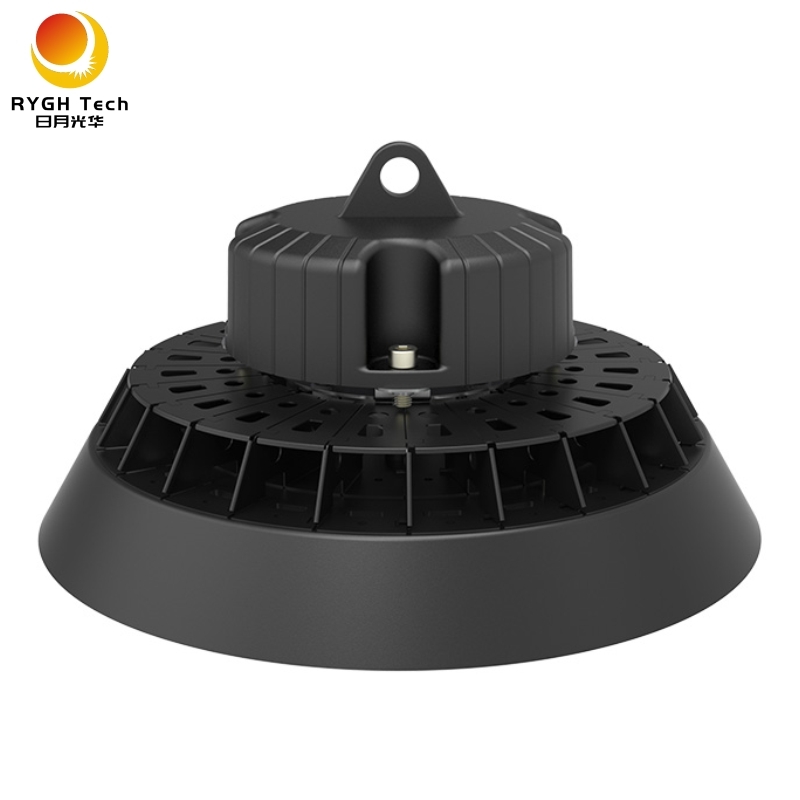

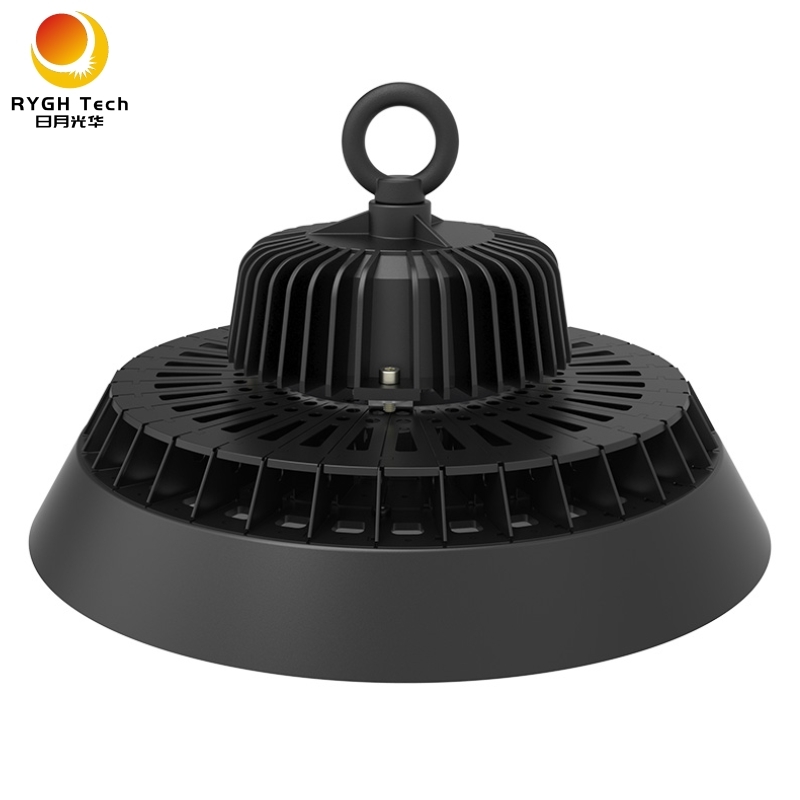

MR LED Bay Light

MR LED Bay Light Features:

1, Independent research and development of patented products, high luminous efficiency, high service life, and the maximum luminous efficiency can reach 150lm / W.

2, 2.5mm-3.0mm thick high thermal conductivity pure aluminum plate base plate design, sufficient tile heat dissipation and reliable service life. The finished products can easily realize 5-year, even 7-10-year warranty without worries.

3, The powder spraying protection process of the radiating base plate ensures the lowest thermal resistance between the aluminum substrate and the radiator and maximizes the radiating effect, which is more reliable than the non powder spraying protection or electrophoresis process in the market.

4, It is the first UFO product in the market to realize 60w-300w full power section coverage and sheet metal + fin process, meeting all UFO market needs.

5, 60W丨100W丨150W丨200W丨300W

6, 60°/90°/120°

7, Hoisting, pole mounted, etc

8, Aluminum fin-type heat sink, convection of upper and lower vents, fast heat dissipation

9, IP65 waterproof；

Category: LED High Bay Light Tags: #100w led high bay light price, #150w led ufo high bay, #150w ufo led high bay light, #200w led high bay lights price, #200w ufo led high bay light, #commercial industrial pendant lighting, #industrial led lighting solutions, #led ufo high bay 200w

Description
Reviews (0)

MR LED Bay Light specifications

Model no.	RYGH-MR60W	RYGH-MR100W	RYGH-MR150W	RYGH-MR200W	RYGH-MR240W	RYGH-MR320W
Way of Install	Hanging	Hanging	Hanging	Hanging	Hanging	Hanging
Rated power	60 Watt	100 Watt	150 Watt	200 Watt	240 Watt	320 Watt
Input voltage	AC 85-305V, 50/60Hz
LED Chip	2835/3030 SMD	2835/3030 SMD	2835/3030 SMD	2835/3030 SMD	2835/3030 SMD	2835/3030 SMD
LED Driver	Taiwan Linear IC	Taiwan Linear IC	Taiwan Linear IC	Taiwan Linear IC	Taiwan Linear IC	Taiwan Linear IC
Material	AL Fin+PC	AL Fin+PC	AL Fin+PC	AL Fin+PC	AL Fin+PC	AL Fin+PC
CRI	70/80	70/80	70/80	70/80	70/80	70/80
Power Factor	>0.95	>0.95	>0.95	>0.95	>0.95	>0.95
CCT	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW	WW, NW, CW
Light efficacy	135LM/W	135LM/W	135LM/W	135LM/W	135LM/W	135LM/W
IP rating	IP65	IP65	IP65	IP65	IP65	IP65
IK rating	IK08	IK08	IK08	IK08	IK08	IK08
Operation temperature	-20~+40℃	-20~+40℃	-20~+40℃	-20~+40℃	-20~+40℃	-20~+40℃
Beam angle	60/90	60/90/120	60/90/120	60/90/120	90	90
Warranty	3/5 Years	3/5 Years	3/5 Years	3/5 Years	3/5 Years	3/5 Years
Life span	50,000 hours	50,000 hours	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Dimension	Ø230*122mm	Ø270*183mm	Ø330*1193mm	Ø380*203mm	Ø420*218mm	Ø420*218mm
Packing quantity	1 pieces/CTN	1 pieces/CTN	1 pieces/CTN	1 pieces/CTN	1 pieces/CTN	1 pieces/CTN
Net Weight	1.2KG	2.1KG	3.0KG	3.9KG	5.3KG	5.3KG
Gross Weight	2.0KG	3.0KG	4.0KG	5.1KG	7KG	7KG
Packing size	L260W260H155mm	L330W330H180mm	L370W370H190mm	L420W420H220mm	L470W470H220mm	L470W470H220mm
Certificate	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs	CE, RoHs

Environment Requirement

Working Temperature：-35~+50℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

MR LED Bay Light Application:

MR LED Bay Light can be widely applied in Warehouse, Factory, Workshop, Plant, Supermarket, Gas Station, Highway Toll Station, Food Factories, Livestock Farms etc.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC85-305V 50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

3/5-year warranty since the date of purchase is offered for all bay Lights.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.

Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
