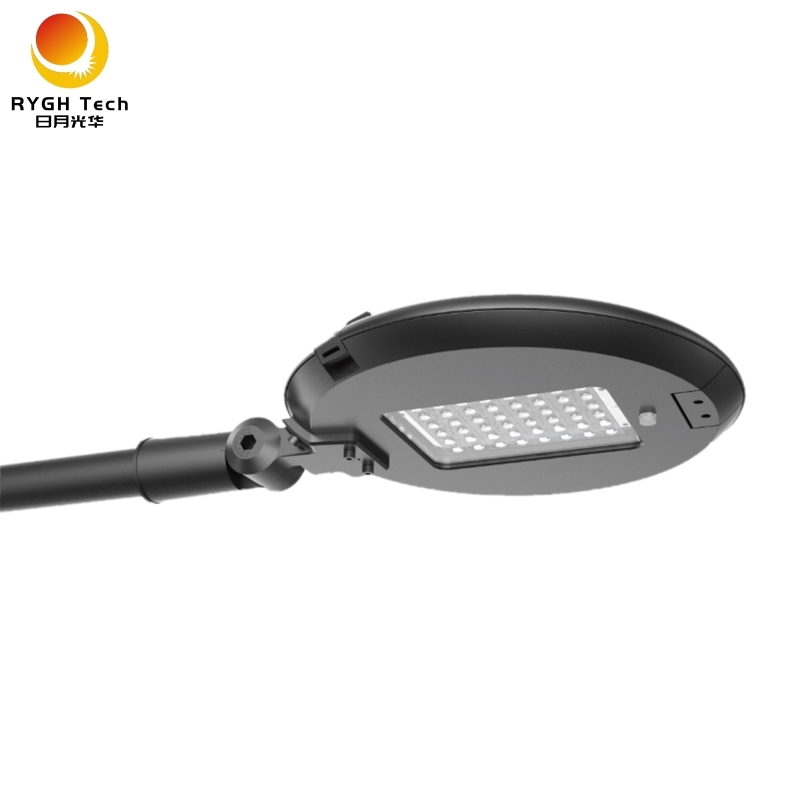

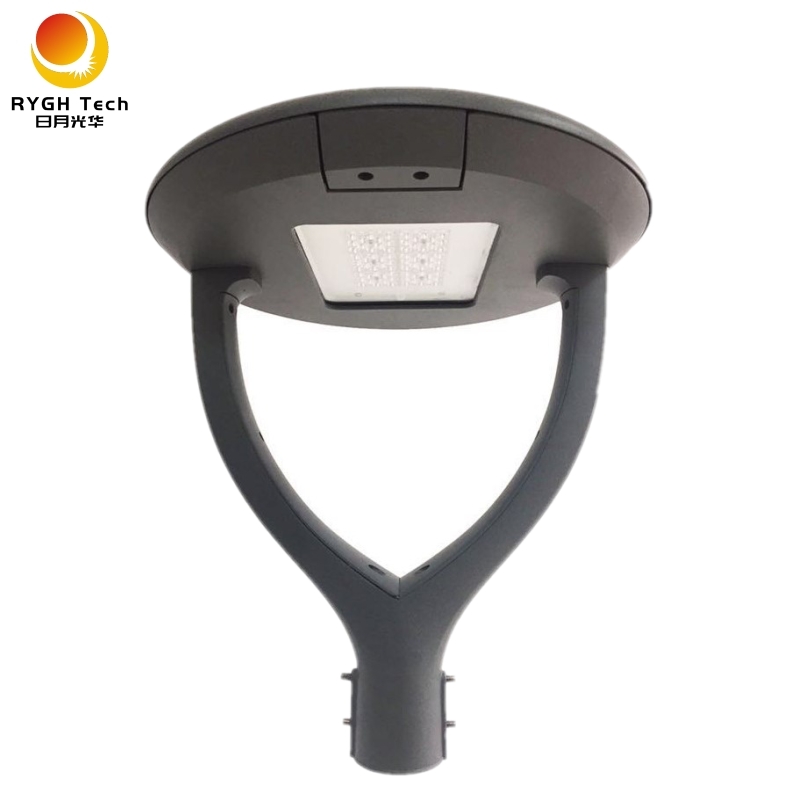

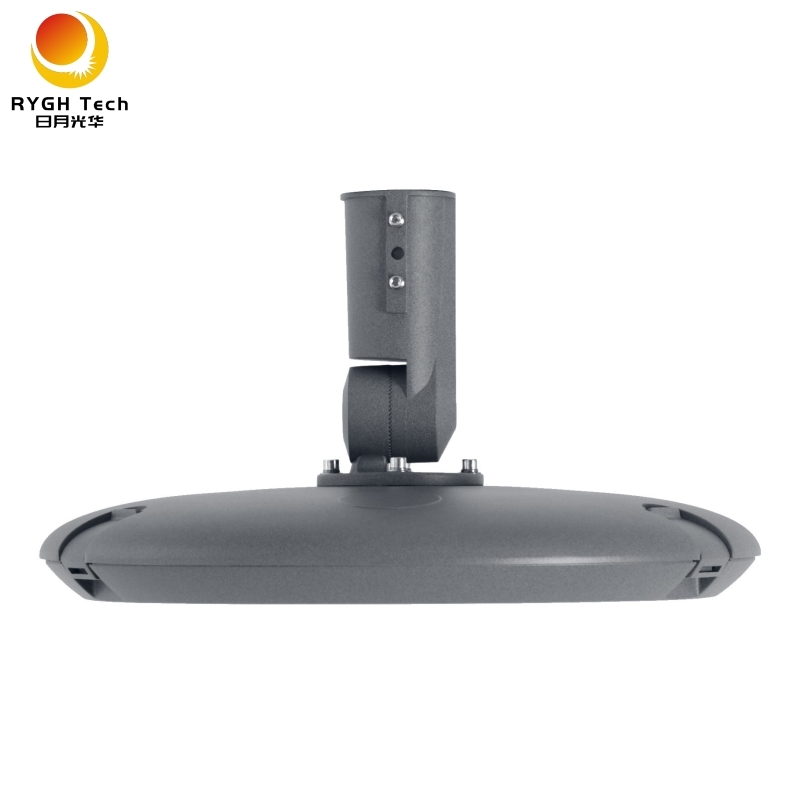

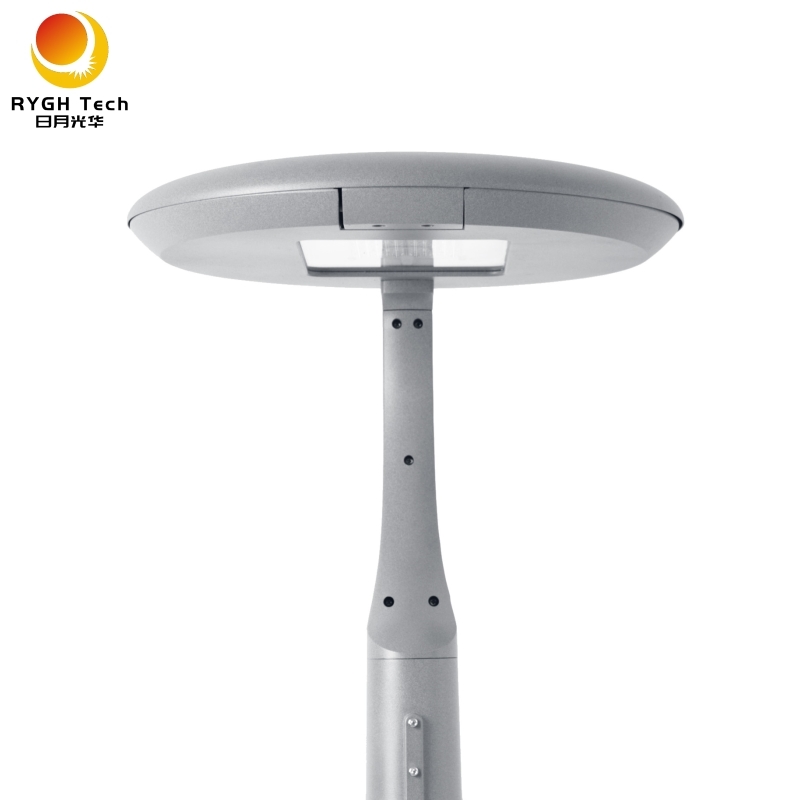

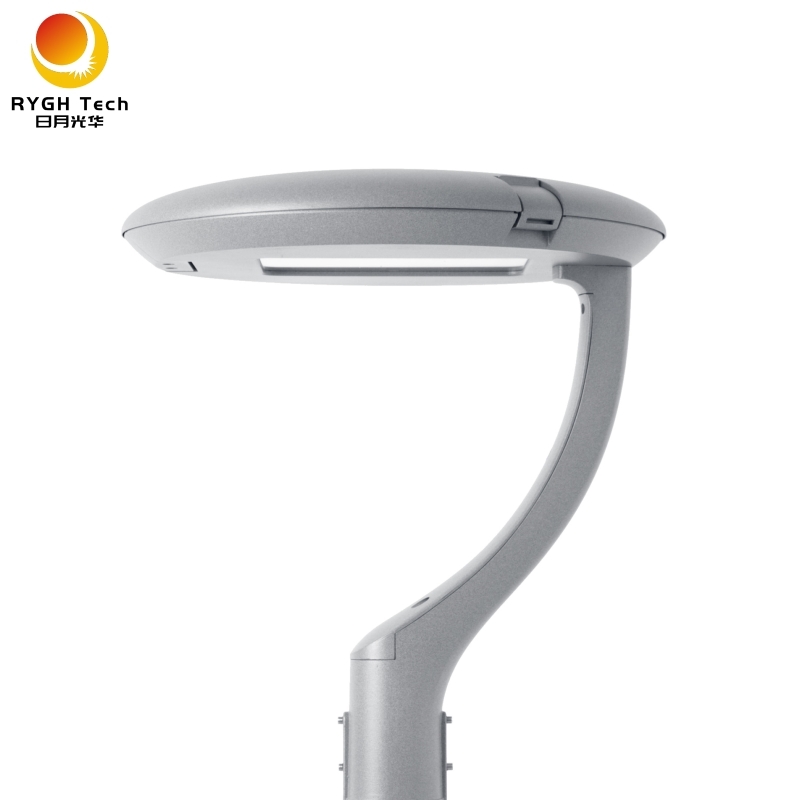

Star LED Garden Light Features:
1, Available from 20W-150W
2, Excellent heat radiation, optical and electrical ability
3, Die-cast aluminum body with pure polyester Electrostatic spray
4, With super white toughened glass
5, Silicon rubber seal ring
6, Stainless screws
7, Humanized design concept, easy to install and maintain
8, IP66
9, Multiple beam angle
10, Mount diameter: 76mm
Star LED Garden Light Specifications
Model No | RYGH-STAR | |||||||
Power | 30W | 40W | 50W | 60W | 80W | 100W | 120W | 150W |
Led chips Qty (3030) | 48 | 48 | 72 | 72 | 108 | 108 | 144 | 192 |
Led chips Qty (5050) | 16 | 16 | 24 | 24 | 36 | 36 | 48 | 48 |
Luminaire Flux (LM) | 3960 | 4800 | 6750 | 7920 | 10400 | 12500 | 15000 | 18000 |
LED Chips | Philips Led (other brand of led upon request) | |||||||
Luminaire Efficacy | 130-150 LM/W | |||||||
CCT | 4000K (2700-6500K upon request) | |||||||
CRI | 70 (80 upon request) | |||||||
Lifetime | 108000H (at 25℃ ambient temperature) | |||||||
Operating Temperature | -30℃-55℃ | |||||||
Driver | Meanwell/Inventronics (other brand of driver upon request) | |||||||
Electrical | Class I or Class II
Input voltage: 100-277VAC/50-60HZ; 108-305VAC/50-60HZ 10KV/20KV SPD Cut-off connector (Power automatically switch off when opening) |
|||||||
Beam angle | TYPE II, TYPE III | |||||||
Dimming | DALI / 1-10V / PWM / FIVE LEVELS DIMMING | |||||||
Options | Photocell / Surge protection device / External cable (different length upon request) | |||||||
Color | Grey / Black / White (other color upon request) | |||||||
Tightless Level | IP66 | |||||||
Impact Resistance | IK08 | |||||||
Standards & Certification | CE, ROHS |
Environment Requirement
Working Temperature:-35~+55℃
Storage Temperature:-35~+50℃
Working Humidity:0%~85%
Storage Humidity:0%~90%
Star LED Garden Light Application:
Star LED Garden Light can be widely applied for pathways, parking lots, building entryways, alleys, streets, tunnels and loading docks.
Warning
Attention
Warranty
5-year warranty since the date of purchase is offered for all led garden Lights.
Warranty Terms
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
