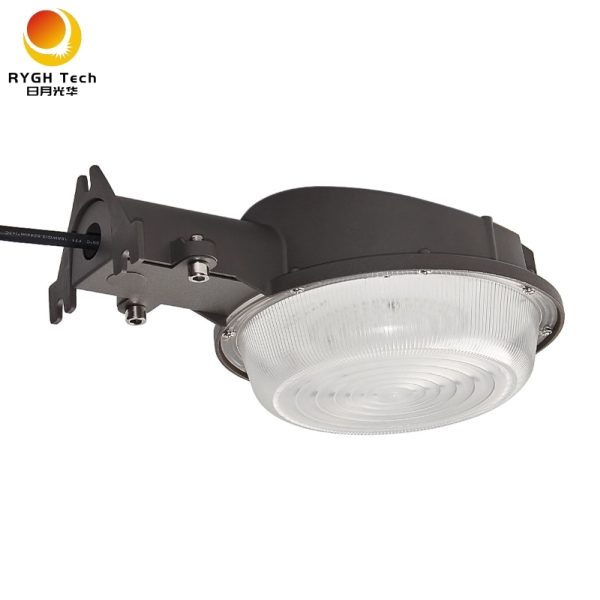

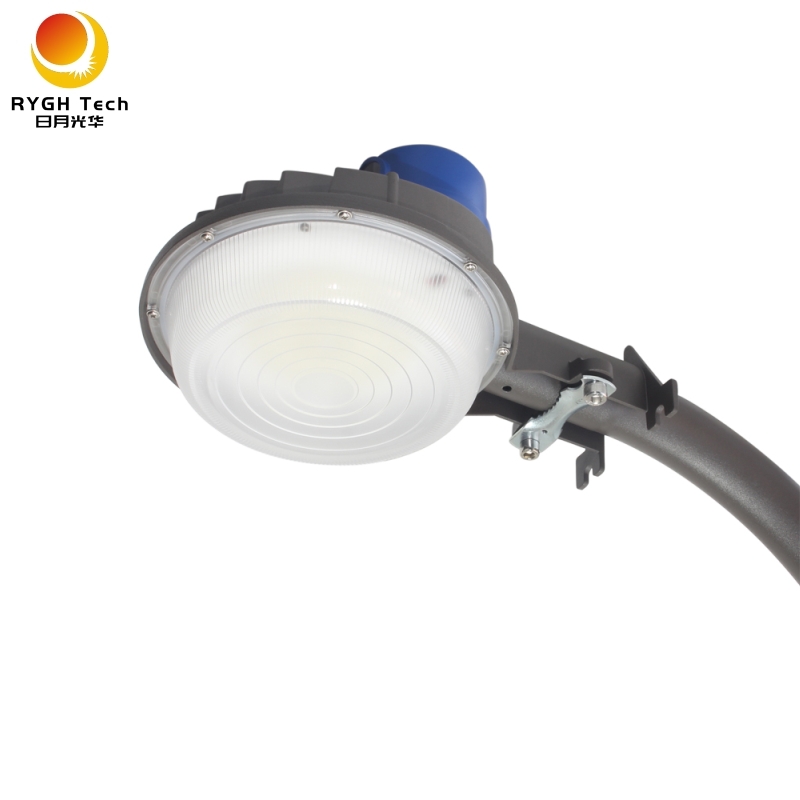

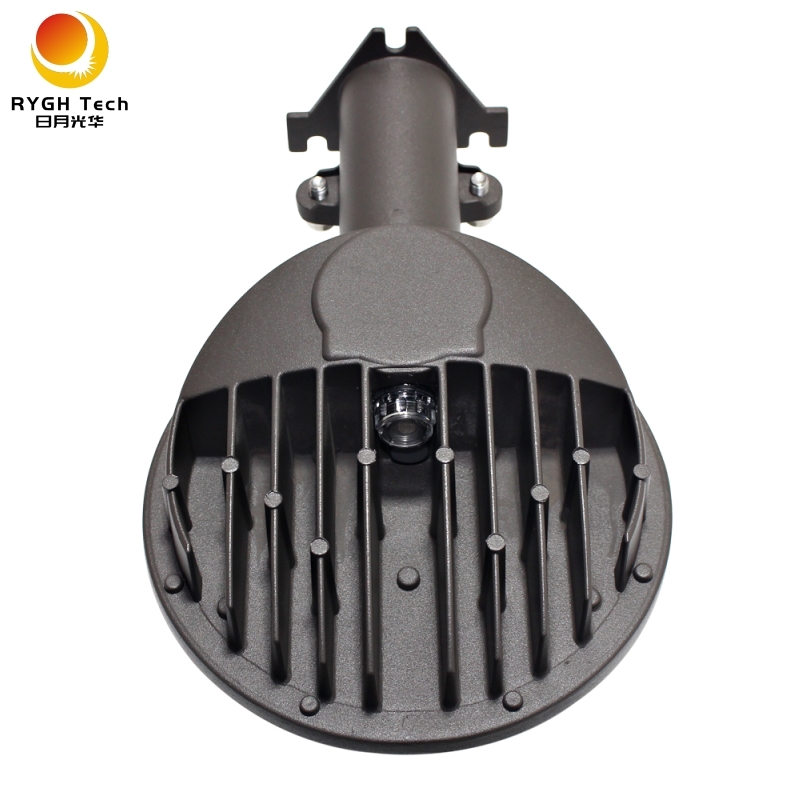

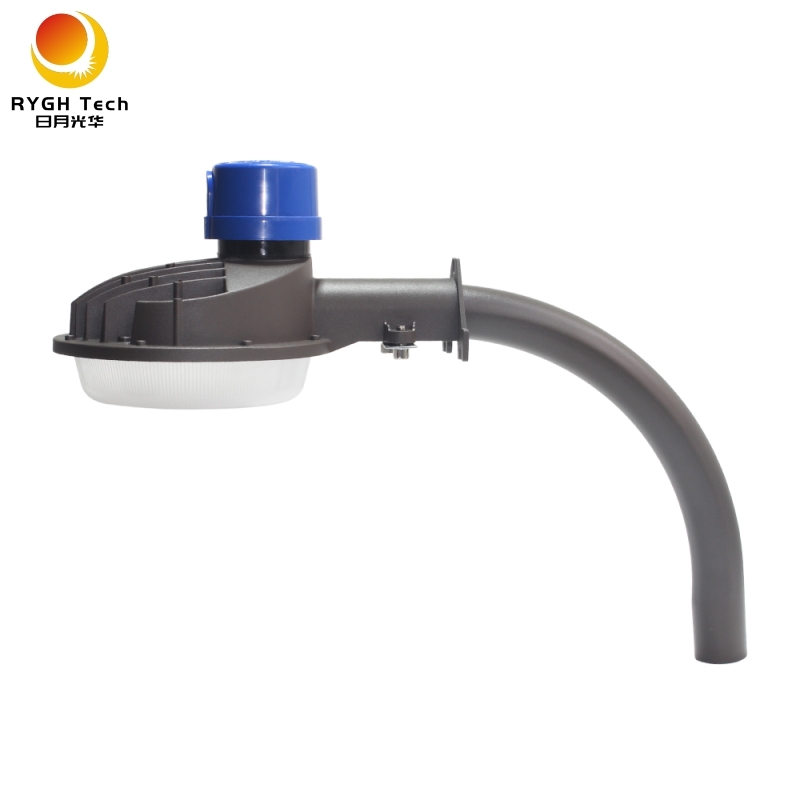

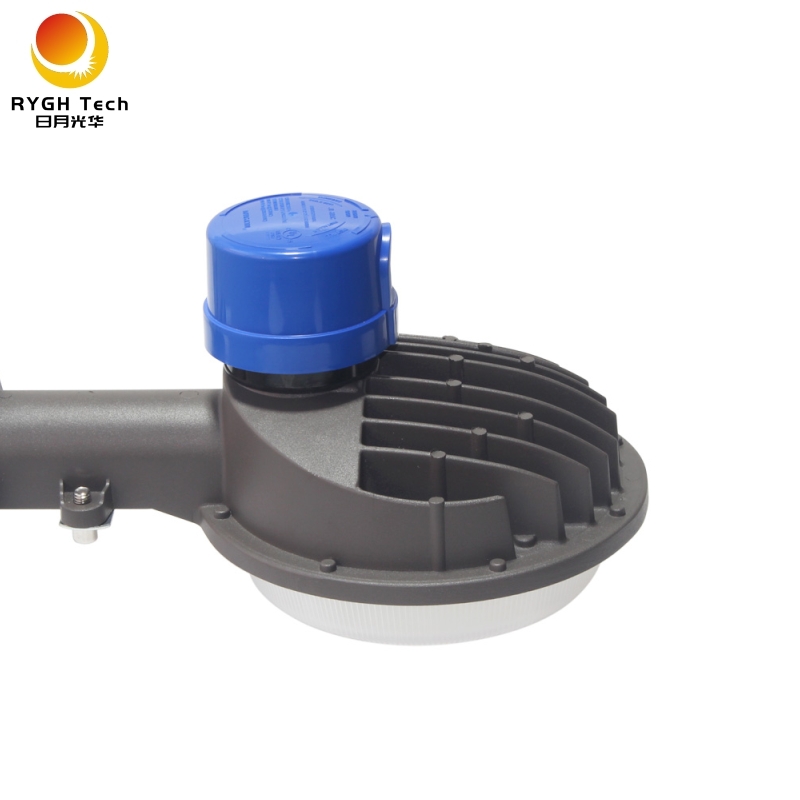

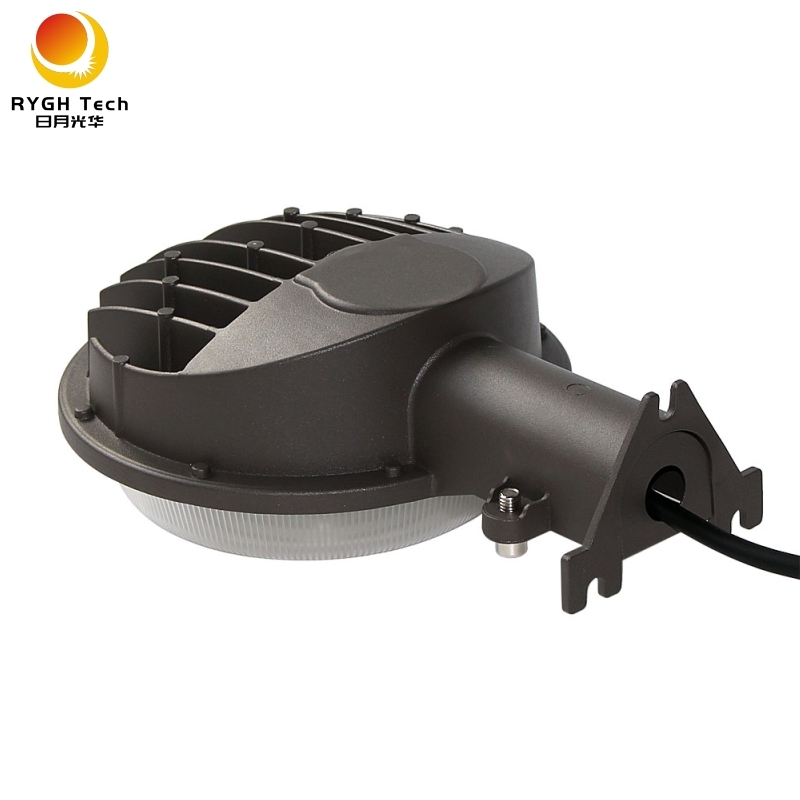

D LED Wall light Features: 35W | 50W | 120-130lm/w
1, Cost effective
2, Sturdy aluminum construction, durable PC lens, long lasting, optimal light Spread
3, Classic familiar Styling
4, IP65 Frame
5, Philips Lumileds LED Array
6, LED Driver, voltage AC100-277V
7, Easy to install and operate
8, 50 to 90 percent energy reductions
D LED Wall light specifications
Model no. | RYGH-BDD35W | RYGH-BDD50W |
Name | LED Wall Pack Light | LED Wall Pack Light |
Rated power | 35 Watt | 50 Watt |
Input voltage | AC 85-305V, 50/60Hz | AC 85-305V, 50/60Hz |
LED Chip | 2835 SMD 88 PCS | 2835 SMD 132 PCS |
LED Driver | MEANWELL, Inventronics, Sosen | MEANWELL, Inventronics, Sosen |
Material | Die cast AL+PC Lens | Die cast AL+PC Lens |
CRI | 70/80 | 70/80 |
Power Factor | >0.95 | >0.95 |
CCT | WW, NW, CW | WW, NW, CW |
Light efficacy | 120-130LM/W | 120-130LM/W |
IP rating | IP65 | IP65 |
IK rating | IK08 | IK08 |
Operation temperature | -35~+50℃ | -35~+50℃ |
Beam angle | 120° | 120° |
Warranty | 5 Years | 5 Years |
Life span | 50,000 hours | 50,000 hours |
Dimension | L285*W195*H100mm | L285*W195*H100mm |
Packing quantity | 6 pieces/CTN | 6 pieces/CTN |
Packing size | CTN: L420*W320*H380mm, Inner box: L300*W200*H115mm | |
Certificate | CE, RoHs | CE, RoHs |
Environment Requirement
Working Temperature:-35~+50℃
Storage Temperature:-35~+50℃
Working Humidity:0%~85%
Storage Humidity:0%~90%
D LED Wall light Application:
D LED Wall light can be widely applied for outdoor wall packing.
Warning
Attention
Warranty
5-year warranty since the date of purchase is offered for all led wall Light.
Warranty Terms
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
Other Models of RYGH LED Wall Pack Light: A LED Wall Pack Light, B LED Wall Pack Light, C LED Wall Pack Light
Other Category of RYGH LED lighting: LED Grow Light, LED Stadium Light, Solar LED Street Light, LED Street Light, LED Flood Light, LED Tunnel Light, LED High Bay Light, LED Garden Light, LED Bollard, LED Spotlight, LED Vapor Tight Light, LED Canopy Light
You must be logged in to post a review.
A LED Wall Pack Light Features: 60W | 100W | 120W | 110-160lm/w
1, Cost effective
2, Sturdy aluminum construction, durable glass lens, long lasting, optimal light Spread
3, Classic familiar Styling
4, IP65 Frame
5, Philips Lumileds LED Array
6, LED Driver, voltage AC100-277V, AC 347-480V
7, Easy to install and operate
8, 50 to 90 percent energy reductions
B LED Wall Pack Light Features: 40W | 50W | 60W | 80W | 100W | 110-180LM/W
1, Cost effective
2, Sturdy aluminum construction, durable PC lens, long lasting, optimal light Spread
3, Classic familiar Styling
4, IP65 Frame
5, Philips Lumileds LED Array
6, LED Driver, voltage AC100-277V, AC 347-480V
7, Easy to install and operate
8, 50 to 90 percent energy reductions
C LED Wall Pack Light Features: 20W | 30W | 110-160lm/w
1, Cost effective
2, Sturdy aluminum construction, durable PC lens, long lasting, optimal light Spread
3, Classic familiar Styling
4, IP65 Frame
5, Philips Lumileds LED Array
6, LED Driver, voltage AC100-277V, AC 347-480V
7, Easy to install and operate
8, 50 to 90 percent energy reductions
