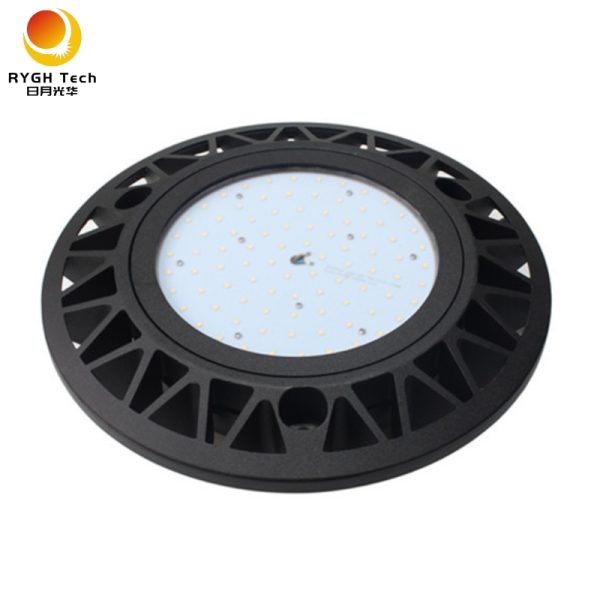

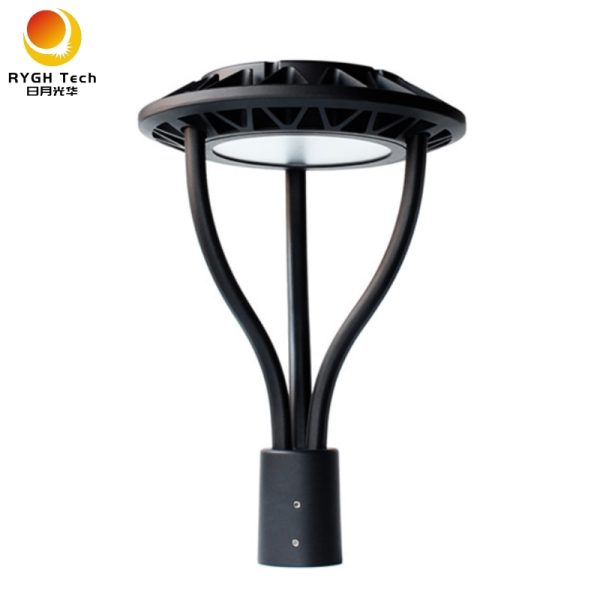

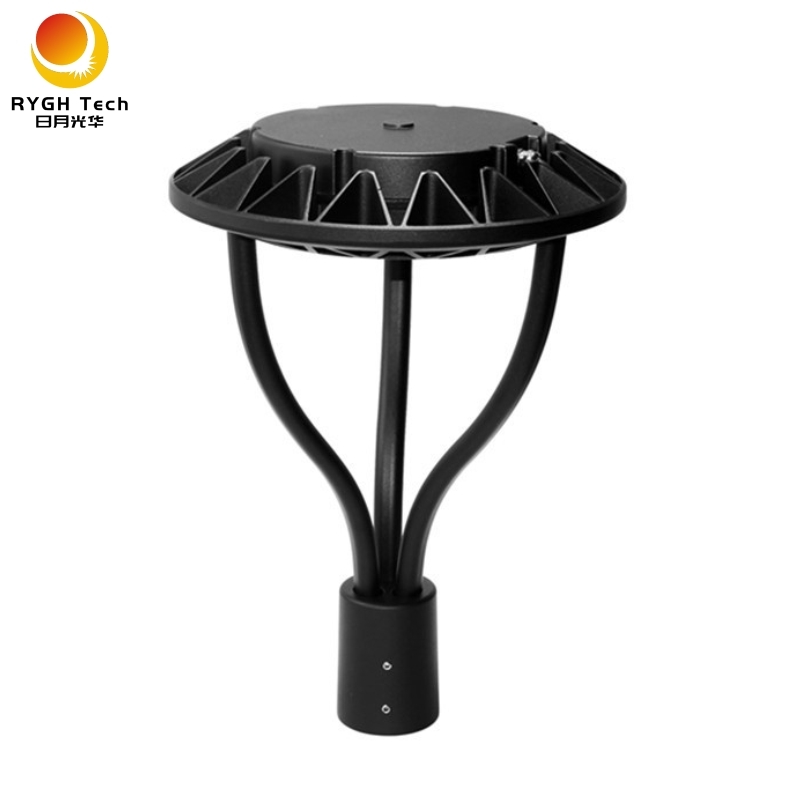

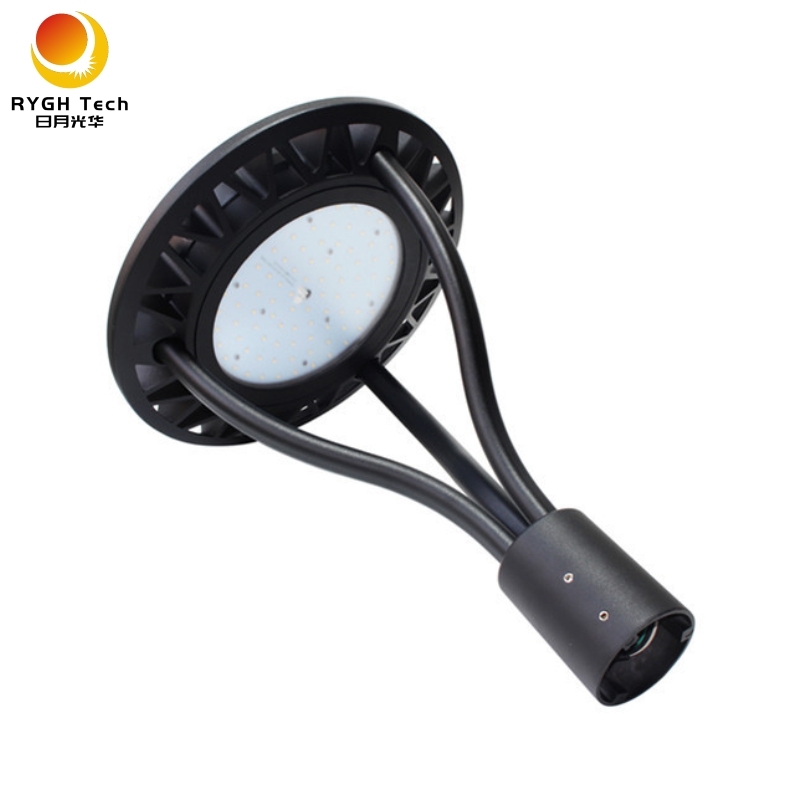

1G LED Garden Light Features:
1, Available from 30W-150W
2, Excellent heat radiation, optical and electrical ability
3, Die-cast aluminum body with pure polyester Electrostatic spray
4, With super transparency PC lens
5, Silicon rubber seal ring
6, Stainless screws
7, Humanized design concept, easy to install and maintain
8, IP65
9, Multiple beam angle
10, Mount diameter: 60mm
1G LED Garden Light specifications
Model no. | RYGH-GLA50W | RYGH-GLA80W | RYGH-GLA100W | RYGH-GLA120W | RYGH-GLA150W |
Name | LED Garden Light | ||||
Rated power | 50 Watt | 80 Watt | 100 Watt | 120 Watt | 150 Watt |
Input voltage | AC 85-305V,AC 347-480V, 50/60Hz | ||||
LED Chip | 3030 SMD 132/ 140 PCS | 3030 SMD 210 PCS | |||
LED Driver | MEANWELL, Inventronics, Sosen | ||||
Material | Die cast AL+PC Lens | ||||
CRI | 70/80 | ||||
Power Factor | >0.95 | ||||
CCT | WW, NW, CW | ||||
Light efficacy | 120-130LM/W | ||||
IP rating | IP65 | ||||
IK rating | IK08 | ||||
Operation temperature | -35~+50℃ | ||||
Beam angle | 60°, 90°, 130° | ||||
Warranty | 5 Years | ||||
Life span | 50,000 hours | ||||
Dimension | D360*H504mm | ||||
Packing quantity | 1 piece/CTN | ||||
Net Weight | 6KG | ||||
Gross Weight | 8KG | ||||
Packing size | 480*400*160mm | ||||
Certificate | CE, RoHs |
Environment Requirement
Working Temperature:-35~+50℃
Storage Temperature:-35~+50℃
Working Humidity:0%~85%
Storage Humidity:0%~90%
1G LED Garden Light application:
1G LED Garden Light can be widely applied for pathways, parking lots, building entryways, alleys, streets, tunnels and loading docks.
Warning
Attention
Warranty
5-year warranty since the date of purchase is offered for all led garden Lights.
Warranty Terms
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
