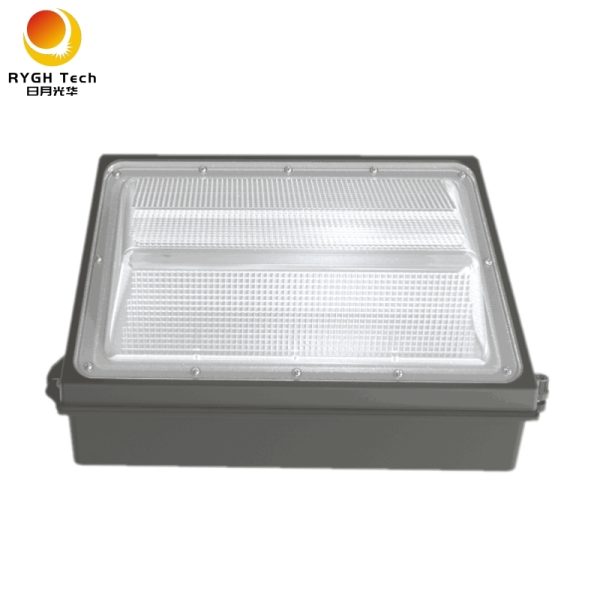

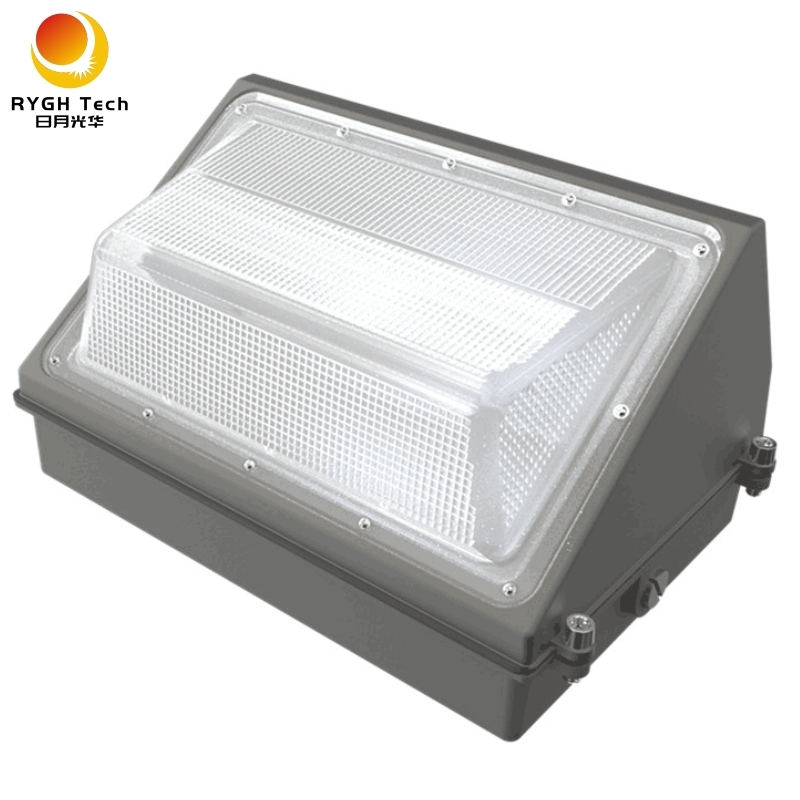

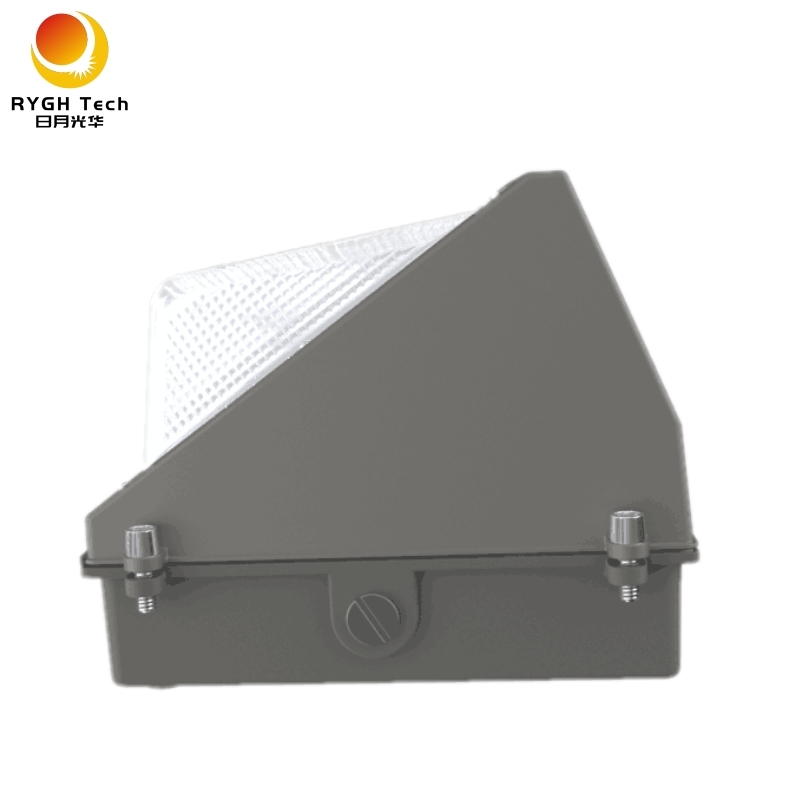

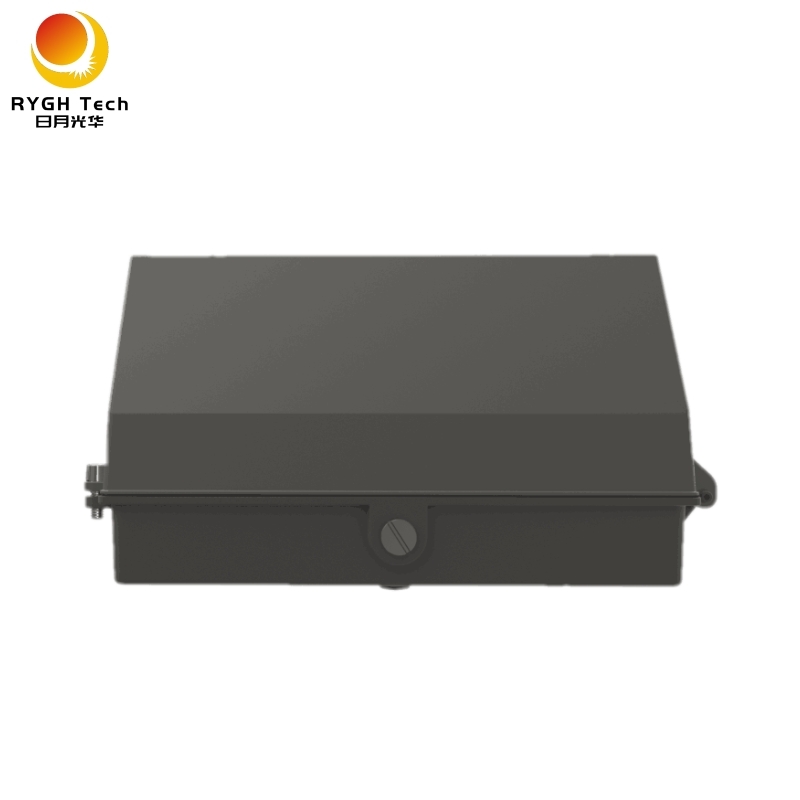

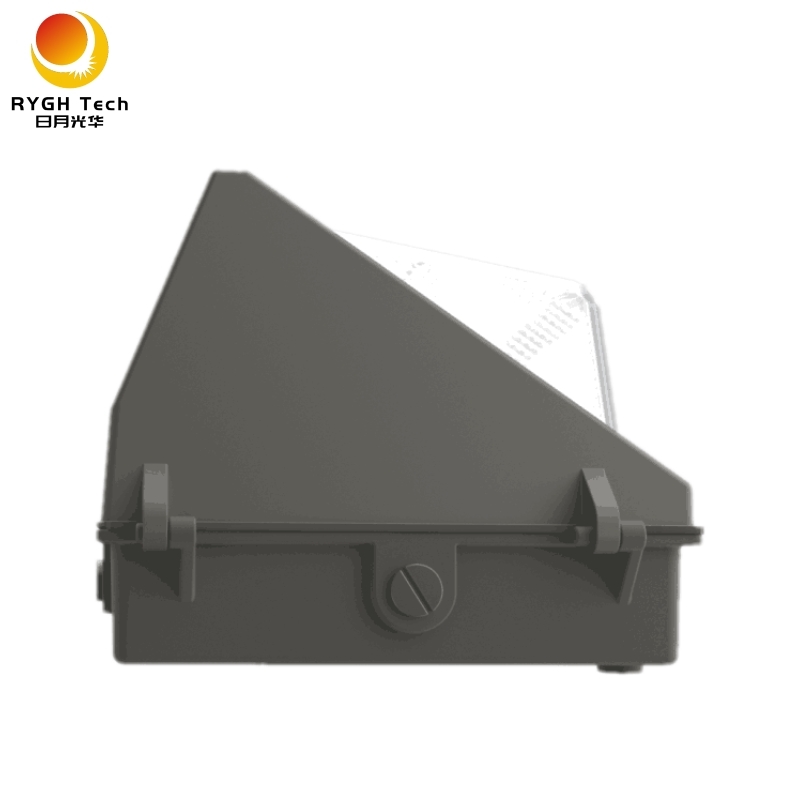

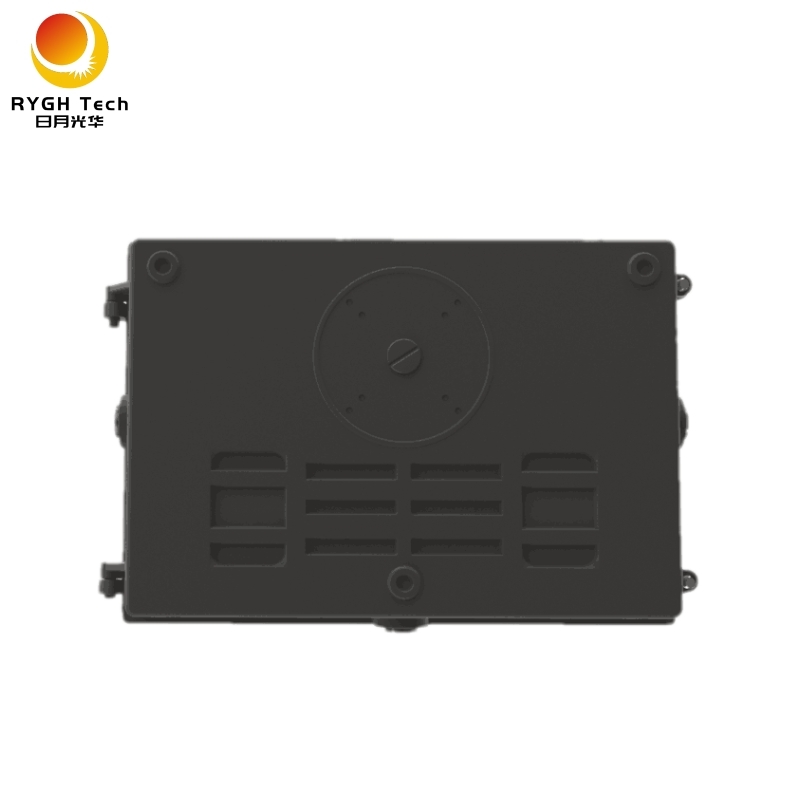

A LED Wall Pack Light

A LED Wall Pack Light Features: 60W | 100W | 120W | 110-160lm/w

1, Cost effective

2, Sturdy aluminum construction, durable glass lens, long lasting, optimal light Spread

3, Classic familiar Styling

4, IP65 Frame

5, Philips Lumileds LED Array

6, LED Driver, voltage AC100-277V, AC 347-480V

7, Easy to install and operate

8, 50 to 90 percent energy reductions

Model no.	RYGH-BDA2	RYGH-BDA3	RYGH-BDA4
Name	LED Wall Pack Light	LED Wall Pack Light	LED Wall Pack Light
Rated power	60 Watt	100 Watt	120 Watt
Input voltage	AC 85-305V,AC 347-480V, 50/60Hz	AC 85-305V,AC 347-480V, 50/60Hz	AC 85-305V,AC 347-480V, 50/60Hz
LED Chip	3030 SMD	3030 SMD	3030 SMD
LED Driver	MEANWELL, Inventronics, Sosen	MEANWELL, Inventronics, Sosen	MEANWELL, Inventronics, Sosen
Material	Die cast AL+Tempered Glass	Die cast AL+Tempered Glass	Die cast AL+Tempered Glass
CRI	70/80	70/80	70/80
Power Factor	>0.95	>0.95	>0.95
CCT	WW, NW, CW	WW, NW, CW	WW, NW, CW
Light efficacy	110-160LM/W	110-160LM/W	110-160LM/W
IP rating	IP65	IP65	IP65
IK rating	IK08	IK08	IK08
Operation temperature	-35~+50℃	-35~+50℃	-35~+50℃
Beam angle	120°	120°	120°
Warranty	5 Years	5 Years	5 Years
Life span	50,000 hours	50,000 hours	50,000 hours
Dimension	L361W187H235mm	L361W187H235mm	L361W187H235mm
Packing quantity	1 piece/CTN	1 piece/CTN	1 piece/CTN
Net Weight	2.4KG	3.4KG	4KG
Gross Weight	3.4KG	4.5KG	5.5KG
Packing size	L400W280H235mm	L400W280H235mm	L400W280H235mm
Certificate	CE, RoHs	CE, RoHs	CE, RoHs

Environment Requirement

Working Temperature：-35~+50℃

Storage Temperature：-35~+50℃

Working Humidity：0%~85%

Storage Humidity：0%~90%

A LED Wall Pack Light can be widely applied for outdoor wall packing.

Warning

Please install the lamp according to the installation to avoid dropping and electric shock.
Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
Working voltage is not to be exceeded AC180-305V or AC 347-480V50/60Hz

Attention

Don’t install the lamp to non-stable place.
Installed by qualified electrician.
Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty

5-year warranty since the date of purchase is offered for all led wall Pack Light.

Warranty Terms

Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
RYGH will not provide paid maintenance service under conditions within warranty.
Failure or damage due to force majeure.
Failure or damage due to transport or unloading.
Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
RYGH reserves the right for final explanation of aforesaid terms.

Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
