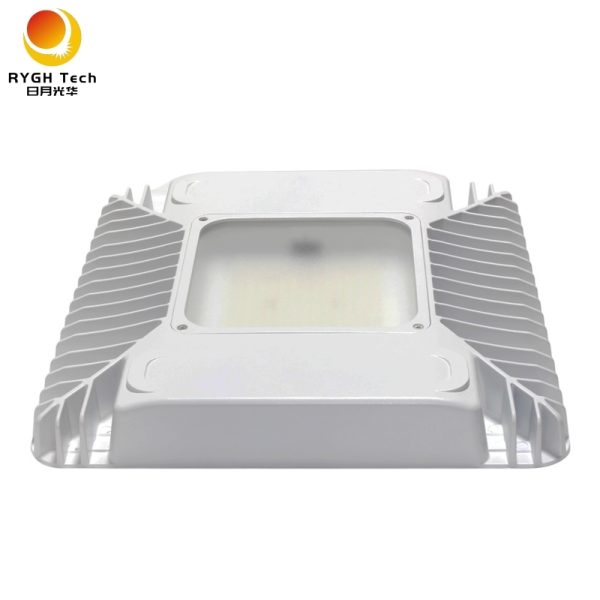

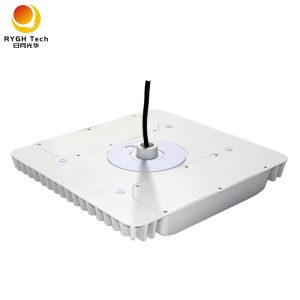

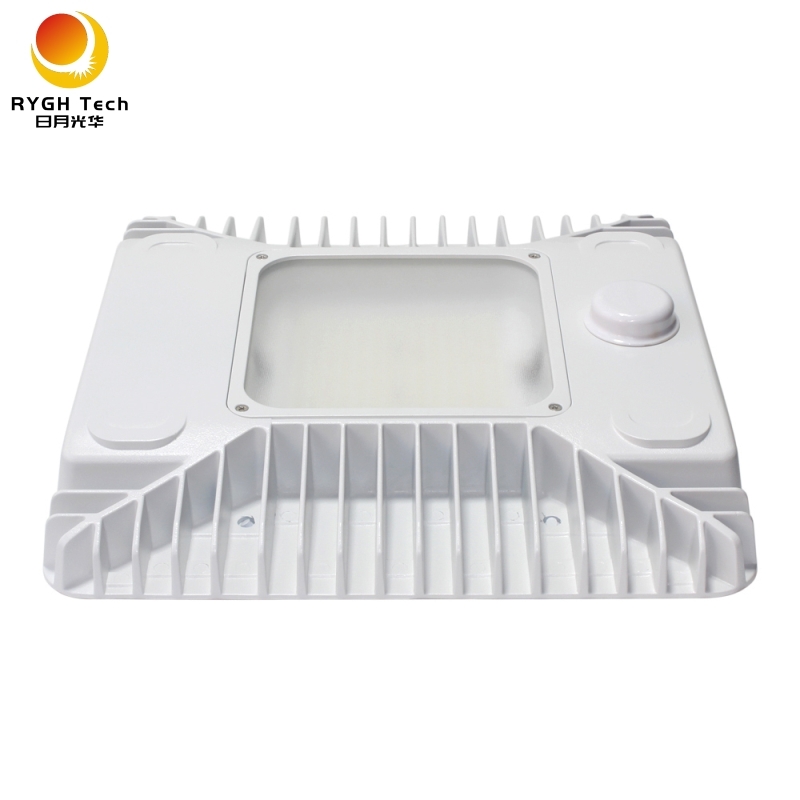

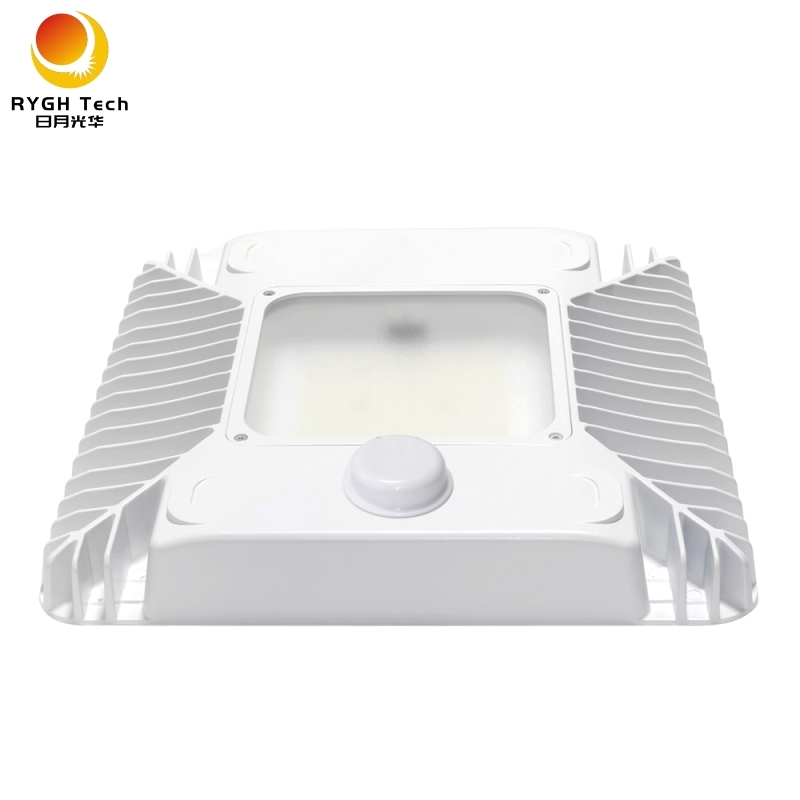

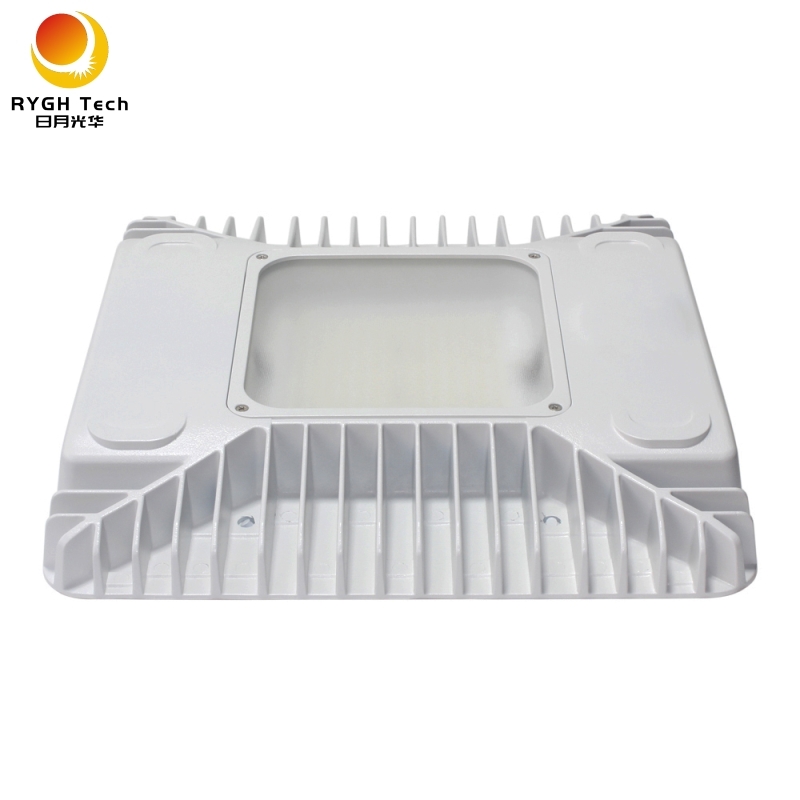

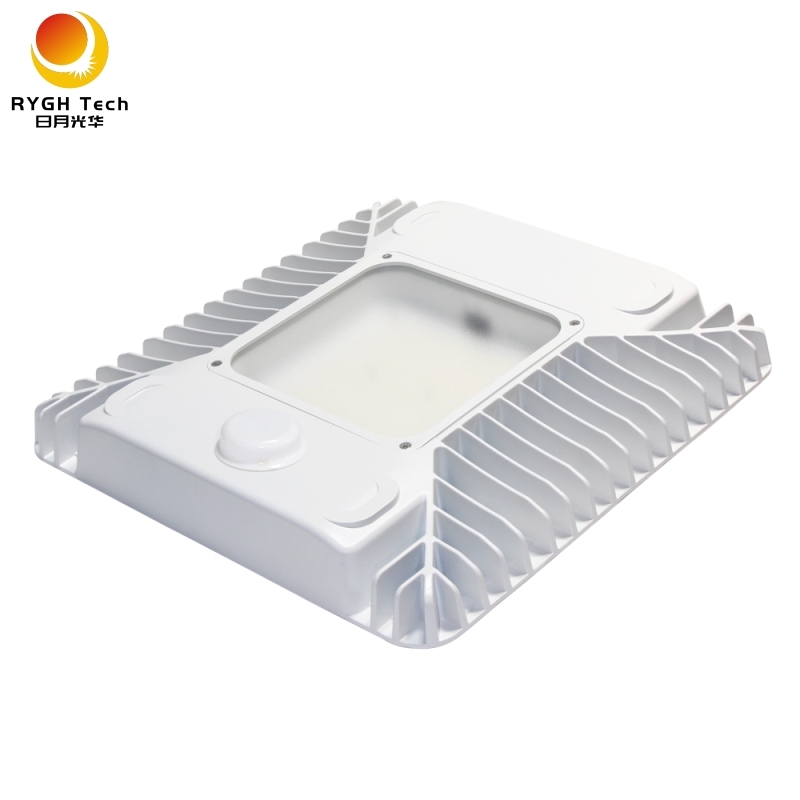

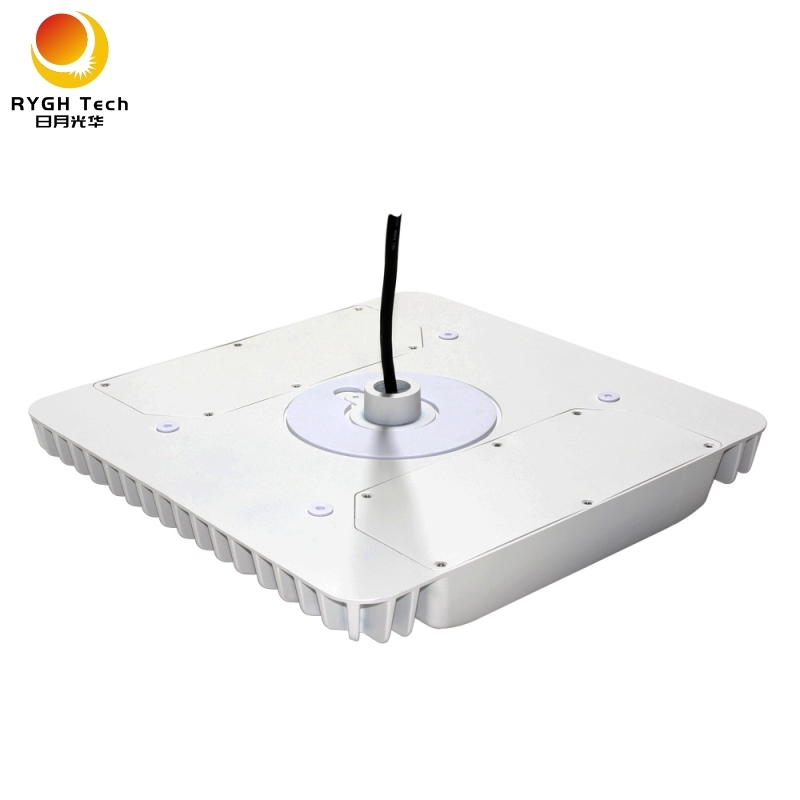

2G LED Canopy Light
2G LED Canopy Light Features: 60W-150W
Light efficiency: 120-180lm/w
1, Durable, low-cost, and power flood illumination.
2, High light output from compact form, which produces a brilliant flood beam with low heat, low energy costs.
3, Aluminum housing and feature LED bulbs with an IP65 rating – which makes them extremely resistant to the damaging effects of outdoor environments.
4, Can be used in gas stations, low and high ceilings and garages, which include quick hand mount units with emergency battery backups optional and vandal resistant units.
5, Uilt with rugged housing like polycarbonate lenses and die-cast aluminum which can withstand the harsh outdoor elements and the potential rough abuse or tampering in public areas.
6, Direct replacement for traditional halide fixtures.
7, With day/night photocell optional, which enables the canopy lights to turn on automatically when the conditions of nighttime lighting are detected, saving the costs of energy.
8, Require little maintenance due to the sturdy fixtures and LED technology.
2G LED Canopy Light specifications
| Model no. | RYGH-YZDA3-60W | RYGH-YZDA3-80W | RYGH-YZDA3-100W | RYGH-YZDA3-120W | RYGH-YZDA3-150W |
| Way of Install | Ceiling mounted | ||||
| Rated power | 60 Watt | 80 Watt | 100 Watt | 120W | 150W |
| Input voltage | AC 85-305V, 50/60Hz | ||||
| LED Chip | 3030 SMD 140 PCS | 3030 SMD 196 PCS | |||
| LED Driver | MEANWELL, Inventronics, SOSEN | ||||
| Material | Die cast AL+PC | ||||
| CRI | 70/80 | ||||
| Power Factor | >0.95 | ||||
| CCT | WW, NW, CW | ||||
| Light efficacy | 140-150LM/W | 130-140LM/W | 120-130LM/W | 130-140LM/W | 120-130LM/W |
| IP rating | IP65 | ||||
| IK rating | IK08 | ||||
| Operation temperature | -35~+50℃ | ||||
| Beam angle | 122° | ||||
| Warranty | 5 Years | ||||
| Life span | 50,000 hours | ||||
| Dimension | L380*W380*H70mm | ||||
| Packing quantity | 1 piece/CTN | ||||
| Net Weight | 6.8 KG | 6.9 KG | 7 KG | 7.2KG | 7.3KG |
| Gross Weight | 8.3 KG | 8.4 KG | 8.6 KG | 8.8 KG | 8.9KG |
| Packing size | L425*W420*H120mm | ||||
| Certificate | CE, RoHs | ||||
Environment Requirement
Working Temperature：-35~+50℃
Storage Temperature：-35~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
2G LED Canopy Light Application:
2G LED Canopy Light are Widely used in construction site lighting, plant lighting, industrial lighting, sports centers, gas stations, parking lots, waiting rooms, railway stations, ports, terminals and other large-scale energy-efficient lighting.
Warning
- Please install the lamp according to the installation to avoid dropping and electric shock.
- Don’t exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
- Working voltage is not to be exceeded AC85-305V 50/60Hz
Attention
- Don’t install the lamp to non-stable place.
- Installed by qualified electrician.
- Switch off the switch box and contact certified electrician if the lamp works abnormally
Warranty
5-year warranty since the date of purchase is offered for all LED Canopy Lights.
Warranty Terms
- Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
- RYGH will not provide paid maintenance service under conditions within warranty.
- Failure or damage due to force majeure.
- Failure or damage due to transport or unloading.
- Failure or damage due to incorrectly usage or fail to comply with the User’s Guide and Caution.
- Failure or damage due to demolition, repair, alteration without Manufacturer’s authorization.
- Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
- RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
